Innovative Design, Comprehensive Testing and the Highest Quality
Optional Nylon Wheel, Polyurethane Wheel, Rubber Wheel, Single Fork Roller or Tandem Fork Rollers.
Optional 800mm, 900mm, 1000mm Length Fork
Optional Foot Pedal Release.
Optional Pump Color Black Painting or Sliver Painting
2,500 or 3,000 kg Capacity
Two capacities meet common pallet transport needs.
75 or 85 mm Lowered Forks
75/85 mm fork heights suit varied pallet clearance.
Controlled Fork Lowering
Lower forks by hand lever or optional foot pedal.
210° Steering Range
210° steering supports warehouse maneuvering.
Configurable Wheels and Forks
Choose wheel materials, rollers and fork sizes.
Standard Pallet Truck Configuration

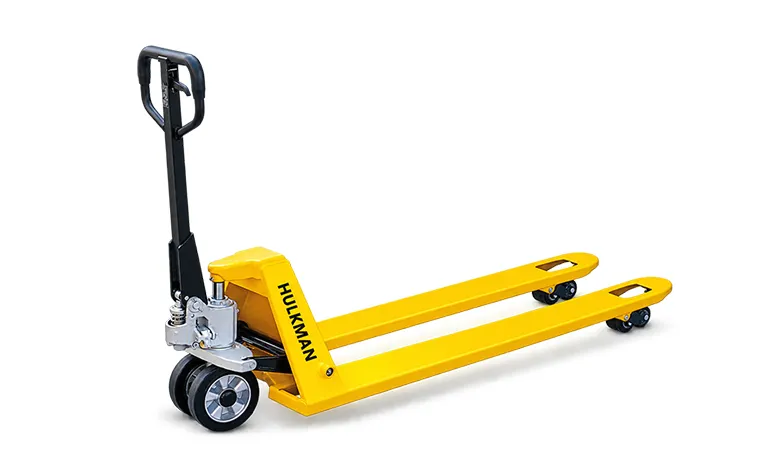

The BF is a manual hydraulic pallet truck available with rated capacities of 2,500 and 3,000 kg. It is designed for moving compatible palletized loads over short distances on suitable level floors.
The standard specification includes fork lengths of 1,100, 1,150 and 1,220 mm, with overall fork widths of 520, 550 or 685 mm. The selected dimensions should be matched to the pallet entry, load footprint and operating aisle.
Hydraulic Pump and Load Control
The complete pump assembly is designed to provide hydraulic lifting and controlled fork lowering. An overload valve is included to protect the hydraulic system against loads beyond its specified setting.

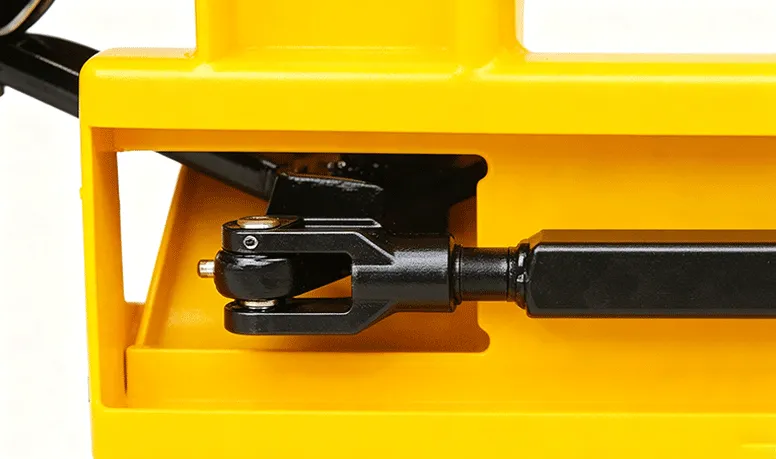

An adjustable pump cap and adjustable straight tappet are shown in the supplied product material. Actual lifting capacity still depends on correct load positioning, pallet condition and floor quality.

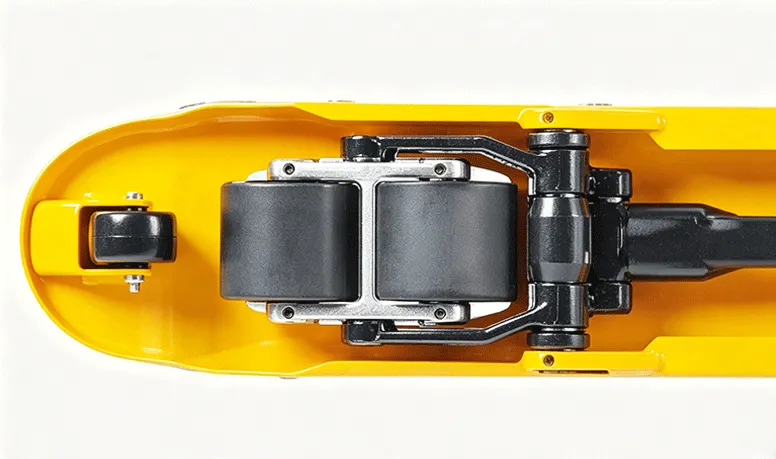

Wheel and Roller Choices
The BF can be configured with nylon, polyurethane or rubber wheels. Single or tandem fork rollers are available to suit different floor and pallet-entry requirements.
Entry and exit rollers assist the forks when entering or leaving compatible pallets. Wheel material should be selected according to floor condition, noise requirements, load frequency and operating environment.
Operator Control and Maintenance

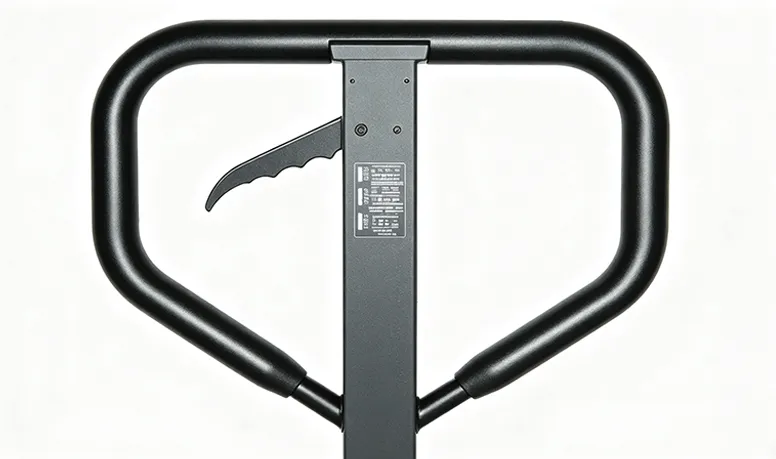

The large rubber handle incorporates three control positions: raise, lower and neutral. The steering system provides a stated 210° steering arc for maneuvering in confined handling areas.
Twelve grease nipples are positioned on movable parts to support routine lubrication. A fully rubber-wrapped handle and foot-pedal release are listed as optional configurat ions.
| Parameter | Symbol / Unit | MTB25 / MTB30 |
| Model | — | MTB25 / MTB30 |
| Capacity | Q (kg) | 2500 / 3000 |
| Lowered Fork Height | h13 (mm) | 85 |
| Steering Wheel | mm | Φ200 |
| Fork Wheel, Single | mm | Φ80 × 93 |
| Fork Wheel, Tandem | mm | Φ80 × 70 |
| Max. Lift Height | h3 (mm) | 200 |
| Total Height | h14 (mm) | 1224 |
| Overall Length | l1 (mm) | 1483 / 1533 / 1603 |
| Fork Length | l (mm) | 1100 / 1150 / 1220 |
| Overall Fork Width | b5 (mm) | 520 / 550 / 685 |
| Ground Clearance, Center of Wheelbase | m2 (mm) | 440 |
| Aisle Width for 1000 × 1200 mm Pallets, Crossways | Ast (mm) | 1683 / 1733 / 1803 |
| Aisle Width for 800 × 1200 mm Pallets, Crossways | Ast (mm) | 1783 / 1783 / 1803 |
| Turning Radius | Wa (mm) | 1216 / 1266 / 1336 |
| Service Weight | kg | 60–75 |
Integrated leak-proof pump
Built-in overload valve
210° steering arc
3 positions: Raise / Lower / Neutral
Controllable lowering speed
12 lubrication grease nipples
Adjustable pump cap
Adjustable straight tappet
Supports smoother pallet entry and exit
Supports smoother pallet entry and exit
Polyurethane Wheels
Ergonomic large rubber handle
Nylon / Polyurethane / Rubber
Single / Tandem rollers
Fully Rubber-Wrapped Handle
