500, 1000 or 1500 kg rated capacity
1000-3000 mm model-dependent lifting heights
Hand and foot-operated hydraulic lifting
Fixed welded forks
61 × 170 × 1150 mm fork dimensions
550 or 580 mm overall fork width
90 mm lowered fork height
Steel mast with metal chain-protection grid
Wheel guards and brake system
1380 mm turning radius
Three Capacity Models
Available in 500, 1,000 and 1,500 kg capacities.
Multiple Lifting Heights
Lift heights from 1,000 to 3,000 mm suit different applications.
Hand and Foot Hydraulic Lifting
Raise the forks using either the handle or foot pedal.
Fixed Welded Forks
Fixed forks suit pallets with compatible entry dimensions.
Steel Mast and Protection Grid
A steel mast and grid provide structural and chain protection.
Wheel Guards and Brake
Wheel guards and a brake support safe positioning and parking.

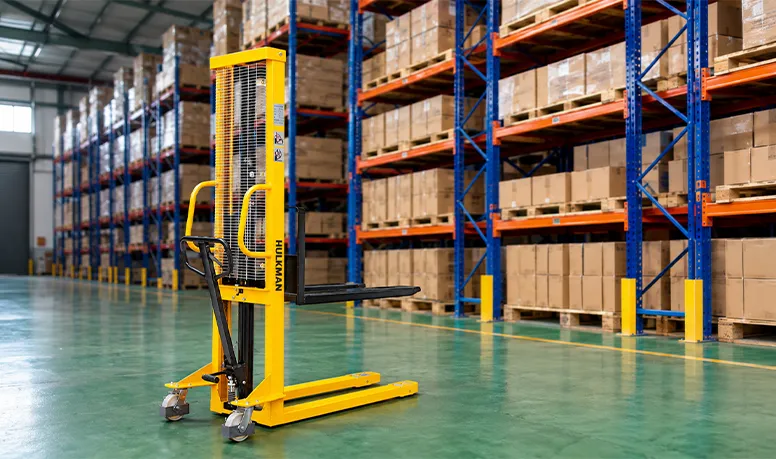

The MDBF Series combines manual travel with manual hydraulic lifting. The operator pushes and steers the stacker by hand, while the hydraulic system raises the pallet to the required working or stacking height.
This fixed fork manual stacker should be selected according to the pallet openings, entry direction, load dimensions and required lift height.

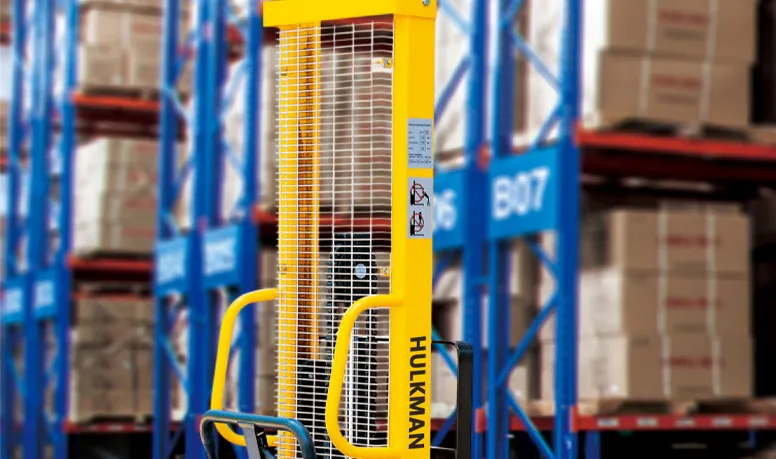

The steel mast and welded chassis support the lifting structure. A metal grid is positioned between the operator and the lift chains, while wheel guards help protect the running-wheel area.
The brake supports controlled positioning and parking. The permitted load must be checked against the selected model, lifting height and load distribution.

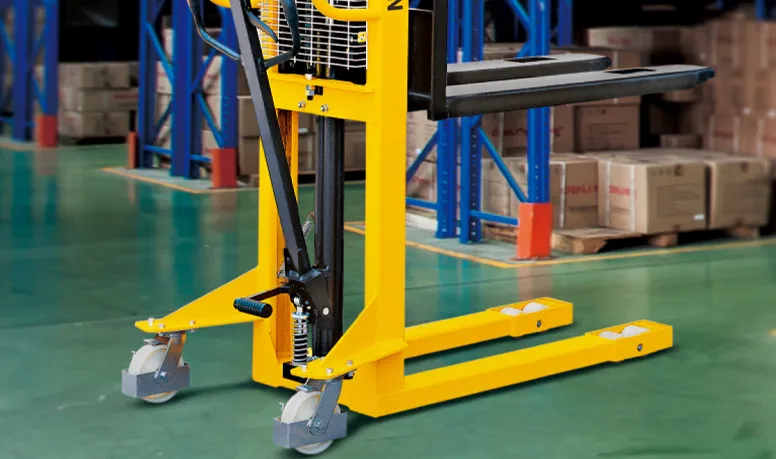

The manual hydraulic design does not use a traction battery, drive motor or electronic travel controller. Routine inspection can focus on the hydraulic system, chains, mast, forks, wheels and brake.
Maintenance requirements should be determined according to operating frequency, load conditions and the working environment.

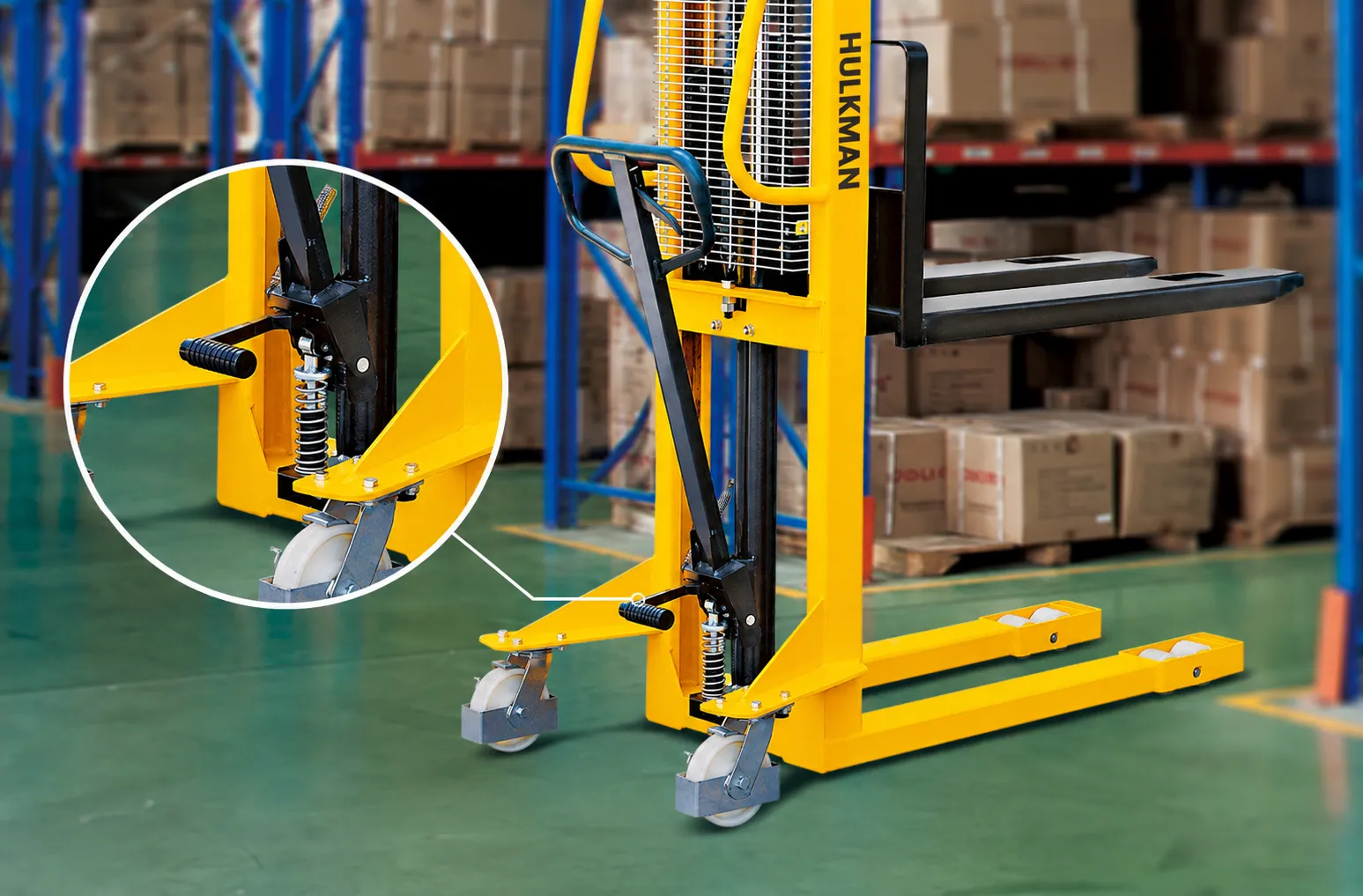

The operator can raise the forks through the handle or foot pedal. This dual-control arrangement helps reduce unnecessary changes in operating posture during repeated lifting.
A 1380 mm turning radius supports maneuvering in warehouses, workshops and indoor storage areas.

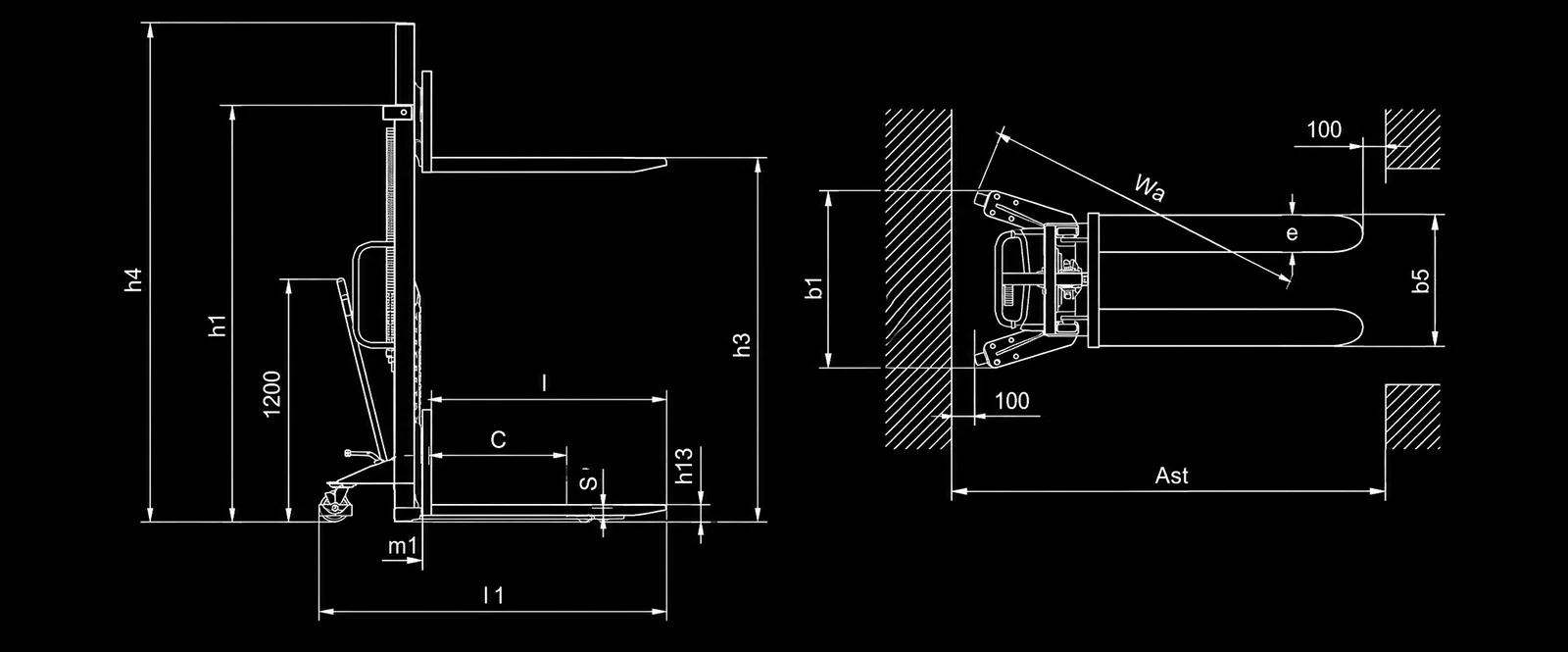

| Model | MDBF500 | MDBF1000 | MDBF1500 |
| Rated Load Capacity | 500 | 1000 | 1500 |
| Load Center Distance | 600 | 600 | 400 |
| Fork Lowered Height | 90 | 90 | 90 |
| Mast Lowered Height | 1490/2080 | 1490/1720/2080/1838/2080 | 2080 |
| Max. Lifting Height | 1000/1600 | 1000/1200/1600/2500/3000 | 1600 |
| Mast Extended Height | 1490/2080 | 1490/1720/2080/2925/3420 | 2080 |
| Overall Length | 1655/1705 | 1655/1705 | 1655/1705 |
| Overall Width | 755 | 755/755/755/860/860 | 755 |
| Fork Dimensions | 61/170/1150 | 61/170/1150 | 61/170/1150 |
| Overall Forks Width | 550 | 550/550/550/580/580 | 550 |
| Ground Clearance, laden, below mast | 25 | 25 | 25 |
| Aisle Width for Pallets 1000×1200 Crossways | 2112 | 2112 | 2112 |
| Aisle Width for Pallets 800×1200 Crossways | 1945 | 1945 | 1945 |
| Turning Radius | 1380 | 1380 | 1380 |
| Lifting Speed, laden/unladen | 25 | 25 | 21 |
| Lowering Speed, laden/unladen | Manual Control | Manual Control | Manual Control |
| Service Weight | 185/213 | 190/198/214/292/305 | 239 |
High-Efficiency Hydraulic Pump
Hand-Controlled Lifting
Foot-Pedal Lifting
High-Strength Steel Mast
Welded Fixed Forks
Metal Chain Protection Grid
Safety Wheel Guards
Parking Brake System
Reinforced Steel Chassis
If you would like more information about this product, please feel free to contact us. Recommend other popular products for you: 2.5 Ton Electric Pallet Truck, 1.5 Ton Electric Reach Stacker, Multi Direction Forklift For Sale, manual forklift exporter, agv forklift manufacturer, agv forklift factory, agv forklift supplier, automated guided vehicle forklift manufacturer, agv forklifts manufacturer, agv forklifts factory, agv forklifts supplier, China agv forklift, China automated guided vehicle forklift, China forklift automated guided vehicles, stacker agv, forklift agvs manufacturer, forklift agvs factory, China forklift agvs, custom forklift agvs, Forklift 10 Ton For Sale, 10 ton diesel forklift, 7 ton diesel forklift, 2 Ton LPG Forklift, 3.5 Ton LPG Forklift, Electric Tow Tractor For Sale, 10 Ton Electric Tow Tractor, 6 Ton Electric Tow Tractor, Multi Directional Forklift For Sale, 2 Ton 4-Directional Electric Forklift
The HULKMAN MTB20 is a 2 ton hand pallet truck for manually lifting and moving palletized loads over short indoor distances. Its 2000 kg rated capacity, 75 mm lowered fork height, selectable fork dimensions and wheel configurations support warehouse, workshop and distribution operations.
The HULKMAN MDBF Series is a manual stacker with fixed forks for indoor pallet lifting, positioning and stacking. The series offers 500, 1000 and 1500 kg rated capacities, with lifting heights from 1000 to 3000 mm depending on the selected model. Hand and foot-operated hydraulic lifting supports straightforward operation without an electric travel system.
