1500kg Load Capacity
Can Work with Closed Type Pallet
Automatically Picking and Dropping off Pallets
Unmanned Driving
Automatic Charging
3300mm Right-Angle Stacking Aisle
Laser SLAM Navigation
Free Maintenance
1500 kg Load Capacity
Handles palletized loads up to 1,500 kg.
Closed-Type Pallet Handling
Counterbalanced design supports closed-pallet handling.
Laser SLAM Navigation
Enables autonomous travel along configured routes.
Accurate Pallet Positioning
±10 mm accuracy supports repeatable pallet positioning.
Automatic Pallet Handling
Automatically picks, transports, lifts and places pallets.
LiFePO4 Power System
Uses a 48V/160Ah battery with manual or automatic charging.
The vehicle can carry out configured pallet picking, movement and placement tasks without a driver. Its listed 3000 mm lifting height supports pallet transfer and stacking at defined warehouse or production stations.
The actual pallet structure, load distribution, rack dimensions and required lifting height should be checked during project planning.
Laser SLAM enables the AGV to scan and navigate within a configured operating environment. A listed positioning accuracy of ±10 mm supports controlled approaches to pallets and transfer stations.
The system materials also show position-correction functions intended to reduce pallet displacement during alignment. The exact correction method and operating tolerance should be confirmed for the project.
The onboard display provides a visual interface for vehicle and task information. Supplied system materials also show tablet and handheld-terminal task entry for warehouse operations.
Available terminals, operating permissions and software functions should be confirmed according to the selected WMS and dispatch configuration.
Warehouse tasks can be created through tablet devices or entered by scanning barcodes with a handheld terminal. Label printing supports material identification and tracking, helping connect AGV transport tasks with stock-in, stock-out and inventory workflows.
Available terminals, label formats and WMS functions depend on the confirmed project configuration.

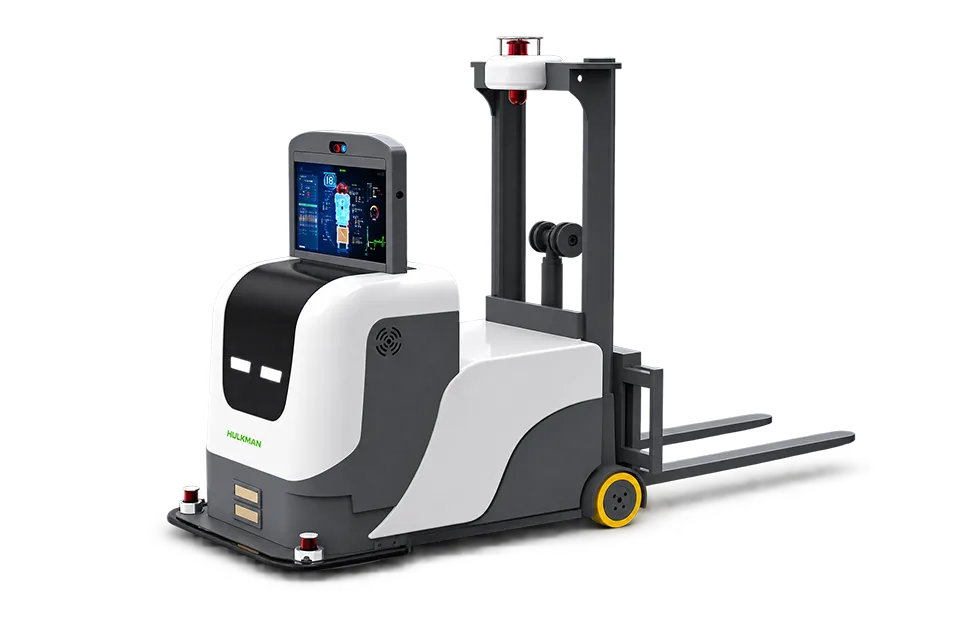

The LDB1500C combines a counterbalanced chassis with autonomous travel and powered pallet lifting. This structure supports closed-type pallets that may not be suitable for fork-over stackers with support legs extending beneath the load.
The AGV counterbalanced electric stacker is designed for repetitive pallet movement between storage locations, production areas, buffer stations and connected handling equipment.
| Model | LDB1500C |
| Rated Load Capacity | 1500kg |
| Navigation Method | Laser Navigation |
| Lifting Height | 3000mm (can customize) |
| Turning Radius | 1800mm |
| Dimension (L × W × H) | 2779×1020×2249mm |
| Fork Size | 1200×100×40mm |
| Max. Traveling Speed (loaded/unloaded) | 1.0/1.2m/s |
| Body Weight (without load) | 2000kg |
| Positioning Accuracy | ±10mm |
| Max. Gradeability (loaded/unloaded) | 5/8% |
| Communication Method | WIFI/5G |
| Fork Ground Clearance (Mini) | 45mm |
| Right Angle Stacking Aisle (1000×1200mm pallet, 1000mm incoming fork) | 3300mm |
| Battery Capacity | 48/160Ah |
| Battery Type | LiFePO4 |
| Charging Method | Manual/Automatic |
| Charging/Working Time | 1/8 Hours |
| Security | Laser Scan, Safety Contact Edge |
| Feature | Description |
| 360° Stereoscopic Protection | Omni bearing Stereoscopic Intelligent Protection |
| Intelligent Avoidance | Time Effective Respond to Different Obstacles |
| Super Perception | Perceive Display AGV Operating Status |
| Efficient and Accurate | Positioning Accuracy ±10mm, Angle Accuracy ±0.5° |
| Simple & Varied Interaction | Pioneer Large Screen Display, More Intuitive |
| Intelligent Load&Unload | Intelligently Scan Environment, Perceive Goods |
| Feature | Description |
| Map Edit | Map Displays Overall Scene |
| Site Monitor | Each AGV Status Real Time Monitor |
| Traffic Management | Reasonably Distribute Tasks to Prevent Congestion |
| Task Module | New Task, Station Call, Route Optimization |
| Abundant Interface | Connect Venues Via Internet or 4G Data |
| Security Mechanism | Software Protection, Auxiliary Hardware |
Laser SLAM Navigation
Laser Scanner
Safety Contact Edge
360° Safety Protection
Large-Screen HMI Display
Position Correction System
Wi-Fi / 5G Communication
48V/160Ah LiFePO4 Battery
Manual / Automatic Charging
1200 × 100 × 40 mm Forks
Automatic Pallet Picking and Placement
