Unmanned Driving
Automatic Charging
Intelligent Path Selection
Autonomous Picking and Release
SLAM Positioning
Support Mobile APP Operation
Full Security Protection Guarantees
Free Maintenance
Full Electric Type
Optional Pallet Identification
1000 kg Pallet Handling
Transports loads up to 1000 kg at a 600 mm load center.
Accurate Laser Navigation
Provides repeatable navigation with ±10 mm positioning accuracy.
Intelligent Route Control
Supports route planning, obstacle avoidance and autonomous pallet handling.
Multiple Navigation Methods
Supports laser, SLAM and QR-code navigation.
Multi-Layer Safety Protection
Combines collision avoidance, sensors, alarms and emergency stop.
Fully Electric Operation
Powered by a 48V/36Ah LiFePO4 battery with intelligent charging.
The LTB1000 automated pallet truck is designed to pick up, transport and release palletized loads along programmed material-handling routes. Its 1000 kg capacity supports repetitive pallet movement between storage, staging and production locations.

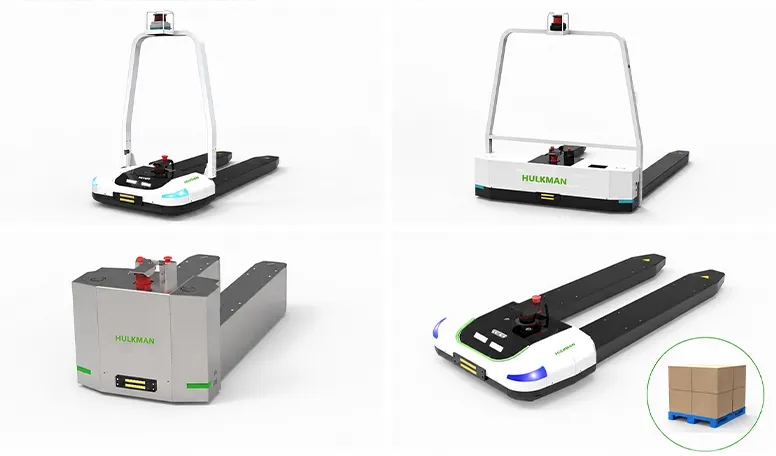

Unlike a high-lift autonomous forklift, the LTB1000 uses a compact low-profile structure for floor-level pallet transfer. It should not be presented as a rack-stacking or high-lift vehicle.

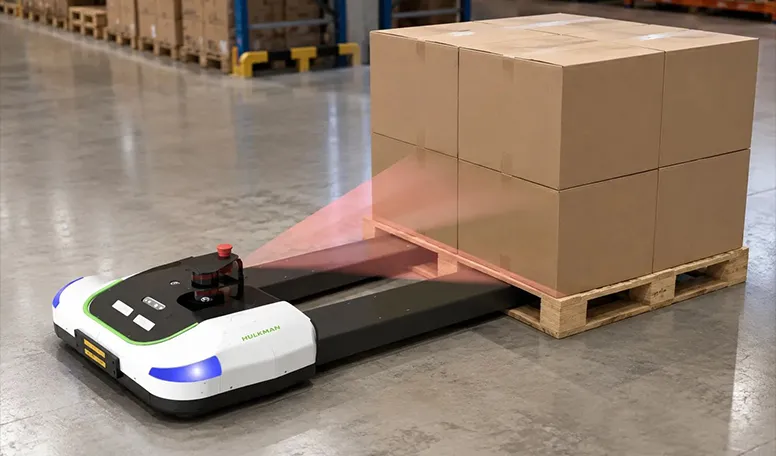

The technical specification identifies laser navigation with ±10 mm positioning accuracy. The catalogue also presents SLAM and QR-code navigation methods, simple mapping and mobile APP operation for project-based deployment.
Optional pallet identification can help the robotic pallet truck locate and approach pallets during automated pickup tasks.

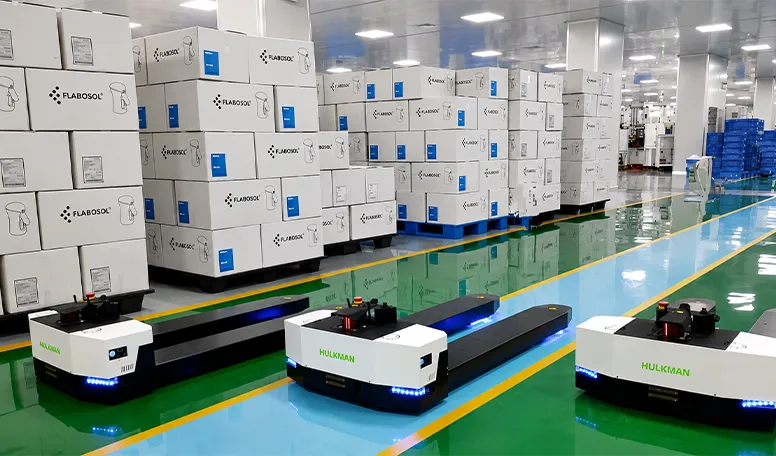

The LTB1000 combines an audible and visual alarm with visual collision avoidance, laser collision avoidance and rear collision avoidance. An emergency stop button provides a direct method for interrupting vehicle operation.
Actual route design and operating parameters should be evaluated according to pedestrian traffic, surrounding equipment, pallet position and facility conditions.

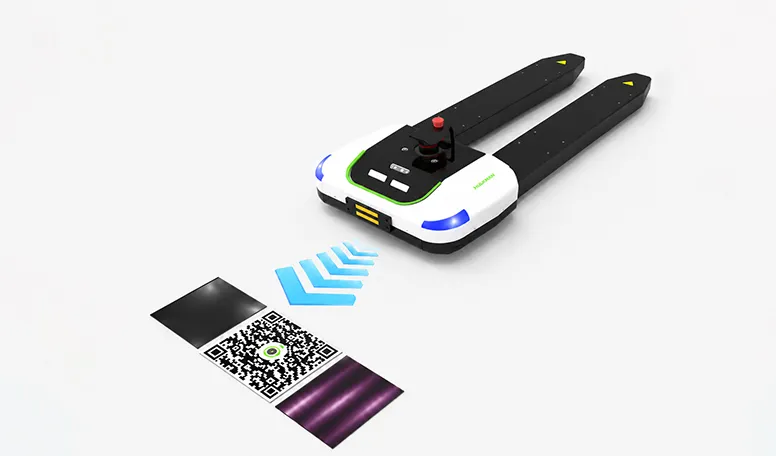

APP control and simple mapping support route setup and operating adjustments. The LCS control module coordinates vehicle functions, while the catalogue presents intelligent charging for automated material-handling projects.
The fully electric structure uses a 48V/36Ah LiFePO4 battery. The catalogue also describes a non-hydraulic lifting arrangement, reducing hydraulic-oil leakage points in the low-level lifting system.
| Model | LTB1000 |
| Rated Load | 1000kg |
| Load Center | 600mm |
| Max. Lifting Height | 60mm |
| Fork Outer Width | 584mm |
| Turning Radius | 1200mm |
| Dimension | 1657×785×265mm |
| Fork Size | 1200×184×98mm |
| Load/Unload Travel Speed | 0.7/1.0m/s |
| Navigation Method | Laser Navigation |
| Position Accuracy | ±10mm |
| Battery Voltage/Capacity | 48V/36Ah |
| Battery Type | LiFePO4 |
Laser Navigation System
LCS Control Module
Intelligent Charging System
Smart Status Display
Visual Recognition System
Full-Electric Lifting System
Maintenance-Free Drive Motor
Audible and Visual Alarm
Visual and Laser Collision Avoidance
Rear Collision Avoidance
Emergency Stop Button
