2000kg Load Capacity
Automatic Pallet Picking and Dropping off
Unmanned Driving
Automatic Charging
2800mm Right-Angle Stacking Aisle
Laser SLAM Navigation
Free Maintenance
2,000 kg Load Capacity
Handles palletized loads up to 2,000 kg.
Automated Transport and Stacking
Automated pallet lift & move
Electric Drive Platform
Electric industrial transport
Workflow-Based Configuration
Routes and tasks adapt to customer material flow.
System-Level Integration
Evaluate dispatch & IT links for smart operations.

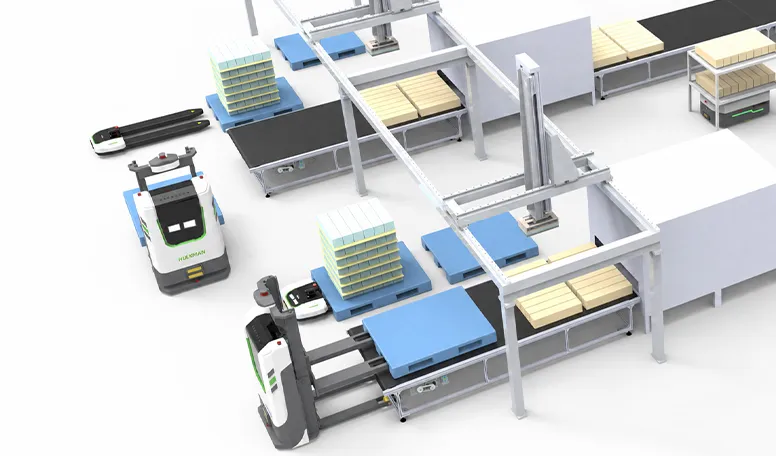

Automated Material Handling

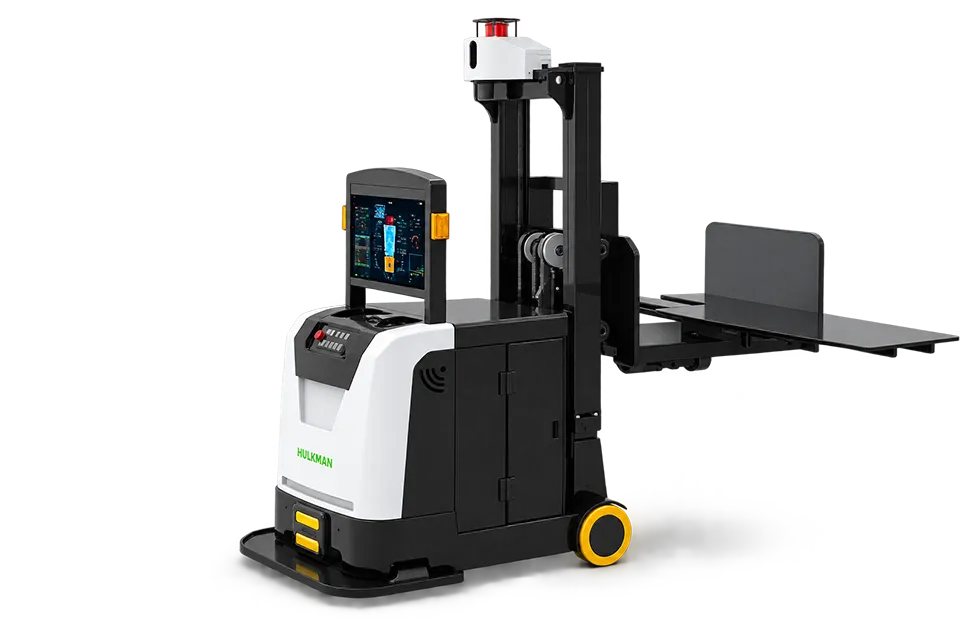

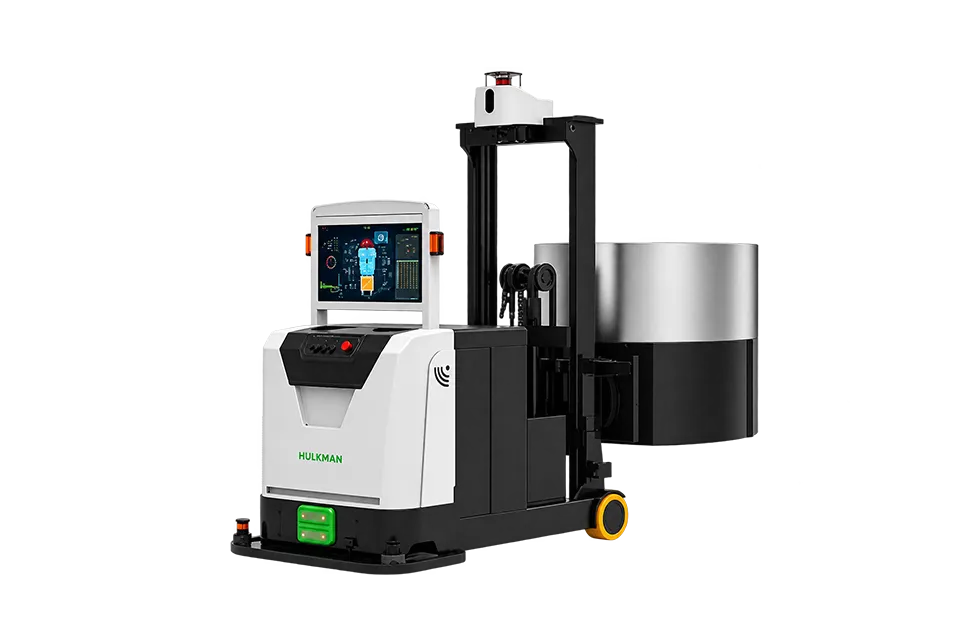

The 2 ton AGV electric stacker is designed to move palletized materials between defined locations and perform lifting or stacking tasks at configured stations.
Before deployment, the load, pallet interface, lifting height, route, aisle width, floor condition and pickup accuracy requirements should be evaluated together. This allows the vehicle and control solution to be matched to the actual workflow rather than treated as a stand-alone warehouse truck.
Service Ability
Project planning begins with the load, route and task requirements, followed by vehicle configuration, system matching and deployment coordination.
Maintenance access, spare parts, battery service and diagnostic functions should be confirmed according to the selected hardware and control-system configuration.
Load, Route and Safety Planning
Stable operation depends on the relationship between load weight, load center, lifting height, mast configuration and floor condition. The route should provide sufficient clearance for vehicle movement, turning and load transfer.
Personnel interaction, crossings, blind areas and surrounding equipment must also be considered when defining the final safety system and operating rules.

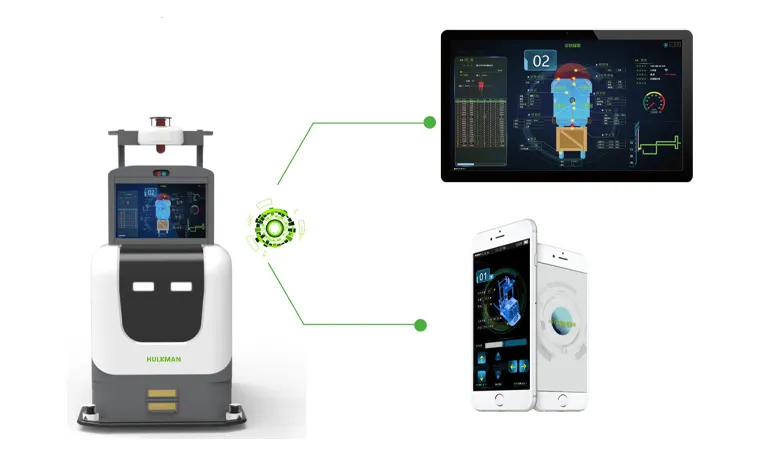

Human–Machine Interaction
The onboard interface supports equipment setup, status viewing and project commissioning according to the confirmed control configuration.
The final interface functions, user permissions, alarm information and manual-control modes should be defined during technical confirmation.
| Parameter | Specification |
| Model | LDB2000 |
| Rated Load Capacity | 2000 kg |
| Navigation Method | Laser Navigation |
| Lifting Height | 4000 mm (customizable) |
| Turning Radius | 1660 mm |

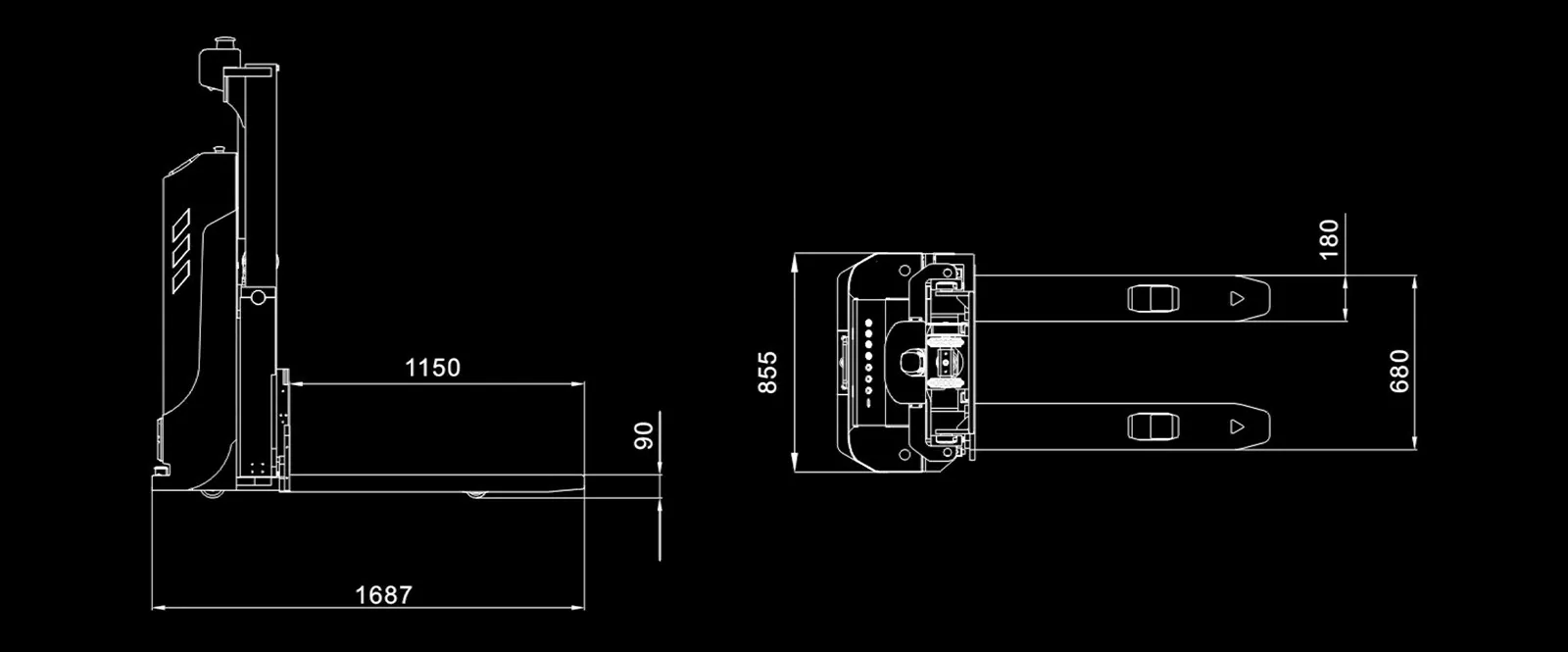

| Dimensions (L × W × H) | 2038 × 972 × 2279 mm |
| Fork Size | 1150 × 180 × 70 mm |
| Max. Traveling Speed (Loaded/Unloaded) | 1.0 / 1.2 m/s |
| Body Weight (Without Load) | 950 kg |
| Positioning Accuracy | ±10 mm |
| Max. Gradeability (Loaded/Unloaded) | 5% / 8% |
| Communication Method | Wi-Fi / 5G |
| Minimum Fork Ground Clearance | 88 mm |
| Right-Angle Stacking Aisle (1000 × 1200 mm Pallet, 1000 mm Fork Entry) | 2800 mm |
| Battery Capacity | 48 V / 160 Ah |
| Battery Type | LiFePO₄ |
| Charging Method | Manual / Automatic |
| Charging / Working Time | 1 / 8 hours |
| Security | Laser Scanning, Safety Contact Edge |
| Feature | Description | Feature | Description |
| 360° Stereoscopic Protection | Omni-Bearing Stereoscopic Intelligent Protection | Intelligent Avoidance | Timely and Effective Response to Different Obstacles |
| Super Perception | Displays the AGV Operating Status | Efficient and Accurate | Positioning Accuracy: ±10 mm; Angle Accuracy: ±0.5° |

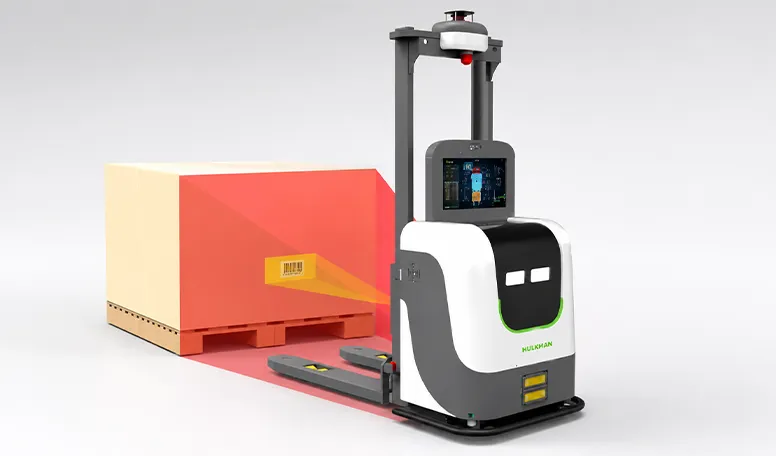

| Simple and Varied Interaction | Large-Screen Display for More Intuitive Operation | Intelligent Loading and Unloading | Intelligently Scans the Environment and Detects Goods |
| Feature | Description | Feature | Description |
| Map Editing | The map displays the overall operating environment | Site Monitoring | Monitors the status of each AGV in real time |
| Traffic Management | Distributes tasks efficiently to prevent congestion | Task Module | Supports new tasks, station calls and route optimization |
| Multiple Interfaces | Connects different sites via the internet or 4G data | Security Mechanism | Combines software protection with auxiliary hardware |
Large-Screen Display
AGV Status Display
Intelligent Charging System

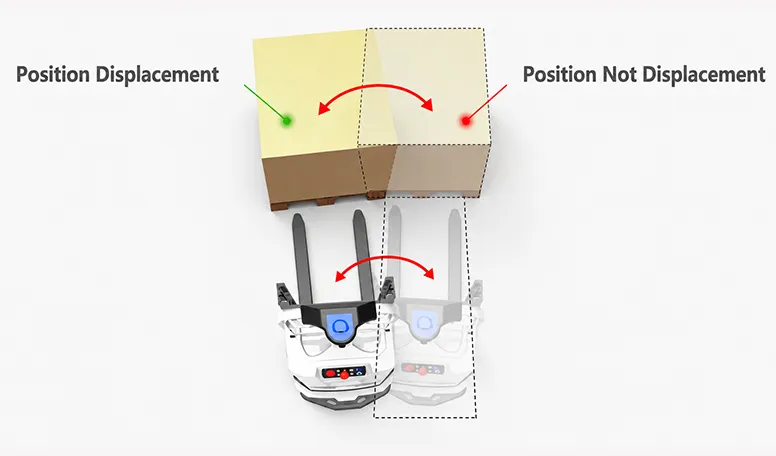

Automatic Pallet Picking
Automatic Charging
Side-Fork AGV Electric Stacker
Tractor-Type AGV
Visual and Laser Collision Avoidance
Rear Collision Avoidance
Emergency Stop Button
