High Lifting Height
Can Work with Closed Type Pallet
Automatically Picking and Dropping off Pallets
Unmanned Driving
Automatic Charging
3300mm Right-Angle Stacking Aisle
Laser SLAM Navigation
Free Maintenance
1500 kg and 2000 kg Models
Choose 1,500 kg or 2,000 kg capacity for different loads.
6000 mm Lifting Height
Supports pallet handling at lift heights up to 6,000 mm.
Reach-Type Pallet Handling
The reach mechanism supports pallet handling in high-density racking.
Laser Navigation
Provides autonomous travel with ±10 mm positioning accuracy.
Automatic Pallet Handling
Automatically picks, transports, lifts and places pallets.
Automatic Charging
Uses a 48V/200Ah LiFePO4 battery with manual or automatic charging.

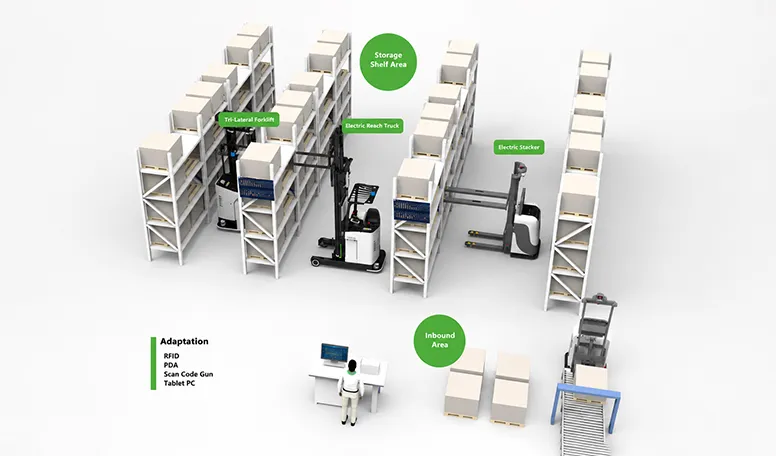

The LYB1500 and LYB2000 combine electric travel, powered lifting and autonomous navigation in a reach-type warehouse truck. The series is intended for repetitive pallet handling between inbound areas, storage racks, buffer stations and internal transfer points.
Its listed 6000 mm lifting height supports high-level rack applications. Pallet dimensions, rack openings, beam levels and the required residual capacity should be verified before the final configuration is selected.
Laser scanning monitors the travel area, while a safety contact edge provides an additional contact-response measure. These components support controlled operation around defined routes and working stations.
Pedestrian interaction, safety zones, floor conditions, route crossings and equipment interlocks must be evaluated according to the actual facility layout.
Laser SLAM enables the AGV to scan and navigate within a configured operating environment. A listed positioning accuracy of ±10 mm supports controlled approaches to pallets and transfer stations.
The system materials also show position-correction functions intended to reduce pallet displacement during alignment. The exact correction method and operating tolerance should be confirmed for the project.
Laser navigation and intelligent route selection support movement between configured stations. Positioning accuracy is listed as ±10 mm, helping the vehicle approach pallet and transfer positions consistently.
The product information also lists mobile APP operation and Wi-Fi/5G communication. The required control functions, communication network and software scope should be confirmed for each deployment.
Warehouse tasks can be created through tablet devices or entered by scanning barcodes with a handheld terminal. Label printing supports material identification and tracking, helping connect AGV transport tasks with stock-in, stock-out and inventory workflows.
Available terminals, label formats and WMS functions depend on the confirmed project configuration.
| Model | LYB1500/LYB2000 |
| Rated Load Capacity | 1500kg/2000kg |
| Navigation Method | Laser Navigation |
| Lifting Height | 6000mm (can customize) |
| Turning Radius | 1900mm |
| Dimension (L × W × H) | 22648×1306×3545mm |
| Fork Size | 1020×100×40mm |
| Max. Traveling Speed (loaded/unloaded) | 1.0/1.2m/s |
| Body Weight (without load) | 2100kg |
| Positioning Accuracy | ±10mm |
| Max. Gradeability (loaded/unloaded) | 5/8% |
| Communication Method | WIFI/5G |
| Fork Ground Clearance (Mini) | 45mm |
| Right Angle Stacking Aisle (1000×1200mm pallet, 1000mm incoming fork) | 3300mm |
| Battery Capacity | 48/200Ah |
| Battery Type | LiFePO4 |
| Charging Method | Manual/Automatic |
| Charging/Working Time | 1/8 Hours |
| Security | Laser Scan, Safety Contact Edge |
| Feature | Description |
| 360° Stereoscopic Protection | Omni bearing Stereoscopic Intelligent Protection |
| Intelligent Avoidance | Time Effective Respond to Different Obstacles |
| Super Perception | Perceive Display AGV Operating Status |
| Efficient and Accurate | Positioning Accuracy ±10mm, Angle Accuracy ±0.5° |
| Simple & Varied Interaction | Pioneer Large Screen Display, More Intuitive |
| Intelligent Load&Unload | Intelligently Scan Environment, Perceive Goods |
| Feature | Description |
| Map Edit | Map Displays Overall Scene |
| Site Monitor | Each AGV Status Real Time Monitor |
| Traffic Management | Reasonably Distribute Tasks to Prevent Congestion |
| Task Module | New Task, Station Call, Route Optimization |
| Abundant Interface | Connect Venues Via Internet or 4G Data |
| Security Mechanism | Software Protection, Auxiliary Hardware |
Laser SLAM Navigation System
Laser Scanner
Safety Contact Edge
360° Safety Protection System
Large-Screen HMI Display
Wi-Fi / 5G Communication
Automatic Charging System
Manual / Automatic Charging
1200 × 100 × 40 mm Forks
Automatic Pallet Picking and Placement
Customized Lift Height
Tractor-Type AGV
Paper-Roll Clamp AGV
Customized AGV Modification
ERP / MES / WMS Integration
Conveyor, Automatic Door and Robot Integration
