For Very Narrow Aisle Warehouse Storage
ONLY 1760mm Right-Angle Stacking Aisle
Can Work with Closed Type Pallet
Automatically Picking and Dropping off Pallets
Unmanned Driving
Automatic Charging
Laser SLAM Navigation
Free Maintenance
1000 kg and 1500 kg Models
Choose 1,000 kg or 1,500 kg capacity for different loads.
Three-Way Fork Handling
Supports front and lateral pallet handling in narrow aisles.
Very Narrow Aisle Operation
A 1,760 mm stacking aisle supports high-density storage.
6000 mm Lift Height
Supports pallet storage at lift heights up to 6,000 mm.
Laser Navigation and Positioning
Provides autonomous navigation with ±10 mm positioning accuracy.
Automated Pallet Workflow
Automatically picks, transports, lifts and places pallets.

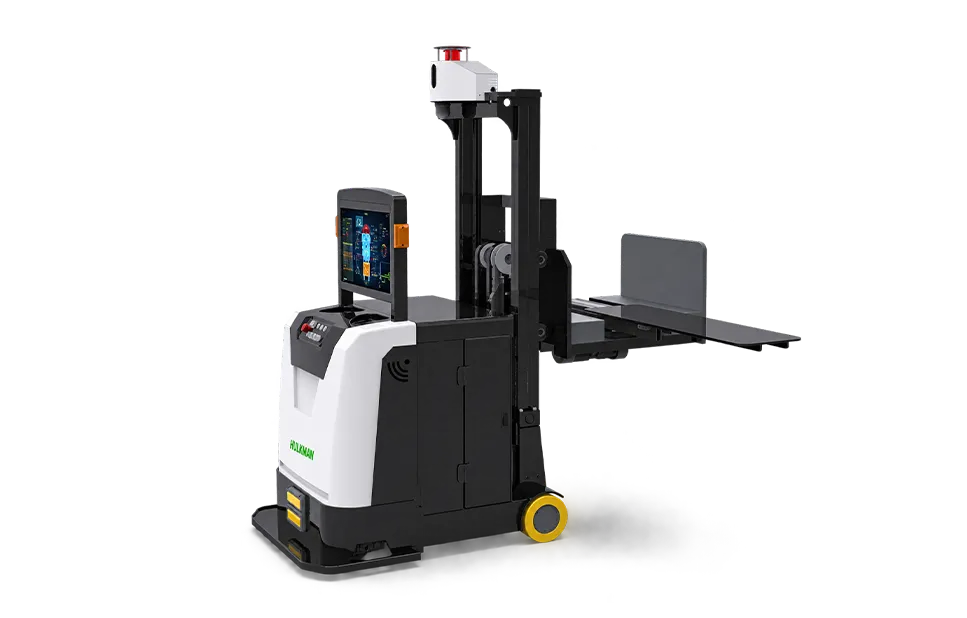

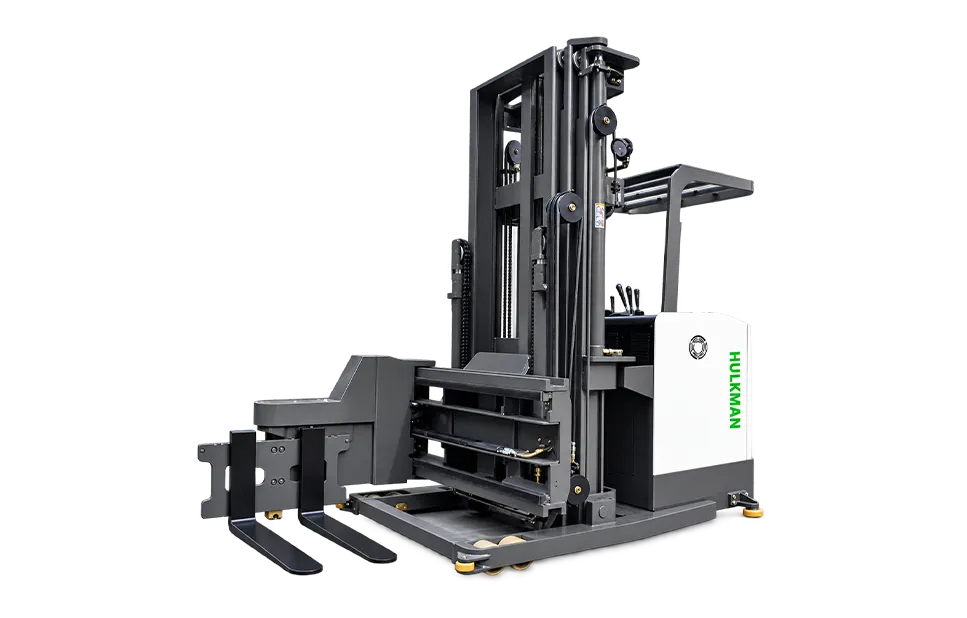

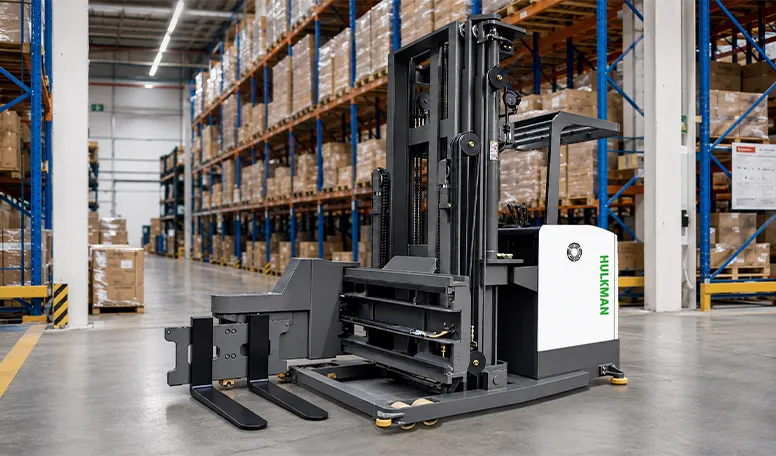

The LVNA1000/LVNA1500 combines autonomous travel, powered lifting and a rotating three-way fork mechanism. The forks can handle pallets from the front or serve racks positioned on either side of the travel aisle.
This configuration allows the AGV tri-lateral forklift to retrieve and place pallets without turning the complete vehicle toward each rack position, supporting space-efficient warehouse layouts.
The confirmed safety configuration includes laser scanning and a safety contact edge. These components support obstacle monitoring and contact protection during configured travel and pallet-handling tasks.
Final safety coverage, operating zones, warning devices and traffic-control logic should be defined according to the warehouse layout and project risk assessment.
The onboard display provides a visual interface for vehicle and task information. Supplied system materials also show tablet and handheld-terminal task entry for warehouse operations.
Available terminals, operating permissions and software functions should be confirmed according to the selected WMS and dispatch configuration.

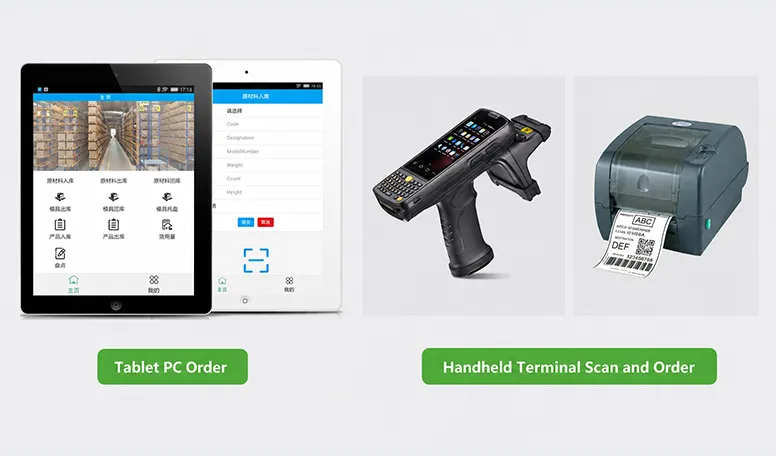

Warehouse tasks can be created through tablet devices or entered by scanning barcodes with a handheld terminal. Label printing supports material identification and tracking, helping connect AGV transport tasks with stock-in, stock-out and inventory workflows.
Available terminals, label formats and WMS functions depend on the confirmed project configuration.

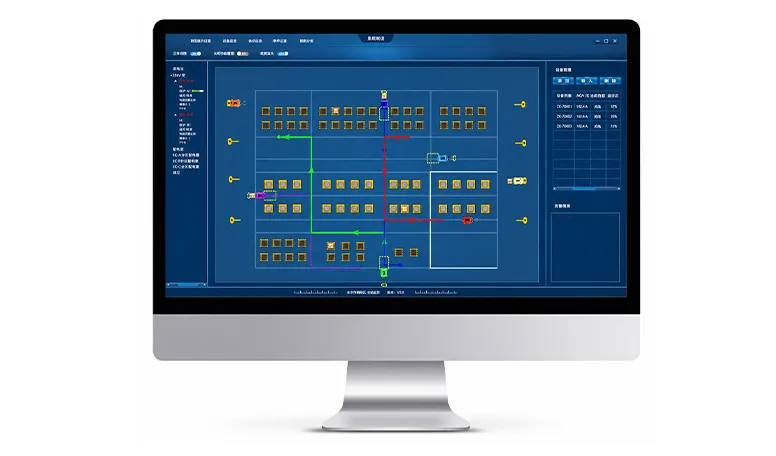

Laser navigation supports autonomous travel along configured warehouse routes. A listed positioning accuracy of ±10 mm assists repeatable alignment with pallet locations and rack positions.
Final positioning performance depends on the site layout, floor condition, rack tolerances, pallet consistency and system configuration.

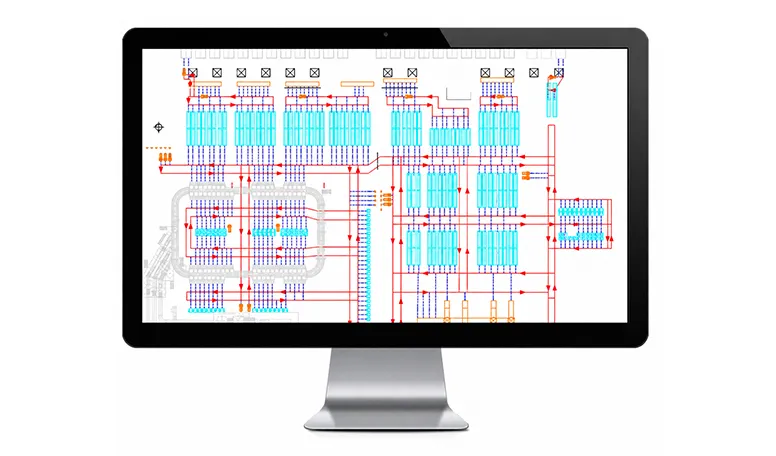

The AGV control system supports digital route configuration based on the confirmed warehouse layout, rack positions and operating stations.
Routes, pickup points, drop-off points and restricted areas can be defined according to the site map and material-handling process.

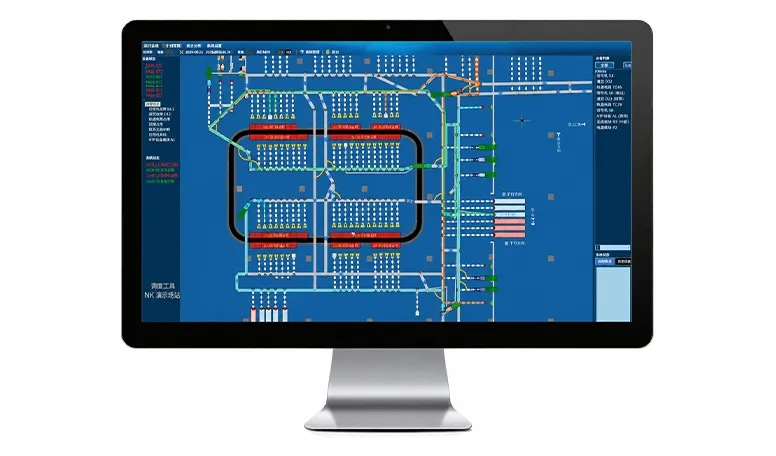

The AGV dispatch system supports task allocation and traffic coordination when multiple vehicles operate within the same warehouse network.
Depending on the confirmed software configuration, it may manage vehicle status, route conflicts, task priorities and operational exceptions from a central interface.
| Model | LVNA1000/LVNA1500 |
| Rated Load Capacity | 1000kg/1500kg |
| Navigation Method | Laser Navigation |
| Lifting Height | 6000mm (can customize) |
| Turning Radius | 2170mm |
| Dimension (L × W × H) | 2900×1600×3800mm |
| Fork Size | 1050×125×50mm |
| Max. Traveling Speed (loaded/unloaded) | 1.0/1.2m/s |
| Body Weight (without load) | 550kg |
| Positioning Accuracy | ±10mm |
| Max. Gradeability (loaded/unloaded) | 5/8% |
| Communication Method | WIFI/5G |
| Fork Ground Clearance (Mini) | 55mm |

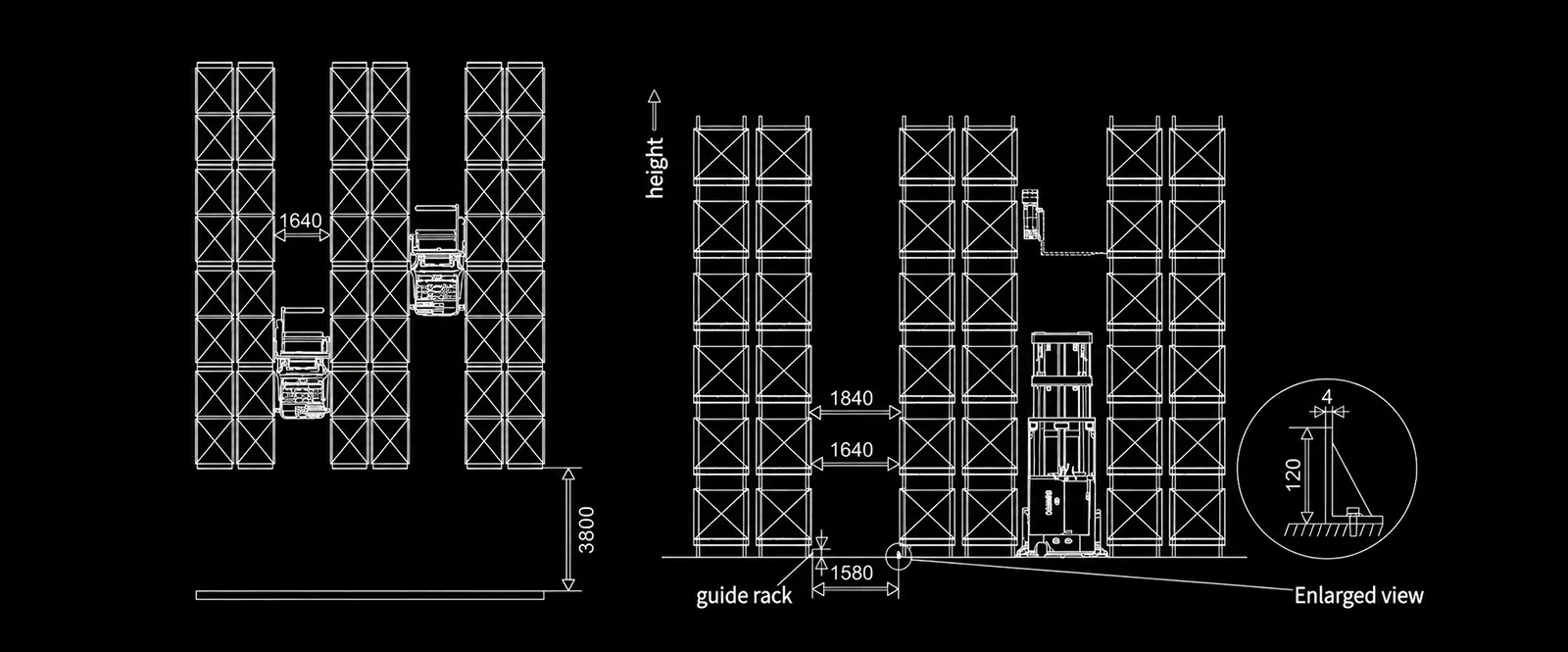

| Right Angle Stacking Aisle (1000×1200mm pallet, 1000mm incoming fork) | 1760mm |
| Battery Capacity | 48/320Ah |
| Battery Type | LiFePO4 |
| Charging Method | Manual/Automatic |
| Charging/Working Time | 2/8 Hours |
| Security | Laser Scan, Safety Contact Edge |
| Feature | Description |
| 360° Stereoscopic Protection | Omni bearing Stereoscopic Intelligent Protection |
| Intelligent Avoidance | Time Effective Respond to Different Obstacles |
| Super Perception | Perceive Display AGV Operating Status |
| Efficient and Accurate | Positioning Accuracy ±10mm, Angle Accuracy ±0.5° |
| Simple & Varied Interaction | Pioneer Large Screen Display, More Intuitive |
| Intelligent Load&Unload | Intelligently Scan Environment, Perceive Goods |
| Feature | Description |
| Map Edit | Map Displays Overall Scene |
| Site Monitor | Each AGV Status Real Time Monitor |
| Traffic Management | Reasonably Distribute Tasks to Prevent Congestion |
| Task Module | New Task, Station Call, Route Optimization |
| Abundant Interface | Connect Venues Via Internet or 4G Data |
| Security Mechanism | Software Protection, Auxiliary Hardware |
Tri-Lateral Fork System
Laser Navigation System
Laser Scanner
Safety Contact Edge
360° Safety Protection
Intelligent Obstacle Avoidance
Position Correction System
Large-Screen HMI Display
Wi-Fi / 5G Communication
48V/320Ah LiFePO4 Battery
Manual / Automatic Charging
1050 × 125 × 50 mm Forks
If you would like more information about this product, please feel free to contact us. Recommend other popular products for you: 2.5 Ton Electric Pallet Truck, 1.5 Ton Electric Reach Stacker, Multi Direction Forklift For Sale, manual forklift exporter, agv forklift manufacturer, agv forklift factory, agv forklift supplier, automated guided vehicle forklift manufacturer, agv forklifts manufacturer, agv forklifts factory, agv forklifts supplier, China agv forklift, China automated guided vehicle forklift, China forklift automated guided vehicles, stacker agv, forklift agvs manufacturer, forklift agvs factory, China forklift agvs, custom forklift agvs, Forklift 10 Ton For Sale, 10 ton diesel forklift, 7 ton diesel forklift, 2 Ton LPG Forklift, 3.5 Ton LPG Forklift, Electric Tow Tractor For Sale, 10 Ton Electric Tow Tractor, 6 Ton Electric Tow Tractor, Multi Directional Forklift For Sale, 2 Ton 4-Directional Electric Forklift
The HULKMAN LDB1400 is a 1.4 ton AGV narrow aisle stacker developed for autonomous pallet transport and low-level stacking. It combines a 1400 kg rated capacity, 1200 mm lifting height, laser navigation and a compact 2300 mm right-angle stacking aisle requirement for specified 1000 × 1200 mm pallets.
The HULKMAN LTB1000 is a compact 1 ton AGV pallet truck for automated floor-level pallet transfer. It combines a 1000 kg rated capacity, laser navigation, ±10 mm positioning accuracy and a 48V/36Ah LiFePO4 battery for warehouse and production-line material flow.

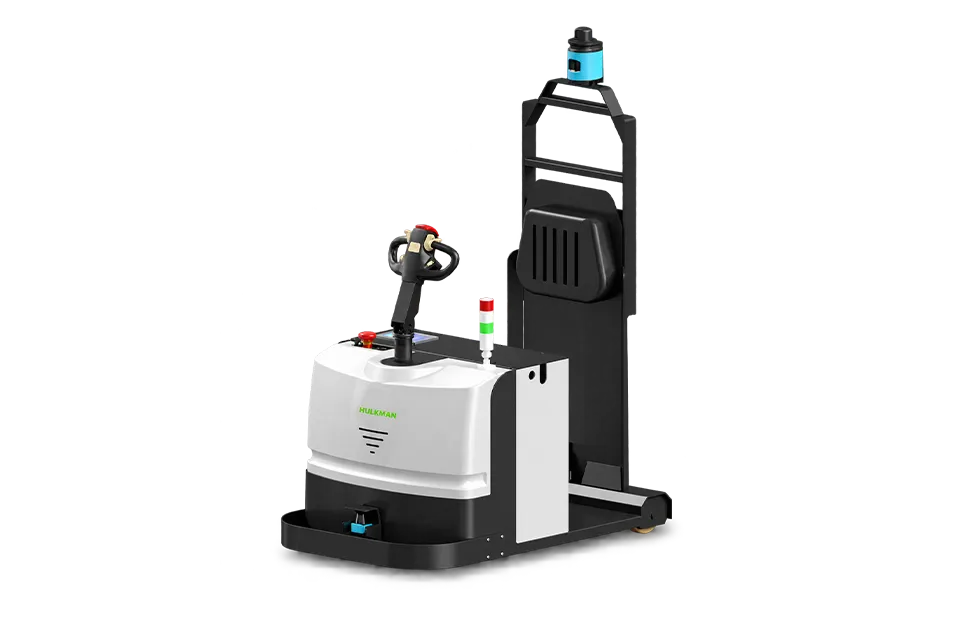

The HULKMAN LDB1500C is a 1.5 ton AGV counterbalanced stacker for autonomous pallet picking, transport, lifting and placement. Its counterbalanced structure supports closed-type pallets, while Laser SLAM navigation, ±10 mm positioning accuracy and automatic charging support configured warehouse and production logistics.

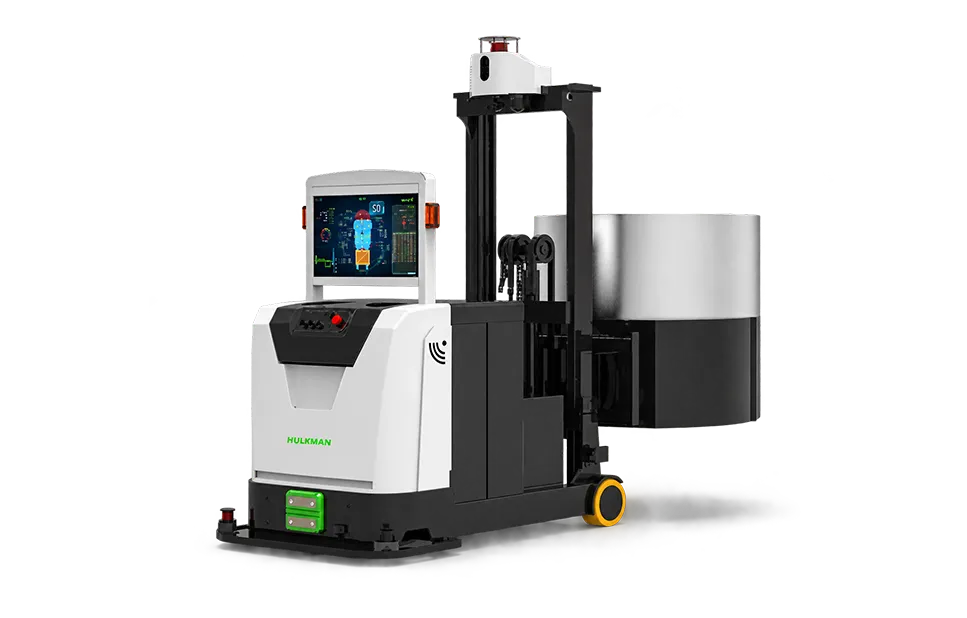

The HULKMAN LYB1500/LYB2000 1.5 ton 2 ton AGV electric reach truck is designed for automated pallet transport and high-level rack handling. It combines 1500 kg or 2000 kg rated capacity with a listed 6000 mm lifting height, laser navigation, ±10 mm positioning accuracy and manual or automatic charging.
The 2 ton AGV electric stacker combines automated pallet transport with powered lifting and stacking functions. It is developed for warehouse and production workflows where materials need to move between defined pickup, transfer and storage positions with less dependence on manually driven equipment.

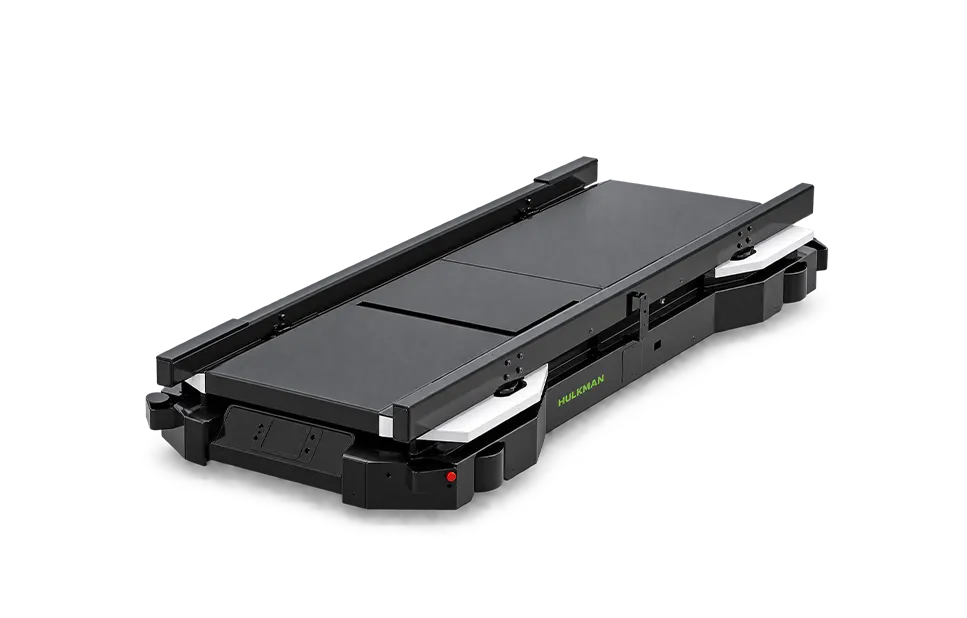

The HULKMAN 300kg 500kg 1000kg AGV chassis vehicle series provides a modular mobile platform for automated material transport. Three load capacities, laser navigation, ±10 mm positioning accuracy and configurable top modules support different factory and warehouse handling tasks.
