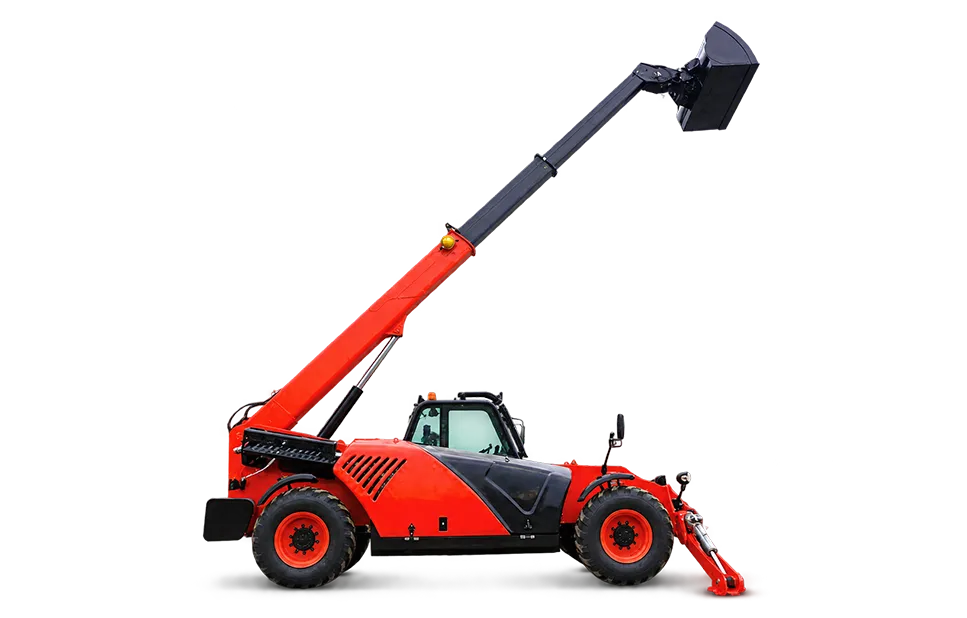

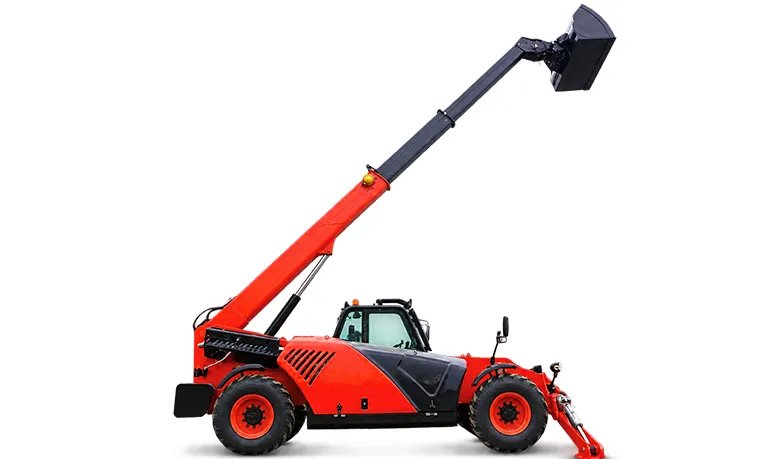

TR1440 5 Ton 14m Telehandler Forklift

Extended Lifting and Forward Reach

The TR1440 is a telescopic forklift truck designed for lifting, transporting and positioning materials on construction sites, industrial yards and other suitable outdoor working areas.

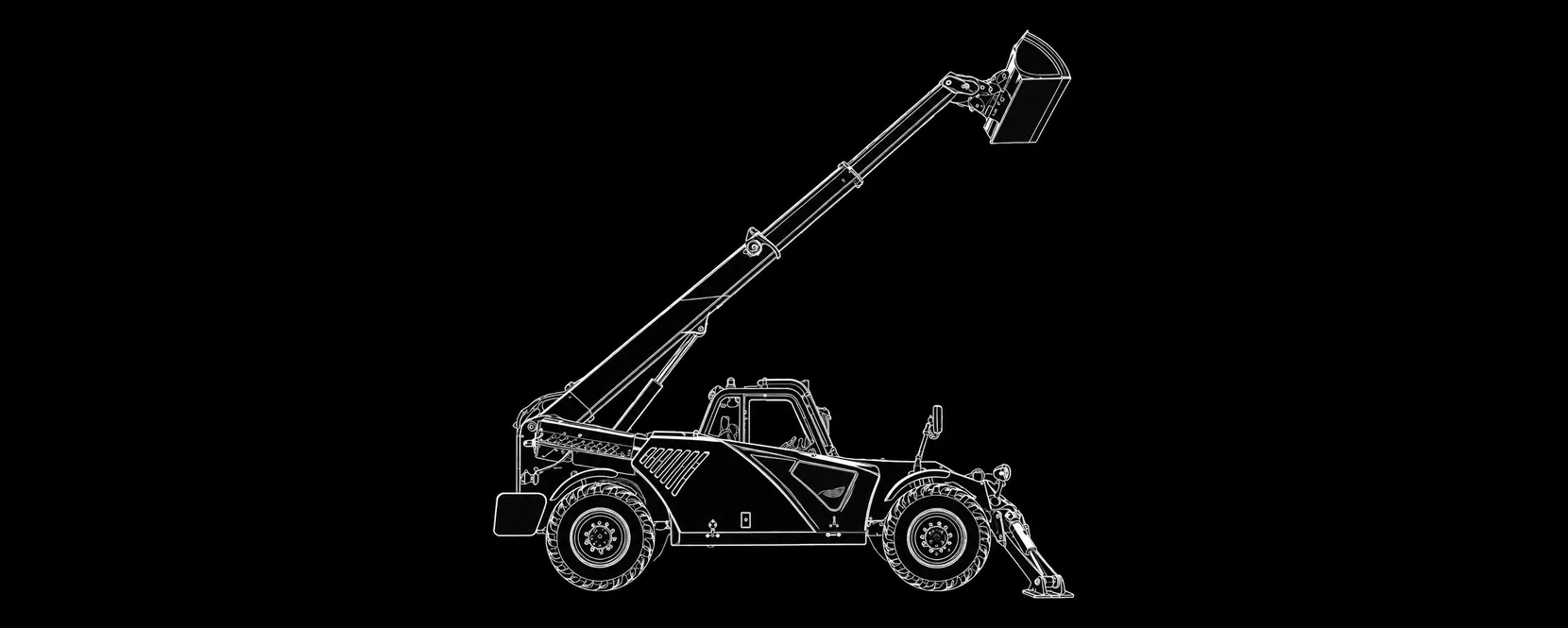

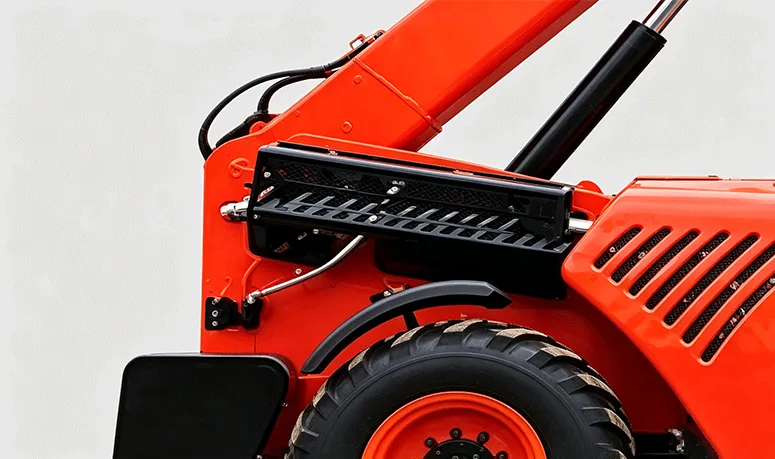

Its telescopic boom provides a maximum lifting height of 14,000 mm and a maximum forward reach of 9,580 mm. These figures represent different boom positions and must not be interpreted as simultaneous operating values.

Stability and Machine Setup

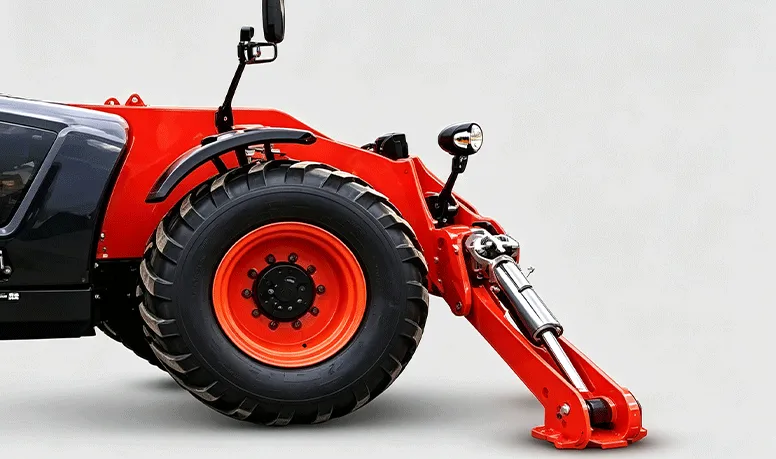

The TR1440 has hydraulic outriggers with a listed fully deployed width of 3,800 mm. A ±9° frame-leveling function helps adjust the machine chassis within the specified operating range.

The telehandler has a working weight of approximately 12,300 kg with forks, a 3,670 mm wheelbase and 1,990 mm axle track. These dimensions provide a substantial machine platform for extended-reach operation.

Engine and Transmission Configurations

The listed base engine is a YUCHAI YCD4J22T-125 rated at 91 kW. Alternative Cummins, YUCHAI and FPT engines are listed for different markets and emission requirements.

The stated primary transmission configuration combines a closed-circuit piston pump, travel pump or motor, gearbox and drive axle. An alternative configuration using a gearbox, hydraulic torque converter, drive shaft and drive axle is also listed.

Operator Control and Maneuvering

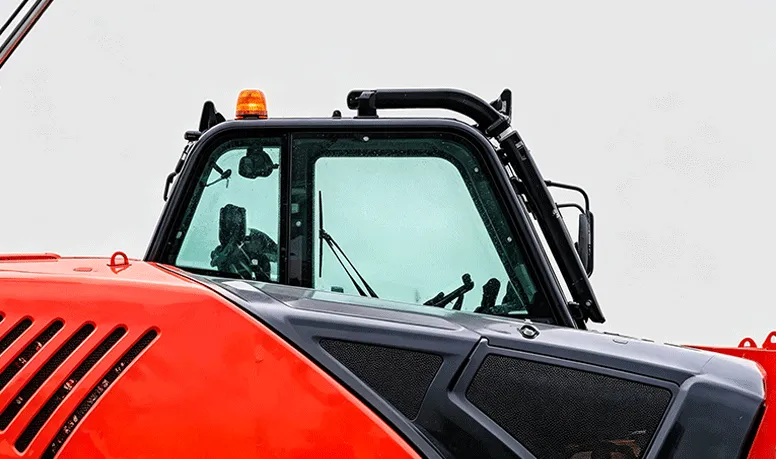

The TR1440 provides an 820 mm internal cab width together with electronic gear control and a multifunction centralized hydraulic control handle.

Front-wheel steering supports normal travel, four-wheel steering reduces maneuvering space, and crab steering supports lateral positioning. The specified outer-wheel turning radius is no more than 4,500 mm.
