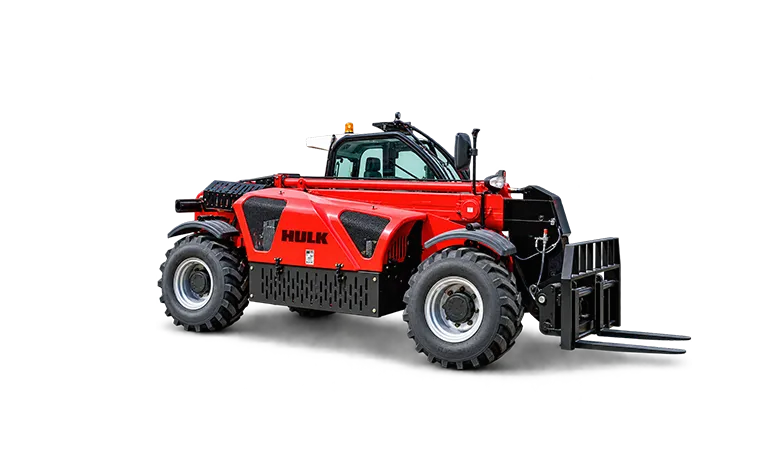

HULK735 3.5 Ton 7m Telehandler
Main Features
-
3,500 kg Maximum Load
HULK735 handles up to 3,500 kg, per boom, height, attachment & load‑chart limits.
-
7,000 mm Maximum Lifting Height
Provides a maximum lifting height of 7,000 mm. -
3600 mm Forward Reach
Reaches up to 3,600 mm for placement across obstacles. -
Four-Wheel Drive
4WD boosts traction & mobility on outdoor and work‑site surfaces. -
Four-Wheel Drive
Supports traction on suitable outdoor and industrial surfaces.
Product Description
-
Built for Extended Reach
The HULK735 is a telescopic forklift truck designed for lifting, transporting and positioning materials. Its telescopic boom reaches up to 7,000 mm vertically and 3,600 mm horizontally, providing access beyond the working range of a conventional fixed-mast forklift.
At maximum lifting height, the specified forward reach is 450 mm. Actual load capacity varies with boom angle, extension, attachment and load position, so the corresponding load chart must be reviewed before operation.
-
Stability and Load Control
The HULK735 has an unloaded operating weight of 7,200 kg and a wheelbase of 2,850 mm. The carriage provides a 42.6° rollback angle and a 37.5° dump angle for load positioning.
Safe operation depends on the actual load, load center, boom extension, lifting height, attachment, ground condition and machine setup. Rated capacity must not be assumed at maximum reach or maximum height.
-
Powertrain Configurations
The listed base configuration uses a YUNNEI YN38GBZ engine rated at 76 kW. Engine options are also listed for different market and emission requirements, including Cummins, Changchai, Kohler and FPT alternatives.
The standard transmission arrangement is listed as a gearbox, hydraulic torque converter, drive shaft and drive axle. A closed-circuit piston-pump travel system is also listed as an optional transmission configuration.
-
Operator Control

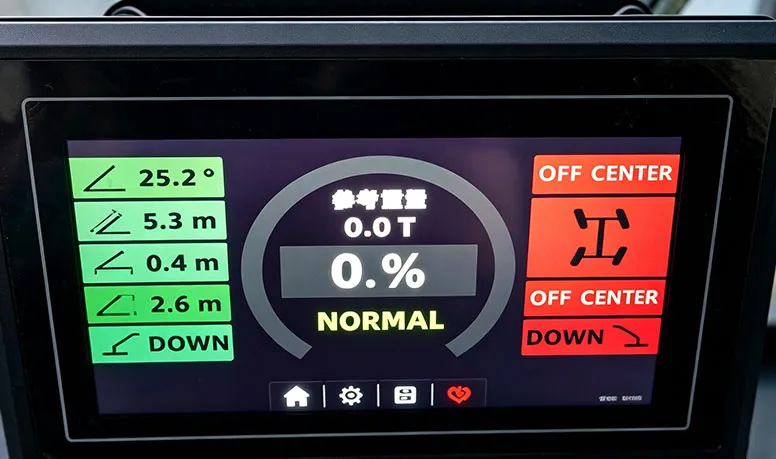

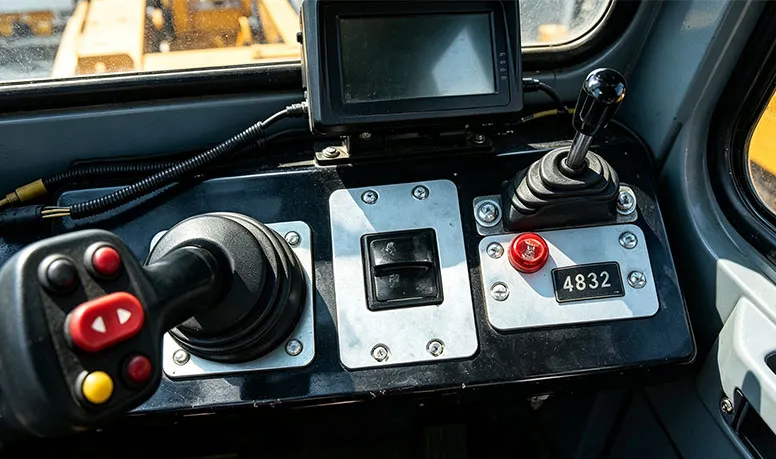

The 820 mm internal cab width provides an enclosed operating position with access to the display and control console shown in the supplied product material.
Front-wheel, four-wheel and crab steering allow the operator to select a steering mode suited to the travel path and positioning requirement.
Product Description
| Specification | Value |
| Max. Load | 3500 kg |
| Max. Lift Height | 7000 mm |
| Reach at Max. Lift Height | 4500 mm |
| Max. Forward Reach | 3600 mm |
| Unladen Weight | 7200 kg |
| Tyre | 16/70-24 |
| Outside Turning Radius (Over Tyre) | 4250 mm |
| Carriage Rollback Angle | 42.6° |
| Carriage Dump Angle | 37.5° |
| Overall Height | 2300 mm |
| Overall Width (Over Tyres) | 2150 mm |
| Inside Cab Width | 820 mm |
| Front Track | 1750 mm |
| Wheelbase | 2850 mm |
| Overall Length to Front Tyres | 4200 mm |
| Overall Length to Front Carriage | 4650 mm |
| Ground Clearance | 350 mm |
| Pallet Fork Length | 1220 mm |
| Engine Brand | YUNNEI YN38GBZ |
| Engine Rated Power | 76 kW |
| Drive Type | 4-Wheel Drive |
| Package (1×20GP) | 1 Unit |

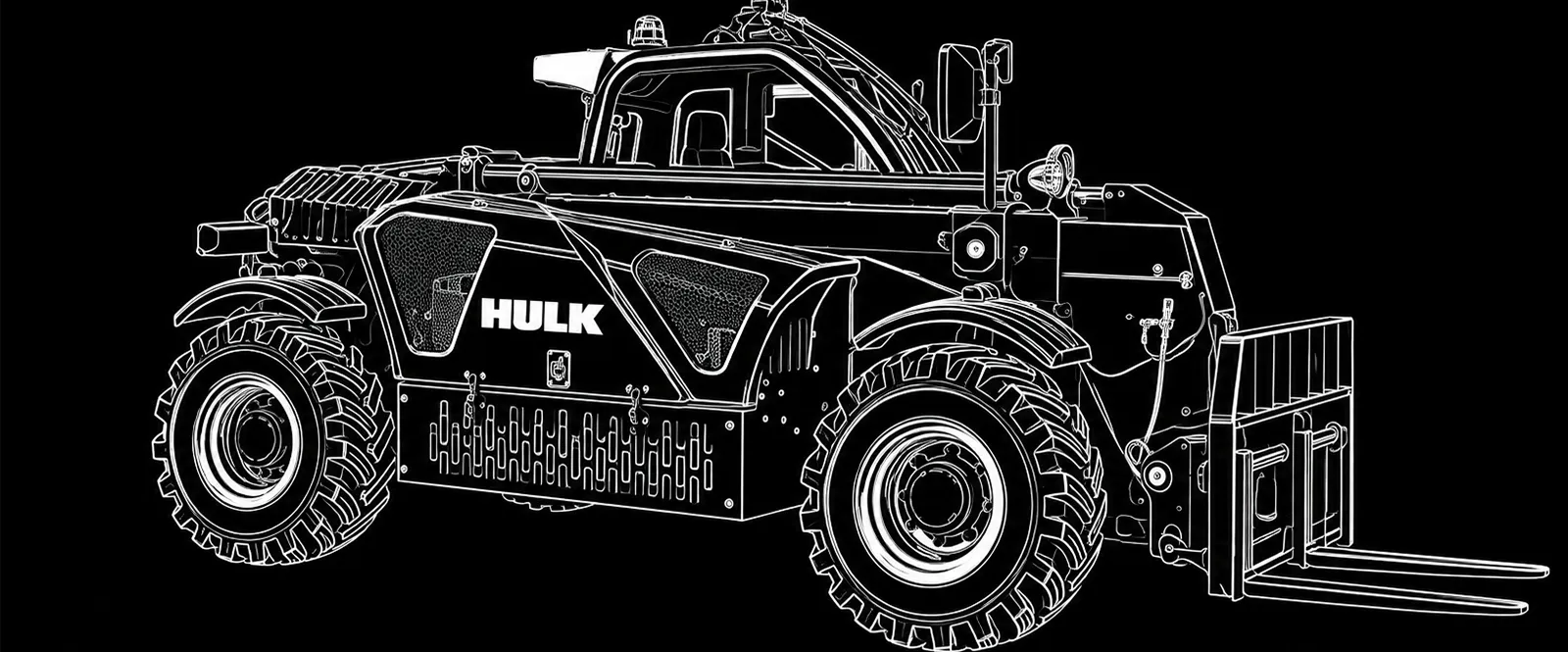

Dimension Drawing
Optional Choice
-
Four-Wheel Drive System
-
YUNNEI YN38GBZ Diesel Engine
-
Drive Shaft
-
Gearbox and Hydraulic Torque Converter
-
Hydraulic Converter
-
Front-Wheel Steering
-
Enclosed Operator Cab
-
Closed Piston Pump
-
Walking Pump
-
Motor + Gearbox + Drive Axle
