Counterbalanced Electric Reach Stacker
Main Features
-
1250–2000 kg Capacity Range
DBQ12, DBQ15 and DBQ20 handle 1,250–2,000 kg at a 500 mm load center.
-
Reaching Mast System
A 560–710 mm mast reach supports pallet handling in warehouse racking.
-
Up to 5600 mm Lift
Lift heights from 2,500 to 5,600 mm suit different rack layouts.
-
Tilting Fork Control
3° forward and 6° backward tilt supports controlled pallet handling.
-
AC Drive and Regenerative Braking
AC drive with regenerative and electromagnetic braking provides smooth control.
Product Description
-

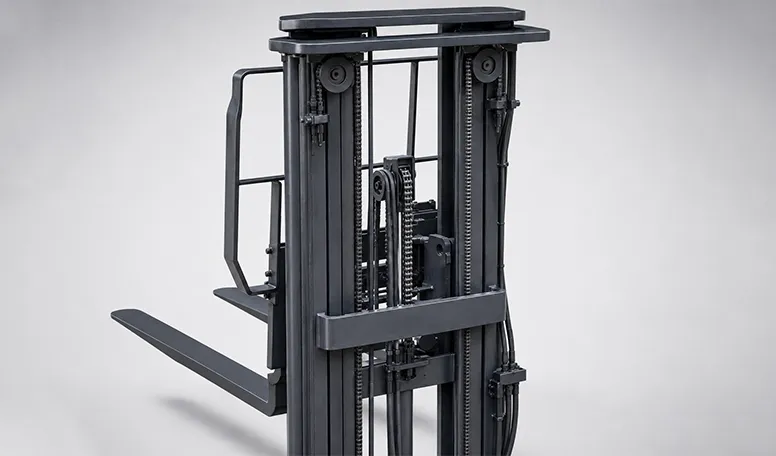

Mast Reach and Fork Control
The reaching mast moves the fork assembly forward to access pallet locations without requiring the complete chassis to enter the rack area. Reach distances are 560 mm for the DBQ12, 650 mm for the DBQ15 and 710 mm for the DBQ20.
Adjustable fork spacing from 200 to 680 mm and available fork lengths of 950, 1070 or 1150 mm support different pallet openings. The mast and fork carriage tilt 3° forward and 6° backward.
-

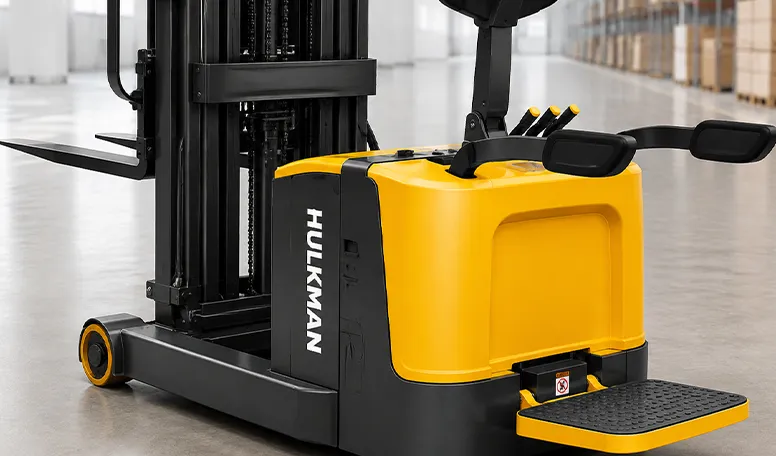

Stability and Controlled Braking
The counterbalanced chassis and low-center-of-gravity layout support load handling without front straddle legs. Two lifting cylinders are positioned on the outer sides of the mast.
Electromagnetic and regenerative braking work together during travel. An emergency stop switch, electrical lock and adjustable mast-lowering valve support controlled operation.
-
Low-Maintenance AC Drive System
The AC traction system is designed for lower routine motor maintenance and provides regenerative braking during operation. Drive motor power is 1.2 kW for the DBQ12 and DBQ15 and 2.2 kW for the DBQ20.
A magnetic battery cover simplifies access for inspection and servicing. The battery discharge indicator helps the operator monitor the available battery level.
-

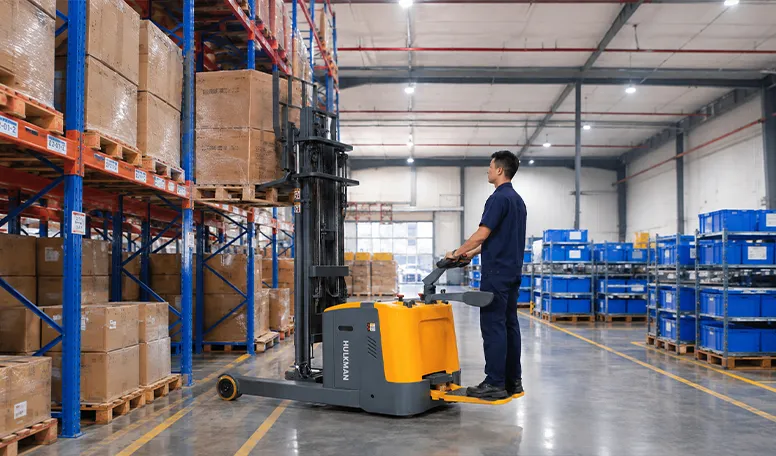

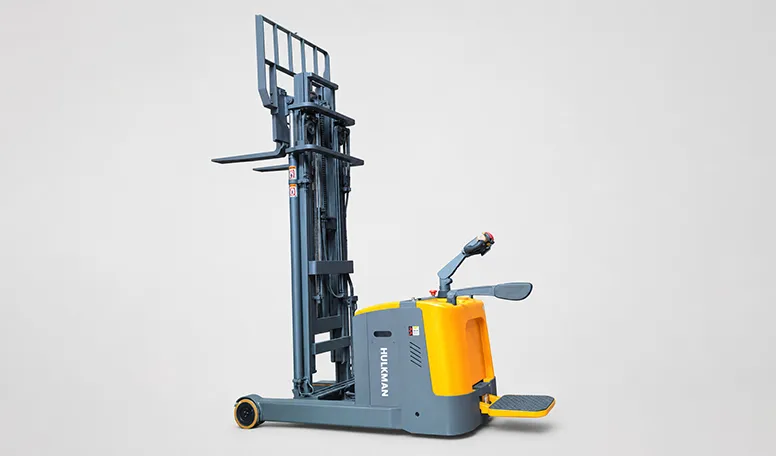

Stand-On Control and Maneuvering
The stand-on platform supports frequent travel between pallet locations. Multi-valve control levers provide access to lifting, lowering, reaching and tilting functions from the operating position.
Turning radii range from 1650 to 1870 mm, while the tiller height adjusts between 1160 and 1460 mm.
Product Description
| General Information | Unit | DBQ12 | DBQ15 | DBQ20 |
| Drive Type | Electric | Electric | Electric | |
| Operator Type | Standing | Standing | Standing | |
| Rated Capacity | Q（kg） | 1250 | 1500 | 2000 |
| Load Center Distance | c(mm) | 500 | 500 | 500 |
| Load Distance, Center of Drive Axle to Fork | x(mm) | 430 | 520 | 550 |
| Wheelbase | y(mm) | 1380 | 1480 | 1600 |
| Weight | ||||
| Service Weight | kg | 1800 | 2140 | 2300 |
| Axle Loading, unladen F/R | kg | 1200/600 | 1360/760 | 1660/2460 |
| Axle Loading, fork retracted, laden F/R | kg | 1080/2020 | 1290/2350 | 1620/680 |
| Tires | ||||
| Tire Type | Polyurethane | Polyurethane | Polyurethane | |
| Front Tire Size | Φ250×70 | Φ250×70 | Φ250×80 | |
| Rear Tire Size | Φ210×85 | Φ210×85 | Φ210×85 | |
| Additional Wheels (Dimensions) | Φ127×57 | Φ127×57 | / | |
| Wheels, Number F/R (x=driven wheels) | 1x+2/2 | 1x+2/2 | 1x/2 | |
| Front Tread | b10(mm) | 612 | 612 | / |
| Rear Tread | b11(mm) | 908 | 908 | 945 |
| Dimensions | ||||
| Tilt of Mast F/R | a/b(°) | 3/6 | 3/6 | 3/6 |
| Mast Lowered Height | h1(mm) | 1880/2118/1953/2128/2298/2495 | 1880/2118/1953/2128/2298/2495 | 1888/2118/2400/1953/2128/2298/2495 |
| Free Lift | h2(mm) | 0/0/0/1280/1480/1600/1870 | 0/0/0/1280/1480/1600/1870 | 0/0/0/1280/1480/1600/1870 |
| Lifting Height | h3(mm) | 2500/3000/3500/4000/4500/5000/5600 | 2500/3000/3500/4000/4500/5000/5600 | 2500/3000/3500/4000/4500/5000/5600 |
| Mast Extended Height | h4(mm) | 3500/4000/4500/5000/5500/6000/6600 | 3500/4000/4500/5000/5500/6000/6600 | 3500/4000/4500/5000/5500/6000/6600 |
| Height Drawbar in Driving Position Min./Max. | h14(mm) | 1160/1460 | 1160/1460 | 1160/1460 |
| Overall Length | l1(mm) | 2150/2270/2350 | 2250/2370/2450 | 2276/2360/2440 |
| Length to Fork Face | l2(mm) | 1200 | 1240 | 1290 |
| Overall Width | b1/b2(mm) | 990 | 990 | 1060 |
| Fork Dimension DIN ISO 2331 | s/e/l(mm) | 35/100/950(1070/1150) | 35/100/950(1070/1150) | 40/100/950(1070/1150) |
| Fork Spread | b5(mm) | 200-680 | 200-680 | 200-680 |
| Reach Distance | l4(mm) | 560 | 560 | 710 |
| Ground Clearance, laden, below mast | m1(mm) | 55 | 55 | 55 |
| Aisle Width for Pallets 1000×1200 Crossways | Ast(mm) | 2600 | 2700 | 2800 |
| Aisle Width for Pallets 800×1200 Crossways | Ast(mm) | 2650 | 2750 | 2830 |
| Turning Radius | Wa(mm) | 1650 | 1750 | 1870 |
| Performance Data | ||||
| Travel Speed, laden/unladen | km/h | 6.8/7.0 | 6.8/7.0 | 7.0/7.2 |
| Lifting Speed, laden/unladen | m/s | 0-0.13/0-0.2 | 0-0.13/0-0.2 | 0.11/0.2 |
| Lowering Speed, laden/unladen | m/s | 0-0.45 | 0-0.45 | 0-0.23/0-0.2 |
| Max. Gradeability, laden/unladen | % | 6/10 | 6/10 | 10/15 |
| Service Brake | Electromagnetic | Electromagnetic | Electromagnetic | |
| Motors | ||||
| Drive Motor Rating S2 60min | kW | 1.2(AC) | 1.2(AC) | 2.2(AC) |
| Lift Motor Rating at S3 15% | kW | 4.5 | 4.5 | 4.5 |
| Battery Voltage/Nominal Capacity K5 | V/Ah | 24/270 | 24/270 | 24/280(320/360) |
| Battery Weight | kg | 260-320 | 260-320 | 280-330 |
| Sound Pressure Level | dB(A) | 65 | 65 | 65 |

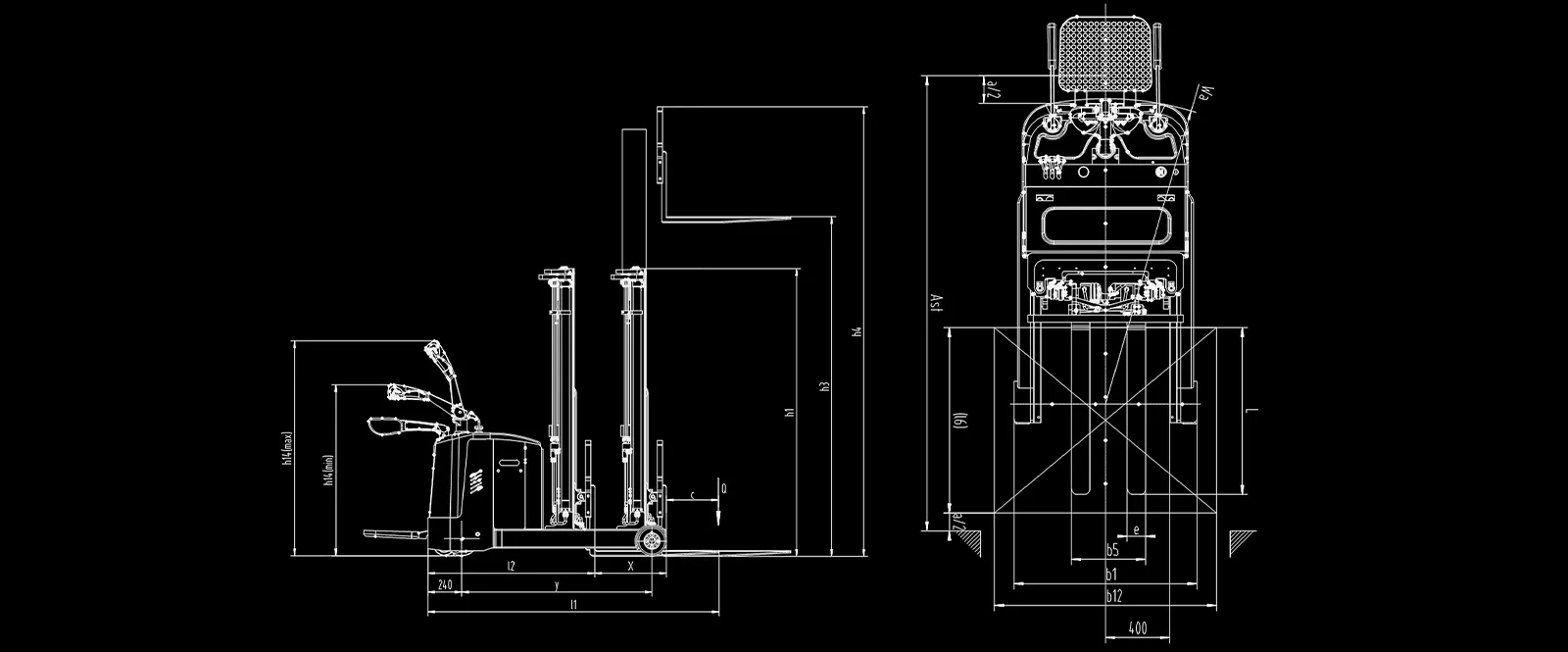

Dimension Drawing
Optional Choice
-
AC Traction Motor
-
Regenerative & Electromagnetic Braking
-
Dual External Lift Cylinders
-
Mast Reach and Tilt System
-
Vertical Drive Wheel
-
High-Capacity Storage Battery
-
BDI Battery Indicator
-
Multi-Valve Control Levers
-
Emergency Stop and Electric Lock
-
Magnetic Battery Cover
Applications for the Electric Reach Stacker
