1.5 Ton Semi Electric Stacker
Main Features
-
HULKMAN 1.5Ton Semi Electric Stacker Catalogue from Miya
-
A 1.5 kW hydraulic system provides powered lifting with controlled lowering.
-
Manual travel offers straightforward handling for short-distance indoor operations.
-
Choose from 1600, 2500, 3000, 3300 or 3500 mm lifting heights.
-
The foot-operated mechanical brake supports convenient positioning and parking.
Product Description
-

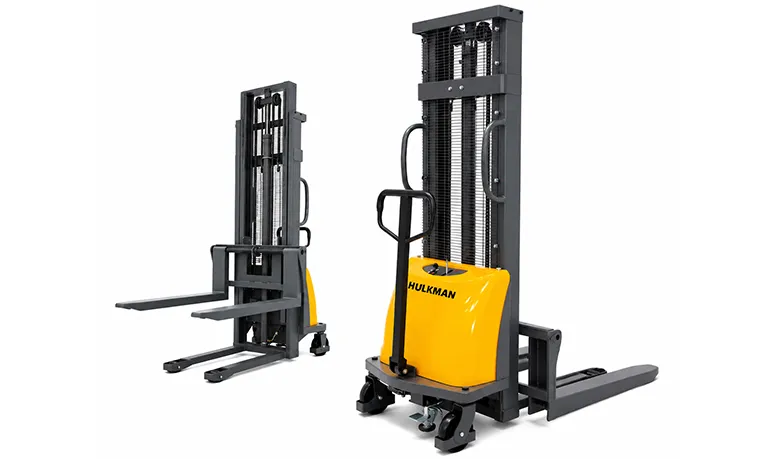

Manual Travel with Powered Lift
The DB15M combines manual pushing and steering with battery-powered hydraulic lifting. This configuration provides electric lifting assistance without the additional drive system of a fully electric stacker.
The semi electric pallet stacker is suitable for short-distance pallet movement and low-to-moderate-frequency stacking in indoor material handling areas.
-
Safety and Stability
A hydraulic safety valve helps control the lifting system if hydraulic pressure is interrupted. High-strength plate chains support the mast and fork carriage during lifting operations.
The mechanical foot brake helps secure the stacker during positioning, lifting and parking.
-

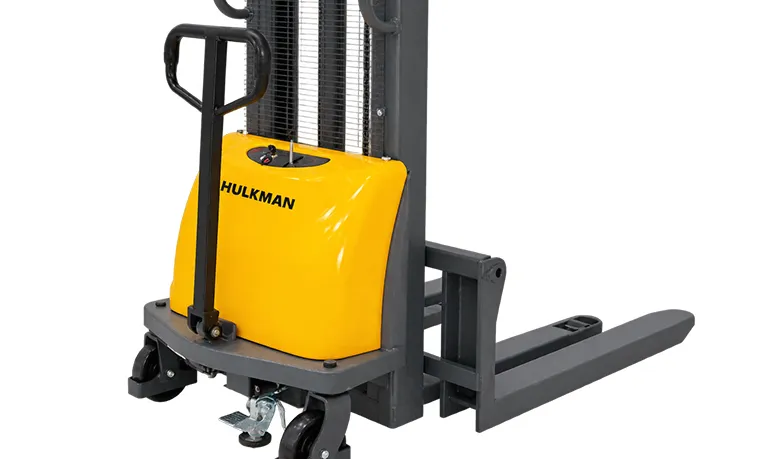

Simplified Maintenance
The DB15M uses a 1.5 kW lifting motor and a 12V/120Ah battery to power the hydraulic lifting system. Its manually driven chassis avoids the additional traction motor and electronic drive components used in a fully electric stacker.
The simple mechanical steering and braking arrangement supports routine inspection and servicing.
-

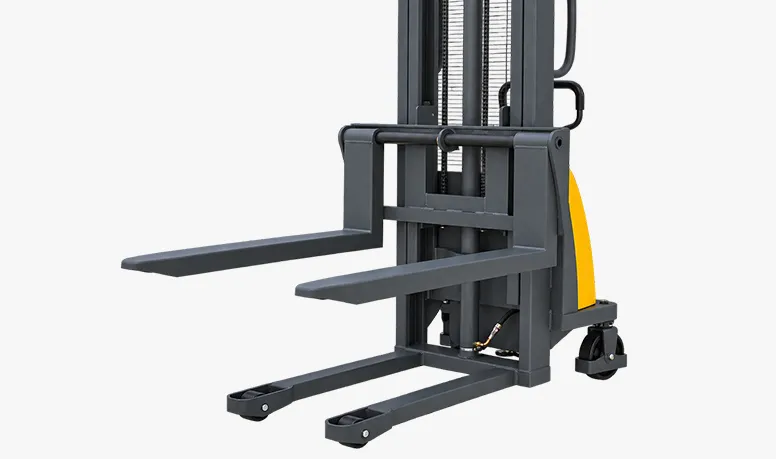

Easy Steering & Controlled Operation
The chain-driven steering mechanism reduces the steering effort required for positioning. The hydraulic control supports powered lifting and controllable lowering, while the foot brake provides a convenient way to secure the equipment.
A 1425 mm turning radius supports maneuvering in warehouse and workshop areas.
Product Description
| Model | Symbol / Unit | DB15M |
| Rated Load | Q（kg） | 1500 |
| Load Center Distance | c(m) | 400 |
| Front Overhang | x(mm) | 650 |
| Tread | Y(mm) | 1235 |
| Axle Load, F/R, laden | kg | 375/1540 |
| Axle Load, F/R, unladen | kg | 280/135 |
| Wheel | NYLON | |
| Wheel Dimension, Front | mm | Φ180×50 |
| Wheel Dimension, Rear | mm | Φ80×78 |
| Wheel Number, F/R | 2/2 | |
| Front Tread | b10(mm) | 700 |
| Rear Tread | b11(mm) | 420 |
| Mast Lowered Height | h1(mm) | 2100/1850/2100/2250/2350 |
| Lifting Height | h3(mm) | 1600/2500/3000/3300/3500 |
| Max. Mast Extended Height | h4(mm) | 2100/3060/3560/3860/4060 |
| Lowered Height | h13(mm) | 90 |
| Overall Length | l(mm) | 1745 |
| Length to Fork Face | l2(mm) | 1070 |
| Overall Width of Truck Body | b1(mm) | 960 |
| Fork Dimension | s/e/l(mm) | 60×142×1070 |
| Overall Width of Fork | b5(mm) | 300-930 |
| Wheelbase Ground Distance | m2(mm) | 15 |
| Aisle Width for Pallets 1000×1200(1200 Crossways) | Ast(mm) | 2288 |
| Aisle Width for Pallets 800×1200(1200 Crossways) | Ast(mm) | 2267 |
| Turning Radius | Wa(mm) | 1425 |
| Lifting Speed, laden/unladen | m/s | 0.05/0.08 |
| Descending Speed, laden/unladen | m/s | 0.1/0.09 |
| Traveling Brake | Mechanical Brake | |
| Lifting Motor Power | kw | 1.5 |
| Battery Voltage/Rated Capacity | V/Ah | 12/120 |
| Battery Weight | kg | 45 |
| Battery Dimension l/w/h | mm | 360×170×250 |
| Service Weight(with Battery) | kg | 335/395/415/425/435 |
Dimension Drawing
Optional Choice
-
Hydraulic Control Lever
-
Adjustable Lifting/Lowering Speed
-
Explosion-Proof Safety Valve
-
1.5 kW Hydraulic Pump
-
Manual Lowering System
-
Large-Capacity Battery
-

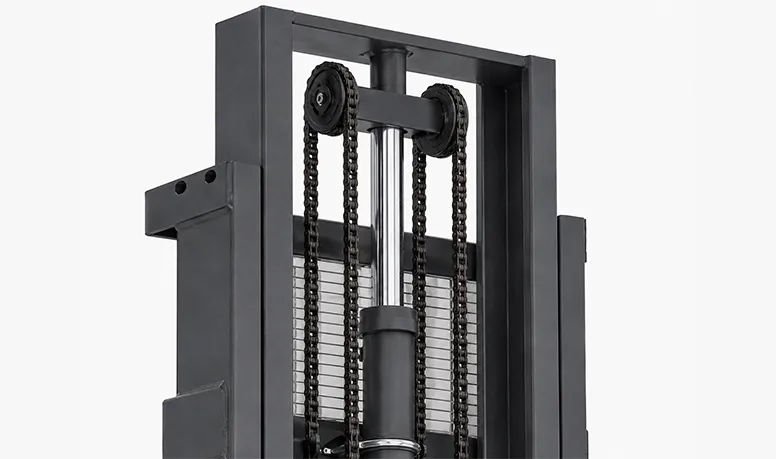

Chain-Driven Steering
-
Foot Brake
-
High-Strength Leaf Chain
Applications for the Semi-Electric Stacker
Video
If you would like more information about this product, please feel free to contact us. Recommend other popular products for you: 2.5 Ton Electric Pallet Truck, 1.5 Ton Electric Reach Stacker, Multi Direction Forklift For Sale, manual forklift exporter, agv forklift manufacturer, agv forklift factory, agv forklift supplier, automated guided vehicle forklift manufacturer, agv forklifts manufacturer, agv forklifts factory, agv forklifts supplier, China agv forklift, China automated guided vehicle forklift, China forklift automated guided vehicles, stacker agv, forklift agvs manufacturer, forklift agvs factory, China forklift agvs, custom forklift agvs, Forklift 10 Ton For Sale, 10 ton diesel forklift, 7 ton diesel forklift, 2 Ton LPG Forklift, 3.5 Ton LPG Forklift, Electric Tow Tractor For Sale, 10 Ton Electric Tow Tractor, 6 Ton Electric Tow Tractor, Multi Directional Forklift For Sale, 2 Ton 4-Directional Electric Forklift
Related Products
-
TB20R2.0Ton Stand On Type Electric Pallet Truck
The HULKMAN TB20R is a 2 ton stand on electric pallet truck designed for medium-distance pallet transport in warehouses, distribution facilities, supermarkets and production areas. It combines a 2000 kg rated capacity, a stand-on operator platform, brushless AC drive technology and multiple fork configurations for efficient daily material handling.
-
DB15M
1.5Ton Semi Electric Stacker
The HULKMAN DB15M is a 1.5 ton semi electric stacker combining manual travel with powered hydraulic lifting. Its 1500 kg capacity, selectable 1600-3500 mm lift heights and adjustable fork options support pallet lifting and stacking in warehouses, workshops and storage areas.
-

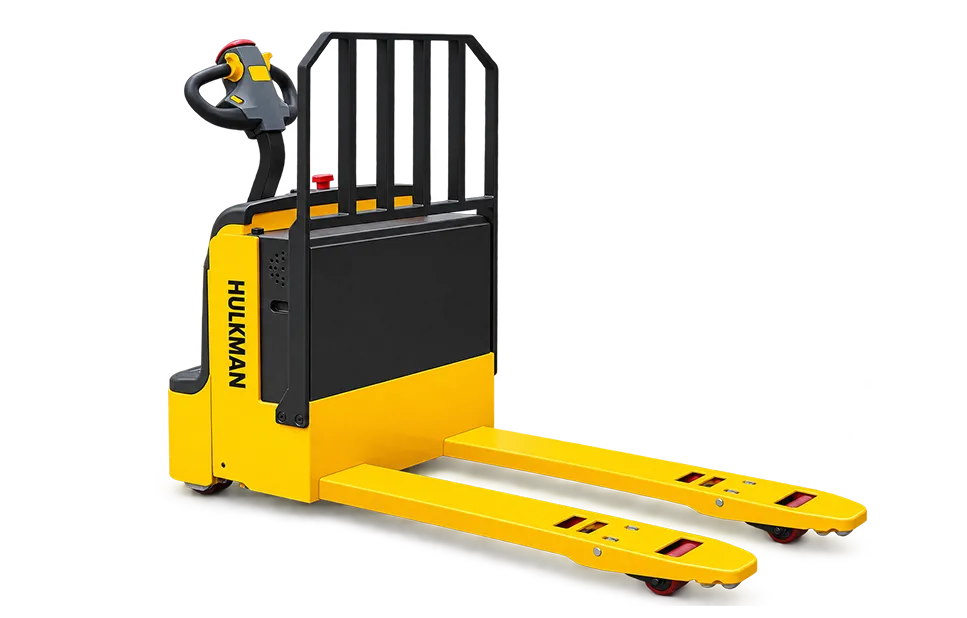

TB20W2.0Ton Walk Type Electric Pallet Truck
The HULKMAN TB20W 2 ton electric walkie pallet truck is designed for short- and medium-distance pallet transport in warehouses, workshops and retail storage areas. Its compact chassis, AC drive system, side-entry battery and 2000 kg capacity support efficient handling in confined working spaces.
-

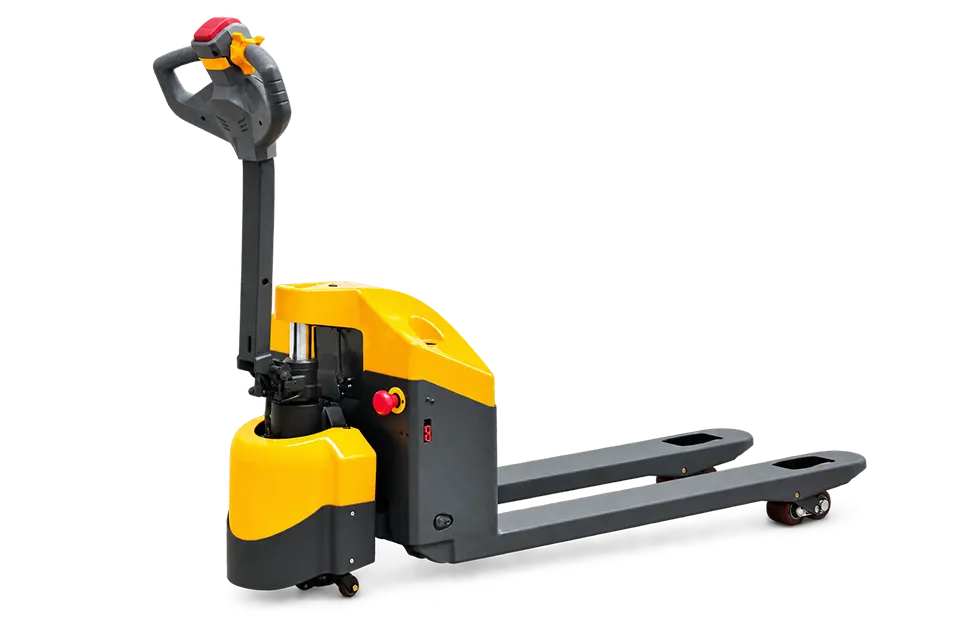

TB151.5Ton Electric Walkie Pallet Truck
The HULKMAN 1.5 ton electric pallet truck is a compact, walk-behind unit for moving palletized loads over short distances. Its space-saving body supports pallet handling in warehouses, workshops, supermarkets and cargo containers.The powered travel and lifting functions reduce manual handling effort during routine loading, unloading and internal material transfer.
-
DB12E / DB15E1.2Ton 1.5Ton Economic Walkie Electric Stacker
The HULKMAN DB12E/DB15E is a 1.2-1.5 ton electric walkie stacker combining powered travel and electric lifting in a compact pedestrian-operated design. With 1200 kg and 1500 kg load options, lift heights up to 3500 mm and a turning radius from 1355 to 1365 mm, it supports indoor pallet transport and low-level stacking in warehouses, supermarkets and storage areas.
-
YB15L1.5Ton Stand Type Electric Reach Truck
The HULKMAN YB15L is a 1.5 ton stand-up electric reach truck for indoor pallet handling and rack storage. It combines a 1500 kg rated capacity, 600 mm reach distance and selectable 3000, 5000 or 6200 mm lift heights in a 1020 mm-wide chassis.
-
YB15S1.5Ton Seat Type Electric Reach Truck
The YB15S 1.5 ton electric reach truck combines a 1,500 kg rated capacity at a 600 mm load center with lift heights from 3,000 to 8,000 mm. Its seated operating position, 600 mm reach distance, AC motor control and EPS steering support pallet handling in warehouse racking applications.
-

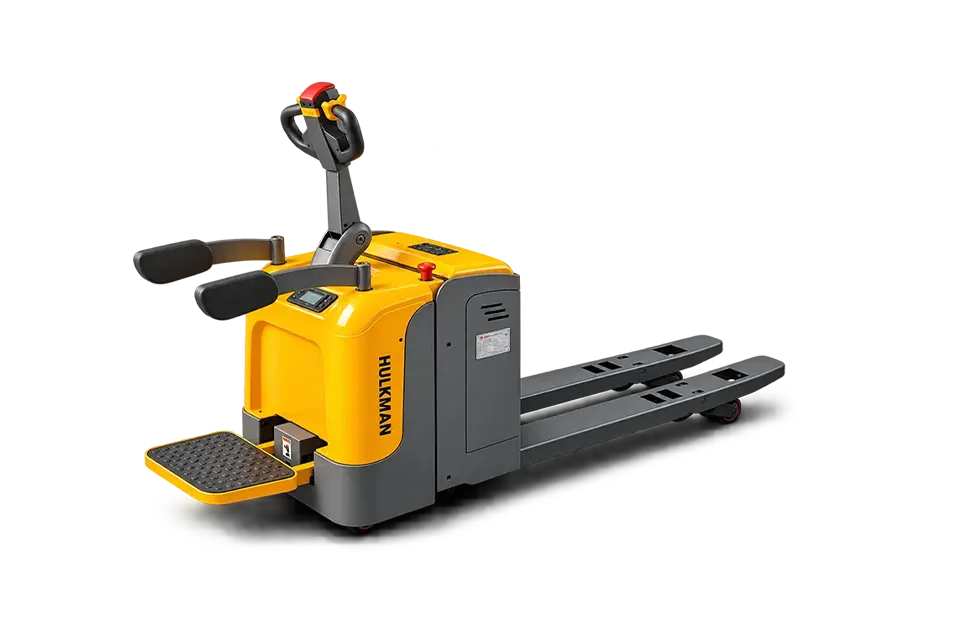

TB252.5Ton Electric Pallet Truck
