Stand-On Type Platform Pallet Truck
Optional 125AH Lithium Battery
Small Turning Radius
Super Light Steering System
Widely used in large warehouse and big supermarket
For Medium Distance Transportation
Free Maintenance AC Motor
Sideway Battery Replacement
Platform with Speed Sensor
Optional Keypad access
Optional Lithium Battery
The TB25 handles palletized loads up to 2,500 kg at a 600 mm load center.
Integrated operator platform enables efficient medium‑distance transport with speed control.
775‑mm width and 1,550‑1,670 mm turning radius suit narrow warehouse spaces.
Brushless AC motor delivers controlled travel and lower motor maintenance.
Standard:24V/240Ah battery; optional 24V/125Ah Li‑ion and larger battery compartments.
The TB25 electric pallet truck is designed for low-level horizontal movement rather than high-rack stacking. It combines a 2.5 ton rated capacity with stand-on operation for regular pallet transfers across medium distances.
Available fork lengths and widths help match different pallet dimensions. Buyers should confirm pallet size, entry direction, load weight and aisle conditions before selecting a configuration.
The truck includes an emergency stop, belly button, platform speed sensor and supporting casters for operational stability.
A lowered fork height of 82 mm supports pallet entry, while controlled electric travel and lifting help operators position loads during routine warehouse movement.
Sideway battery replacement provides easier access when maintaining or exchanging the battery. The standardized product configuration also supports battery, wheel and fork selection according to the customer’s working conditions.
The stand-on layout allows the operator to travel with the truck during repeated medium-distance transport. The steering system, accessible tiller controls and folding protective arms support practical daily operation.
The tiller height ranges from 1,150 to 1,430 mm in the driving position, helping maintain accessible control throughout pallet handling tasks.

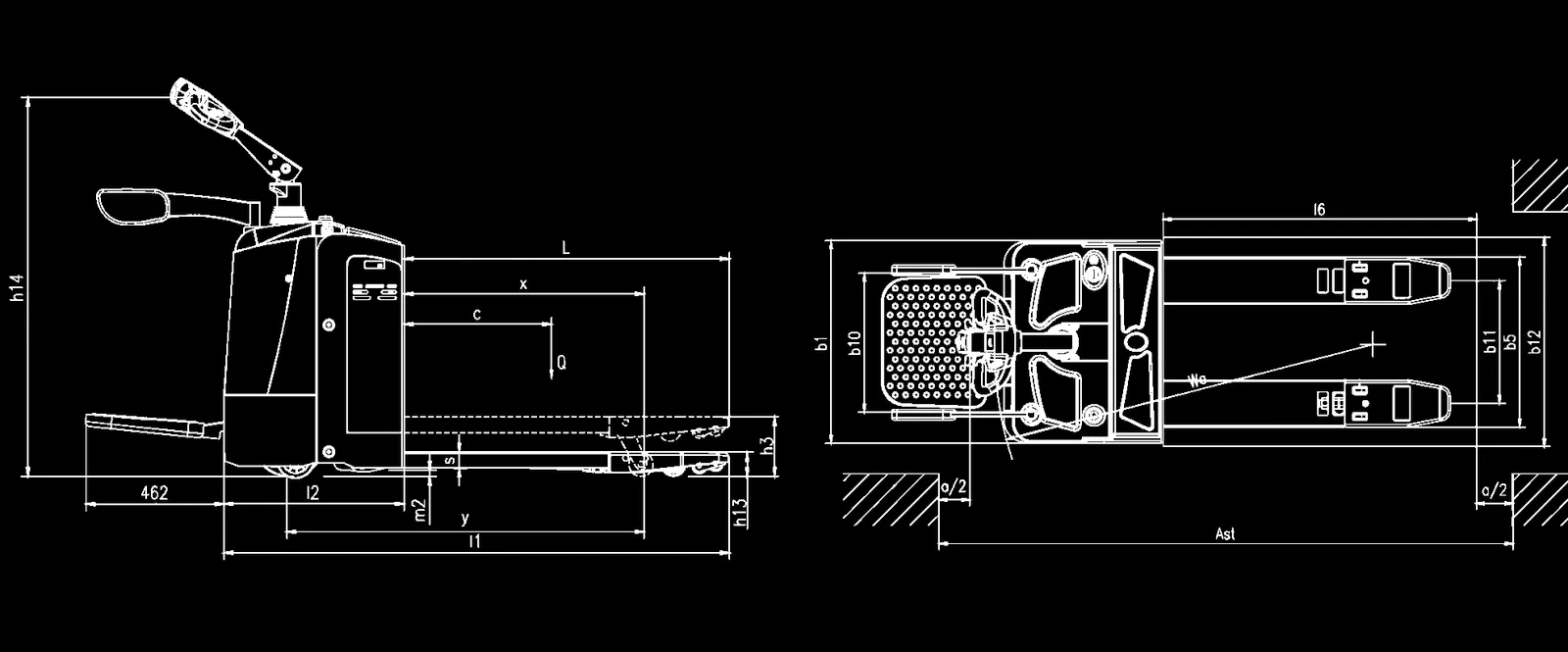

| Parameter | Symbol / Unit | TB25 |
| Model | — | TB25 |
| Load Capacity | Q (kg) | 2500 |
| Load Center | c (mm) | 600 |
| Load Distance, Center of Drive Axle to Fork | x (mm) | 914 / 964 / 1034 |
| Fork Height, Lowered | h13 (mm) | 82 |
| Front Tire | mm | φ250 × 70 |
| Rear Tire | mm | φ82 × 126 (98) |
| Additional Wheels (Dimensions) | mm | φ127 × 57 |
| Wheels, Number Front/Rear (x = Driven Wheels) | — | 1x + 2 / 2 (4) |
| Maximum Lifting Height | h3 (mm) | 202 |
| Height of Tiller in Driving Position, Min./Max. | h14 (mm) | 1150 / 1430 |
| Overall Length | l1 (mm) | 1710 / 1760 / 1830 |
| Length to Face of Forks | l2 (mm) | 610 |
| Overall Width | b1 (mm) | 775 |
| Fork Dimensions | s/e/l (mm) | 53 × 180 × 1100 / 1150 / 1220 |
| Overall Fork Width | b5 (mm) | 520 / 550 / 650 / 685 |
| Aisle Width for 1000 × 1200 mm Pallets (1200 Crossways) | Ast (mm) | 2360 / 2405 / 2475 |
| Aisle Width for 800 × 1200 mm Pallets (1200 Crossways) | Ast (mm) | 2245 / 2270 / 2305 |
| Turning Radius | Wa (mm) | 1550 / 1600 / 1670 |
| Travel Speed, Laden/Unladen | km/h | 7 / 7.1 |
| Battery Voltage/Nominal Capacity K5 | V/Ah | 24 / 240 |
| Battery Weight | kg | 200 |
| Battery Dimensions (L × W × H) | mm | 750 × 170 × 570 |
| Service Weight (Including Battery) | kg | 750 |
Frei tiller head with one side lifting button (option)
Handle (standard)
Frei tiller head with one side lifting button (option)
Keypad access (option)
Entry roller for easy operation
Emergency Stop& Bely Button
BDI and Hour Meter
Casters to Balance Stability
Industrial Battery
Brushless AC Motor
Vertical Driving Motor
Sideway Battery Change
Built-Out Charger
Platform with Speed Sensor
Fork Width Length (Size)
Load Backrest
Built-in Charger
Cold Storage with Rubber Drive Wheel
Entry & Exist Roller for Empty Pallets
EPS, drive wheel size is 250x80mm
Large Compartment with Battery Capacity 280Ah,400Ah; Drive Speed 9.5-10km/h
Lithium Battery 24V/125Ah
