Counterbalanced Reach Lift Truck
Optional 350Ah Lithium Battery
Small Turning Radius
Widely Used for High-Shelves in Narrow Aisle Warehouses, Supermarkets
Battery Easy to Remove and Replace
Full Hydraulic Steering System
Optional Height Selection and Height Position Function
Optional High-Level Video Camera
1500 kg Rated Capacity
Handles up to 1500 kg at a 500 mm load center.
Three Lift Heights
Available with 3000, 5000 or 6200 mm lift heights.
600 mm Reach Distance
Provides 600 mm reach for pallet placement and retrieval.
Stand-Up Operation
Grouped travel and hydraulic controls support efficient operation.
Compact Dimensions
A 1020 mm width and 1700 mm turning radius improve maneuverability.
48V/400Ah Battery
Powers the truck’s travel, lifting and reach functions.
Battery Options
Optional battery trolley and 350Ah lithium battery available.

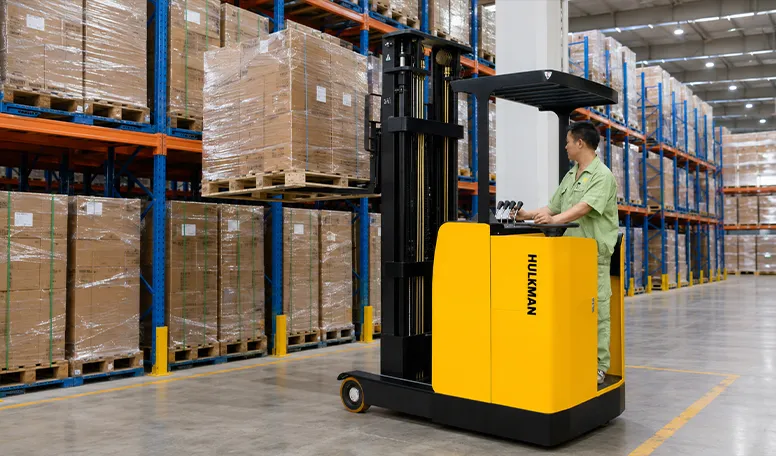

The YB15L combines electric travel and lifting with a mast reach function. Its forks can move forward for pallet placement and retract to reduce the truck’s working footprint during travel and turning.
This 1500kg electric reach truck is intended for pallet stacking and retrieval in indoor warehouses, logistics facilities and manufacturing storage areas.
The overhead guard helps protect the standing operator area, while the mast structure supports controlled pallet lifting and positioning.

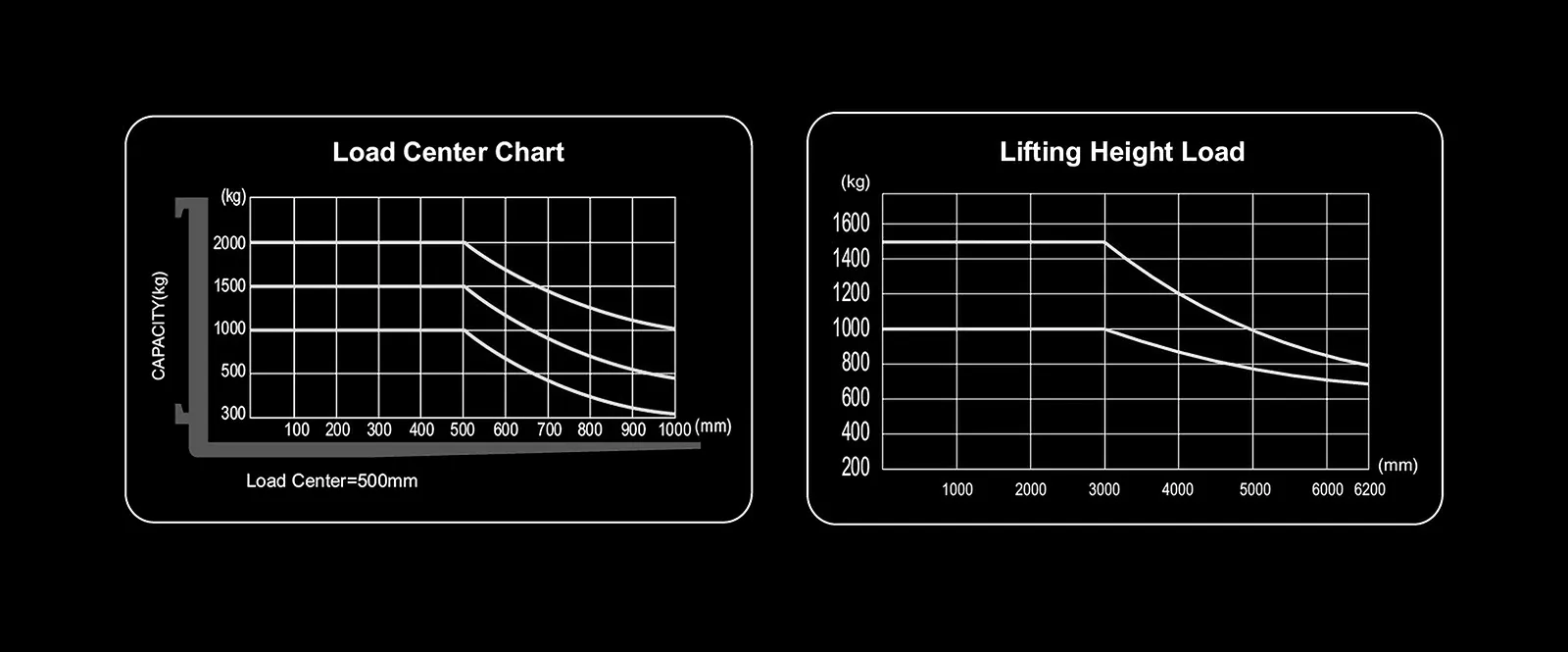

Buyers should check the supplied lifting-height and load-center charts when selecting a mast. The permitted load decreases as the lifting height or load-center distance increases.

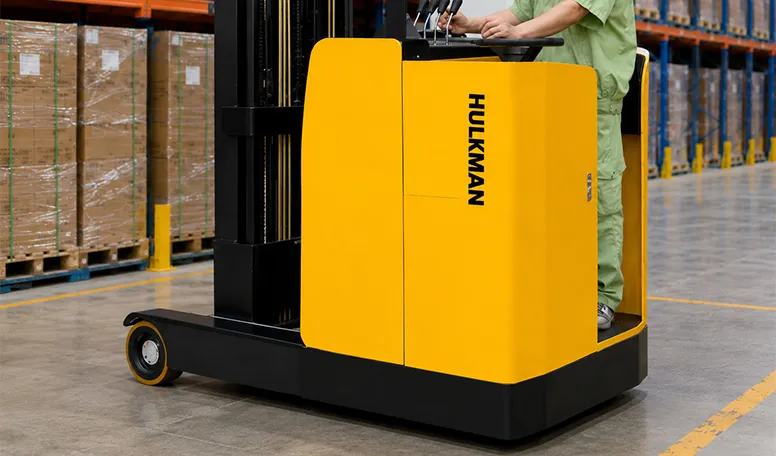

The standard power system uses a 24V/210Ah battery. Its side-access arrangement supports battery inspection and handling without requiring removal through the top of the tractor.
A built-in charger supports routine charging, while a 24V/125Ah lithium battery package is listed as an optional configuration.

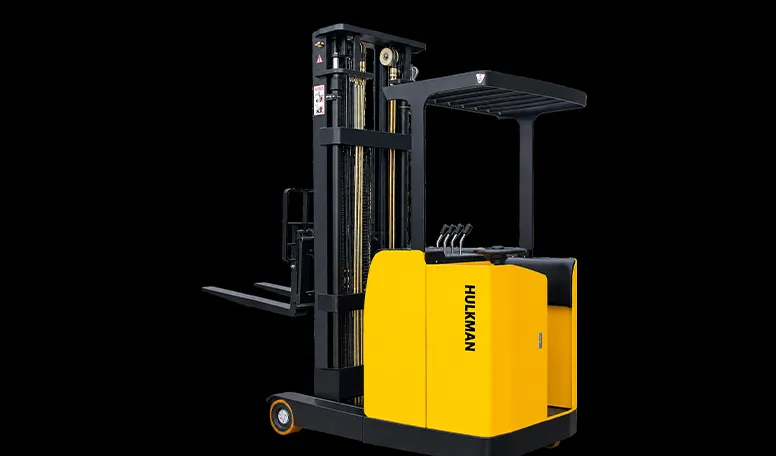

The stand-on platform supports frequent travel between pallet locations. Multi-valve control levers provide access to lifting, lowering, reaching and tilting functions from the operating position.
Turning radii range from 1650 to 1870 mm, while the tiller height adjusts between 1160 and 1460 mm.

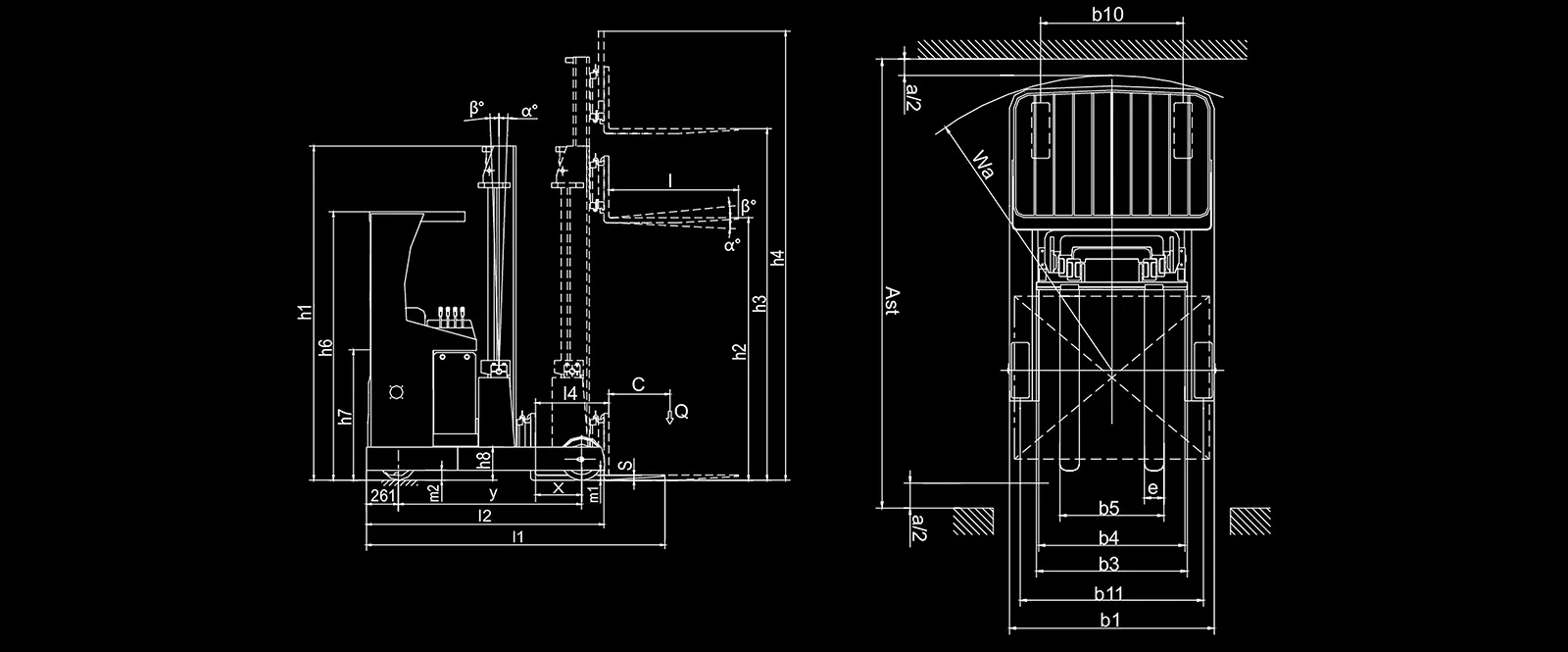

| Model | Symbol / Unit | YB15L |
| Power | Battery | |
| Operate Type | Standing | |
| Rated Load Capacity | Q(kg) | 1500 |
| Lifting Height | h3(mm) | 3000/5000/6200 |
| Load Center Distance | c(mm) | 500 |
| Drive Wheel | mm | Φ280×100 |
| Fork Wheel | mm | Φ250×80 |
| Wheels, Number F/R (x=Driven Wheels) | 3,2 | |
| Tilt of Mast F/R | α/β (Grad) | 3,5(mast)/3,5(forks)/3,5(forks) |
| Mast Lowered Height | h1(mm) | 2086/2240/2640 |
| Free Lifting Height | h2(mm) | ~ /1700/2100 |
| Mast Extended Height | h4(mm) | 3800/5800/7000 |
| Overhead Guard Height (cabin) | h6(mm) | 2200 |
| Stand Height | h7(mm) | 295 |
| Crura Height | h8(mm) | 270 |
| Overall Length | l1(mm) | 2360 |
| Barring Fork Length | l2(mm) | 1800 |
| Overall Width | b1(mm) | 1020 |
| Fork Dimensions | s/e/l(mm) | 35/100/1070 |
| Reach Distance | l4(mm) | 600 |
| Aisle Width for Pallets 1000×1200 crossways | Ast(mm) | 2800 |
| Aisle Width for Pallets 800×1200 crossways | Ast(mm) | 2850 |
| Turning Radius | Wa(mm) | 1700 |
| Travel Speed, laden/unladen | km/h | 7/7.2 |
| Lift Speed, laden/unladen | m/s | 0.2/0.4 |
| Lowering Speed, laden/unladen | m/s | 0.45/0.36 |
| Battery Voltage, Nominal Capacity K5 | V/Ah | 48/400 |
| Battery Weight | kg | 550 |
| Battery Dimensions l/w/h | mm | 983×404×630 |
| Service Weight | kg | 2340/2740/2840 |
Oil tube inside of the mast with clean wire communications.
Integrated structure of drive system and steering system
With battery handle controller can automatically remove out
Optional of battery changing trolley
Stand-On Operator Platform

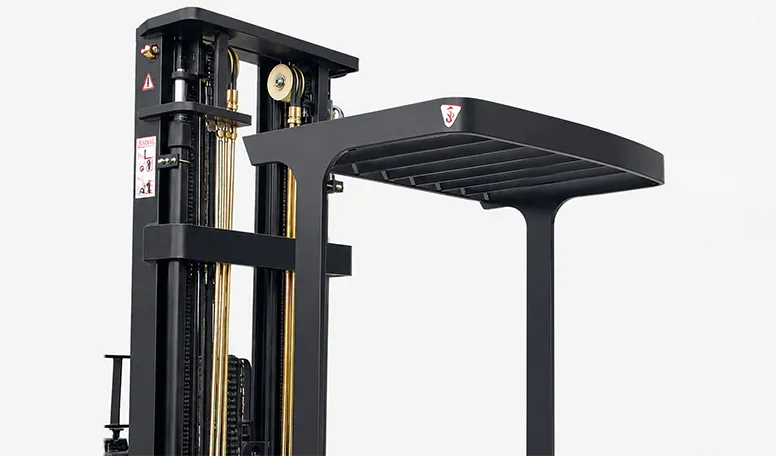

Overhead Guard
Reach Mast System
600 mm Reach Distance
Integrated Drive and Steering System
Internal Mast Oil-Tube Routing
Battery Removal Controller
48V/400Ah Battery
35 × 100 × 1070 mm Forks
