2 Ton Electric Walkie Pallet Truck for Sale

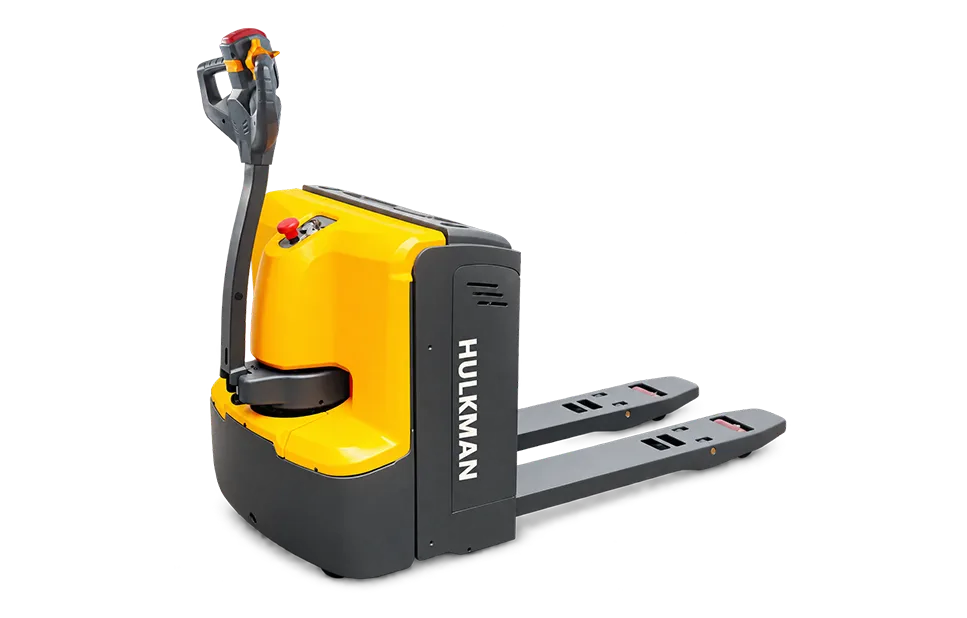

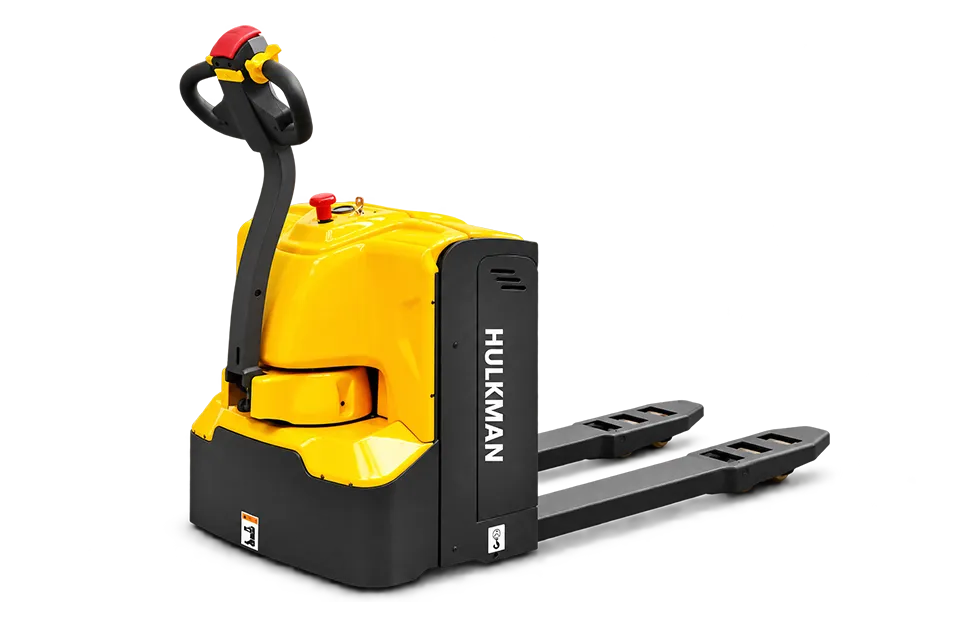

2.0Ton Walk Type Electric Pallet Truck

Standard Curtis Controller, Optional ZAPI Controller
Optional 125AH Lithium Battery
Free Maintenance AC motor
Super Light Walkie Type, Small Turning Radius, Low-Profile Chassis
Widely Used in Narrow Spaces like Supermarket and Workshop
Side Way Battery Replacement
Emergency Reversing Device
Built-In Pressure Relief Valve Preventing overloading
Emergency Power Disconnect
Long Handle Tube Supports Flexible and Laborsaving Operation

Inquire Now

Download

Main Features

Handles up to 2,000 kg at a 600 mm load center for warehouse transport.
A 1,470–1,590 mm turning radius improves confined-space maneuverability.
A brushless AC motor enables smooth travel with less maintenance.
The side-entry design simplifies battery removal, replacement and routine servicing.
Emergency reversing, overload protection and power cut-off enhance safety.

Product Description

SAFETY AND PRODUCTIVITY:

Advanced AC control system eliminates the motor brushes and directional contractors, which makes the minimal maintenance requirements. Intelligent regenerative brake system increases overall truck performance by decreasing battery charge intervals.
Side-way battery with roll-out system is very convenient to replace batteries.
Emergency reversing device.
Bult-in pressure relief valve protects the pallet trucks from overloading.
Emergency power disconnect.
Low speed switch in the handle.
Stepless speed control.
STRUCTURAL:

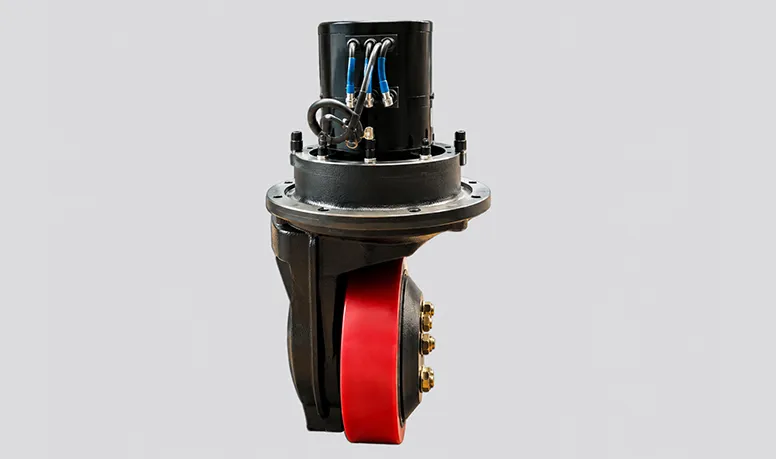

Water-proof and dust proof vertical driving wheel offer small turning radius.

The riser axle is located at the highest point of the forks, protects riser axles from constant contact by uneven floors. Pull rod design against bending.

Spring-loaded castors improve lateral stability on uneven floors and enhance truck performance and service life.

Formed heavy gauge steel for maximum strength forks.

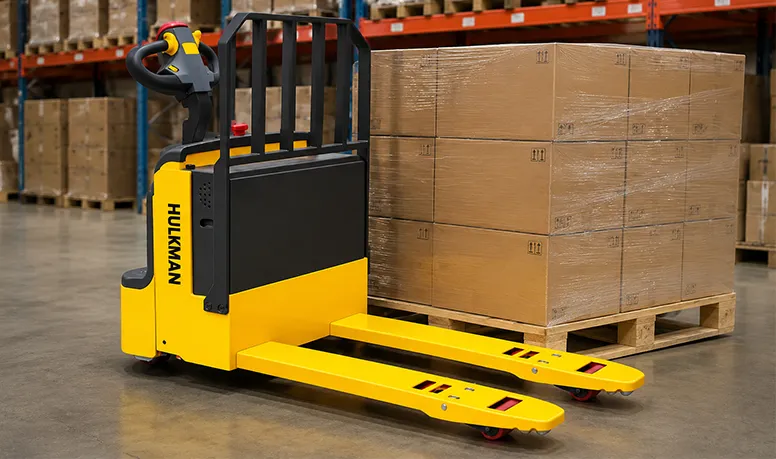

SERVICEABILITY:

Low battery protection setting prolongs the battery life.

Brushless motor easy for maintenance.

All pivot points have grease fitting and serviceable bushing, reducing component-wearing.

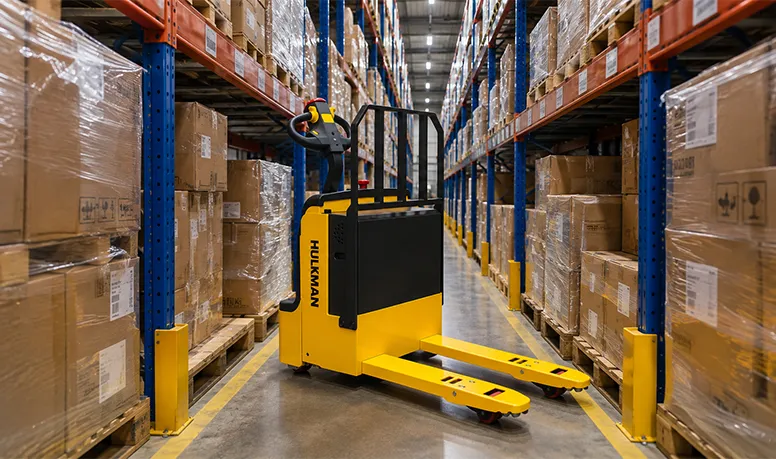

Safety and Stability

An emergency reversing device, emergency power disconnect and low-speed handle switch support controlled operation in confined spaces. The built-in pressure relief valve helps protect the hydraulic system against overloading.

Regenerative braking supports smooth deceleration, while spring-loaded casters improve lateral stability when the truck travels over uneven floor sections.
Service Ability

The brushless AC drive motor reduces maintenance associated with motor brushes and directional contactors. Grease fittings and serviceable bushings at the pivot points support routine inspection and component maintenance.

The side-entry battery arrangement allows the battery to be removed without lifting it vertically from the truck.

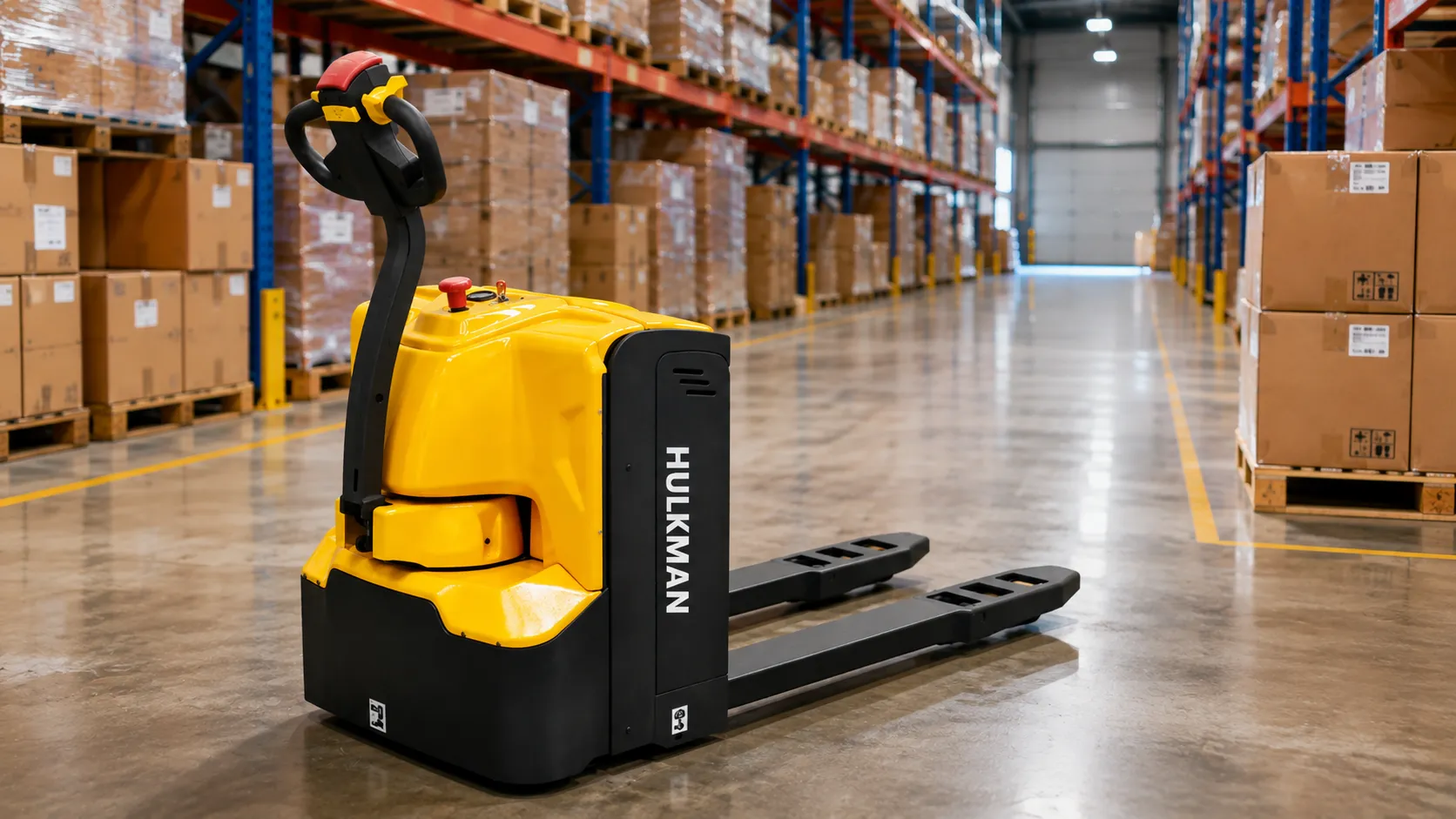

Ergonomics

The long tiller arm supports comfortable walk-behind control and provides useful clearance between the operator and truck. Stepless speed control allows the operator to adjust travel speed according to the available space and load condition.

The standard CURTIS handle integrates the main travel and lifting controls. Alternative tiller-head and keypad-access configurations are available as options.

Product Description

Model	Symbol / Unit	TB15
Load Capacity	Q（kg）	1500
Load Center	c(mm)	600
Fork height, lowered	h13(mm)	85/75
Front Tire	mm	φ195×70
Rear Tire (Single)	mm	φ80×93 / φ74×93
Rear Tire (Double)	mm	φ80×70 / φ74×70
Wheels, number front rear(x=driven wheels)		1×2(4)
Max. Lifting Height	h3(mm)	190/180
Height of Tiller in Driver Position Min./Max.	h14(mm)	700/1250
Overall Length	l1(mm)	1654/1724
Length to Face of Forks	l2(mm)	504
Overall Width	b1(mm)	685/562
Fork Dimensions	s/e/l(mm)	53/160/1150(1220)
Width Overall Forks	b5(mm)	520/550/685
Aisle Width for Pallets 1000×1200(1200 Crossways)	Ast(mm)	2260/2328
Aisle Width for Pallets 800×1200(1200 Crossways)	Ast(mm)	2128/2365
Turning Radius	Wa(mm)	1454/1424
Travel Speed, laden/unladen	km/h	4.3/4.8
Battery Voltage/Nominal Capacity K20	V/Ah	24/65
Battery Dimensions LxWxH	mm	228/138/214
Battery Weight	kg	36
Service Weight(with Battery)	kg	205

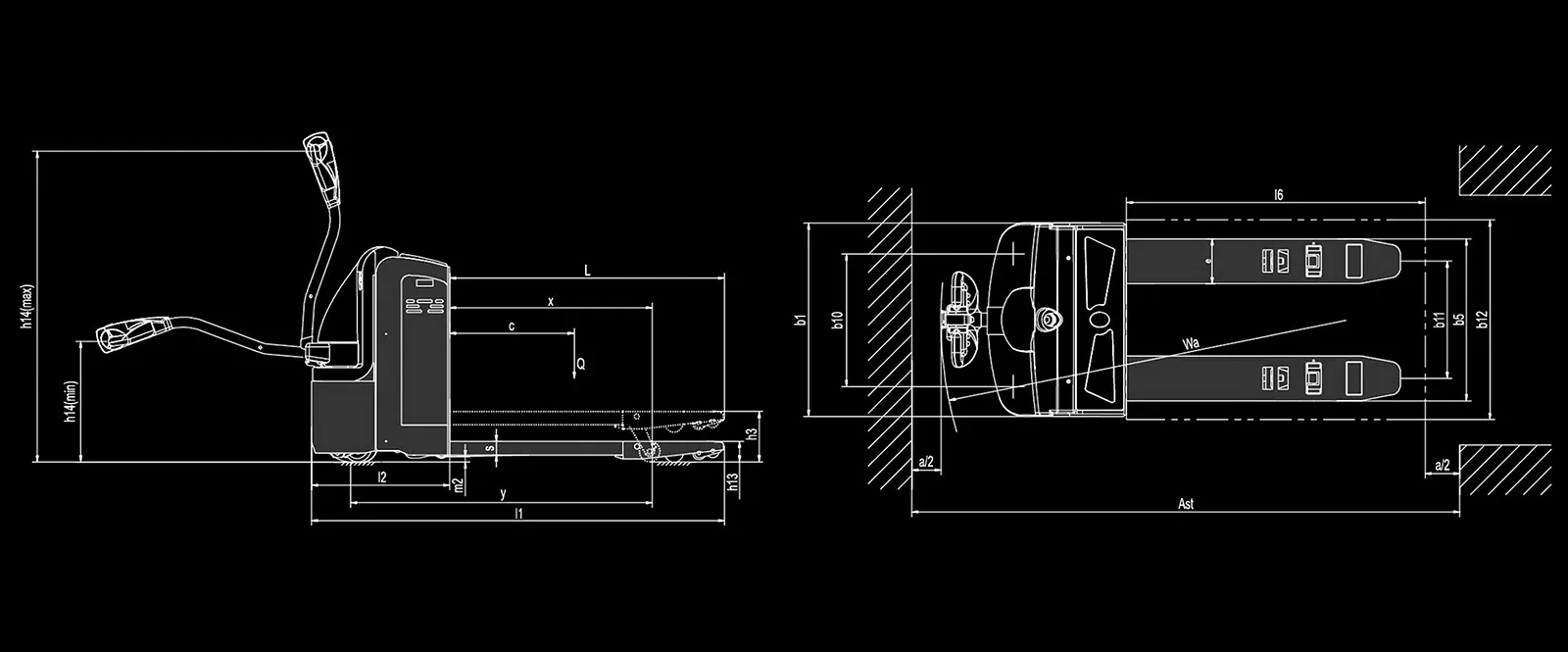

Dimension Drawing

Optional Choice

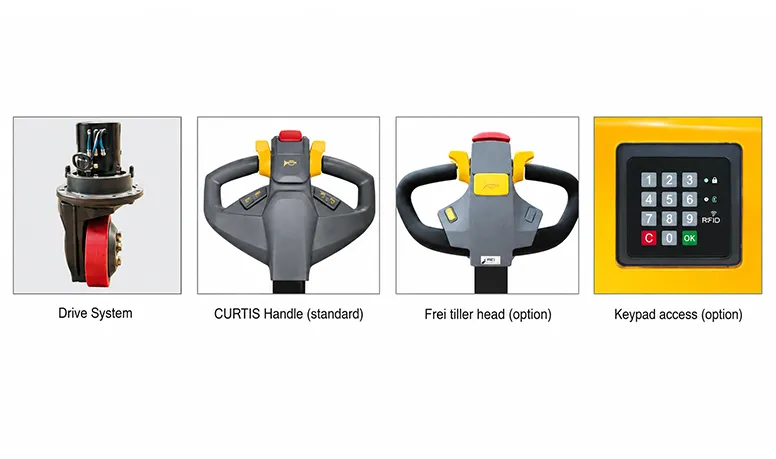

Drive System
CURTIS Handle (standard)
Frei tiller head (option)
Keypad access (option)

Italy imported low noise gear pump
Hydraulic control system with Magnetic valve
Seat with cushion with safety belt
Germany driving wheel
High performance and high torque AC drive motor
CANbus system
Sideway Battery 80V/560AH
Duplex mast
Fork length 950
rear mirror
Multifunction LCD combination instrument (including soft keys)
With three Curtis controller for driving, steering and lifting.
integrated front pedal.
Imported connectors
Reversing buzzer
Emergency power off switch
Charger 80v/80AH
Platform adjustable mechanism for up and down, front and rear
Sports terminal intelligent buffer
