Full AC Motor Free Maintenance
Optional Lithium Battery
Optional different size cargo loading platform as customer special requirements
Adjustable Steering Column with Electric Forward and Backward Lever
Multi-Function Display
QB100 delivers 10,000 kg rated traction weight for 60‑minute operation for industrial heavy‑load transfer.
48V/540Ah battery powers indoor material handling, no exhaust from combustion‑type towing gear.
1,300 mm wheelbase, 2,200 mm min radius: electric tractor handles warehouse‑factory routes.
Solid tires suit industrial floors, cutting downtime from pneumatic punctures.
Seated position, steering & easy controls aid repeated‑cycle routine towing tasks.

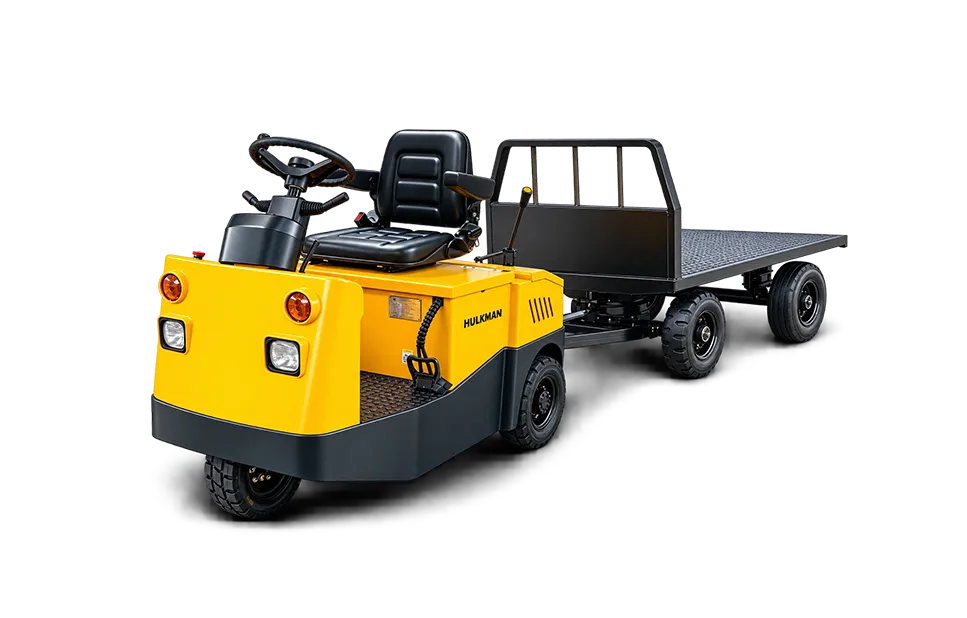

The QB100 combines a low-profile vehicle body with a dedicated traction interface for pulling compatible trailers and material carts. It is intended for horizontal transport rather than lifting operations, keeping the page clearly focused on one heavy-duty electric tow tractor.

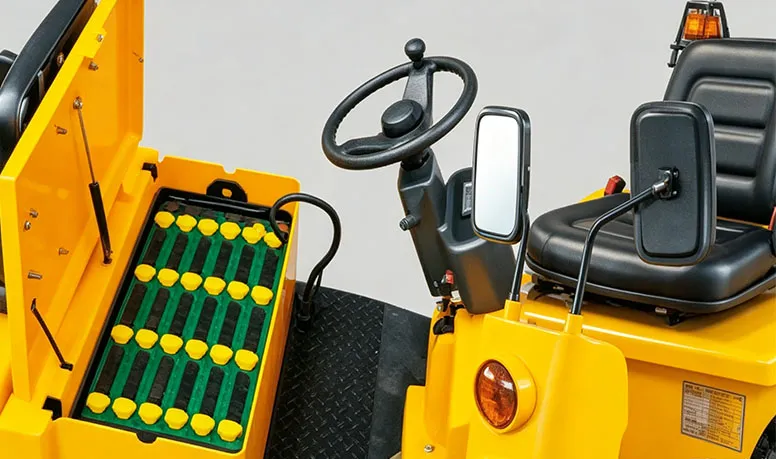

The low-mounted battery contributes to a lower center of gravity, while solid rubber tires provide stable contact on suitable industrial surfaces. The truck also incorporates hand and hydraulic braking systems for operational control.
Final trailer compatibility, towing weight and gradeability should always be checked against the operating route and actual working conditions.

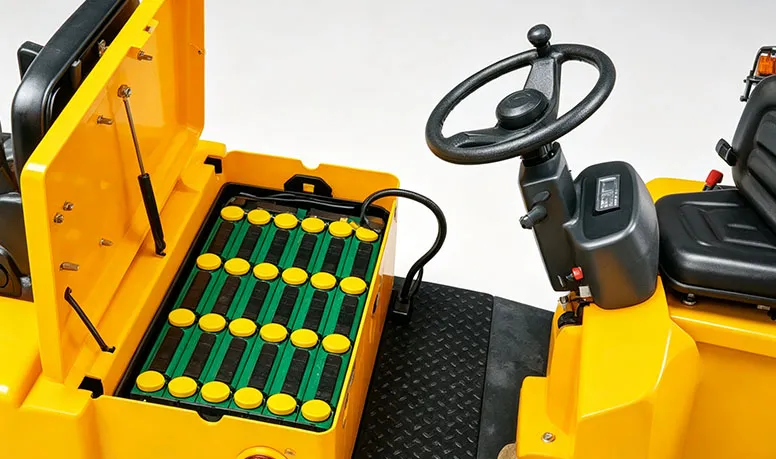

The openable rear cover provides access to internal service areas for routine inspection and maintenance. The multifunction display communicates battery status, operating hours and fault information to support daily equipment checks.

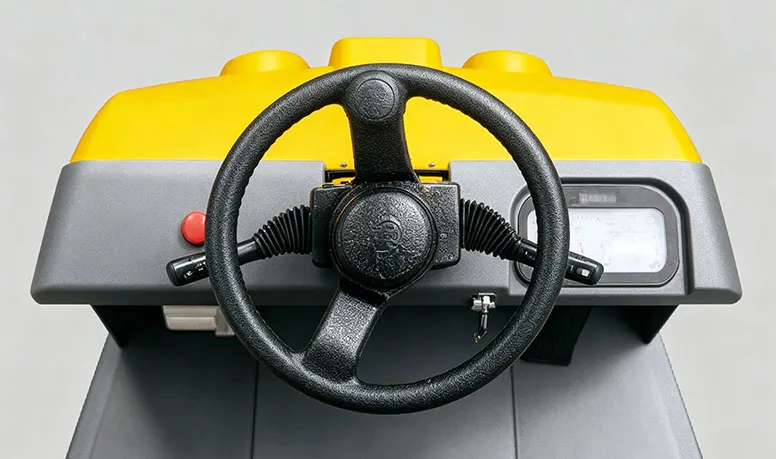

The seated configuration provides a steering wheel, backrest and side supports for routine industrial towing. Controls are positioned around the operator area to support straightforward vehicle operation.

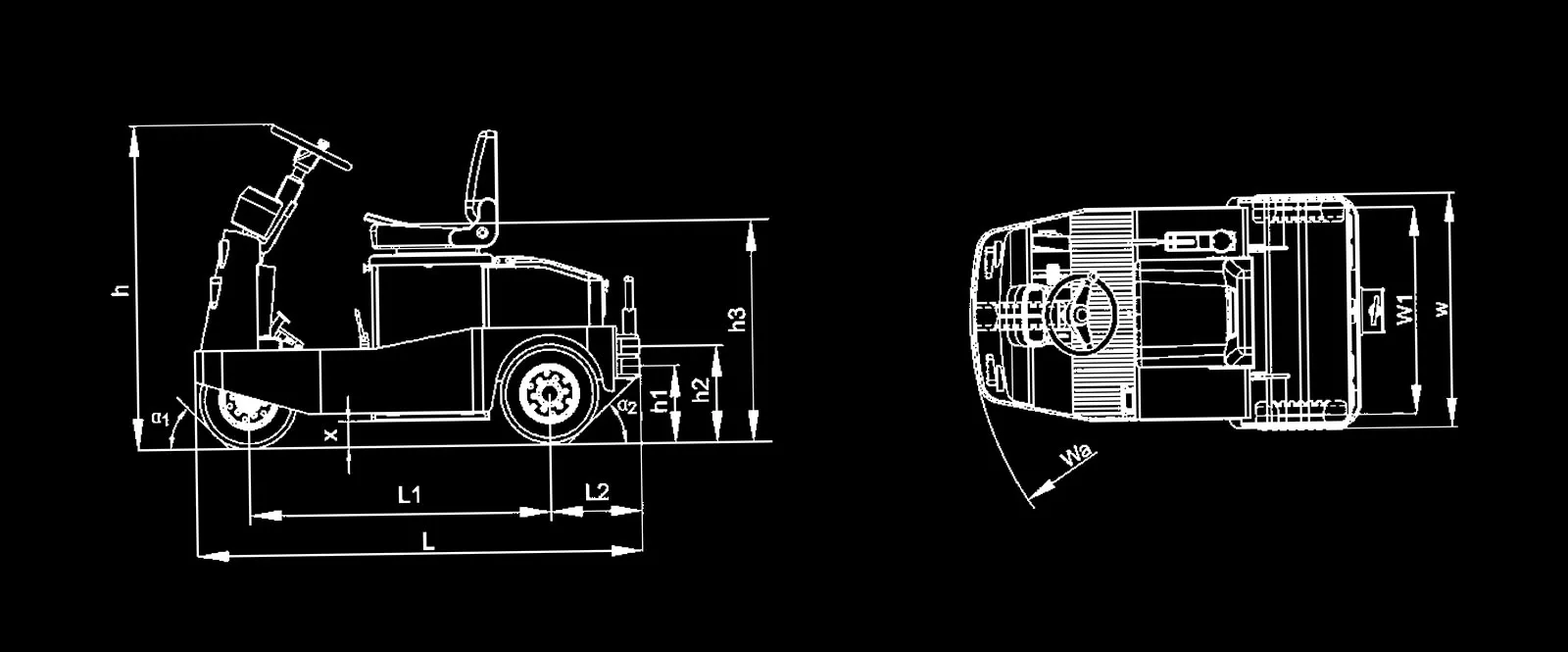

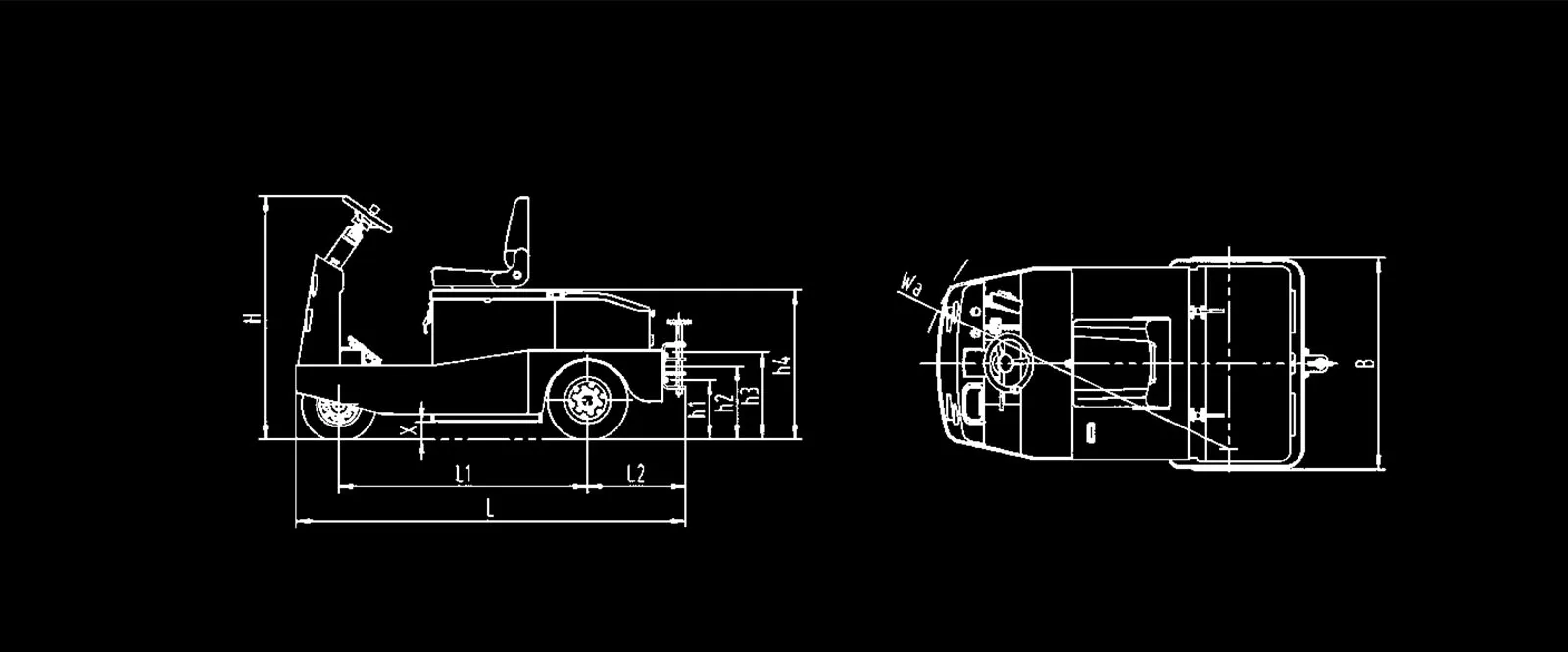

| Parameter | Symbol / Unit | QB100 |
| Model | — | QB100 |
| Drive Type | — | Electric |
| Rated Traction Weight (60 Minutes) | kg | 10,000 |
| Drawbar Center Height | h1/h2 (mm) | 320/400 |
| Service Weight | kg | 2,180 |
| Axle Loading, Front | kg | 750 |
| Axle Loading, Rear | kg | 1,440 |
| Tire Number, Front/Rear | X = driven wheels | 2/2x |
| Front Tire Size | Solid rubber | 5.00-8-10PR |
| Rear Tire Size | Solid rubber | 6.5-10-12PR |
| Wheelbase | L1 (mm) | 1,300 |
| Rear Overhang | L2 (mm) | 700 |
| Seat Height | h3 (mm) | 1,050 |
| Overall Length | L (mm) | 2,485 |
| Overall Width | W (mm) | 1,160 |
| Overall Height | h (mm) | 1,480 |
| Minimum Ground Clearance | X (mm) | 138 |
| Minimum Turning Radius | Wa (mm) | 2,200 |
| Travel Speed, Laden/Unladen | km/h | 6.5 |
| Maximum Gradeability, Laden/Unladen | % | 6/15 |
| Battery Voltage/Nominal Capacity K5 | V/Ah | 48/540 |
| Battery Weight | kg | 950 |

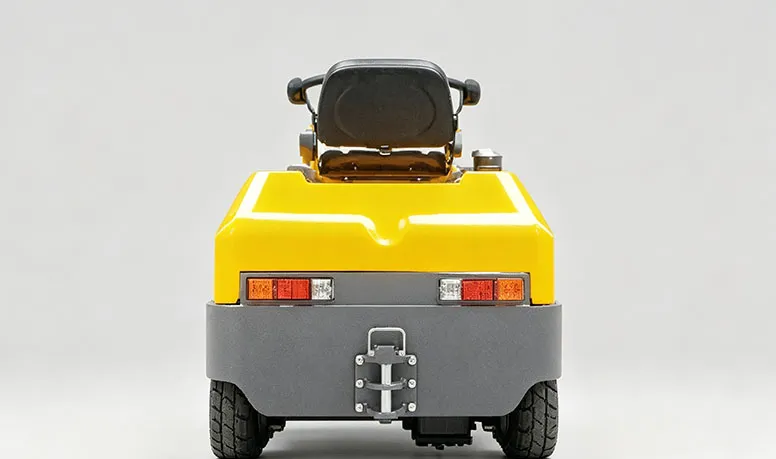

| Traction Connection | — | Traction Bolt |
Seat with OPS (Operator presence system)
Lithium-ion battery
Front LED work lamp
Cargo loading platform
Rear mirrors
Cargo Trailer
Seat with OPS
Lithium Battery
Rear-View Mirrors
Blue Safety Light
AC Power System
Front LED Work Lamp
Customized Trailer Platform
