Medium Lifting Storage and Short Distance Pallets Transportation Cost-Effective Solution
Full Free Lifting Mast for Low Roof House Operation
Optional 225Ah Lithium Battery
Free Maintenance AC Motor
Emergency Reversing Device
Multi-Function Display with BDI
Auto Deceleration Function
Emergency Power Disconnect Switch
Low Voltage Protection
Handles 1500‑kg pallet loads (600 mm load center) for warehouse stacking & transport.
Mast heights 2500‑5600 mm suit various rack heights & storage layouts.
Full‑free‑lift fits low‑clearance sites; 3000mm model passes 2000mm doorways.
AC motor: no brush replacement, dust‑water resistant for reliable warehouse use.
Auto deceleration, reverse & brake features ensure safer warehouse operation.

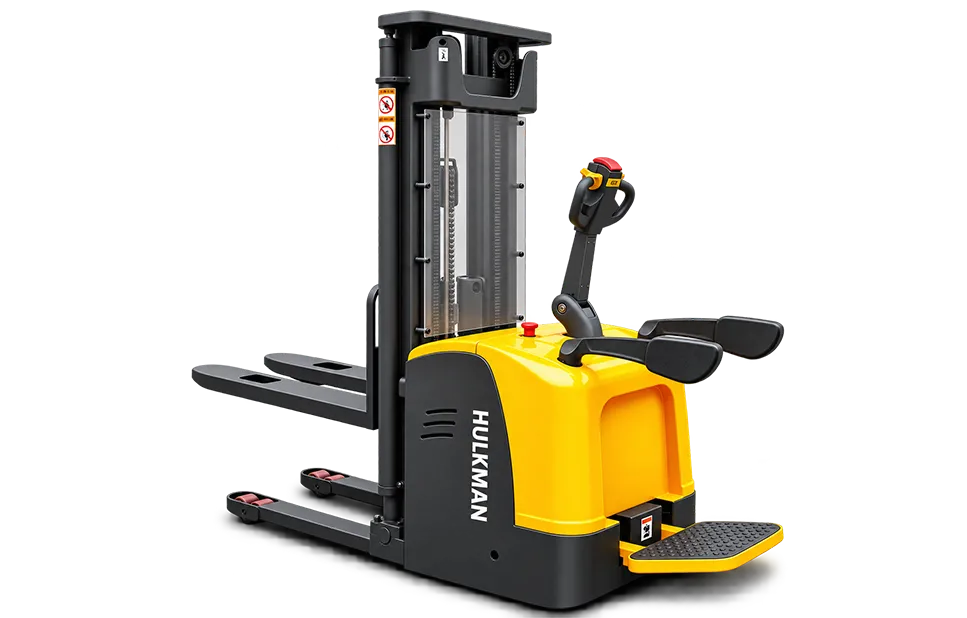

The DB15R is designed for medium-height storage and short-distance pallet transportation. Its stand-on platform helps the operator move between handling points without leaving the truck during frequent warehouse cycles.
The 850 mm overall width and 1655 mm turning radius support operation in warehouse aisles where maneuverability is important.

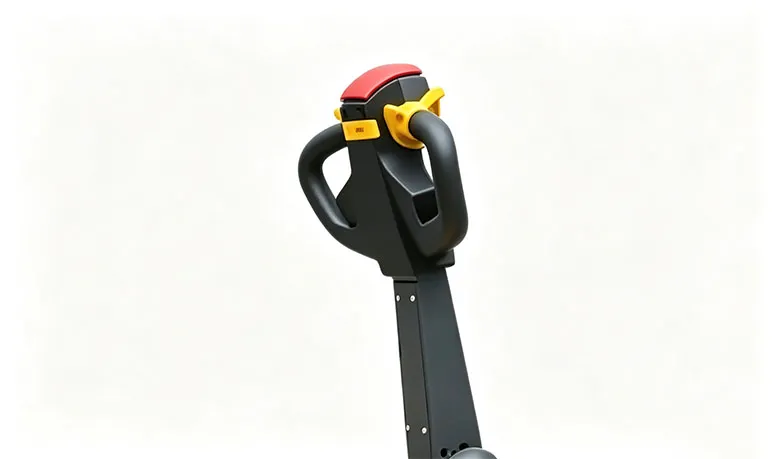

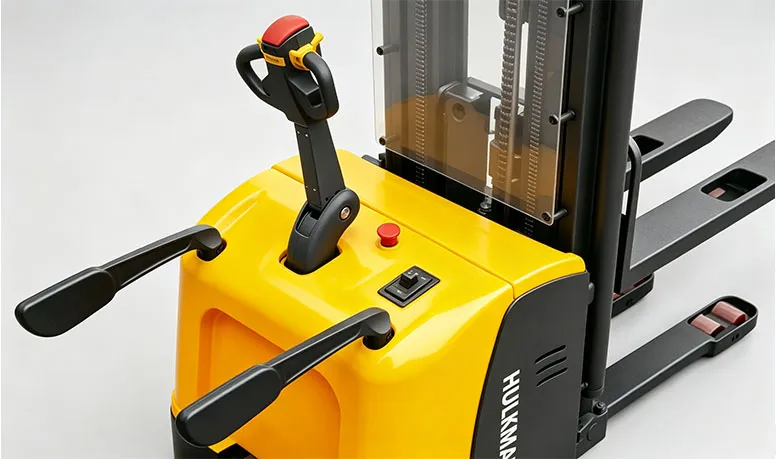

A low center of gravity helps maintain stable operation during travel and lifting. The handle includes an emergency reversing device and activates braking in both upright and horizontal positions.
Automatic deceleration supports controlled travel, while the emergency power disconnect provides rapid system isolation. A built-in pressure relief valve protects the hydraulic system against overload.
The AC motor does not require carbon-brush replacement. A vertical drive-wheel arrangement provides convenient service access, while the side-access battery design simplifies routine inspection and replacement.
Concentrated electronic component placement makes the electrical system easier to assemble, inspect, debug and maintain. Low-voltage protection helps prevent excessive battery discharge.

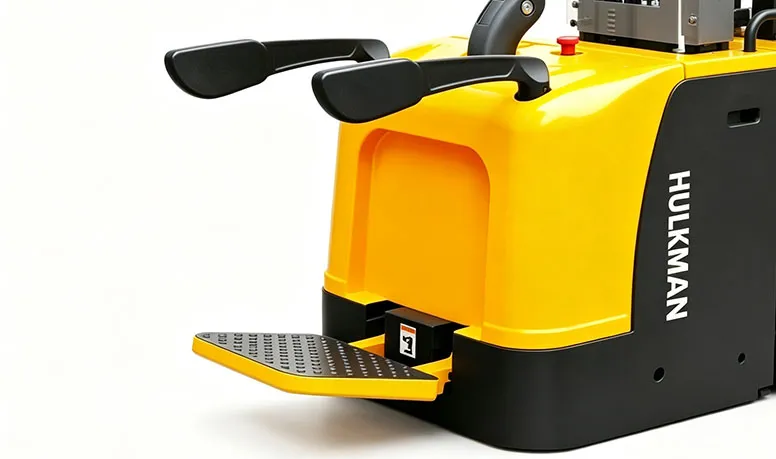

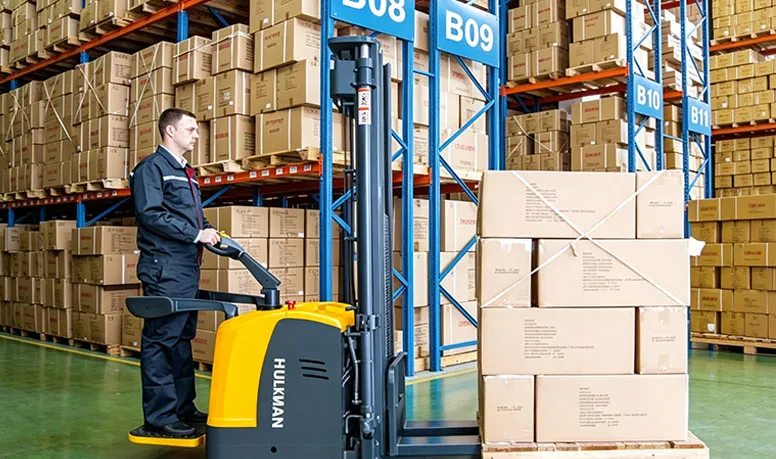

The stand-on platform and protective side arms provide an operating position suited to repeated pallet transfers. Stepless speed control allows the operator to adjust travel smoothly according to the aisle and load.
| Parameter | Symbol / Unit | DB15R |
| Model | — | DB15R |
| Load Capacity | Q (kg) | 1500 |
| Load Center Distance | c (mm) | 600 |
| Load Distance, Center of Drive Axle to Fork | x (mm) | 672 |
| Lowered Fork Height | h13 (mm) | 85 |
| Front Tire Size | mm | φ250 × 70 |
| Rear Tire Size | mm | φ80 × 84 |
| Additional Wheels (Dimensions) | mm | φ150 × 60 |
| Wheels, Number Front/Rear (x = Driven Wheels) | — | 1x + 2 / 4 |
| Mast Lowered Height | h1 (mm) | 1735 / 1985 / 2135 / 2235 / 2050 / 2210 / 2410 |
| Free Lift (Optional for 2500–3500 mm) | h2 (mm) | 1300 / 1550 / 1700 / 1800 / 1570 / 1740 / 1940 |
| Maximum Lifting Height | h3 (mm) | 2500 / 3000 / 3300 / 3500 / 4500 / 5000 / 5600 |
| Mast Extended Height | h4 (mm) | 2955 / 3455 / 3755 / 3955 / 5030 / 5510 / 6110 |
| Height of Tiller in Driving Position, Min./Max. | h14 (mm) | 1150 / 1450 |
| Overall Length | l1 (mm) | 2020 / 2100 |
| Length to Fork Face | l2 (mm) | 950 |
| Overall Width | b1 (mm) | 850 |
| Fork Dimensions | s/e/l (mm) | 60 / 180 / 1070 (1150) |
| Overall Fork Width | b5 (mm) | 570 / 695 |
| Aisle Width for 800 × 1200 mm Pallets (1200 Crossways) | Ast (mm) | 2515 |
| Turning Radius | Wa (mm) | 1655 |
| Travel Speed, Laden/Unladen | km/h | 7 / 7.1 |
| Lifting Speed, Laden/Unladen | m/s | 0.11 / 0.16 |
| Lowering Speed, Laden/Unladen | m/s | 0.14 / 0.19 |
| Standard Battery Voltage/Capacity | V/Ah | 24 / 240 |
| Optional Battery Voltage/Capacity | V/Ah | 24 / 300 |
| Standard Battery Weight | kg | 220 |
| Optional Battery Weight | kg | 260 |
| Standard Battery Dimensions (L × W × H) | mm | 625 × 248 × 500 |
| Optional Battery Dimensions (L × W × H) | mm | 675 × 248 × 545 |
| Service Weight (Including Battery) | kg | 1240 / 1270 / 1285 / 1490 / 1520 / 1560 / 1580 |
Automatic deceleration function
Emergency reversing device
Maintenance-free AC drive motor
Stepless travel speed control
EPS Drive Wheel
Double-Pallet Function
24V/300Ah Battery
Lithium Battery Charger
Free-Lift Configuration
If you would like more information about this product, please feel free to contact us. Recommend other popular products for you: 2.5 Ton Electric Pallet Truck, 1.5 Ton Electric Reach Stacker, Multi Direction Forklift For Sale, manual forklift exporter, agv forklift manufacturer, agv forklift factory, agv forklift supplier, automated guided vehicle forklift manufacturer, agv forklifts manufacturer, agv forklifts factory, agv forklifts supplier, China agv forklift, China automated guided vehicle forklift, China forklift automated guided vehicles, stacker agv, forklift agvs manufacturer, forklift agvs factory, China forklift agvs, custom forklift agvs, Forklift 10 Ton For Sale, 10 ton diesel forklift, 7 ton diesel forklift, 2 Ton LPG Forklift, 3.5 Ton LPG Forklift, Electric Tow Tractor For Sale, 10 Ton Electric Tow Tractor, 6 Ton Electric Tow Tractor, Multi Directional Forklift For Sale, 2 Ton 4-Directional Electric Forklift
The HULKMAN DB15M is a 1.5 ton semi electric stacker combining manual travel with powered hydraulic lifting. Its 1500 kg capacity, selectable 1600-3500 mm lift heights and adjustable fork options support pallet lifting and stacking in warehouses, workshops and storage areas.
The HULKMAN TB20W 2 ton electric walkie pallet truck is designed for short- and medium-distance pallet transport in warehouses, workshops and retail storage areas. Its compact chassis, AC drive system, side-entry battery and 2000 kg capacity support efficient handling in confined working spaces.
The HULKMAN DB12E/DB15E is a 1.2-1.5 ton electric walkie stacker combining powered travel and electric lifting in a compact pedestrian-operated design. With 1200 kg and 1500 kg load options, lift heights up to 3500 mm and a turning radius from 1355 to 1365 mm, it supports indoor pallet transport and low-level stacking in warehouses, supermarkets and storage areas.

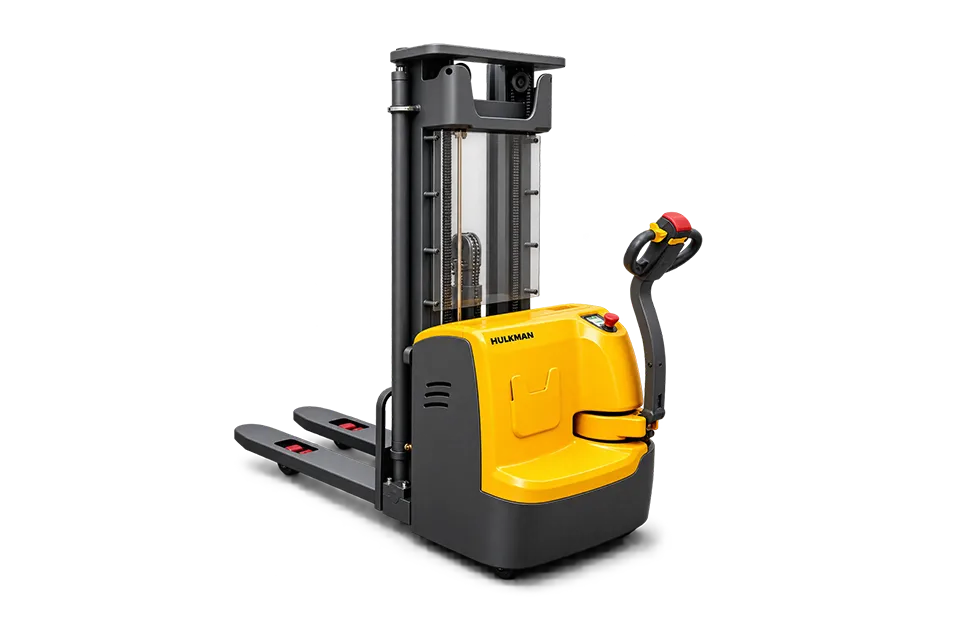

The DB15W is a 1.5 ton walkie electric pallet stacker designed for medium-height storage and short-distance pallet transport. Available lifting heights from 2,500 to 5,600 mm support different warehouse layouts and stacking requirements.
