Free Maintain GEL Battery
Super Light Electric Walkie Stacker
Small Turning Radius
Widely Used in Small Warehouse and Supermarket
Suit for Low Level Stacking and Short Distance Transportation.
1200 kg and 1500 kg Models
DB12E handles 1,200 kg; DB15E handles 1,500 kg at a 600 mm load center.
Fully Powered Operation
Powered travel and lifting reduce manual pallet handling.
Multiple Lift Heights
DB12E lifts to 3,500 mm; DB15E lifts to 3,000 mm.
Compact Turning
A 1,355–1,365 mm turning radius improves tight-space maneuverability.
Built-In Charging
The integrated charger enables convenient on-site charging.

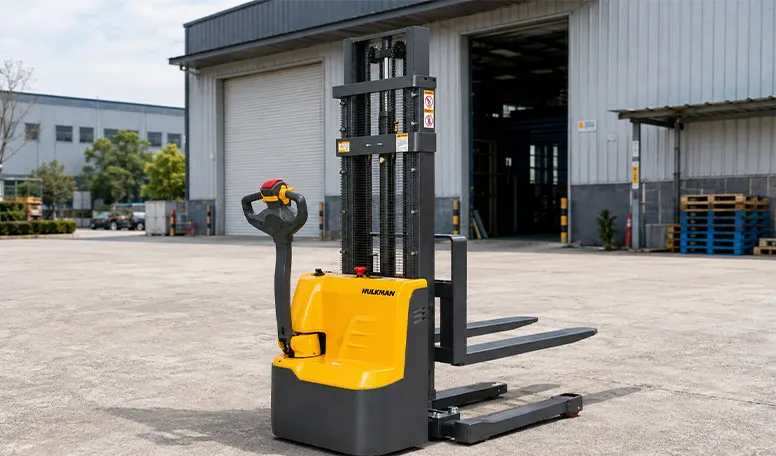

The DB12E/DB15E combines powered travel with electric lifting in a pedestrian-operated chassis. Unlike a semi-electric stacker, the operator does not need to push the loaded equipment manually during normal travel.
This full electric pallet stacker is designed for short-distance pallet transport and low-level stacking in indoor material-handling areas. Its compact dimensions make it suitable for operations where a conventional counterbalance forklift would occupy more working space.

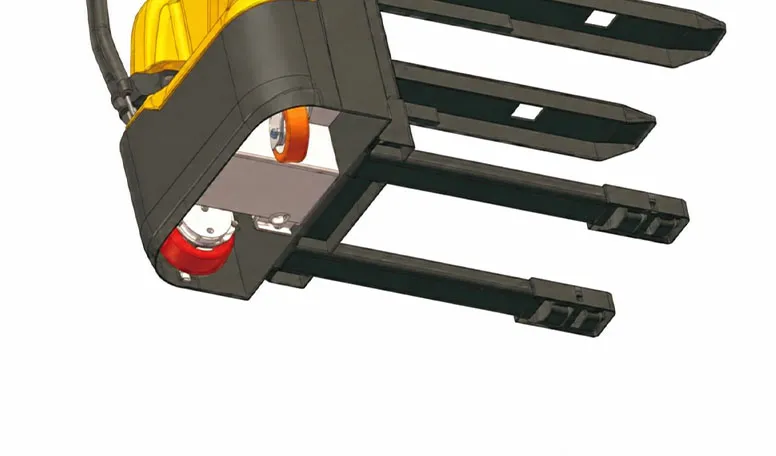

The low-center-of-gravity layout and four-point support design help maintain truck stability during pallet handling. The guarded mast separates the lifting mechanism from the operator’s normal working position.
Rated loads are specified at a 600 mm load center. The allowable load at elevated heights should be confirmed according to the selected mast and actual load dimensions.

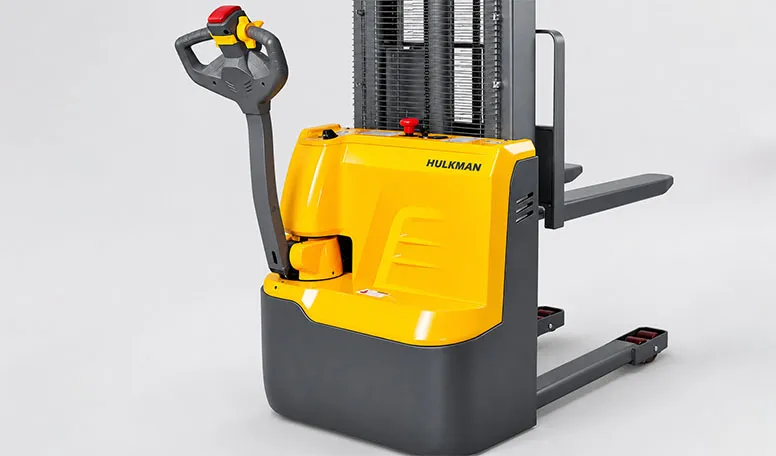

The integrated rear-cover design supports convenient assembly, inspection and routine maintenance. The drive unit is arranged so that the motor and brake components can be accessed and replaced without dismantling the complete mast structure.
The GEL battery system reduces routine battery servicing, while the built-in charger simplifies access to a suitable power supply.

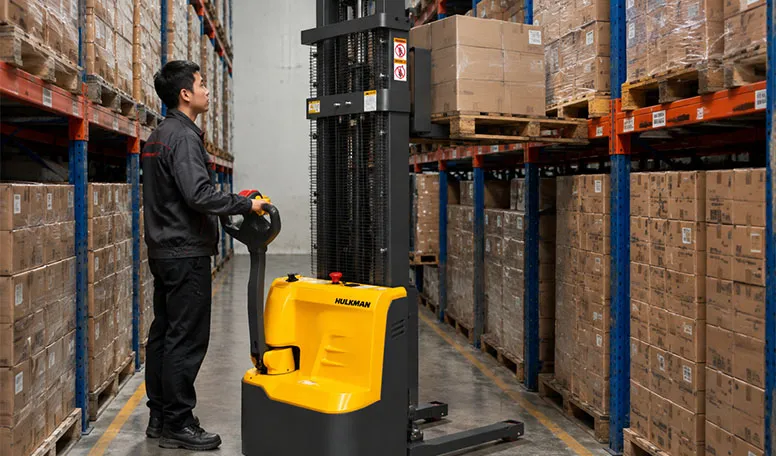

The compact body, pedestrian tiller control and small turning radius support positioning in narrow indoor working areas. The DB12E has a 1365 mm turning radius, while the DB15E reduces this to 1355 mm.
A tiller operating-height range of 670–1300 mm supports control during travel and positioning. The compact mast and chassis arrangement also helps preserve forward visibility.

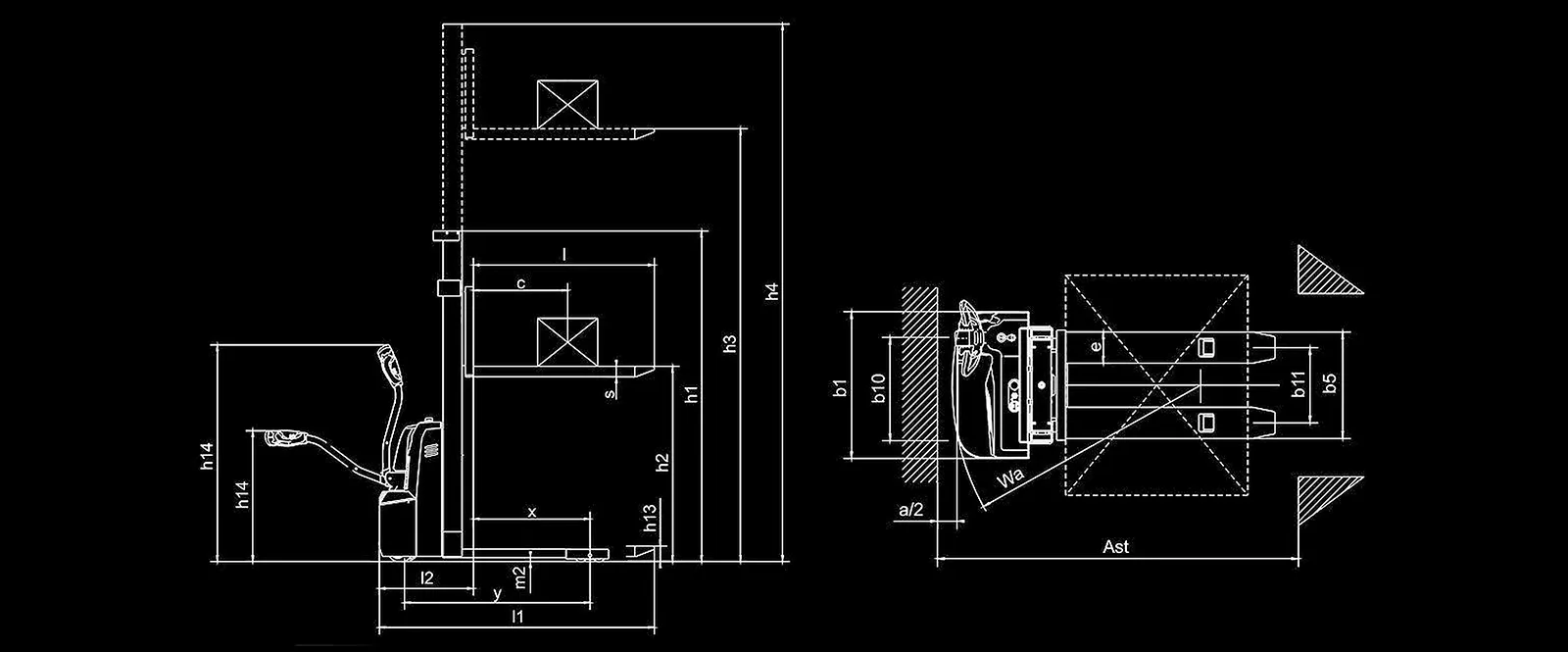

| Model | Symbol / Unit | DB12E | DB15E |
| Load Capacity | Q（kg） | 1200 | 1500 |
| Load Center Distance | c(m) | 600 | 600 |
| Load Distance, Center of Drive Axle to Fork | x(mm) | 741 | 741 |
| Lowered Height | h13(mm) | 90 | 90 |
| Front Tire Size | mm | Φ195×70 | Φ195×70 |
| Rear Tire Size | mm | Φ80×70 | Φ80×70 |
| Additional Wheels (Dimensions) | mm | Φ150×60 | Φ150×60 |
| Wheels, Number F/R (x=driven wheels) | 1x+1/4 | 1x+1/4 | |
| Mast Lowered Height | h1(mm) | 2090/1840/2090/2200/2340 | 2085/1835/2085 |
| Max. Lifting Height | h3(mm) | 1600/2500/3000/3300/3500 | 1600/2500/3000 |
| Mast Extended Height | h4(mm) | 2090/3060/3560/3860/4060 | 2090/3060/3560 |
| Height of Tiller in Drive Position Min./Max. | h14(mm) | 670/1300 | 670/1300 |
| Overall Length | l1(mm) | 1748(1668) | 1748(1668) |
| Length to Fork Face | l2(mm) | 598 | 598 |
| Overall Width | b1(mm) | 800 | 800 |
| Fork Dimension | s/e/l(mm) | 60/170/1150(1070) | 60/170/1150(1070) |
| Overall Width of Fork | b5(mm) | 570/695 | 570/695 |
| Wheelbase Ground Distance | m2(mm) | 26 | 26 |
| Aisle Width for Pallets 1000×1200(1200 Crossways) | Ast(mm) | 2218 | 2212 |
| Aisle Width for Pallets 800×1200(1200 Crossways) | Ast(mm) | 2173 | 2171 |
| Turning Radius | Wa(mm) | 1365 | 1355 |
| Travel Speed, laden/unladen | km/h | 4.5/5 | 4.5/5 |
| Lifting Speed, laden/unladen | m/s | 0.09/0.14 | 0.08/0.11 |
| Lowering Speed, laden/unladen | m/s | 0.12/0.10 | 0.12/0.10 |
| Battery Voltage/Nominal Capacity K20 | V/Ah | 24/105(125) | 24/125 |
| Battery Weight | kg | 52(70) | 52(70) |
| Battery Dimension l/w/h | mm | 260(330)×168(171)×217 | 330×171×217 |
| Service Weight(with Battery) | kg | 615/640/660/675/680 | 705/730/750/765/770 |
4 point design, improve the trucks stability.
Tiller Head
Floor type drive wheel
Option: Initial lifting with double-pallet function turn to P76
Maintenance-Free GEL Battery
Built-In Charger
Tiller Head
Floor-Type Drive Wheel
Integrated Rear Cover
Four-Point Support Design
Low-Center-of-Gravity Chassis
Easily Accessible Motor and Brake
