Max. Lifting Height 8000mm
Optional 350Ah Lithium Battery
Full AC Motor Control System, Free Maintenance
Powering Steering System (EPS)
German ZF Gear Box
Traveling Speed Limited When Forks at High Level
Electronic Height Limited Device
Multi-Function Display
5 lift‑height options (3000‑8000mm) for multi‑level pallet storage.
The YB15S handles loads up to 1,500 kg at a specified 600 mm load center.

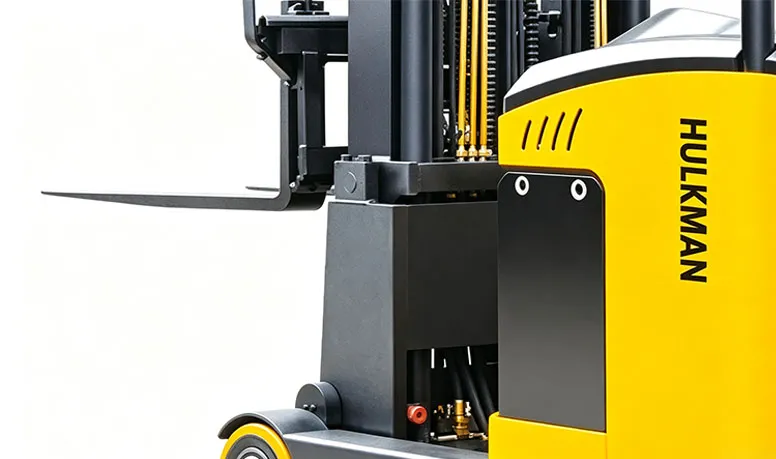

Reach mechanism extends forks 600 mm for rack pallet handling.
AC system delivers responsive travel & load‑handling, low motor maintenance.
Electric power steering eases effort for precise aisle maneuvering.
Battery Options
Optional battery trolley and 350Ah lithium battery available.

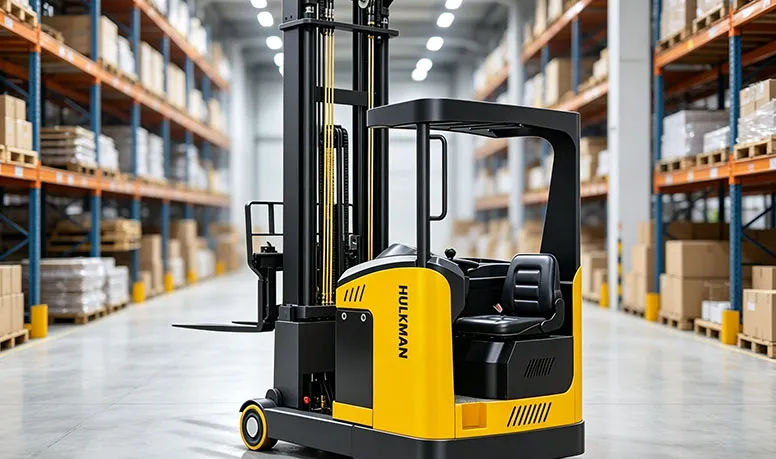

The YB15S is a seated electric reach truck designed for pallet transport, rack approach and high-level storage. Its 600 mm reach movement allows the mast and forks to extend toward the rack while retaining a compact warehouse-truck configuration.

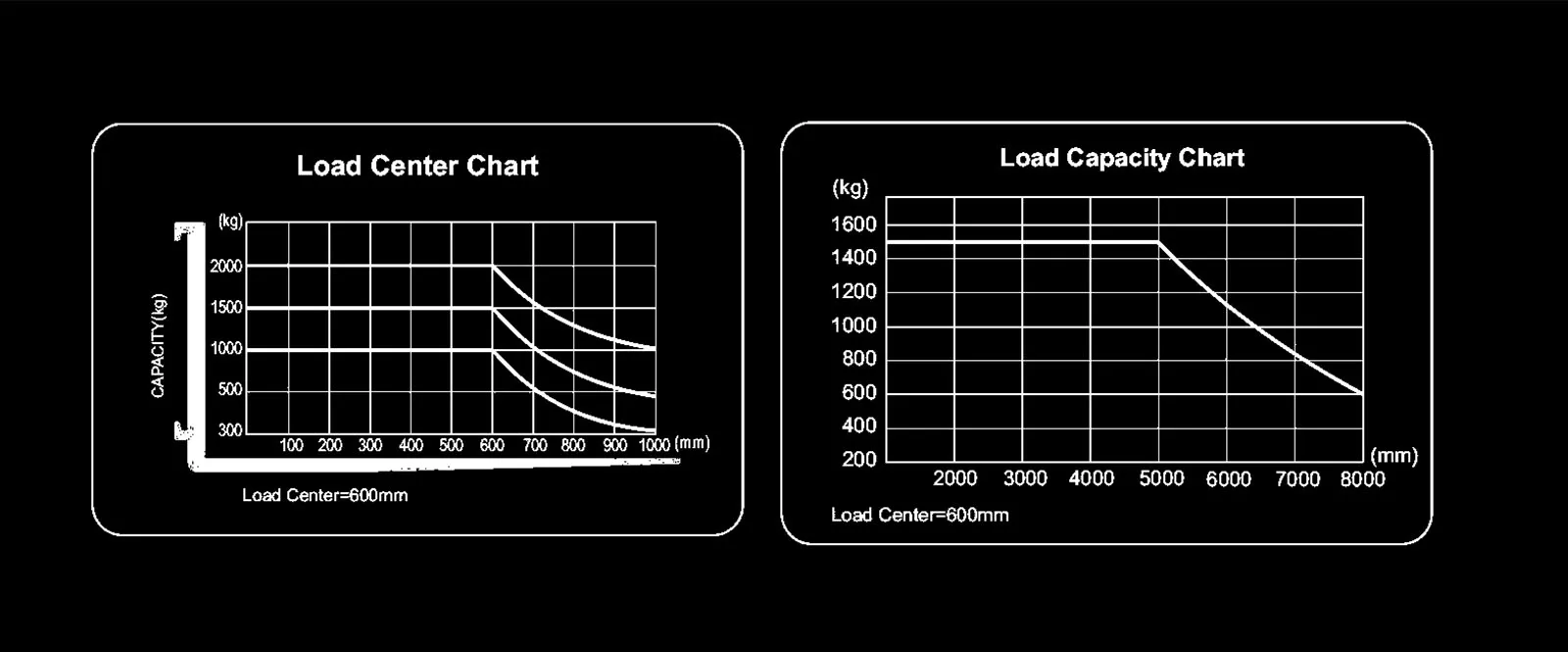

Lift heights of 3,000, 5,000, 6,200, 7,400 and 8,000 mm are available. The selected mast should be matched to rack height, overhead clearance, pallet weight and residual capacity requirements.
Travel speed is limited when the forks are raised to a high position, helping the operator maintain controlled movement during elevated-load handling. An electronic height-limiting device provides additional control over the lifting range.

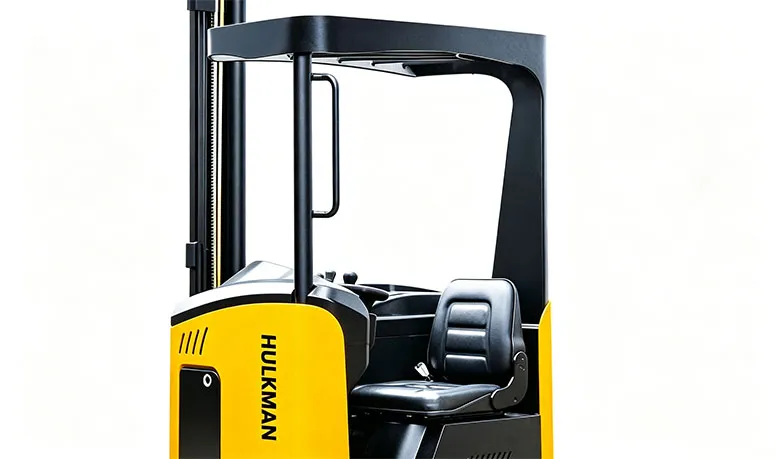

The overhead guard forms a protective structure above the seated operator position. Safe operation still depends on the selected mast, load weight, 600 mm load center, floor condition and available aisle space.
The full AC motor control system reduces routine maintenance requirements associated with carbon brushes. The multifunction display provides operating information and fault codes to support daily checks and service diagnosis.
Configuration-dependent service access and battery replacement arrangements should be confirmed when selecting the truck.

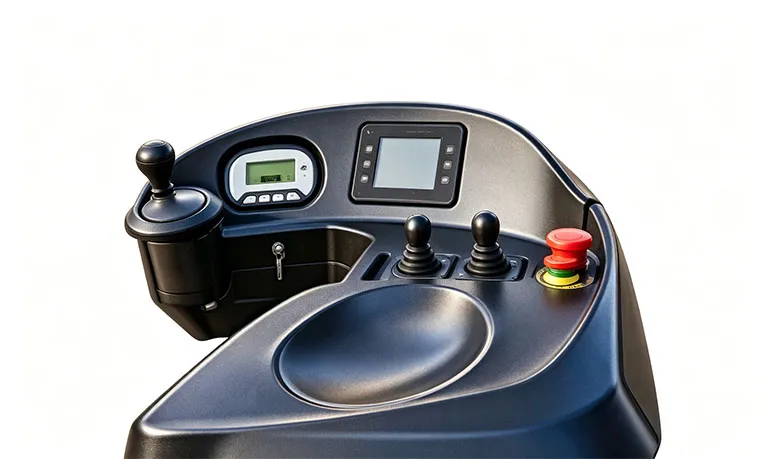

The seated operating position is combined with EPS power steering and an adjustable steering wheel. A multifunction display shows brake status, travel direction, operating hours, driving speed and fault codes.
Adjustable hydraulic response supports control of fork lifting and lowering, mast tilt and side-shift movement when the relevant configuration is installed.

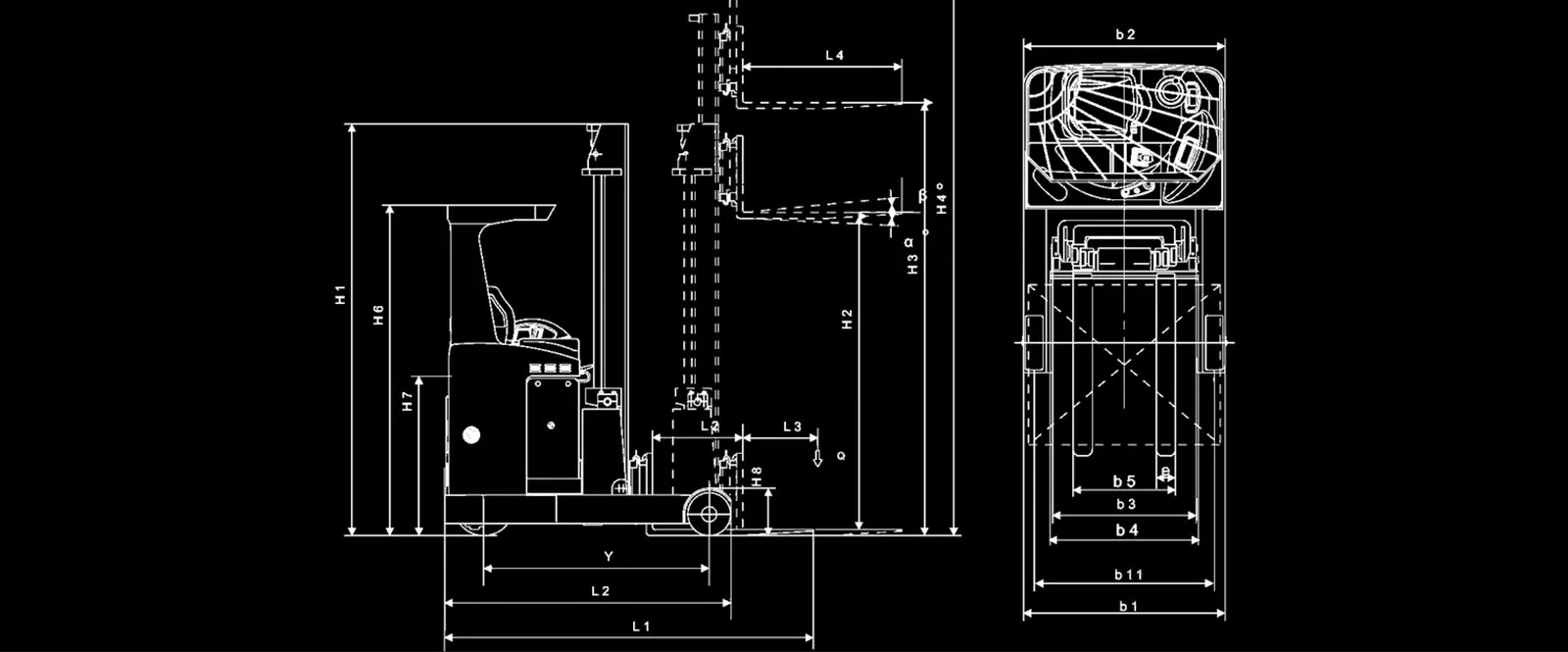

| Parameter | Symbol / Unit | YB15S |
| Model | — | YB15S |
| Rated Load Capacity | Q (kg) | 1,500 |
| Maximum Lifting Height | h3 (mm) | 3,000 / 5,000 / 6,200 / 7,400 / 8,000 |
| Load Center Distance | c (mm) | 600 |
| Drive Wheel | mm | Φ310 × 125 |
| Fork Wheel | mm | Φ285 × 110 |
| Wheels, Number Front/Rear | x = driven wheels | 1x / 2 |
| Mast Tilt, Front/Rear | α/β (°) | 2 / 2 (forks) |
| Mast Lowered Height | h1 (mm) | 2,086 / 2,240 / 2,740 / 3,190 / 3,390 |
| Free Lift Height | h2 (mm) | 0 / 1,700 / 2,100 / 2,500 / 2,700 |
| Mast Extended Height | h4 (mm) | 3,800 / 5,800 / 7,000 / 8,200 / 8,800 |
| Overhead Guard Height (Cabin) | h6 (mm) | 2,140 |
| Stand Height | h7 (mm) | 970 |
| Straddle Leg Height | h8 (mm) | 315 |
| Overall Length | l1 (mm) | 2,370 |
| Length to Fork Face | l2 (mm) | 1,880 |
| Overall Width | b1 (mm) | 1,200 |
| Fork Dimensions | s/e/l (mm) | 35 / 100 / 1,070 |
| Reach Distance | l4 (mm) | 600 |
| Aisle Width for 1,000 × 1,200 mm Pallets, Crossways | Ast (mm) | 2,800 |
| Aisle Width for 800 × 1,200 mm Pallets, Crossways | Ast (mm) | 2,890 |
| Turning Radius | Wa (mm) | 1,780 |
| Travel Speed, Laden/Unladen | km/h | 8 / 8.3 |
| Lifting Speed, Laden/Unladen | m/s | 0.45 / 0.36 |
| Lowering Speed, Laden/Unladen | m/s | 0.5 / 0.4 |
| Battery Voltage/Nominal Capacity K5 | V/Ah | 48/400 |
| Battery Weight | kg | 720 |
| Battery Dimensions, L/W/H | mm | 1,220 × 344 × 650 |
| Service Weight | kg | 2,900 / 3,000 / 3,100 / 3,200 / 3,300 |
Precise and effortless finger tip control of mast movements and traveling.
Ergonomic and full‑suspension comfortable seat full adjustable.
Optional positioning system offers easier pallet handling at height through camera system.
Drive in Reach Truck (option).
Electronic multi valve
Finger-tip control stick
Side shifter
Height selection and height position system
LCD display and camera
Travel/back-up flashing lights
Side way battery
