Stand-On Type Platform Pallet Truck
Optional 125AH Lithium Battery
Small Turning Radius
Super Light Steering System
Widely used in large warehouse and big supermarket
For Medium Distance Transportation
Free Maintenance AC Motor
Sideway Battery Replacement
Platform with Speed Sensor
Optional Keypad access
Optional Lithium Battery
Handles up to 2,000 kg at a 600 mm load center.
Reduces walking during medium-distance pallet transport.
Delivers smooth travel with less routine maintenance.
Speed sensing and emergency controls enhance safety.
Simplifies battery access and replacement.

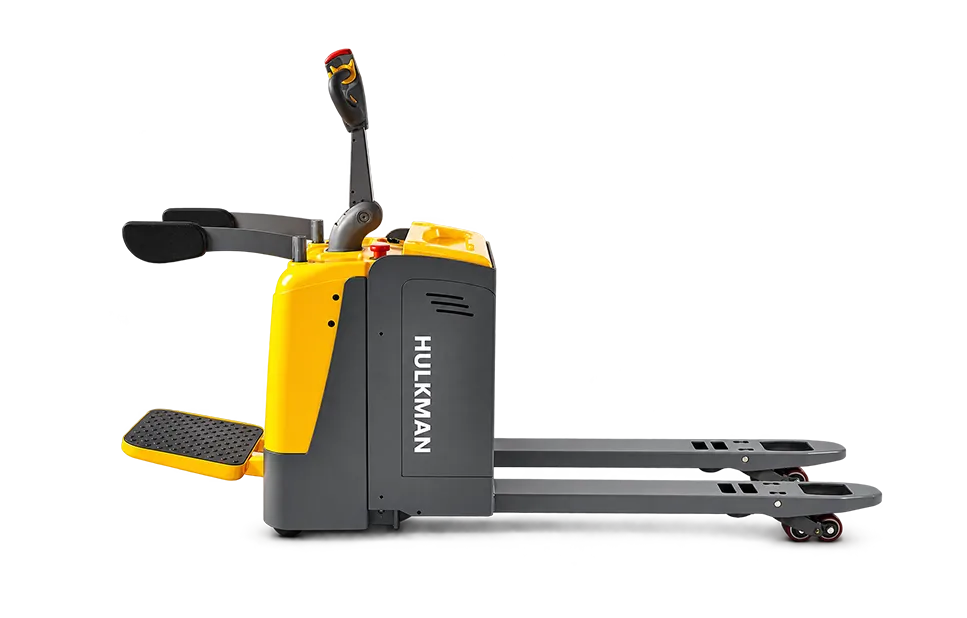

The TB20R is an electric rider pallet truck developed for operations where operators regularly travel beyond short walk-behind distances. Its compact chassis, stand-on platform and 7.0/7.1 km/h travel speed make it suitable for moving pallets between receiving areas, storage zones, production lines and dispatch points.
With a 775 mm overall truck width and several fork configurations, this 2 ton electric pallet truck can be matched to different pallets and material-flow layouts.

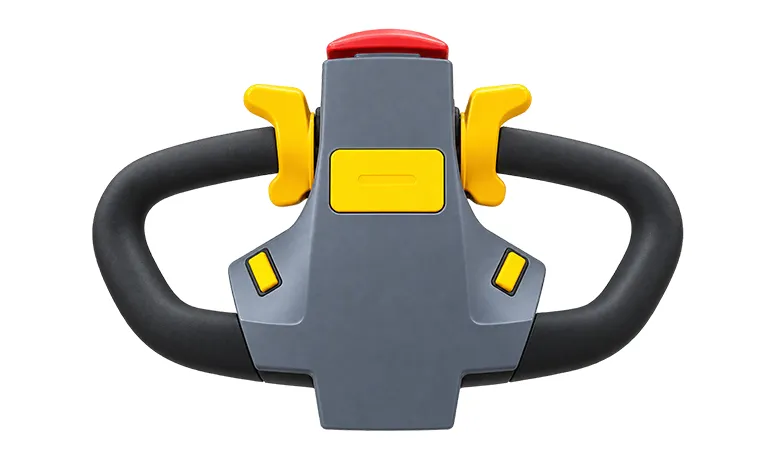

Emergency reversing, an emergency stop, handle-position braking and a platform speed sensor help the operator maintain control during travel and maneuvering.
Additional supporting casters improve lateral stability, while the integrated pressure-relief valve helps protect the hydraulic system against overload conditions.

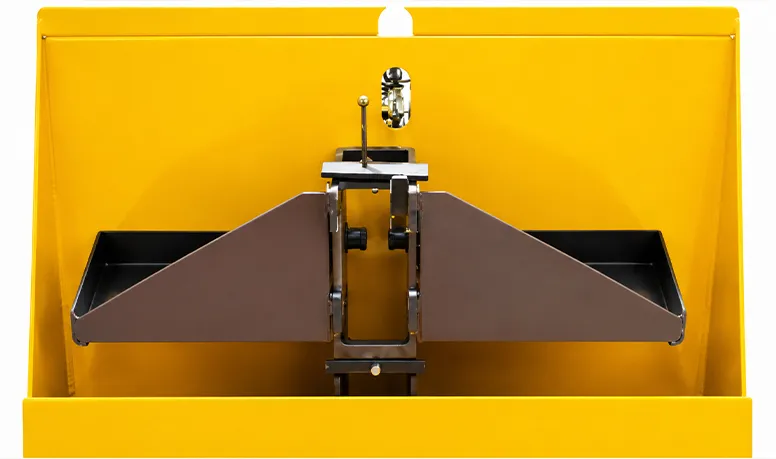

The brushless AC motor eliminates conventional motor brushes and directional contactors, reducing related inspection and replacement requirements. The vertical drive arrangement, side-entry battery and removable platform provide practical access to key service areas.
The integrated balance-wheel assembly can be adjusted and serviced separately when required.
The stand-on platform supports frequent travel between handling points without requiring the operator to walk behind the truck. Light steering, a multifunction tiller and stepless speed control help simplify maneuvering during repetitive warehouse work.
Electric power steering is available as an option for applications requiring lower steering effort.

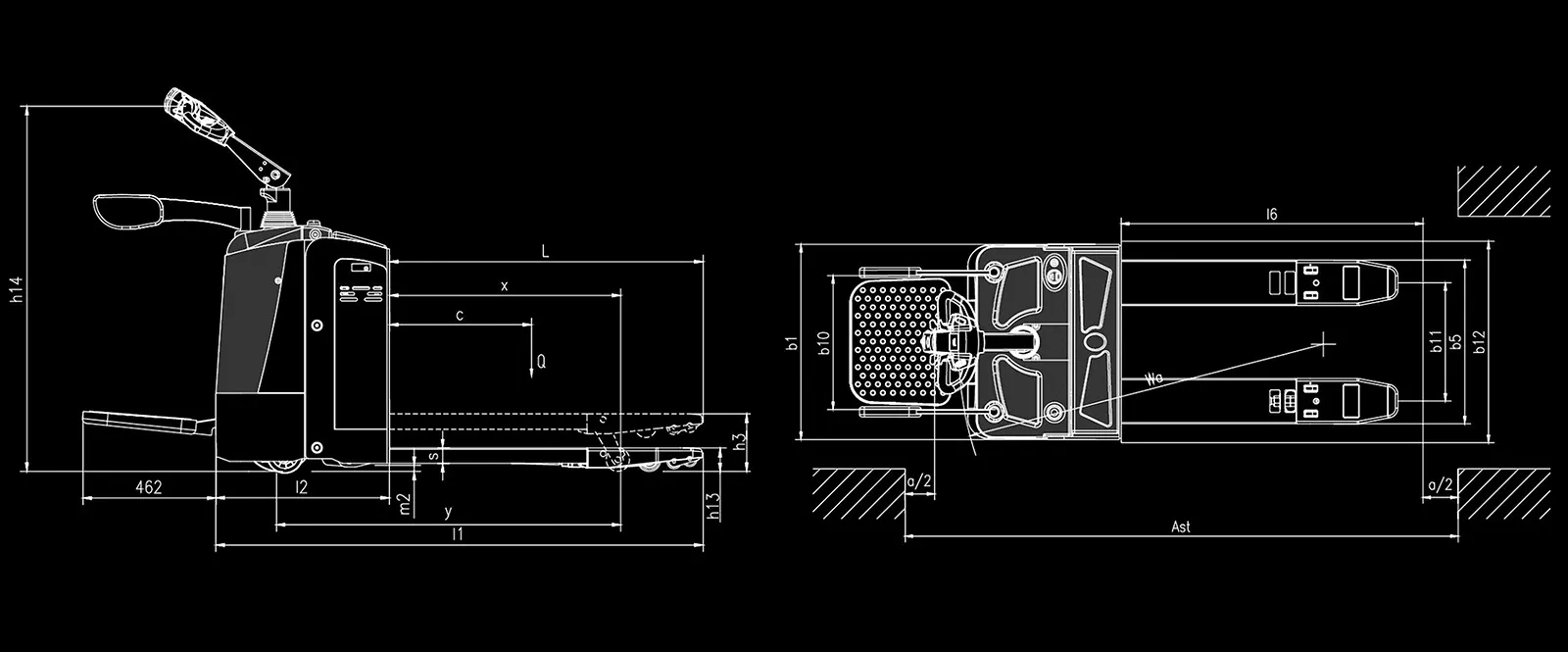

| Model | Symbol / Unit | TB20 |
| Load Capacity | Q（kg） | 2000 |
| Load Center | c(mm) | 600 |
| Load Distance, Centre of Drive Axle to Fork | x(mm) | 914/964/1034 |
| Fork height, lowered | h13(mm) | 82 |
| Front Tire | mm | Φ250×70 |
| Rear Tire | mm | Φ82×126(98) |
| Additional Wheels(dimensions) | mm | Φ127×57 |
| Wheels, number front rear(x=driven wheels) | 1x+2/2(4) | |
| Max. Lifting Height | h3(mm) | 202 |
| Height of Tiller in Driver Position Min./Max. | h14(mm) | 1150/1430 |
| Overall Length | l1(mm) | 1710/1760/1830 |
| Length to Face of Forks | l2(mm) | 610 |
| Overall Width | b1(mm) | 775 |
| Fork Dimensions | s/e/l(mm) | 53x180x1100/1150/1220 |
| Width Overall Forks | b5(mm) | 520/550/650/685 |
| Aisle Width for Pallets 1000×1200(1200 Crossways) | Ast(mm) | 2360/2405/2475 |
| Aisle Width for Pallets 800×1200(1200 Crossways) | Ast(mm) | 2245/2270/2305 |
| Turning Radius | Wa(mm) | 1550/1600/1670 |
| Travel Speed, laden/unladen | km/h | 7/7.1 |
| Battery Voltage/Nominal Capacity K5 | V/Ah | 24/240 |
| Battery Weight | kg | 195 |
| Battery Dimension l/w/h | mm | 750x170x570 |
| Service Weight(with Battery) | kg | 750 |

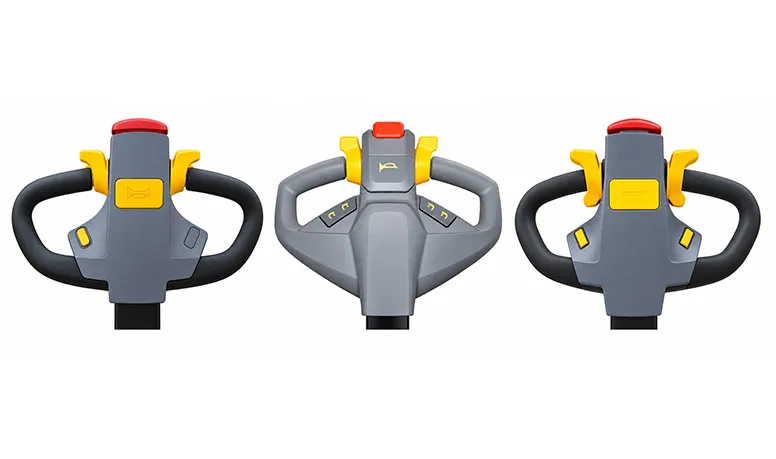

Frei tiller head with one side lifting button (option)
Handle (standard)
Frei tiller head with one side lifting button (option)
Keypad access (option)
Entry roller for easy operation
Emergency Stop& Bely Button
BDI and Hour Meter
Casters to Balance Stability
Industrial Battery
Brushless AC Motor
Vertical Driving Motor
Sideway Battery Change
Built-Out Charger
Platform with Speed Sensor
Fork Width Length (Size)
Load Backrest
Built-in Charger
Cold Storage with Rubber Drive Wheel
Entry & Exist Roller for Empty Pallets
EPS, drive wheel size is 250x80mm
Large Compartment with Battery Capacity 280Ah,400Ah; Drive Speed 9.5-10km/h
Lithium Battery 24V/125Ah
