Standard Engine: China Best Quanchai Brand 4C5
Optional Engine: Japan Original ISUZU Engine or Mitsubishi Engine
Transmission: TCM technology Automatic Transmission, controlled by finger
Standard Lifting Height: 3000mm
Standard Fork Length: 1070mm
Standard Air Tires
LED Warning Light
Wide View Rear Mirror
Lights Protection Steel Structure
Water Proof Overhead Guard
OEM Brand Service
Optional Attachments: Fork Side Shifter, Paper Roll Clamp, Bale Clamp, Rotator etc.

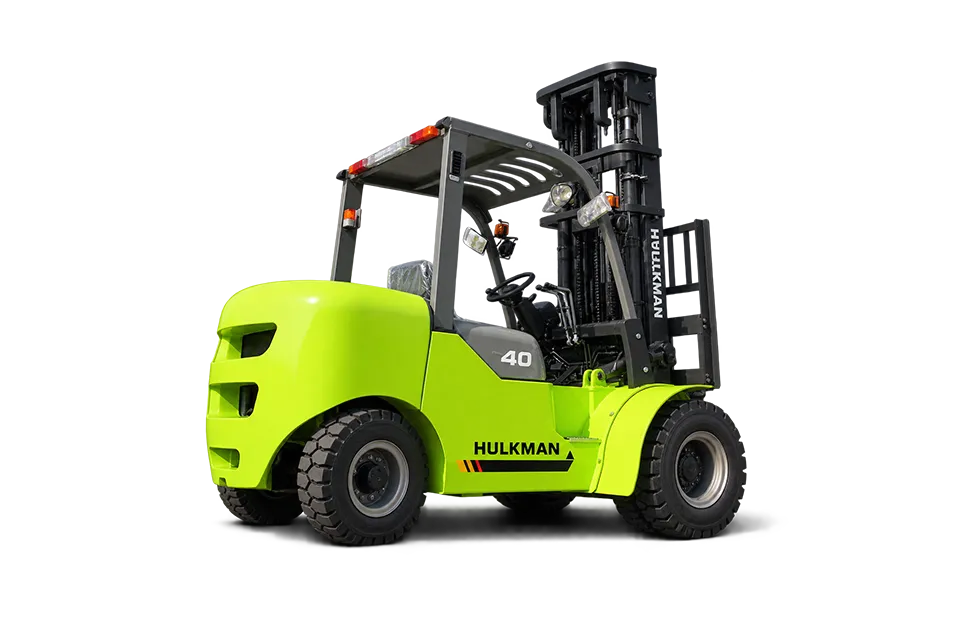

4 ton diesel forklift with 500 mm load center and configurable mast for medium-to-heavy handling.
4.5 ton capacity with 3,000 mm standard lift height and 500 mm load center for heavier loads.
Standard Quanchai 4C5 engine, with optional ISUZU 4JG2PE or Mitsubishi S6S configurations.
Choose duplex or triplex mast options with lifting heights from 3,000 to 6,000 mm.
Optional side shifters, fork positioners, clamps, rotators and booms for different handling needs.

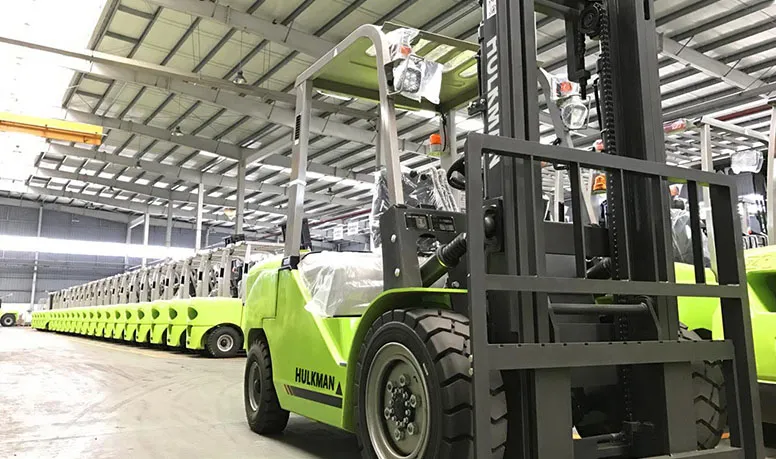

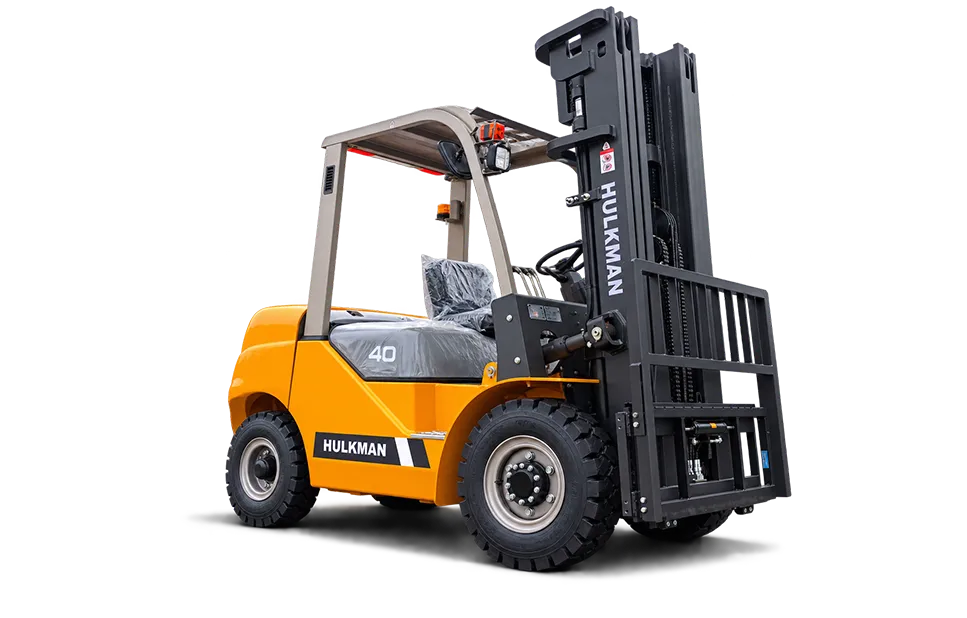

HULKMAN 4T 4.5T diesel forklift reinforced mast with a wide view design improves forklift operation efficiency and safety.

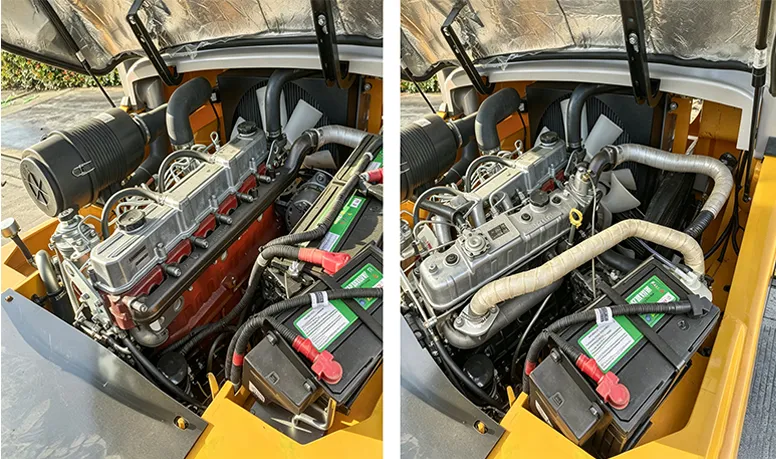

HULKMAN 4Ton and 4.5Ton diesel forklift standard engine is China best Quanchai brand 4C5 model, which is with large torque and capacity, is powerful, and can meet different operation demands, is energy-efficient and environmentally. Optional Japan Original ISUZU brand 4JG2PE model engine (for Mini 4Ton diesel forklift) and Mitsubishi brand S6S-228 model engine.

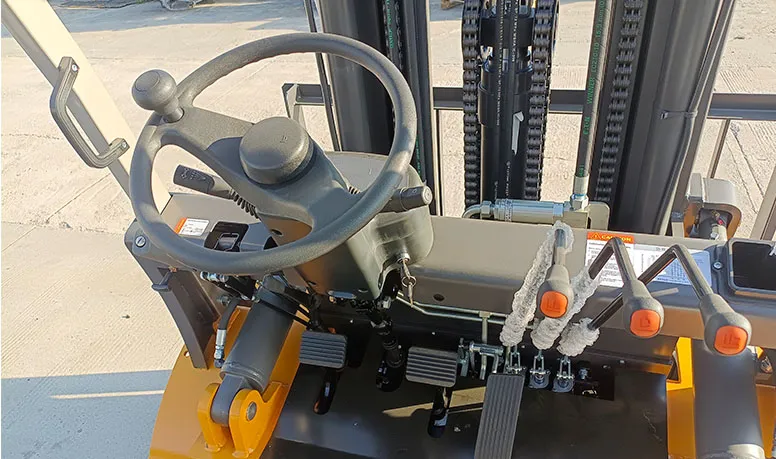

The scientific ergonomic design makes operations more portable and comfortable. The seat and backrest are adjustable. The steering wheel tilt angle is also adjustable, which leaves more legroom. Shift operation is quick and simple. The hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.

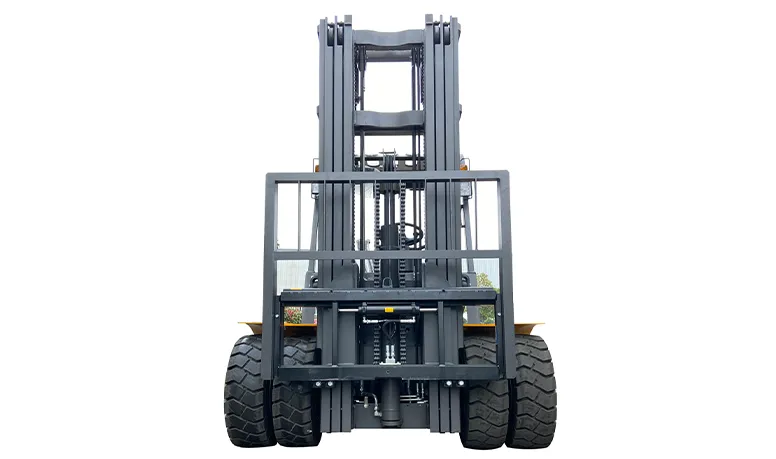

HULKMAN forklift lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiency. Adding the above front double tires can make the heavy duty 4ton 4.5ton forklift lifting height reach higher 7000mm.
The 4ton and 5ton HULKMAN forklift are nice in appearance with streamline design. They work stably with high efficiency and good grade ability and can be operated in bad working conditions.

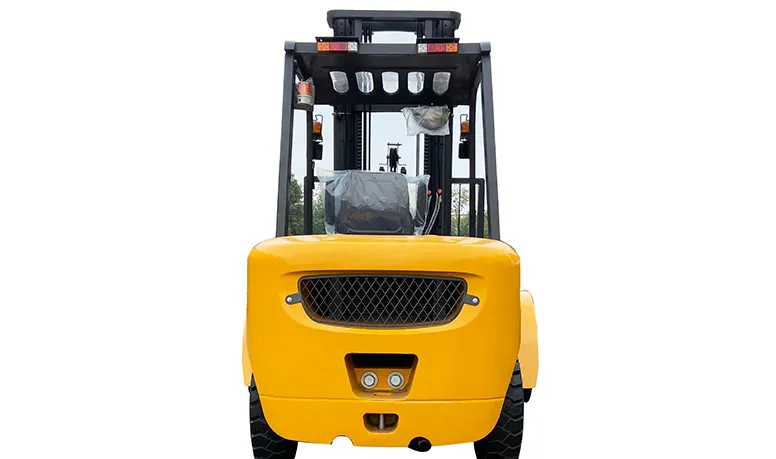

Integral overhead guard, disposable stamping ceiling, equipped with five transparent plastic cover, with good lighting and rain protective features.
| Features | Unit / Code | FD40 | FD45 |
| Power | / | Diesel Engine | Diesel Engine |
| Rated Capacity | kg | 4000 | 4500 |
| Center of Load | J (mm) | 500 | 500 |
| Standard Lifting Height | h1 (mm) | 3000 | 3000 |
| Free Lifting Height | h3 (mm) | 146 | 146 |
| Fork Size L×W×H | L5×W×T (mm) | 1070×150×50 | 1070×150×50 |
| Mast Tilting Angle Forward/Backward | ° | 6/12 | 6/12 |
| Min. Turning Radius | R1 (mm) | 2780 | 2780 |
| Min. Right Angle Stacking Aisle Width | Ra (mm) | 4815 | 4815 |
| Min. Ground Clearance (Mast) | m (mm) | 160 | 160 |
| Overhead Guard Height | h4 (mm) | 2350 | 2350 |
| Front Overhang | L3 (mm) | 565 | 565 |
| Rear Overhang | L4 (mm) | 540 | 540 |
| Performance | |||
| Max. Traveling Speed (Loaded) | km/h | 18 | 18 |
| Max. Lifting Speed (Loaded/Empty) | mm/s | 410/450 | 410/450 |
| Max. Traction/Gradeability | kN/% | 22/20 | 22/20 |
| Size | |||
| Overall Length (with fork) | L1 (mm) | 4175 | 4175 |
| Overall Width | W1 (mm) | 1490 | 1490 |
| Mast Lowered Height | h2 (mm) | 2355 | 2355 |
| Mast Extended Height | mm | 4257 | 4257 |
| Chassis | |||
| Tire (Front) | / | 300-15-18PR | 300-15-18PR |
| Tire (Rear) | / | 7.00-12-12PR | 7.00-12-12PR |
| Wheelbase | L2 (mm) | 2000 | 2000 |
| Tread Width (Front/Rear) | S/P (mm) | 1180/1190 | 1180/1190 |
| Curb Weight (None-Load) | kg | 6090 | 6380 |
| Engine | |||
| Battery (Voltage/Capacity) | V/Ah | (12/90)×2 | (12/90)×2 |
| Engine Model | / | Mitsubishi S6S | Mitsubishi S6S |
| Engine Rated Power | kW/r.p.m | 52/2300 | 52/2300 |
| Engine Rated Torque | kW/r.p.m | 248/1700 | 248/1700 |
| Engine Cylinder Amount | / | 4 | 4 |
| Engine Bore × Stroke | mm | 94×120 | 94×120 |
| Engine Displacement | L | 4.966 | 4.966 |
| Fuel Tank | L | 100 | 100 |
| Transmission | / | Electric Hydraulic | Electric Hydraulic |
| Working Pressure | MPa | 18.5 | 18.5 |

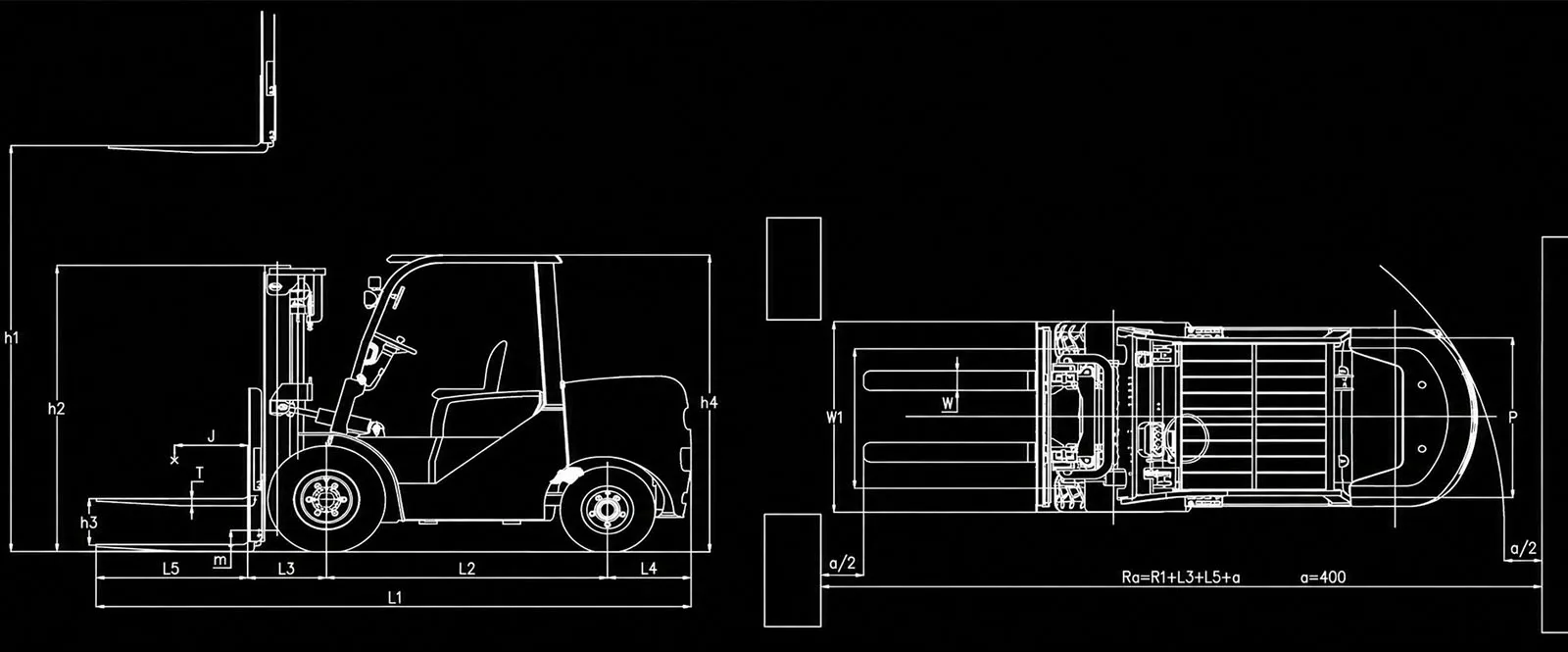

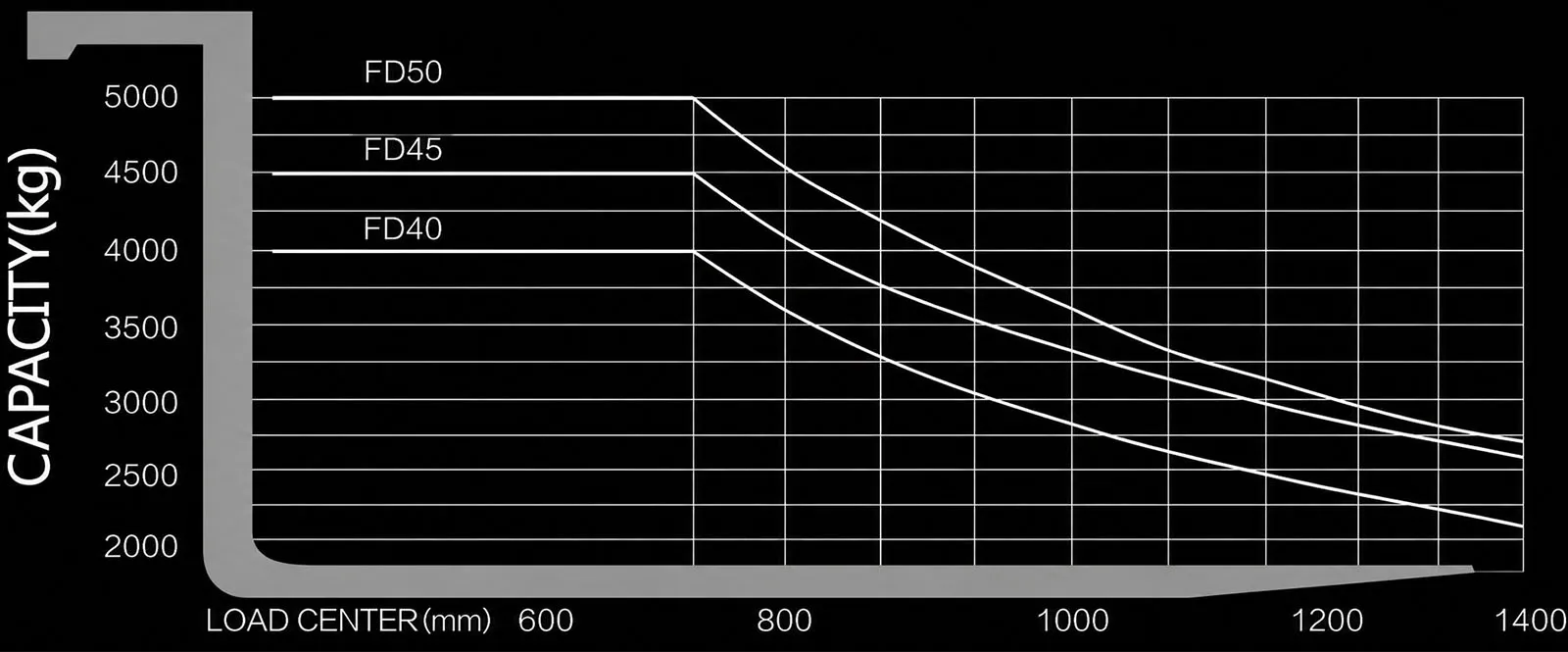

Remark: Below HULKMAN 4Ton 4.5Ton Diesel Forklift 2D Graph for further reference.
| Lifting Height | Loading Capacity 4Ton | Loading Capacity 4.5Ton | Mast Lowered Height – Fork Landing | Mast Lowered Height – Height with Backrest | Free Lifting Height 4T–4.5Ton | Mast Tilt Angle F/R |
| 3000 mm | 4000 kg | 4500 kg | 2355#2395 mm | 4257#4266 mm | 146#1178 mm | 6/12° |
| 3500 mm | 4000 kg | 4500 kg | 2605#2645 mm | 4757#4766 mm | 146#1428 mm | 6/12° |
| 4000 mm | 3650 kg | 4150 kg | 2905#2945 mm | 5257#5266 mm | 146#1728 mm | 6/12° |
| 4500 mm | 3550 kg | 4050 kg | 3155#3195 mm | 5757#5766 mm | 146#1978 mm | 6/12° |
| 5000 mm | 3450 kg | 3900 kg | 3405#3445 mm | 6257#6266 mm | 146#2228 mm | 6/6° |
| 5500 mm | 3250 kg | 3750 kg | 3705#3745 mm | 6757#6766 mm | 146#2528 mm | 3/6° |
| 6000 mm | 3000 kg | 3500 kg | 3955#3995 mm | 7257#7266 mm | 146#2778 mm | 3/6° |
Remark: # means 2 stage (duplex) full free mast specification;
Free lifting height without bracket: standard 2 stage (duplex) mast -420mm;
Optional 2 stage (duplex) full free mast +376mm.
| Lifting Height | Loading Capacity 4Ton | Loading Capacity 4.5Ton | Mast Lowered Height – Fork Landing | Mast Lowered Height – Height with Backrest | Free Lifting Height 4T–4.5Ton | Mast Tilt Angle F/R |
| 3000 mm | 4000 kg | 4500 kg | 2355#2395 mm | 4257#4266 mm | 146#1178 mm | 6/12° |
| 3500 mm | 4000 kg | 4500 kg | 2605#2645 mm | 4757#4766 mm | 146#1428 mm | 6/12° |
| 4000 mm | 3650 kg | 4150 kg | 2905#2945 mm | 5257#5266 mm | 146#1728 mm | 6/12° |
| 4500 mm | 3550 kg | 4050 kg | 3155#3195 mm | 5757#5766 mm | 146#1978 mm | 6/12° |
| 5000 mm | 3450 kg | 3900 kg | 3405#3445 mm | 6257#6266 mm | 146#2228 mm | 6/6° |
| 5500 mm | 3250 kg | 3750 kg | 3705#3745 mm | 6757#6766 mm | 146#2528 mm | 3/6° |
| 6000 mm | 3000 kg | 3500 kg | 3955#3995 mm | 7257#7266 mm | 146#2778 mm | 3/6° |
Remark: # means 2 stage (duplex) full free mast specification;
Free lifting height without bracket: standard 2 stage (duplex) mast -420mm;
Optional 2 stage (duplex) full free mast +376mm.
| Lifting Height | Loading Capacity 4Ton | Loading Capacity 4.5Ton | Mast Lowered Height – Fork Landing | Mast Lowered Height – Height with Backrest | Free Lifting Height 4T–4.5Ton | Mast Tilt Angle F/R |
| 4000 mm | 4000 kg | 4500 kg | 2230 mm | 5257 mm | 1013 mm | 6/6° |
| 4500 mm | 3650*4000 kg | 4150*4500 kg | 2395 mm | 5757 mm | 1178 mm | 6/6° |
| 5000 mm | 3200*3500 kg | 3700*4000 kg | 2560 mm | 6257 mm | 1343 mm | 6/6° |
| 5500 mm | 2700*3400 kg | 3200*3900 kg | 2725 mm | 6757 mm | 1513 mm | 3/6° |
| 6000 mm | 2400*3000 kg | 2400*3500 kg | 2995 mm | 7257 mm | 1778 mm | 3/6° |
Remark: *Means double front tires;
Lifting height without bracket +377mm;
Free lifting height without bracket -377mm.
Rotating Roll Clamp
Rotator
Side Shifter
Multi Pallet Handler
Bale Clamp
Push-pull with Sheet Saver
Cab
High exhaust
Luxury seat
Double front tire and protector
Oil-bath double filter (on overheadguard)
Solid tyre
Double filter
Windshield
Exhaust smoke purification muffler
Fire extinguishing muffler
Rotary work alarming light
Fork cover
Heater
Two/three stage full-free mast
If you would like more information about this product, please feel free to contact us. Recommend other popular products for you: 2.5 Ton Electric Pallet Truck, 1.5 Ton Electric Reach Stacker, Multi Direction Forklift For Sale, manual forklift exporter, agv forklift manufacturer, agv forklift factory, agv forklift supplier, automated guided vehicle forklift manufacturer, agv forklifts manufacturer, agv forklifts factory, agv forklifts supplier, China agv forklift, China automated guided vehicle forklift, China forklift automated guided vehicles, stacker agv, forklift agvs manufacturer, forklift agvs factory, China forklift agvs, custom forklift agvs, Forklift 10 Ton For Sale, 10 ton diesel forklift, 7 ton diesel forklift, 2 Ton LPG Forklift, 3.5 Ton LPG Forklift, Electric Tow Tractor For Sale, 10 Ton Electric Tow Tractor, 6 Ton Electric Tow Tractor, Multi Directional Forklift For Sale, 2 Ton 4-Directional Electric Forklift
The HULK FD30 and FD35 3 ton 3.5 ton diesel forklift series provides 3,000 kg and 3,500 kg load-capacity options for pallet handling, loading and industrial material transfer. Buyers can configure the engine, mast, tires, cab and attachments according to the confirmed load and working conditions.

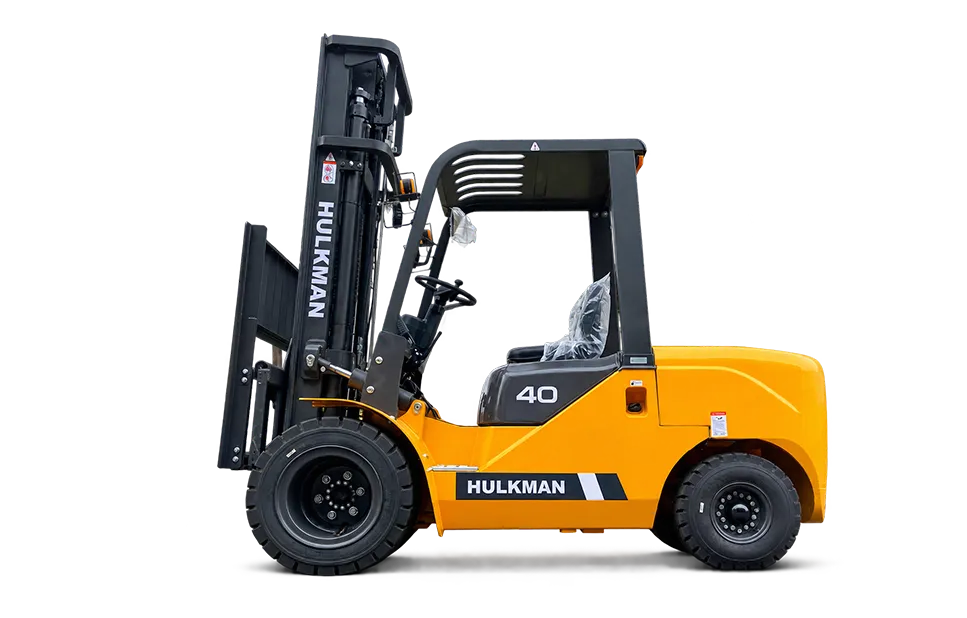

The HULKMAN FD40 and FD45 are sit-down diesel counterbalance forklifts designed for handling loads of 4,000 kg and 4,500 kg. Both models feature a standard 3,000 mm lifting height, a wide-view reinforced mast and configurable engine, tire, mast and attachment options for demanding industrial material handling.
