Standard Engine: China Best Xinchai Brand
Optional Engine: Japan Original ISUZU Engine
Transmission: TCM technology Automatic Transmission, controlled by finger
Hydraulic System: Japan Shimadzu Brand
Standard Lifting Height: 3000mm
Standard Fork Length: 920mm
Standard Air Tires
LED Warning Light
OEM Brand Service
Optional Attachments: Fork Side Shifter, Paper Roll Clamp, Bale Clamp, Rotator etc.
FD15 — 1.5 Ton
1500 kg rated capacity
500 mm load center
920 × 100 × 35 mm forks
FD18 — 1.8 Ton
1800 kg rated capacity
500 mm load center
920 × 100 × 40 mm forks
Handling Dimensions
2060 mm turning radius
1086 mm overall width
1400 mm wheelbase
Operating Performance
14.5 km/h loaded travel speed
460 mm/s loaded lift speed
20% gradeability

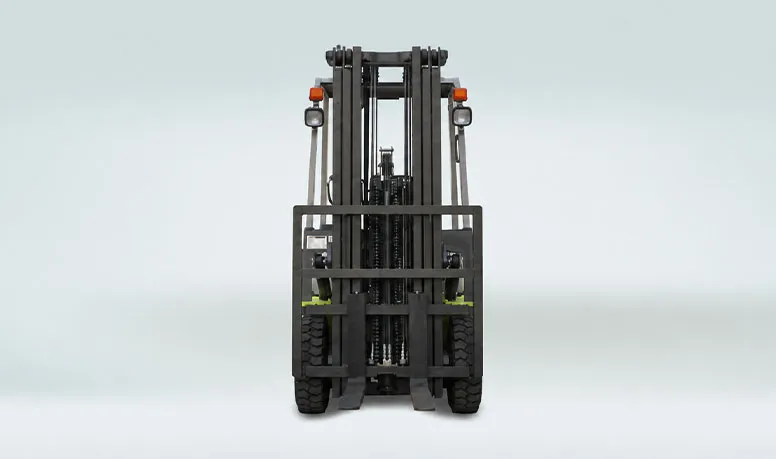

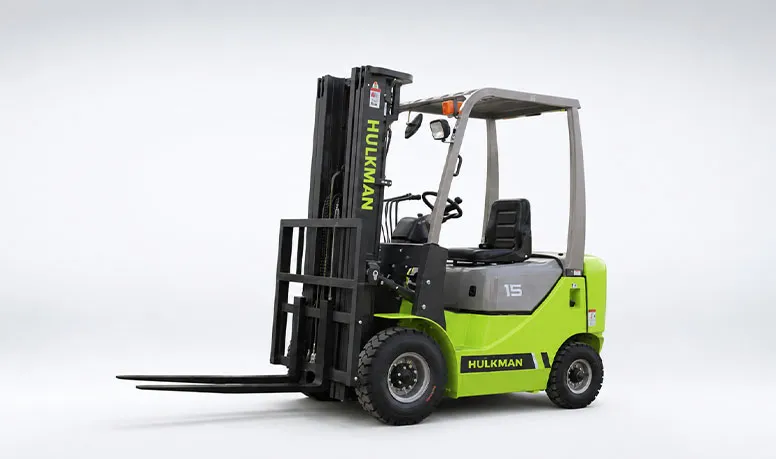

HULKMAN 1.5Ton 1.8Ton Diesel Forklift uses well-designed pipe and joint, which adapts each other and makes the hydraulic system stable and forklift durable.

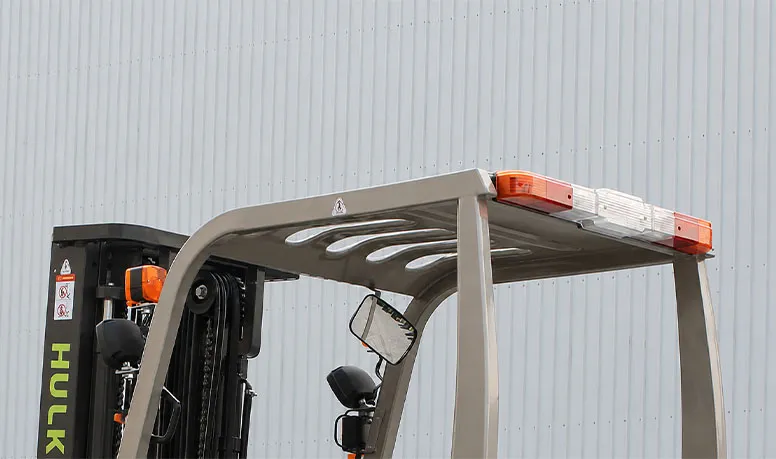

The HULKMAN forklift overhead guard is made by press welding, with 5 transparent plastic cover to make sure rainproof and good view.

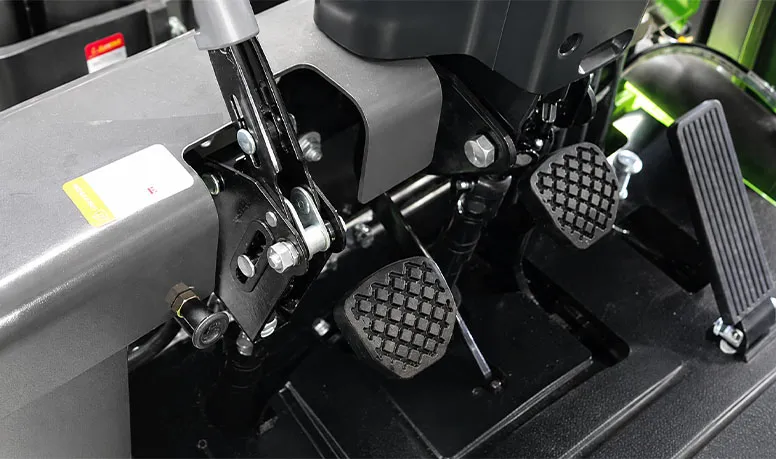

This is HULKMAN forklift optimized operation lever layout, the new operation handle, and the spacious operating space, further enhance the forklift operation comfortable.

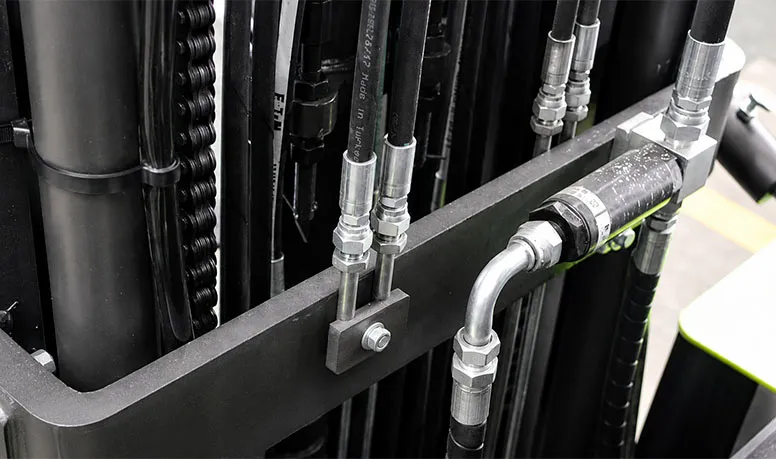

In HULKMAN forklift’s hydraulic pipeline, the rubber tube and the joint adopt the conical surface seal form, the sealing effect is good, the long-term use will not seep the oil.

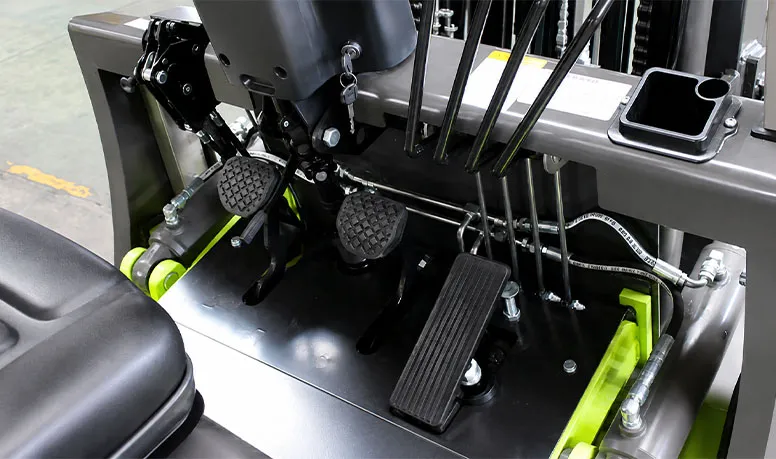

HULKMAN forklift’s spacious upper and lower pedal and driving space can reduce leg operation fatigue.
The forklift design of the combined switch with the car’s double handle is simpler and more convenient.
HULKMAN forklift good design with buffer in lifting system will effectively reduce the vibration of mast.

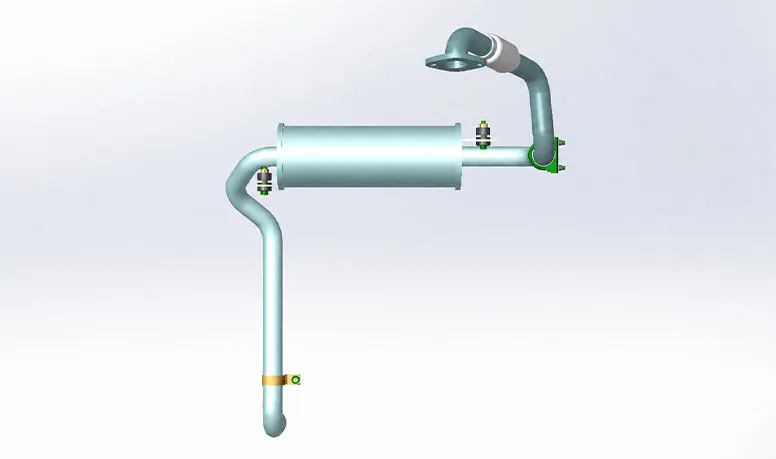

A new muffler installation structure is adopted to reduce HULKMAN forklift vibration and noise of the whole vehicle.

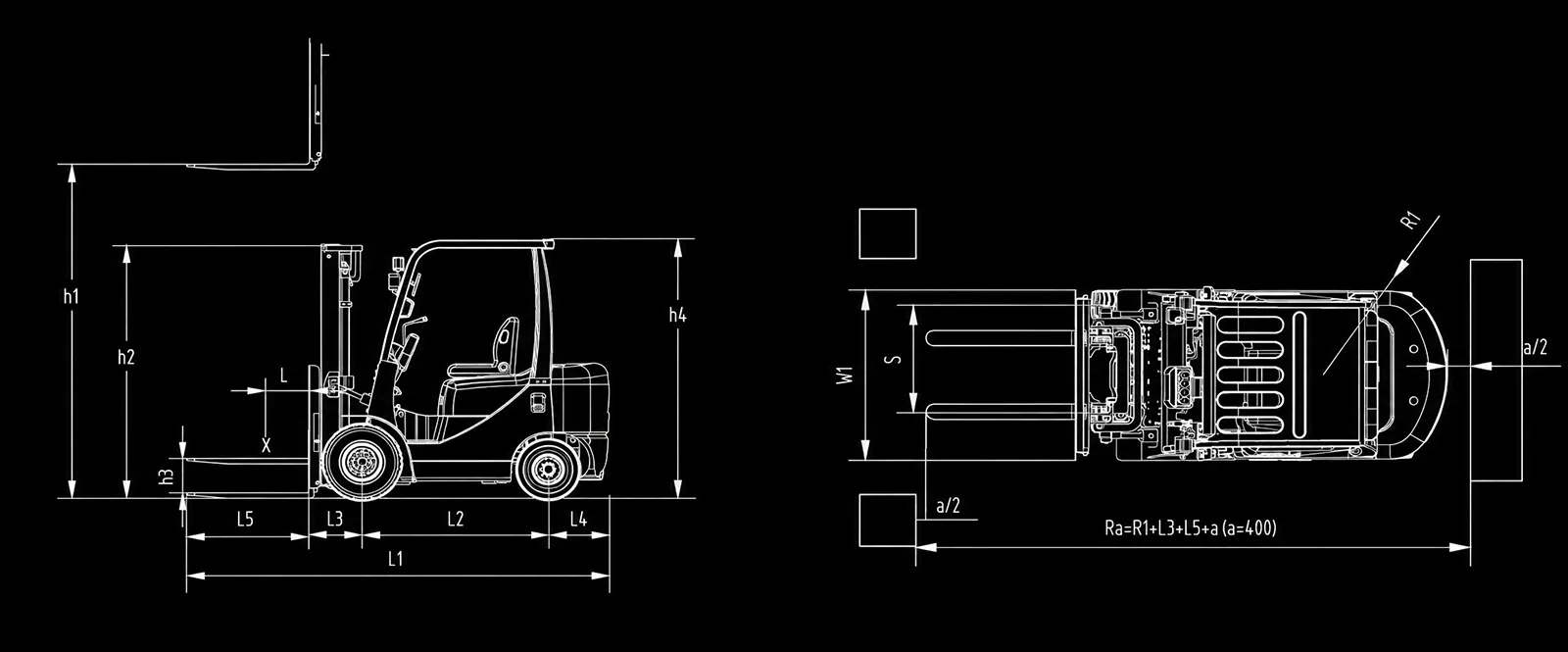

| Features | Symbol / Unit | FD15 | FD18 |
| Basic Specifications | |||
| Power | / | Diesel Engine | Diesel Engine |
| Rated Capacity | kg | 1500 | 1800 |
| Center of Load | J (mm) | 500 | 500 |
| Lifting Height | h1 (mm) | 3000 | 3000 |
| Free Lifting Height | h3 (mm) | 130 | 130 |
| Fork Size (L × W × H) | L5 × W × T (mm) | 920 × 100 × 35 | 920 × 100 × 40 |
| Tilt Forward / Backward | / | 6 / 12 | 6 / 12 |
| Minimum Turning Radius | R1 (mm) | 2060 | 2060 |
| Minimum Right-Angle Stacking Width | Ra (mm) | 3780 | 3780 |
| Minimum Ground Clearance (Mast) | m (mm) | 105 | 105 |
| Overhead Guard Height | h4 (mm) | 2040 | 2040 |
| Front Overhang | L3 (mm) | 400 | 400 |
| Rear Overhang | L4 (mm) | 450 | 450 |
| Performance | |||
| Maximum Traveling Speed (Load) | km/h | 14.5 | 14.5 |
| Maximum Lifting Speed (Load / Empty) | mm/s | 460 / 500 | 460 / 500 |
| Drawbar Pull / Gradeability | kN / % | 16 / 20 | 16 / 20 |
| Size | |||
| Overall Length with Fork | L1 (mm) | 3170 | 3170 |
| Overall Width | W1 (mm) | 1086 | 1086 |
| Mast Lowered Height | h2 (mm) | 1990 | 1990 |
| Mast Extended Height | mm | 4025 | 4025 |
| Chassis | |||
| Front Tire | / | 6.5-10-10PR | 6.5-10-10PR |
| Rear Tire | / | 5.00-8-10PR | 5.00-8-10PR |
| Wheelbase | L2 (mm) | 1400 | 1400 |
| Tread Width (Front / Rear) | S / P (mm) | 890 / 920 | 890 / 920 |
| Curb Weight (Non-Load) | kg | 2680 | 2890 |
| Engine | |||
| Battery (Voltage / Capacity) | V / Ah | 12 / 90 | 12 / 90 |
| Engine Model | / | Xinchai NC485BPG | Xinchai NC485BPG |
| Rated Power | kW | 30 | 30 |
| Rated Torque | kW | 131 | 131 |
| Displacement | L | 2.27 | 2.27 |

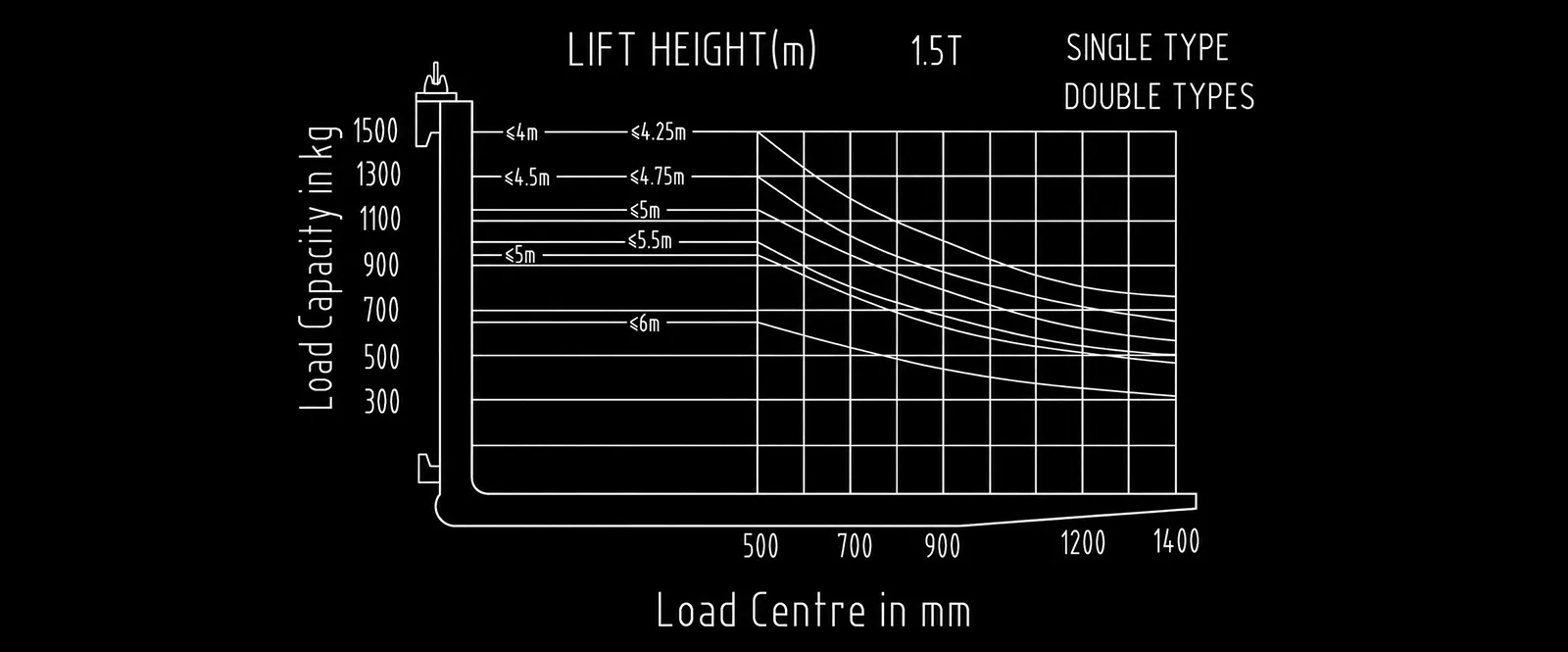

| Lifting Height | Loading Capacity | Mast Lowered Height | Mast Tilt Angle | ||
| 1.5Ton Single Tire |
1.8Ton Single Tire |
1.5-1.8Ton Fork Landing |
1.5-1.8Ton Height with Backrest |
F/R | |
| 2000mm | 1500kg | 1800kg | 1490mm | 3025mm | 6/12° |
| 2500mm | 1500kg | 1800kg | 1740mm | 3525mm | 6/12° |
| 3000mm | 1500kg | 1800kg | 1990mm | 4025mm | 6/12° |
| 3300mm | 1500kg | 1800kg | 2140mm | 4325mm | 6/12° |
| 3500mm | 1500kg | 1800kg | 2240mm | 4525mm | 6/12° |
| 3700mm | 1500kg | 1800kg | 2340mm | 4725mm | 6/12° |
| 4000mm | 1500kg | 1800kg | 2540mm | 5025mm | 6/12° |
| 4500mm | 1300kg | 1400kg | 2790mm | 5525mm | 6/6° · *6/12° |
| 5000mm | 950 / *1150kg | 1150 / *1350kg | 2040mm | 6025mm | 6/6° · *6/6° |
| 5500mm | *1000kg | *1050kg | 3340mm | 6525mm | *3/6° |
| 6000mm | *650kg | *850kg | 3590mm | 7025mm | *3/6° |
| Lifting Height | Loading Capacity | Mast Lowered Height | Free Lifting Height | Mast Tilt Angle | ||
| 1.5Ton Single Tire |
1.8Ton Single Tire |
1.5-1.8Ton Fork Landing |
1.5-1.8Ton Height with Backrest |
1.5-1.8Ton Height with Backrest |
F/R | |
| 2000mm | 1500kg | 1800kg | 1490mm | 3035mm | 495mm | 6/12° |
| 2500mm | 1500kg | 1800kg | 1740mm | 3535mm | 745mm | 6/12° |
| 3000mm | 1500kg | 1800kg | 1990mm | 4035mm | 995mm | 6/12° |
| 3300mm | 1500kg | 1800kg | 2140mm | 4335mm | 1145mm | 6/12° |
| 3500mm | 1500kg | 1800kg | 2240mm | 4535mm | 1245mm | 6/12° |
| 3700mm | 1500kg | 1800kg | 2340mm | 4735mm | 1345mm | 6/12° |
| 4000mm | 1500kg | 1800kg | 2540mm | 5035mm | 1545mm | 6/12° |
| Lifting Height | Loading Capacity | Mast Lowered Height | Free Lifting Height | Mast Tilt Angle | ||
| 1.5Ton Single Tire |
1.8Ton Single Tire |
1.5-1.8Ton Fork Landing |
1.5-1.8Ton Height with Backrest |
1.5-1.8Ton Height with Backrest |
F/R | |
| 3600mm | 1500kg | 1800kg | 1725mm | 4590mm | 730mm | 6/6° |
| 4000mm | 1300kg | 1800kg | 1860mm | 4990mm | 865mm | 6/6° |
| 4350mm | 1200kg / *1300kg | 1450kg | 1975mm | 5340mm | 980mm | 6/6° |
| 4500mm | 1200kg / *1250kg | 1350kg | 2025mm | 5490mm | 1030mm | 6/6° |
| 4800mm | 1100kg / *1200kg | 1250kg | 2125mm | 5790mm | 1130mm | 6/6° |
| 5000mm | 1000kg / *1100kg | 1150kg | 2195mm | 5990mm | 1200mm | 6/6° |
| 5500mm | *1000kg | *1000kg | 2415mm | 6490mm | 1420mm | *3/6° |
| 6000mm | *650kg | *850kg | 2575mm | 6990mm | 1580mm | *3/6° |
Rotating Roll Clamp
Rotator
Side Shifter
Multi Pallet Handler
Bale Clamp
Push-pull with Sheet Saver
Windshield
Two/three stage full-free mast
Shock-absorbing chair, with power disconnect function
Dual front wheels
Double air filter
Fork sleeve
Double tires and extended devices
Fire extinguishing muffler
Solid tyre
Rotary work alarming light
Fan
Oil bath double air filter
Optional painting
Purifying muffler
Roof shield rain proof cover
LED lights
Luxury seat
