FL20 2 Ton LPG Forklift

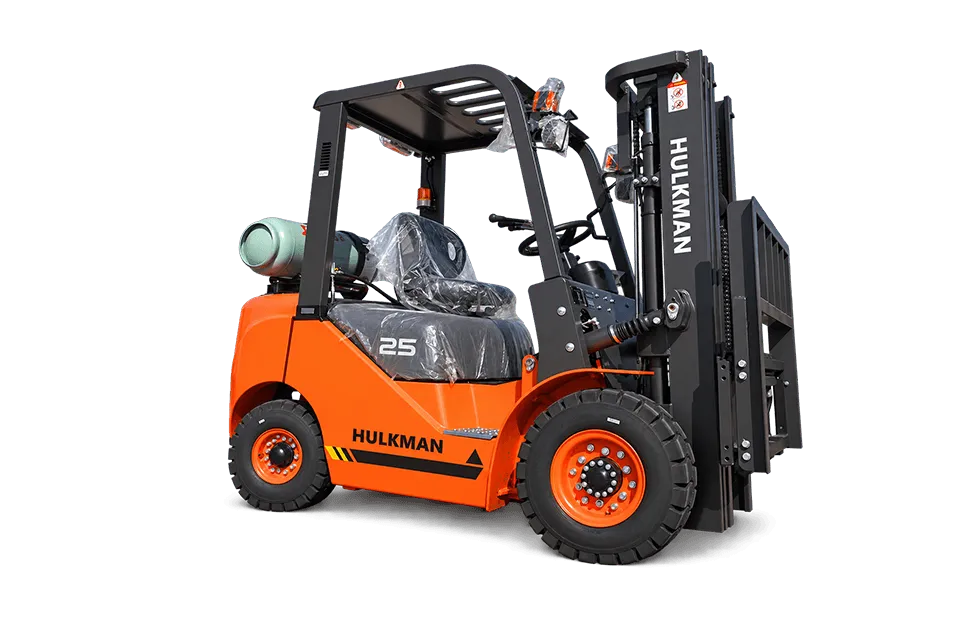

2.5Ton LPG Forklift

Standard Engine: China Best Guangqing Brand GQ-4Y model
Optional Engine: Japan Original Nissan K25 Forklift Engine
Transmission: TCM technology Automatic Transmission, controlled by finger
Mast: Standard 3000mm Duplex 2 Stage Wide View Container Mast
Fork size: Standard 1070mm Length
Hydraulic System: Japan Shimadzu brand
LED Warning Light
Cylinders Dust Rubber Cover
Wide View Rear Mirror
Lights Protection Steel Structure
Water Proof Overhead Guard
OEM Brand Service

Inquire Now

Download

Main Features

Handles up to 2,500 kg loads at a 500 mm load center for pallet handling and stacking.
Uses a gas/gasoline system with standard GQ-4Y and optional Nissan K25 engines.
1/1 automatic powershift transmission provides smooth travel control for daily operations.
Standard 3,000 mm duplex wide-view mast with optional full-free and triplex masts.
Optional tires, cabins, masts, forks and attachments for different applications.

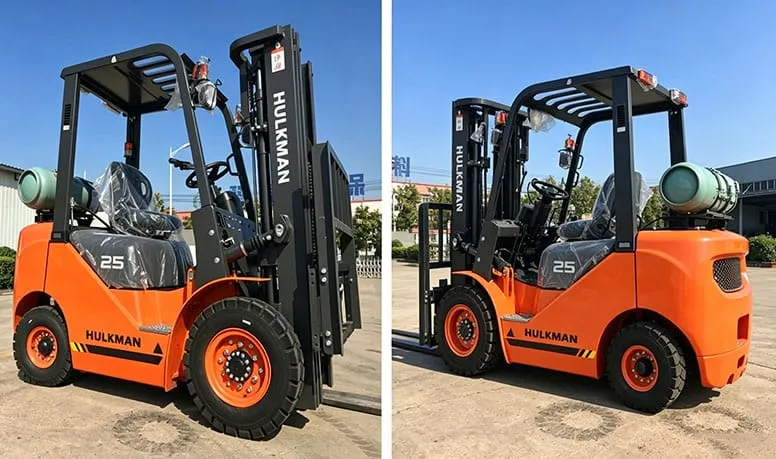

Product Description

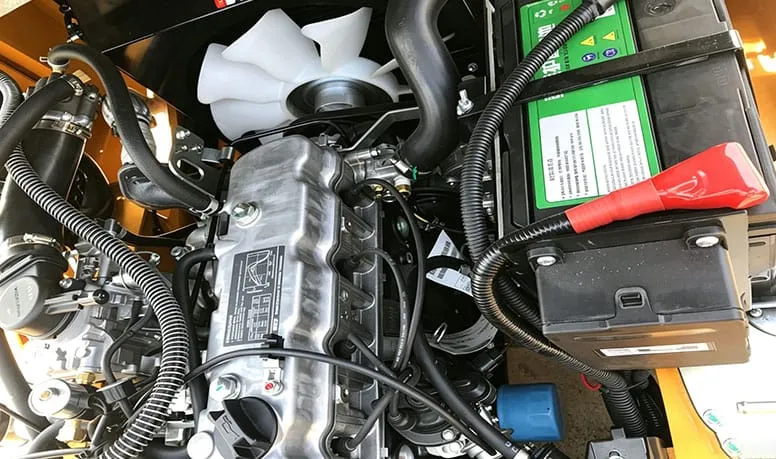

Fuel efficient, low emission, and high power, the HULKMAN forklift cuts your 2.5T LP Gas forklift use cost efficiently and is friendly to the operator and the environment. The reliable IMPCO LPG forklift system helps reduce forklift maintenance costs. Converting your 2.5Tons forklift to LPG offers all the power and performance of petrol without the high fuel cost. What’s more, the engine hood with large opening angle makes maintenance easier for servicemen.
Newly designed stamping overhead guards protect the 2000kg HULKMAN gas forklift’s operator from falling cargo.

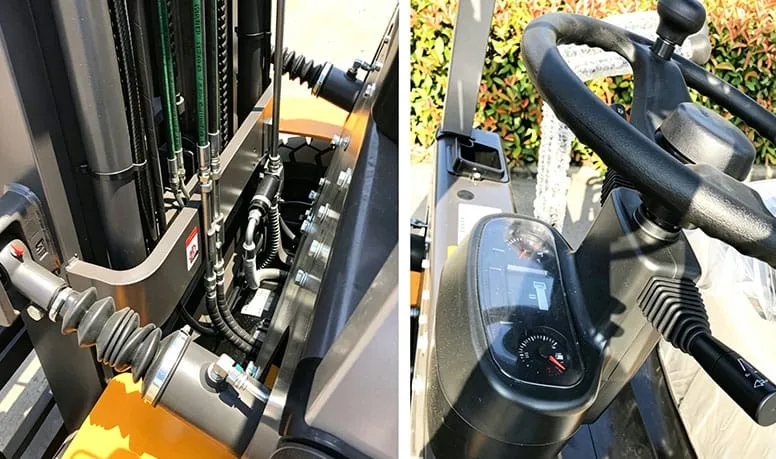

HULKMAN 2500kg capacity gas forklift’s Lifting cylinders with speed limit valve prevent falling accidents caused by unexpected hydraulic pressure relief from happening. With superior quality and exceptional value, the HULKMAN LPG forklift thinks what you want. Adopting TCM technology, durable and reliable automatic transmission prolongs HULKMAN forklift’s lifetime.

Product Description

Features	Unit / Code	FL25
Power	/	Gas Gasoline
Rated Capacity	kg	2500
Center of Load	mm	500
Standard Lifting Height	mm	3000
Free Lifting Height	mm	135
Fork Size L×W×H	mm	1070×122×40
Mast Tilting Angle Forward/Backward	°	6/12
Min. Turning Radius	mm	2240
Min. Ground Clearance (Mast)	mm	110
Overhead Guard Height	mm	2090
Height from Seat to Overhead Guard	mm	1005
Front Overhang	mm	473
Performance
Max. Traveling Speed (Loaded)	km/h	19
Max. Lifting Speed (Loaded/Empty)	mm/s	490/510
Drawbar Pull / Gradeability	kN/%	17/20
Size
Overall Length (with fork)	mm	2570
Overall Width	mm	1160
Mast Lowered Height	mm	1990
Mast Extended Height	mm	4000
Chassis
Tire (Front)	/	7.00-12-12PR
Tire (Rear)	/	6.00-9-10PR
Wheelbase	mm	1600
Tread Width (Front/Rear)	mm	970/970
Curb Weight (None-Load)	kg	3800
Engine
Battery (Voltage/Capacity)	V/Ah	12/90
Engine Model	/	Nissan K25
Engine Rated Power	kW/r.p.m	37.4/2300
Engine Rated Torque	Nm/r.p.m	176.5/1600
Engine Cylinder Amount	/	44
Engine Bore × Stroke	mm	89×100
Engine Displacement	L	2.488
Fuel Tank	L	60
Transmission	/	1/1 Powershift
Working Pressure	MPa	17.5

Dimension Drawing

Standard 2 Stage (Duplex) Wide View Mast
Optional 2 Stage (Duplex) Full Free Mast
Optional 3 Stage (Triplex) Full Free Mast

Lifting Height	Loading Capacity	Mast Lowered Height – Fork Landing	Height with Backrest	Mast Tilt Angle F/R
2000 mm	2500 kg	1490 mm	3025 mm	6/12°
2500 mm	2500 kg	1740 mm	3525 mm	6/12°
3000 mm	2500 kg	1990 mm	4025 mm	6/12°
3300 mm	2500 kg	2140 mm	4325 mm	6/12°
3500 mm	2500 kg	2240 mm	4525 mm	6/12°
3700 mm	2500 kg	2340 mm	4725 mm	6/12°
4000 mm	2500 kg	2540 mm	5025 mm	6/12°
4500 mm	2200 / *2400 kg	2790 mm	5525 mm	6/6° / *6/12°
5000 mm	1450 / *2200 kg	3040 mm	6025 mm	6/6°
5500 mm	*1700 kg	3340 mm	6525 mm	3/6°
6000 mm	*1400 kg	3590 mm	7025 mm	3/6°

Remark: * means double tires.

Lifting Height	Loading Capacity	Mast Lowered Height – Fork Landing	Height with Backrest	Free Lifting Height	Mast Tilt Angle F/R
2000 mm	2000 kg	1495 mm	3035 mm	511 mm	6/12°
2500 mm	2000 kg	1745 mm	3535 mm	761 mm	6/12°
3000 mm	2000 kg	1995 mm	4035 mm	1011 mm	6/12°
3300 mm	2000 kg	2145 mm	4335 mm	1161 mm	6/12°
3500 mm	2000 kg	2245 mm	4535 mm	1261 mm	6/12°
3700 mm	2000 kg	2345 mm	4735 mm	1361 mm	6/12°
4000 mm	2000 kg	2545 mm	5035 mm	1561 mm	6/12°

Remark: * means double tires;
The max. lifting height without backrest -370mm;
The max. free lifting height without backrest +370mm.

Lifting Height	Loading Capacity	Mast Lowered Height – Fork Landing	Height with Backrest	Free Lifting Height	Mast Tilt Angle F/R
3600 mm	2500 kg	1765 mm	4625 mm	781 mm	6/6°
4000 mm	2500 kg	1900 mm	5025 mm	916 mm	6/6°
4350 mm	2370 / *2500 kg	2015 mm	5375 mm	1031 mm	6/6°
4500 mm	2070 / *2500 kg	2065 mm	5525 mm	1081 mm	6/6°
4800 mm	1750 / *2300 kg	2165 mm	5825 mm	1181 mm	6/6°
5000 mm	1500 / *2150 kg	2230 mm	6025 mm	1246 mm	6/6°
5500 mm	*1650 kg	2395 mm	6525 mm	1411 mm	*3/6°
6000 mm	*1300 kg	2615 mm	7025 mm	1631 mm	*3/6°

Remark: * means double tires;
The max. lifting height without backrest -370mm;
The max. free lifting height without backrest +370mm.

Optional Choice

Rotating Roll Clamp
Rotator
Side Shifter
Multi Pallet Handler
Bale Clamp
Push-pull with Sheet Saver

Fan
Cab
Heater
Muffler
Solid tyre
double filter
Windsereen
Warning light
High exhaust
Luxury seat
Fire extinguishing muffler
TWO/THREE Full-free mast
Colored tyre (white/green)
Customer appointed color
Yanmar/Isuzu engine
