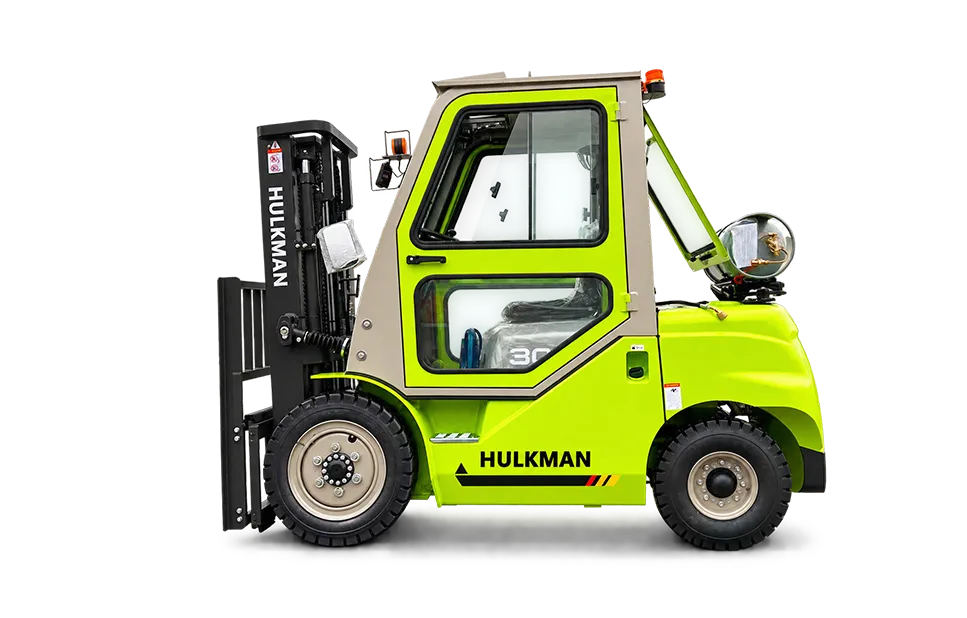

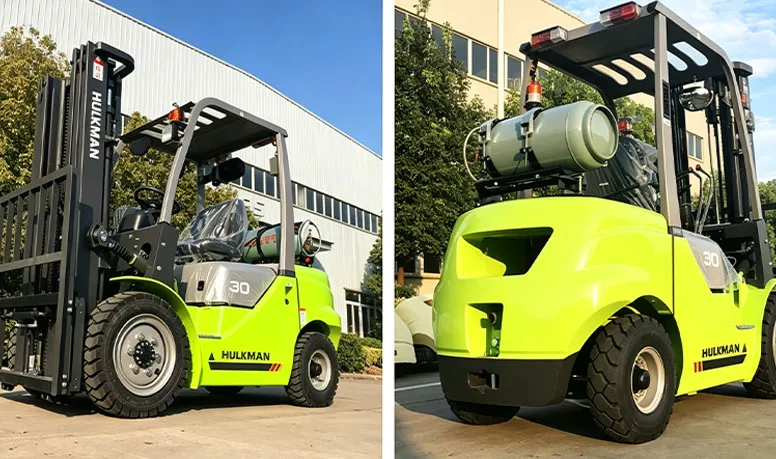

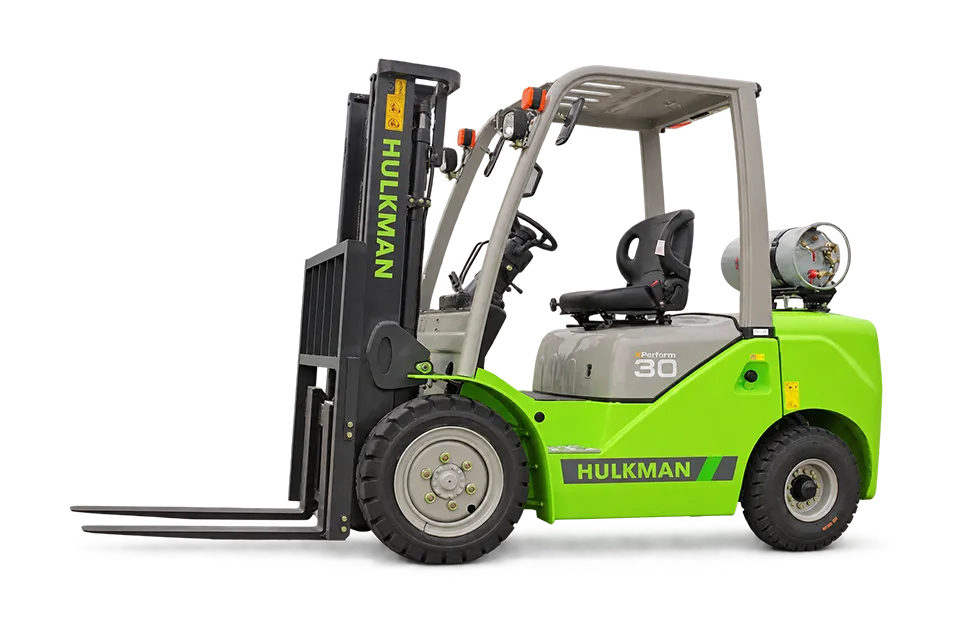

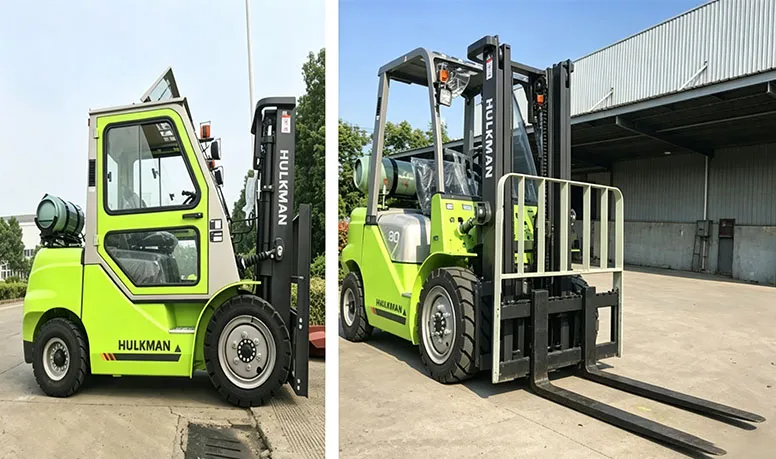

FL30 3 Ton LPG Forklift

3.0Ton LPG Forklift

Standard Engine: China Best Guangqing Brand GQ-4Y model
Optional Engine: Japan Original Nissan K25 Engine
Transmission: TCM technology Automatic Transmission, controlled by finger
Mast: Standard 3000mm Duplex 2 Stage Wide View Container Mast
Fork size: Standard 1070mm Length
Hydraulic System: Japan Shimadzu brand
LED Warning Light
Cylinders Dust Rubber Cover
Wide View Rear Mirror
Lights Protection Steel Structure
Water Proof Overhead Guard
OEM Brand Service

Inquire Now

Download

Main Features

Handles up to 3,000 kg loads at a 500 mm load center for pallet handling and stacking.
Uses a gas system with standard GQ-4Y and optional Nissan K25 engines.
1/1 automatic powershift transmission provides smooth travel control for handling operations.
Standard 3,000 mm duplex wide-view mast with optional full-free and triplex masts.
Optional tires, cabins, masts, forks and attachments for different handling requirements.

Product Description

Fuel efficient, low emission, and high power, the HULKMAN forklift cuts your 3ton LPG forklift use-cost efficiently and is friendly to the operator and the environment. The reliable IMPCO LPG forklift system helps reduce forklift maintenance costs. Converting your 3T forklift to LPG offers all the power and performance of petrol without the high fuel cost. What’s more, the engine hood with large opening angle makes maintenance easier for servicemen.
Newly designed stamping overhead guards protect the 3T HULKMAN gas forklift’s operator from falling cargo.
HULKMAN 3ton gas forklift’s Lifting cylinders with speed limit valve prevent falling accidents caused by unexpected hydraulic pressure relief from happening. With superior quality and exceptional value, the HULKMAN LPG forklift thinks what you want. Adopting TCM technology, durable and reliable automatic transmission prolongs HULKMAN forklift’s lifetime.

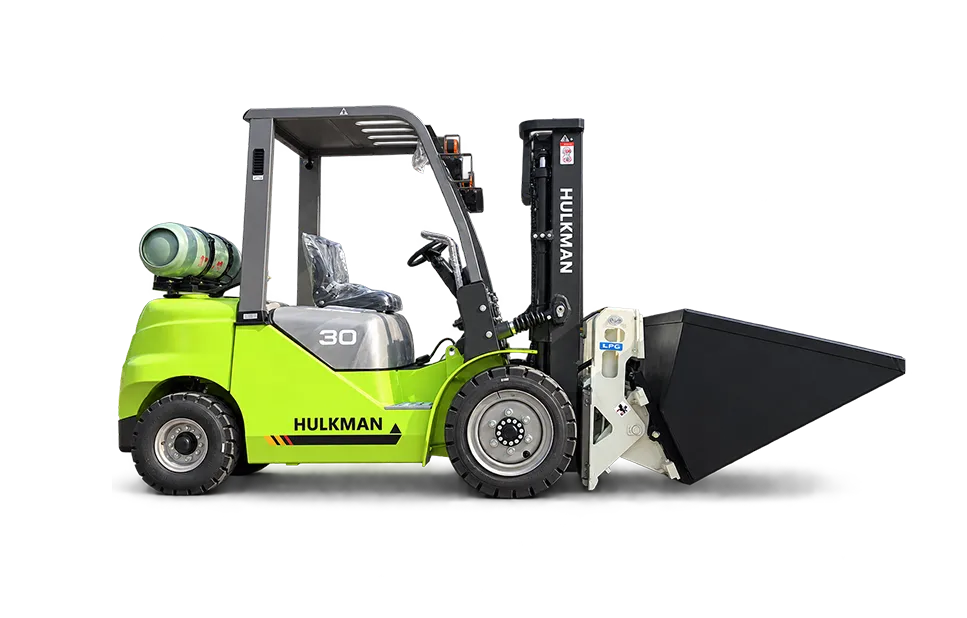

HULKMAN Forklift Optional Configurations: fan, cab, heater, muffler, solid tire, double filters, windscreen, warning light, high exhaust, luxury seat, fire extinguishing muffler, two/three full free mast, colored tires (white/green), customer appointed color, Yanmar or Isuzu engine.HULKMAN Forklift Optional Attachments: side shift, fork positioner, tipping fork, string lever, hook, extended fork, crane boom, roll clamp, bucket, bale clamp.

Product Description

Features	Unit / Code	FL30
Power	/	Gas Gasoline
Rated Capacity	kg	3000
Center of Load	mm	500
Standard Lifting Height	mm	3000
Free Lifting Height	mm	145
Fork Size L×W×H	mm	1070×125×45
Mast Tilting Angle Forward/Backward	°	6/12
Min. Turning Radius	mm	2410
Min. Ground Clearance (Mast)	mm	110
Overhead Guard Height	mm	2130
Height from Seat to Overhead Guard	mm	1000
Front Overhang	mm	483
Performance
Max. Traveling Speed (Loaded)	km/h	20
Max. Lifting Speed (Loaded/Empty)	mm/s	470/520
Drawbar Pull / Gradeability	kN/%	18/20
Size
Overall Length (with fork)	mm	2705
Overall Width	mm	1230
Mast Lowered Height	mm	2055
Mast Extended Height	mm	4256
Chassis
Tire (Front)	/	28×9-15-12PR
Tire (Rear)	/	6.50-10-10PR
Wheelbase	mm	1700
Tread Width (Front/Rear)	mm	1000/970
Curb Weight (None-Load)	kg	4350
Engine
Battery (Voltage/Capacity)	V/Ah	12/90

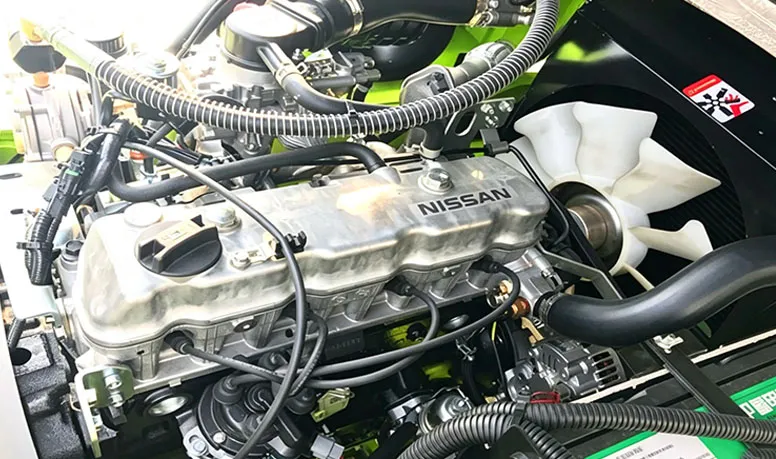

Engine Model	/	Nissan K25
Engine Rated Power	kW/r.p.m	37.4/2300
Engine Rated Torque	Nm/r.p.m	176.5/1600
Engine Cylinder Amount	/	44
Engine Bore × Stroke	mm	89×100
Engine Displacement	L	2.488
Fuel Tank	L	70
Transmission	/	1/1 Powershift
Working Pressure	MPa	17.5

Dimension Drawing

Standard 2 Stage (Duplex) Wide View Mast
Optional 2 Stage (Duplex) Full Free Mast
Optional 3 Stage (Triplex) Full Free Mast

Lifting Height	Loading Capacity	Mast Lowered Height – Fork Landing	Height with Backrest	Mast Tilt Angle F/R
2000 mm	3000 kg	1555 mm	3260 mm	6/12°
2500 mm	3000 kg	1805 mm	3760 mm	6/12°
3000 mm	3000 kg	2055 mm	4260 mm	6/12°
3300 mm	3000 kg	2205 mm	4560 mm	6/12°
3500 mm	3000 kg	2305 mm	4760 mm	6/12°
3700 mm	3000 kg	2405 mm	4960 mm	6/12°
4000 mm	3000 kg	2605 mm	5260 mm	6/12°
4500 mm	2600 / *3000 kg	2855 mm	5760 mm	6/6° / *6/12°
5000 mm	2100 / *2850 kg	3105 mm	6260 mm	6/6°
5500 mm	*2400 kg	3405 mm	6760 mm	3/6°
6000 mm	*2000 kg	3655 mm	7260 mm	3/6°

Remark: * means double tires.

Lifting Height	Loading Capacity	Mast Lowered Height – Fork Landing	Height with Backrest	Free Lifting Height	Mast Tilt Angle F/R
2000 mm	3000 kg	1565 mm	3275 mm	337 mm	6/12°
2500 mm	3000 kg	1815 mm	3775 mm	587 mm	6/12°
3000 mm	3000 kg	2065 mm	4275 mm	837 mm	6/12°
3300 mm	3000 kg	2215 mm	4575 mm	987 mm	6/12°
3500 mm	3000 kg	2315 mm	4775 mm	1087 mm	6/12°
3700 mm	3000 kg	2415 mm	4975 mm	1187 mm	6/12°
4000 mm	3000 kg	2615 mm	5275 mm	1387 mm	6/12°

Remark: * means double tires;
The max. lifting height without backrest -570mm;
The max. free lifting height without backrest +430mm.

Lifting Height	Loading Capacity	Mast Lowered Height – Fork Landing	Height with Backrest	Free Lifting Height	Mast Tilt Angle F/R
3600 mm	3000 kg	1830 mm	4865 mm	602 mm	6/6°
4000 mm	3000 kg	1965 mm	5270 mm	737 mm	6/6°
4350 mm	2870 / *3000 kg	2080 mm	5615 mm	852 mm	6/6°
4500 mm	2570 / *3000 kg	2130 mm	5765 mm	902 mm	6/6°
4800 mm	2250 / *2800 kg	2230 mm	6065 mm	1002 mm	6/6°
5000 mm	2000 / *2650 kg	2295 mm	6260 mm	1067 mm	6/6°
5500 mm	*2300 kg	2460 mm	6755 mm	1232 mm	*3/6°
6000 mm	*2100 kg	2680 mm	7265 mm	1452 mm	*3/6°

Remark: * means double tires;
The max. lifting height without backrest -570mm;
The max. free lifting height without backrest +430mm.

Optional Choice

Rotating Roll Clamp
Rotator
Side Shifter
Multi Pallet Handler
Bale Clamp
Push-pull with Sheet Saver

Fan
Cab
Heater
Muffler
Solid tyre
double filter
Windsereen
Warning light
High exhaust
Luxury seat
High exhaust
Fire extinguishing muffler
TWO/THREE Full-free mast
Colored tyre (white/green)
Customer appointed color
Yanmar/Isuzu engine
