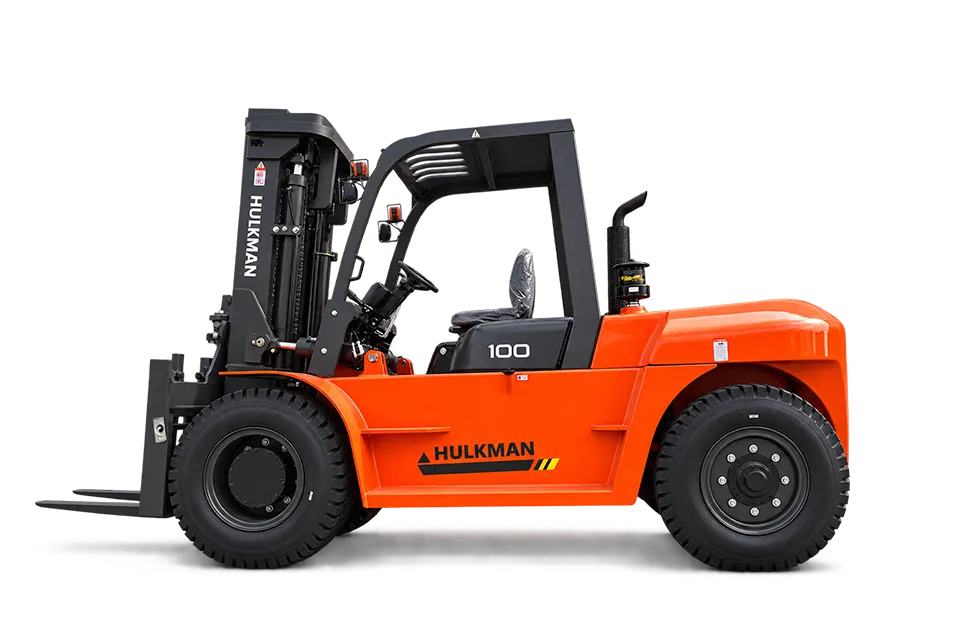

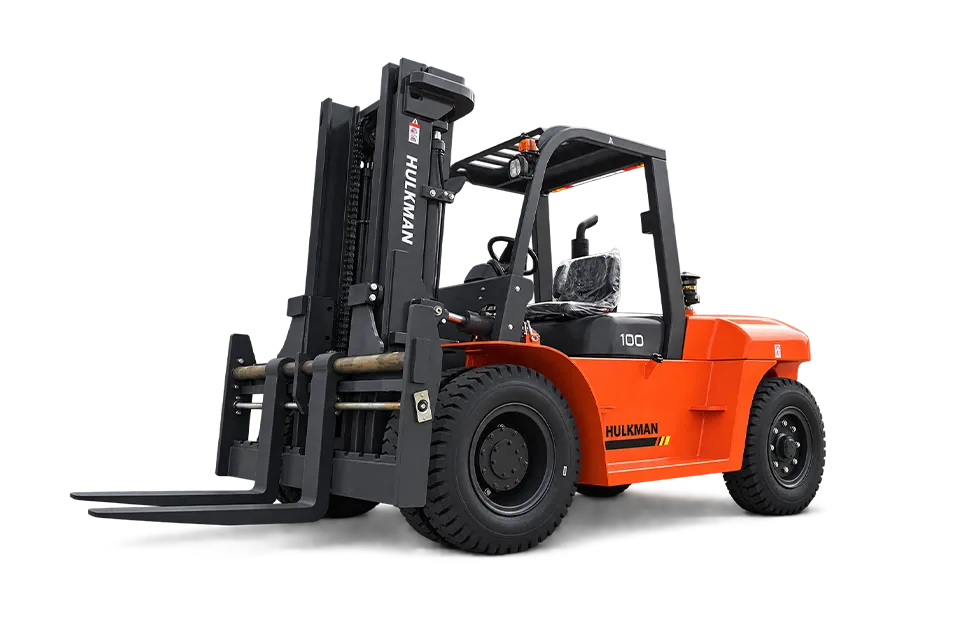

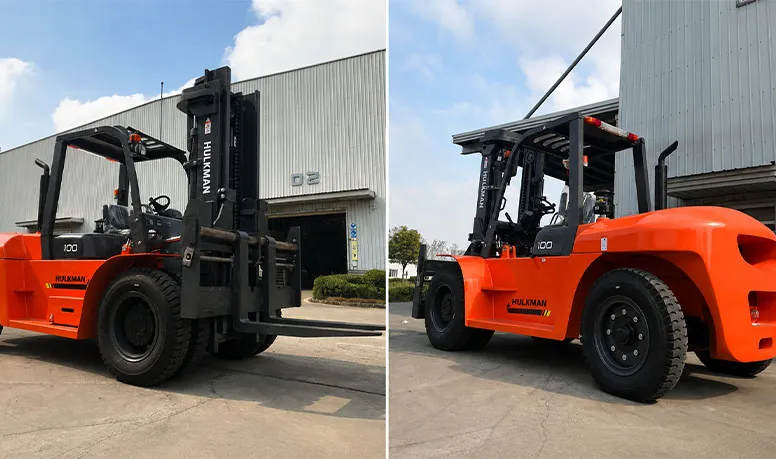

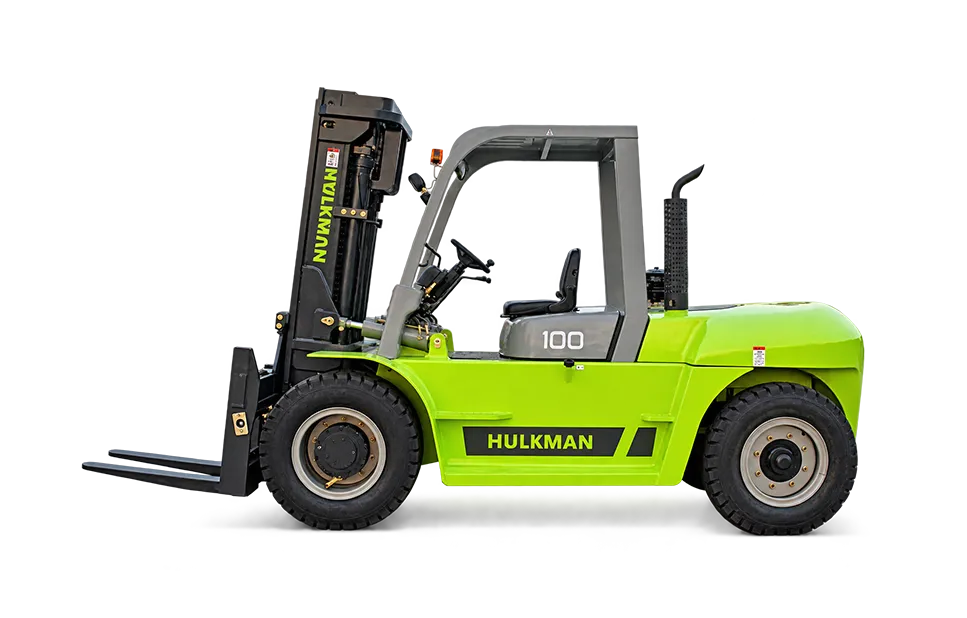

10 Ton Diesel Forklift

10 Ton Diesel Forklift

Standard Engine: China Best Xichai Brand 6110
Optional Engine: Japan Original ISUZU Engine
Transmission: TCM technology Automatic Transmission, controlled by finger
Standard Lifting Height: 3000mm with Duplex 2 Stage Wide View Mast
Standard Fork Length: 1220mm
Front Double Air Tires
LED Warning Light
Wide View Rear Mirror
Double Air Filters
High Exhauster

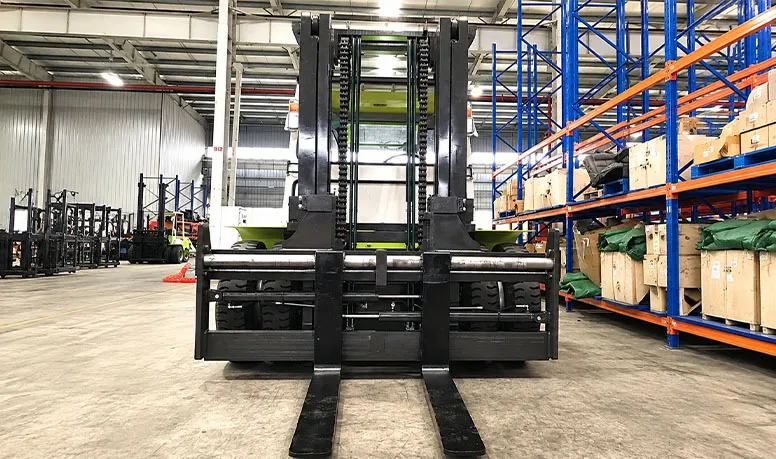

Manual Fork Positioner
Lights Protection Steel Structure
Water Proof Overhead Guard
OEM Brand Service

Inquire Now

Download

Main Features

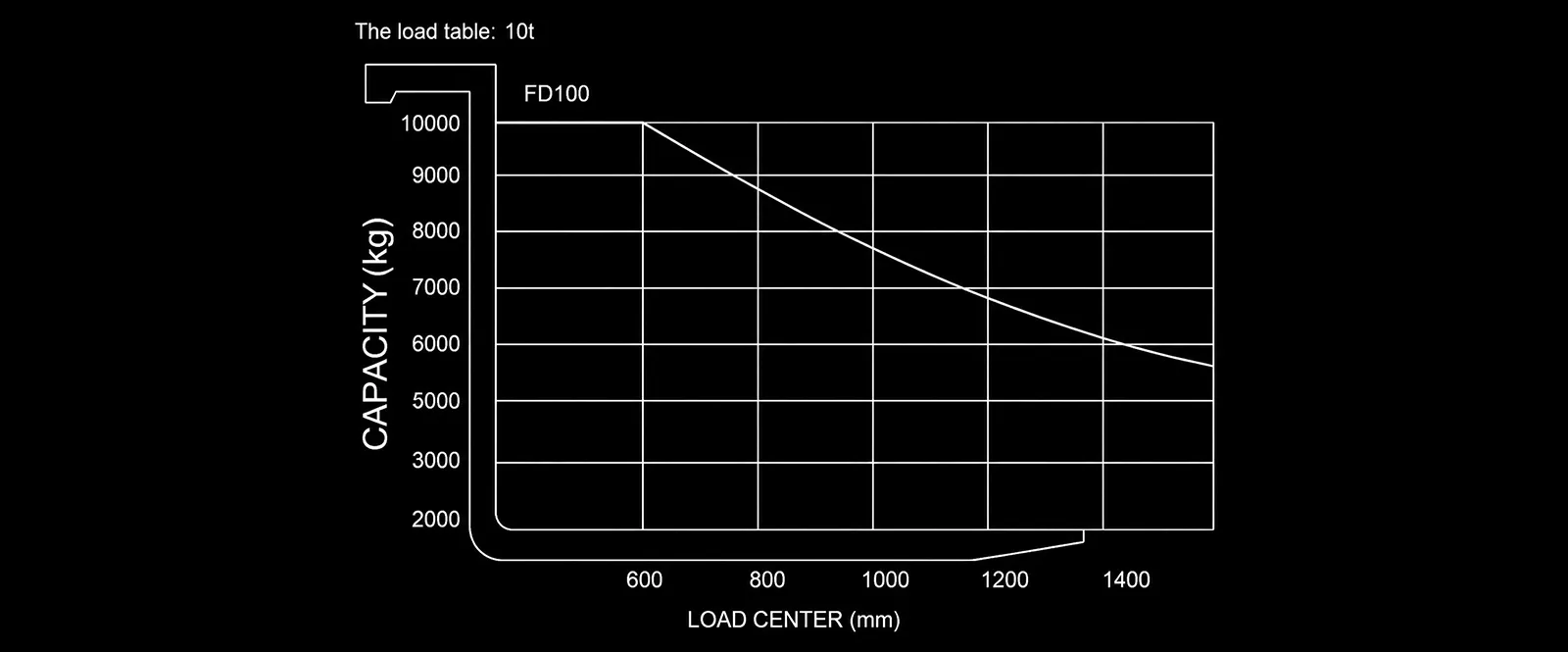

FD100 handles 10,000 kg at a 600 mm load center for heavy industrial loads.

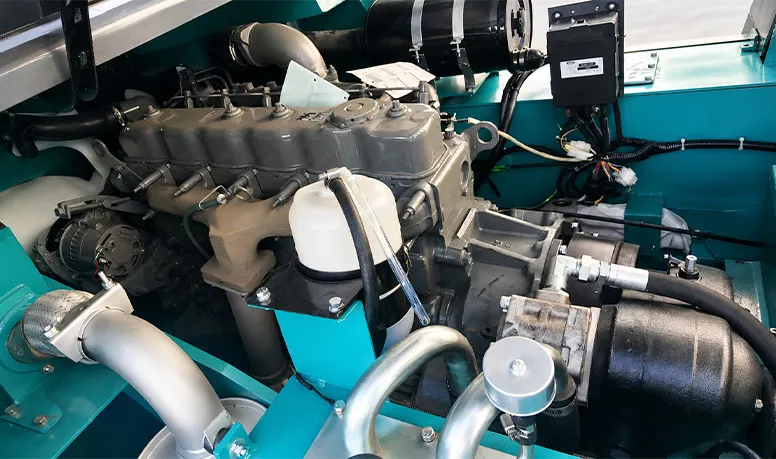

Xichai 6110 diesel power supports demanding outdoor and industrial operations.
Choose duplex or triplex masts and attachments to suit different loads and lift heights.

Product Description

The HULKMAN 10Tonne forklift is nice in appearance with streamline design. They work stably with high efficiency and good grade ability, and can be operated in bad working conditions;
10Ton HULKMAN forklift engine is with large torque and capacity, which is powerful and can meet different operation demands; optional the above Japan original ISUZU brand 6BG1 engine;

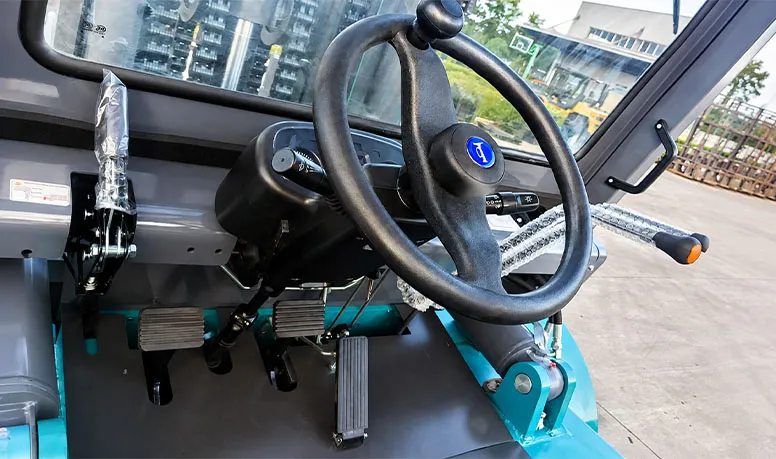

10Tons HULKMAN forklift’s scientific ergonomic design makes operations more portable and comfortable. The seat and backrest are adjustable. The forklift steering wheel tilt angle is also adjustable, which leaves more legroom. The portable gearshift is quick to shit and easy to operate.
HULKMAN forklift’s reinforced mast with a wide view design improves forklift efficiency and safety meanwhile enhance anti-force capacity. And the lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;

Product Description

Features	Unit / Symbol	FD100
Basic Specifications
Power	/	Diesel Engine
Rated Capacity	kg	10000
Center of Load	J (mm)	600
Standard Lifting Height	h1 (mm)	3000
Free Lifting Height	h3 (mm)	220
Fork Size (L × W × H)	L5 × W × T (mm)	1220 × 175 × 80
Mast Tilting Angle Forward / Backward	°	6/12
Minimum Turning Radius	R (mm)	4280
Minimum Right-Angle Stacking Aisle Width	Ra (mm)	6615
Minimum Ground Clearance (Mast)	m (mm)	250
Overhead Guard Height	h4 (mm)	2600
Front Overhang	L3 (mm)	715
Rear Overhang	L4 (mm)	740
Performance
Maximum Traveling Speed (Loaded)	km/h	20
Maximum Lifting Speed (Loaded / Empty)	mm/s	290/350
Maximum Traction	kN	57
Gradeability	%	20
Size
Overall Length (with Fork)	L1 (mm)	5475
Overall Width	W1 (mm)	2230
Mast Lowered Height	h2 (mm)	2850
Mast Extended Height	mm	4335
Chassis
Front Tire	/	9.00-20-14PR
Rear Tire	/	9.00-20-14PR
Wheelbase	L2 (mm)	2800
Tread Width (Front / Rear)	S/P (mm)	1600/1700
Curb Weight (None-Load)	kg	12500
Engine
Battery (Voltage / Capacity)	V/Ah	(12/90) × 2
Engine Model	/	Xichai 6110
Engine Rated Power	kW/r.p.m	83/2000
Engine Rated Torque	Nm/r.p.m	450/1450
Engine Cylinder Amount	/	6
Engine Bore × Stroke	mm	110 × 125
Engine Displacement	L	7.127
Fuel Tank	L	140
Transmission	/	Electric Hydraulic
Working Pressure	MPa	20

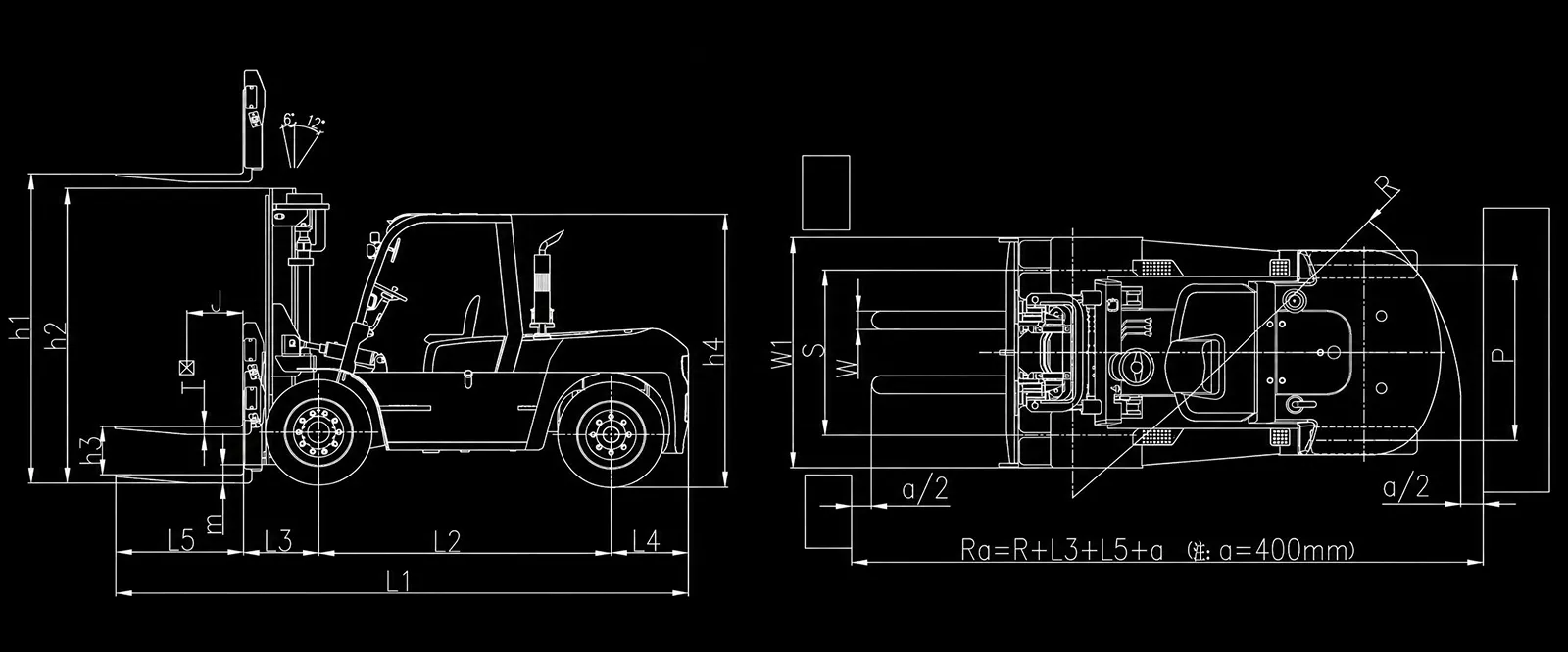

Remark: Below HULKMAN 10Ton Diesel Forklift 2D Graph for further reference.

Dimension Drawing

Standard 2 Stage (Duplex) Wide View Mast
Optional 3 Stage (Triplex) Full Free Mast

Lifting Height	Loading Capacity	Mast Lowered Height		Free Lifting Height	Mast Tilt Angle
	10Ton	Fork Landing	Height with Backrest	7Ton	F/R
3000mm	10000kg	2850mm	4335mm	220mm	6/12°
3500mm	10000kg	3100mm	4835mm	220mm	6/12°
4000mm	9500kg	3450mm	5335mm	220mm	6/12°
4500mm	9500kg	3700mm	5835mm	220mm	6/12°
5000mm	9000kg	3950mm	6335mm	220mm	6/6°
5500mm	8000kg	4250mm	6835mm	220mm	3/6°
6000mm	7500kg	4500mm	7335mm	220mm	3/6°

Lifting Height	Loading Capacity	Mast Lowered Height		Free Lifting Height	Mast Tilt Angle
	10Ton	Fork Landing	Height with Backrest	7Ton	F/R
3600mm	8000kg	2620mm	4924mm	1320mm	6/6°
4000mm	8000kg	2750mm	5324mm	1450mm	6/6°
4350mm	8000kg	2870mm	5624mm	1570mm	6/6°
4500mm	8000kg	2920mm	5824mm	1620mm	6/6°
4800mm	7500kg	3020mm	6124mm	1720mm	6/6°
5000mm	7500kg	3085mm	6324mm	1785mm	6/6°
5400mm	7000kg	3275mm	6770mm	1975mm	3/6°
6000mm	6000	3475mm	7370mm	2175mm	3/6°
7000mm	5000	3855mm	8370mm	2555mm	3/6°

Optional Choice

Rotating Roll Clamp
Rotator
Side Shifter
Multi Pallet Handler
Bale Clamp
Push-pull with Sheet Saver

Fork positioner
Hinged fork
Extended fork
Tipping fork and bucket
Carpet boom
Fork cover
Lifting boom
Paper roll clamp
Barrel clamp
Windshield

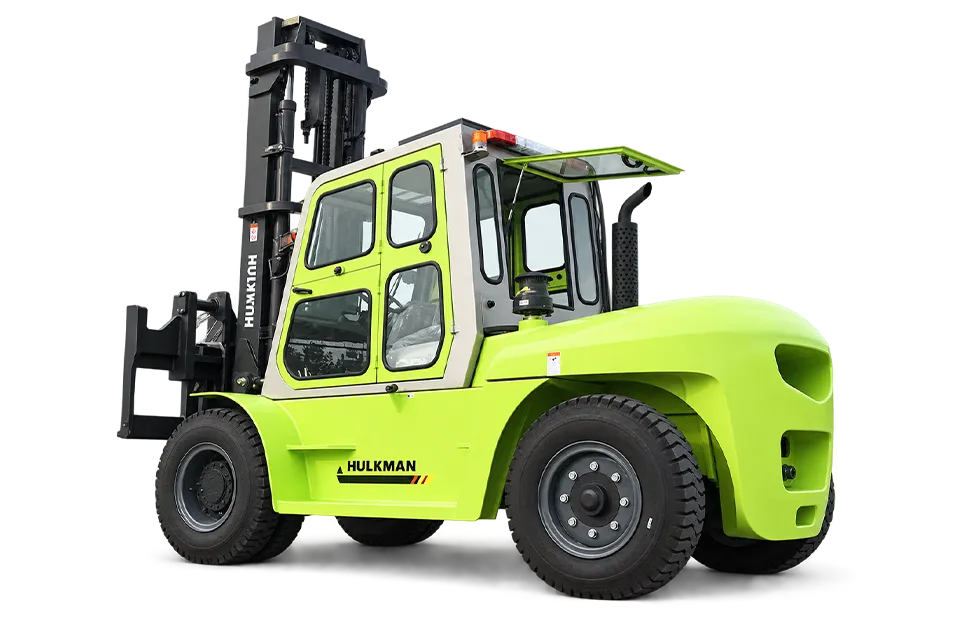

Cab
Two/three stage full-free mast
Oil-bath double filter (on overheadguard)
Luxury seat
Heater
Fork cover
Solid tyre
Rotary work alarming light
Exhaust smoke purification muffler
Fire extinguishing muffler
