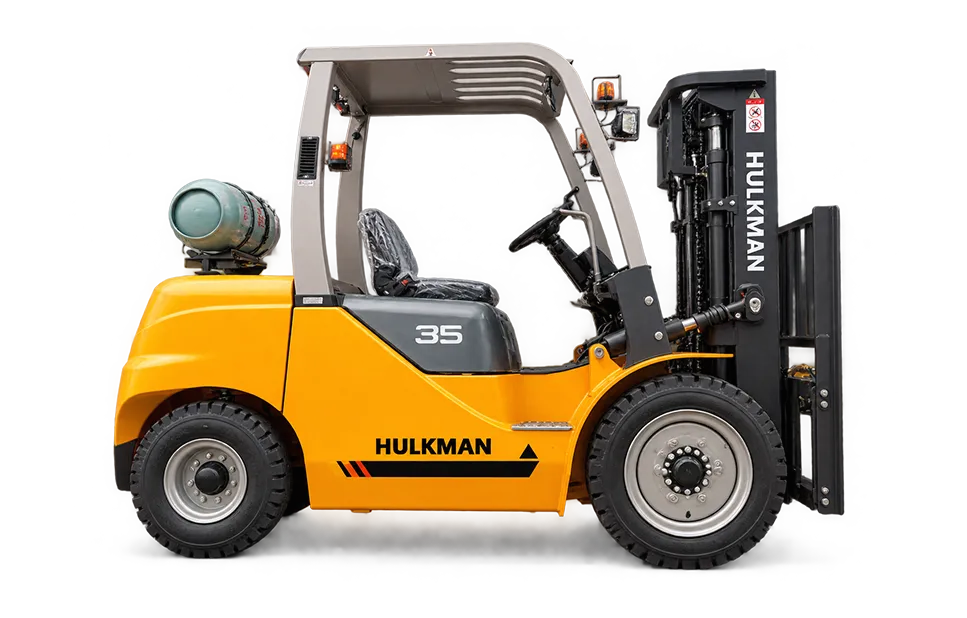

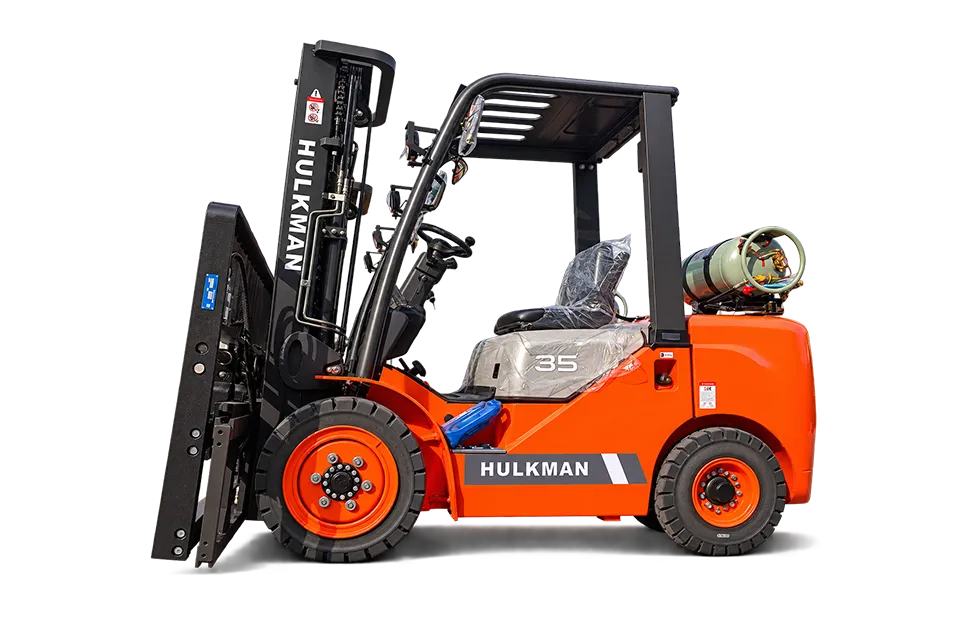

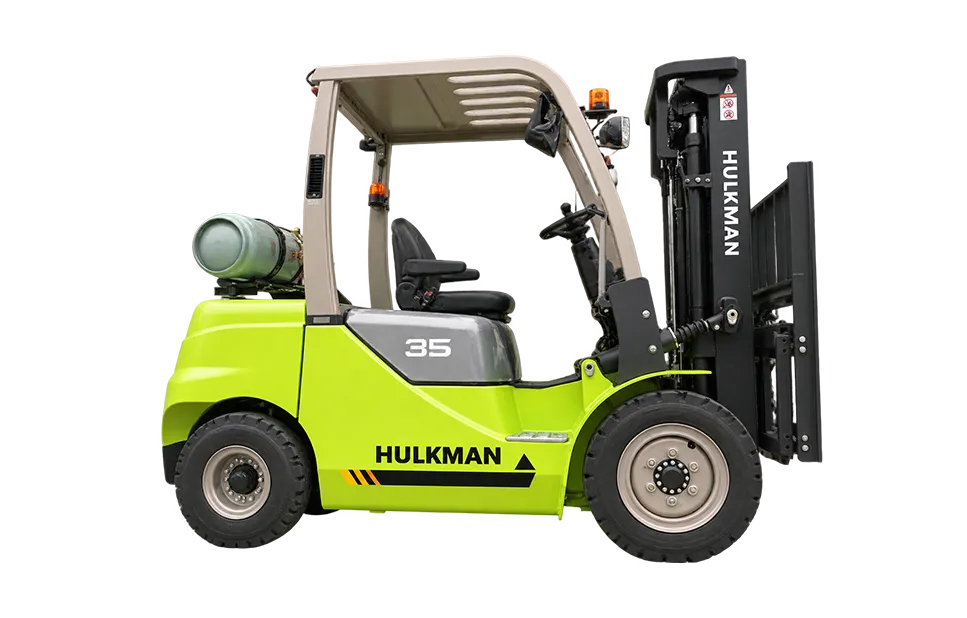

3.5Ton LPG Forklift

3.5Ton LPG Forklift

Standard Engine: China Best Guangqing Brand GQ-4Y model
Optional Engine: Japan Original Nissan K25 Engine

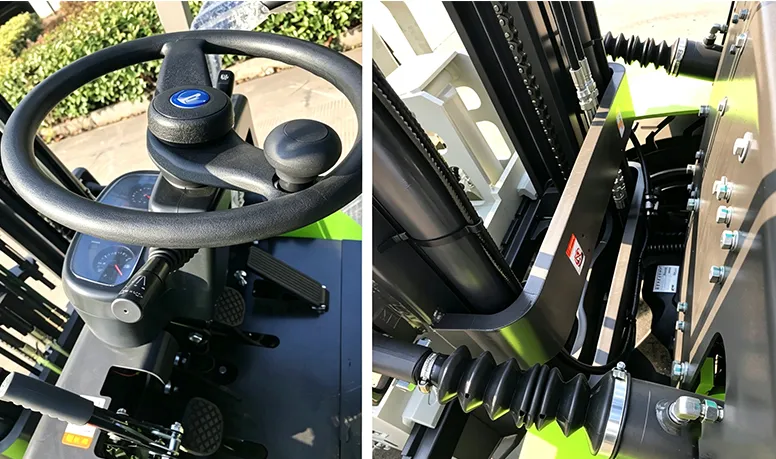

Transmission: TCM technology Automatic Transmission, controlled by finger
Mast: Standard 3000mm Duplex 2 Stage Wide View Container Mast
Fork size: Standard 1070mm Length
Hydraulic System: Japan Shimadzu brand
LED Warning Light
Cylinders Dust Rubber Cover
Wide View Rear Mirror
Lights Protection Steel Structure
Water Proof Overhead Guard
OEM Brand Service

Inquire Now

Download

Main Features

3.5 ton LPG forklift with a 500 mm load center for pallet and industrial material handling.
3,000 mm duplex wide-view mast, with full-free and triplex options for different stacking needs.
Shimadzu hydraulics support lifting and attachments, with a speed-limiting valve for safer mast descent.
Optional tires, cabin, high exhaust, full-free masts and attachments for different operating needs.
Optional tires cabin, high exhaust full-free masts and attachments such as side shifters clamps and crane booms.

Product Description

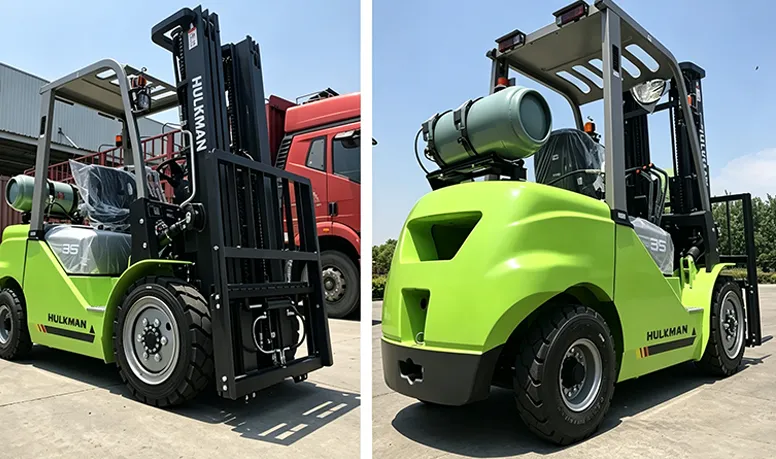

Fuel efficient, low emission, and high power, the HULKMAN forklift cuts your 3.5Tone LP Gas forklift use-cost efficiently and is friendly to the operator and the environment. The reliable IMPCO LPG forklift system helps reduce forklift maintenance costs. Converting your 3.5T forklift to LPG offers all the power and performance of petrol without the high fuel cost. What’s more, the engine hood with large opening angle makes maintenance easier for servicemen.
Newly designed stamping overhead guards protect the 3.5Tons HULKMAN gas forklift’s operator from falling cargo.
HULKMAN 3.5ton gas forklift’s Lifting cylinders with speed limit valve prevent falling accidents caused by unexpected hydraulic pressure relief from happening. With superior quality and exceptional value, the HULKMAN LPG forklift thinks what you want. Adopting TCM technology, durable and reliable automatic transmission prolongs HULKMAN forklift’s lifetime.

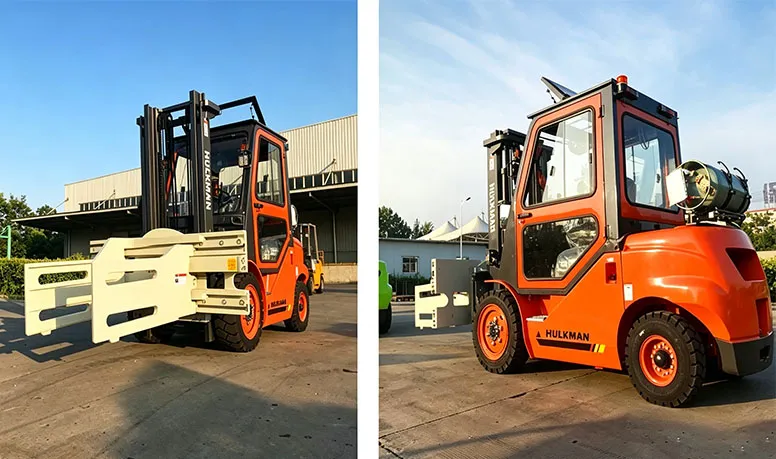

HULKMAN Forklift Optional Attachments: side shift, fork positioner, tipping fork, string lever, hook, extended fork, crane boom, roll clamp, bucket, bale clamp.

Product Description

Features	Unit / Code	FL35
Power	/	Gas Gasoline
Rated Capacity	kg	3500

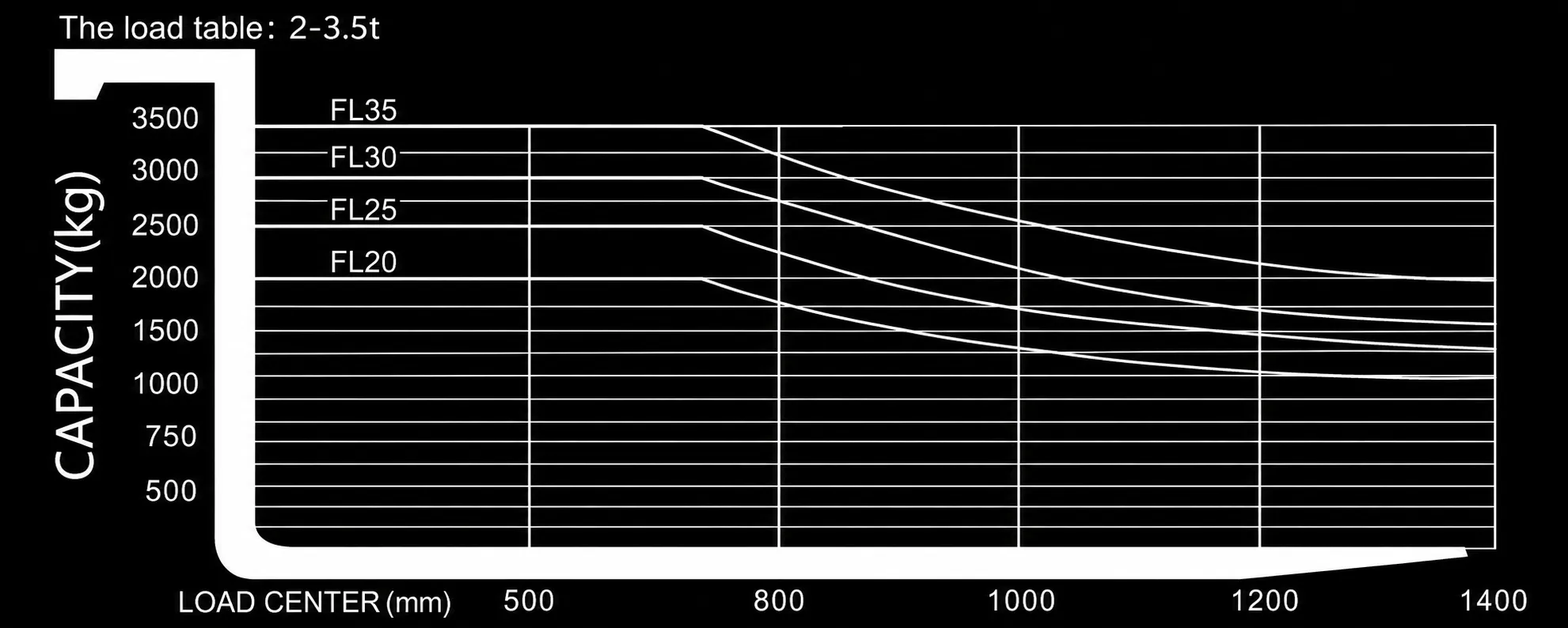

Center of Load	mm	500
Standard Lifting Height	mm	3000
Free Lifting Height	mm	160
Fork Size L×W×H	mm	1070×125×50
Mast Tilting Angle Forward/Backward	°	6/12
Min. Turning Radius	mm	2445
Min. Ground Clearance (Mast)	mm	120
Overhead Guard Height	mm	2090
Height from Seat to Overhead Guard	mm	1005
Front Overhang	mm	488
Performance
Max. Traveling Speed (Loaded)	km/h	20
Max. Lifting Speed (Loaded/Empty)	mm/s	470/520
Drawbar Pull / Gradeability	kN/%	18/20
Size
Overall Length (with fork)	mm	2746
Overall Width	mm	1230
Mast Lowered Height	mm	2095
Mast Extended Height	mm	4256
Chassis
Tire (Front)	/	28×9-15-12PR
Tire (Rear)	/	6.50-10-10PR
Wheelbase	mm	1700
Tread Width (Front/Rear)	mm	1000/970
Curb Weight (None-Load)	kg	4850
Engine
Battery (Voltage/Capacity)	V/Ah	12/90

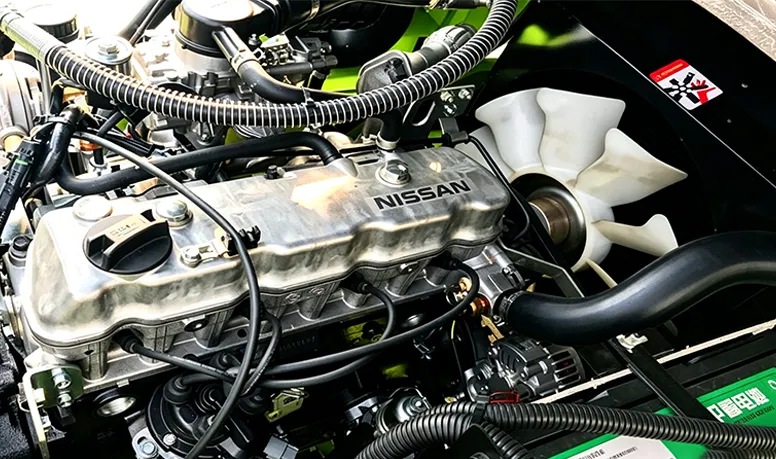

Engine Model	/	Nissan K25
Engine Rated Power	kW/r.p.m	37.4/2300
Engine Rated Torque	Nm/r.p.m	176.5/1600
Engine Cylinder Amount	/	44
Engine Bore × Stroke	mm	89×100
Engine Displacement	L	2.488
Fuel Tank	L	70
Transmission	/	1/1 Powershift
Working Pressure	MPa	17.5

Dimension Drawing

Standard 2 Stage (Duplex) Wide View Mast
Optional 2 Stage (Duplex) Full Free Mast
Optional 3 Stage (Triplex) Full Free Mast

Lifting Height	Loading Capacity	Mast Lowered Height – Fork Landing	Height with Backrest	Mast Tilt Angle F/R
2000 mm	3500 kg	1595 mm	3265 mm	6/12°
2500 mm	3500 kg	1845 mm	3765 mm	6/12°
3000 mm	3500 kg	20995 mm	4265 mm	6/12°
3300 mm	3500 kg	2245 mm	4565 mm	6/12°
3500 mm	3500 kg	2345 mm	4765 mm	6/12°
3700 mm	3500 kg	2445 mm	4965 mm	6/12°
4000 mm	3500 kg	2645 mm	5305 mm	6/12°
4500 mm	2850 / *3500 kg	2895 mm	5765 mm	6/6° / *6/12°
5000 mm	2400 / *3150 kg	3145 mm	6265 mm	6/6°
5500 mm	*2700 kg	3445 mm	6765 mm	3/6°
6000 mm	*2300 kg	3695 mm	7265 mm	3/6°

Remark: * means double tires.

Lifting Height	Loading Capacity	Mast Lowered Height – Fork Landing	Height with Backrest	Free Lifting Height	Mast Tilt Angle F/R
2000 mm	3500 kg	1595 mm	3273 mm	367 mm	6/12°
2500 mm	3500 kg	1845 mm	3773 mm	617 mm	6/12°
3000 mm	3500 kg	2095 mm	4273 mm	867 mm	6/12°
3300 mm	3500 kg	2245 mm	4573 mm	1017 mm	6/12°
3500 mm	3500 kg	2345 mm	4773 mm	1117 mm	6/12°
3700 mm	3500 kg	2445 mm	4973 mm	1217 mm	6/12°
4000 mm	3500 kg	2645 mm	5273 mm	1417 mm	6/12°

Remark: * means double tires;
The max. lifting height without backrest -570mm;
The max. free lifting height without backrest +430mm.

Lifting Height	Loading Capacity	Mast Lowered Height – Fork Landing	Height with Backrest	Free Lifting Height	Mast Tilt Angle F/R
3600 mm	3350 kg	1830 mm	4870 mm	607 mm	6/6°
4000 mm	3350 kg	1965 mm	5275 mm	742 mm	6/6°
4350 mm	3270 / *3300 kg	2080 mm	5620 mm	857 mm	6/6°
4500 mm	3050 / *3300 kg	2130 mm	5770 mm	907 mm	6/6°
4800 mm	2700 / *3000 kg	2230 mm	6070 mm	1007 mm	6/6°
5000 mm	2450 / *2850 kg	2295 mm	6265 mm	1072 mm	6/6°
5500 mm	*2600 kg	2460 mm	6765 mm	1237 mm	*3/6°
6000 mm	*2350 kg	2680 mm	7270 mm	1457 mm	*3/6°

Remark: * means double tires;
The max. lifting height without backrest -570mm;
The max. free lifting height without backrest +430mm.

Optional Choice

Rotating Roll Clamp
Rotator
Side Shifter
Multi Pallet Handler
Bale Clamp
Bale Clamp

Fan
Cab
Heater
Muffler
Solid tyre
Windsereen
Warning light
High exhaust
Luxury seat
Fire extinguishing muffler
TWO/THREE Full-free mast
Colored tyre (white/green)
Customer appointed color
Yanmar/Isuzu engine
double filter
