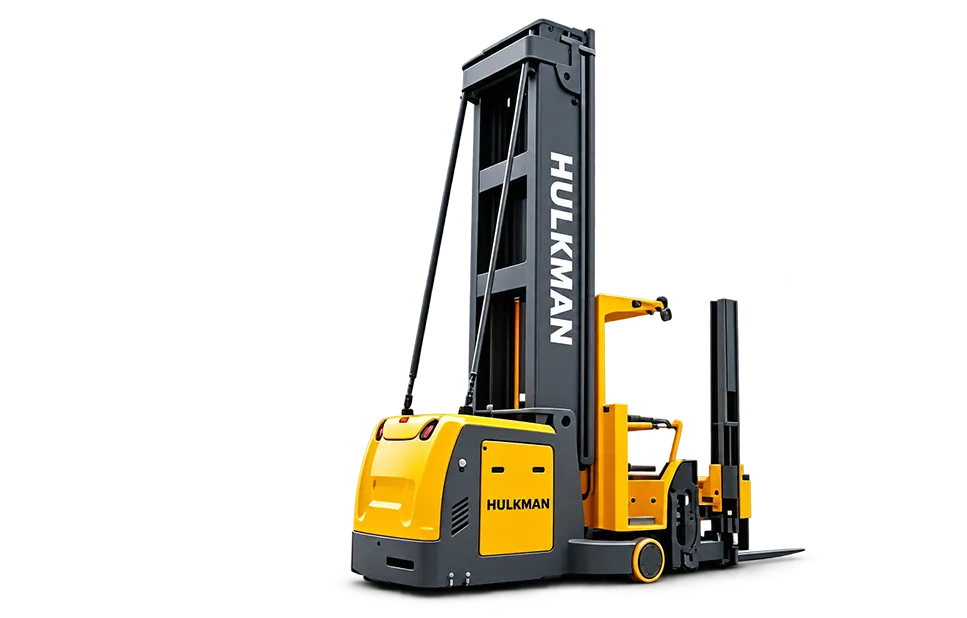

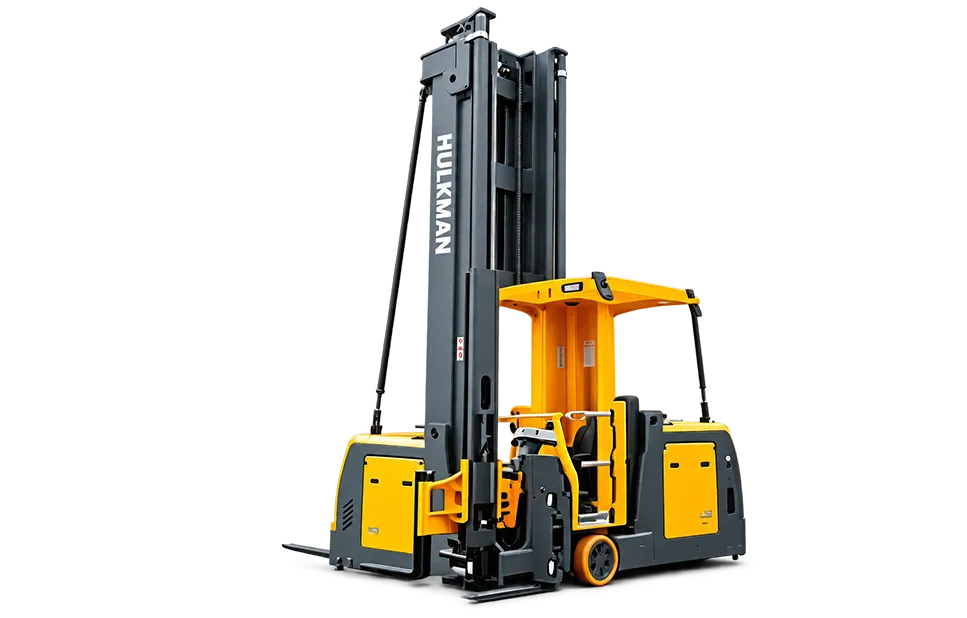

Man Up Type
Very Small Turning Radius
Three Curtis Controller for Driving, Steering and Lifting
Germany Driving Wheel
Italy Imported Low Noise Gear Pump
Full AC Motors, Free Maintenance
CAN-Bus System
EM Control Valve
Multifunction LCD Combination Instrument (including soft keys)
Emergency Power Off Switch
Sideway battery
Designed for palletized loads with 1,500 kg rated capacity and approved load-center conditions.

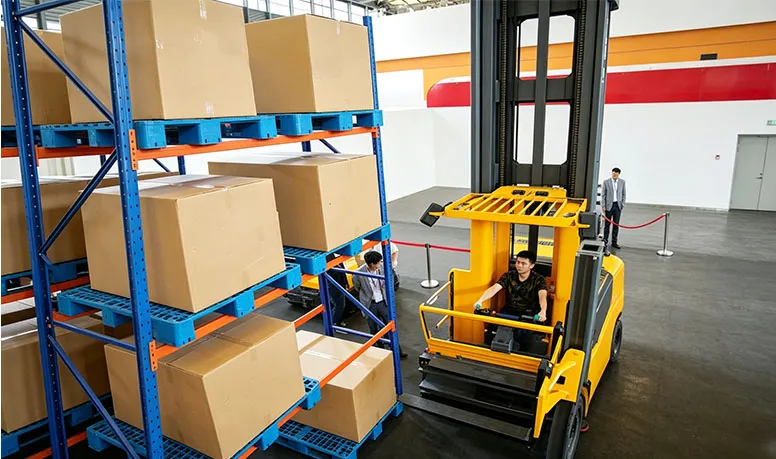

Operator platform lifts for direct visibility during pallet positioning and high-level access.
Suitable for pallet movement and high-level storage with matched rack and lift configurations.
Configuration adapts to aisle width, pallet size, rack height, load and workflow requirements.
Compact layout supports high-density storage and material handling in restricted aisles.
Designed with 3-point support structure, low central gravity, great steering stability and small turning radius.Self-balancing control technology with high central gravity over loading shows fine stability of the truck.
Lifting mast with high torsion resistance lifts up surplus load and reduces its shaking.
Intelligent management system and CAN-Bus system are able to meet various needs, making the truck secure and reliable.Ergonomic handle eases the operation. Powerful and multi-functional LCD instrument cluster at the middle of the operating bridge.On-board diagnostic system ensures relevant maintenance and prompt repair.

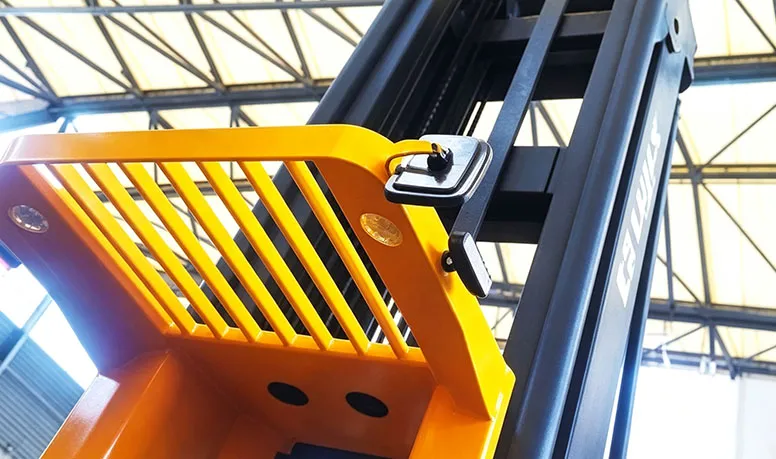

Multi-level security alarming system includes laser anti-collision sensor, emergency stop, audible and visible alarms to make sure both personal and machinery security around.

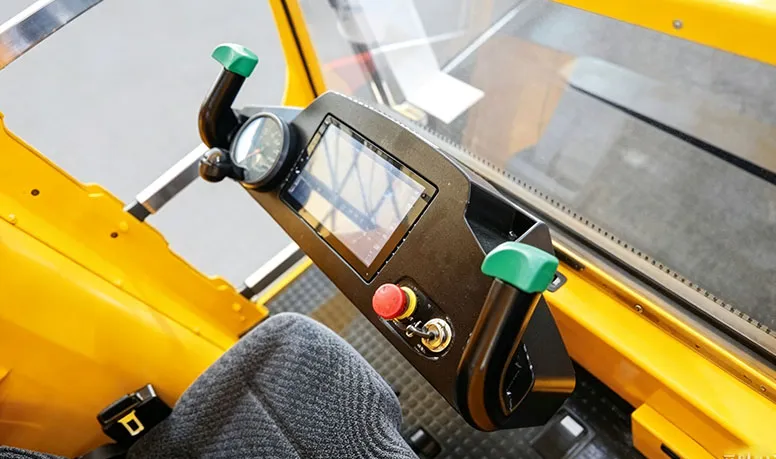

Powerful and multi-functional LCD instrument cluster at the middle of the operating bridge.Adopt an operating bridge with adjustable tilt angle and height to meet ideal postion of the operator by adjusting the seat back and forth.Ergonomic handle eases the operation.

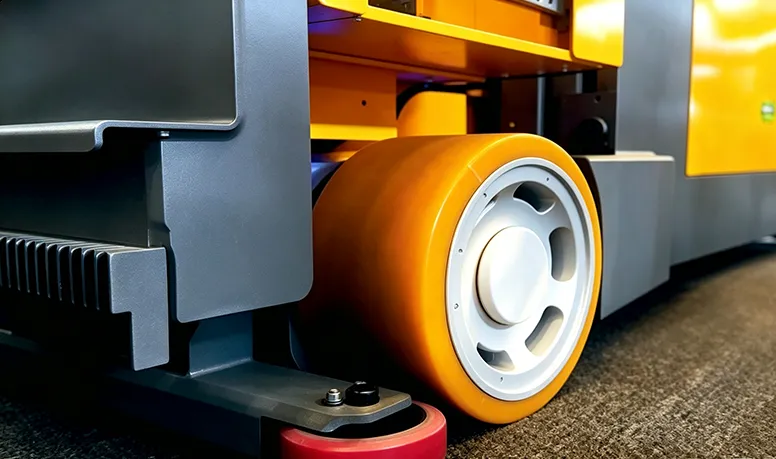

Imported & well known branded driving wheel, EM controlling valve, controller, contactor, steering potentiometer, etc.

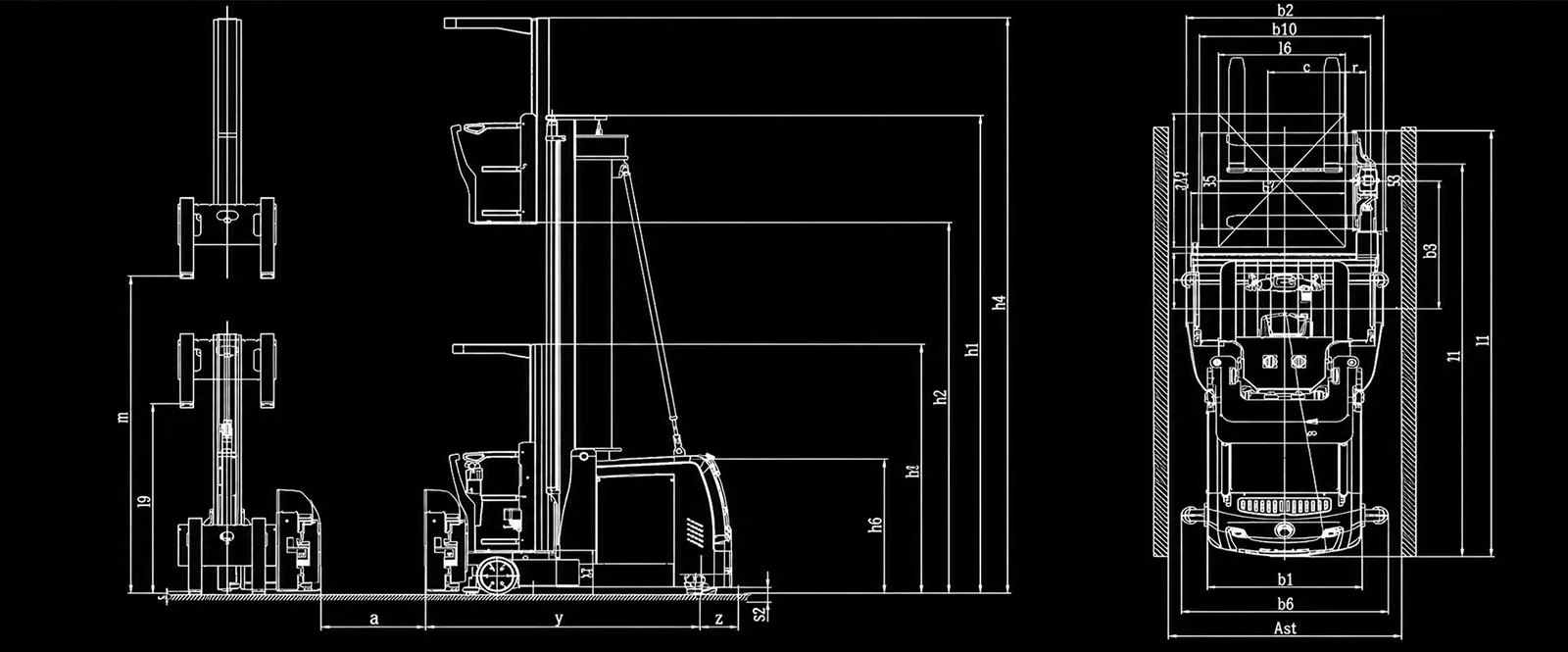

| Parameter | Unit / Code | OP15 |
| Model | / | OP15 |
| Operation Type | / | Electric |
| Load Capacity / Rated Load | Q (kg) | 1500 |
| Load Center Distance | c (mm) | 600 |
| Load Distance, Drive Axle Center to Fork | x (mm) | 500±10 |
| Wheelbase | y (mm) | 1928±20 |
| Drive Wheel Center to Rear Distance | z | 280 |
| Service Weight incl. Battery | kg | 8805 |
| Axle Loading, Laden F/R | kg | 8090/2215 |
| Axle Loading, Unladen F/R | kg | 5280/3495 |
| Front Tire Size | PU | 380×192 |
| Rear Tire Size | PU | 400×160 |
| Wheels, Number F/R (x=driven wheels) | / | 2/1x |
| Front Track Width | b10 (mm) | 1362±10 |
| Mast Lowered Height | h1 (mm) | 5498±20 |
| Lifting Height | h3 (mm) | 8280 |
| Total Mast Extended Height | h4 (mm) | 10450±20 |
| Overhead Guard Height | h6 (mm) | 2064±20 |
| Standing Platform Height | h7 (mm) | 440±10 |
| Auxiliary Lifting Height | h9 (mm) | 1740 |
| Standing Platform Height after Lifting | h12 (mm) | 8700±20 |
| Overall Length (Unladen) | l1 (mm) | 3805±20 |
| Length to Face of Forks | l2 (mm) | 3510±20 |
| Overall Width | b1/b2 (mm) | 1210/1555 |
| Fork Dimensions | s/e/l (mm) | 40×120×950 |
| Fork Carriage ISO2328, Class/Type A,B | / | 2/B |
| Fork Carriage Width | b3 (mm) | 908 |
| Width Over Forks | b5 (mm) | 870 |
| Width Across Guide Roller | b6 (mm) | 1630 |
| Reach, Lateral | b7 (mm) | 1320±20 |
| Side Reach to Centerline Distance | b8 (mm) | 480 |
| Ground Clearance, Laden, Under Mast | m1 (mm) | 80 |
| Ground Clearance, Center of Wheelbase | m2 (mm) | 80 |

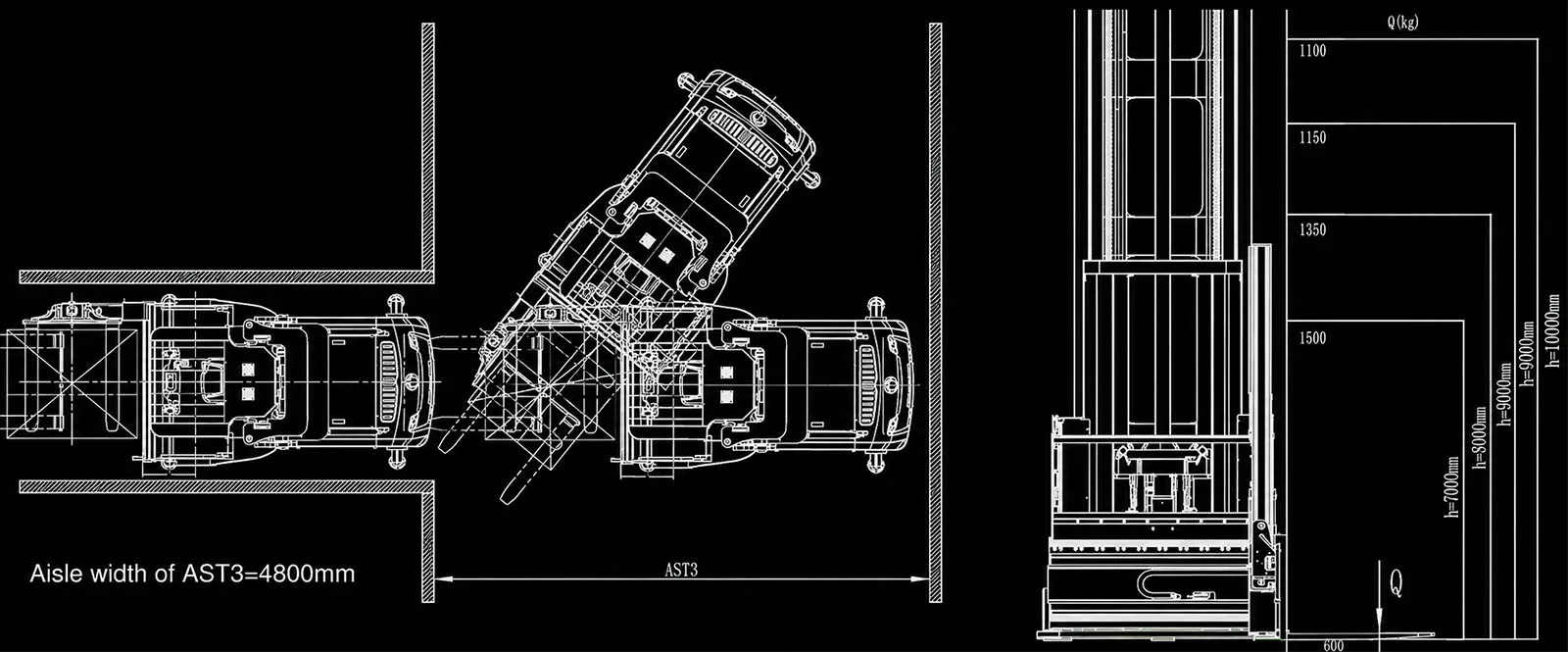

| Aisle Width for Pallets 800×1200 Crossways | Ast (mm) | 1650 |
| Aisle Width for Pallets 1000×1200 Crossways | Ast (mm) | 1650 |
| Turning Radius | Wa (mm) | 2280±20 |
| Front Axle to Fork Rotation Pivot Distance | l8 (mm) | 1150 |
| Total Lifting Height | h3+h9 (mm) | 10020 |
| Max. Picking Height | h12+1600 (mm) | 10300±20 |
| Fork Rotation Center to Front Overhang Distance | l8-x (mm) | 650 |
| Pallet Width | b12 (mm) | 1200 |
| Pallet Length | l6 (mm) | 1000 |
| Cabin Entrance Net Width | mm | 420 |
| Interior Height of Cabin | mm | 2110±20 |
| Overall Width of Cabin | b9 (mm) | 1430±10 |
| Rotating Reach Carriage Width | b14 (mm) | 1400 |
| Cantilever Width | l10 (mm) | 175 |
| Distance from Fork Rotation Pivot to Fork Carriage | r (mm) | 150 |
| Travel Speed, Laden/Unladen | km/h | 8.5/8.5 |
| Lifting Speed, Laden/Unladen | mm/s | 180/200 |
| Lowering Speed, Laden/Unladen | mm/s | 260/240 |
| Reach Speed, Laden/Unladen | mm/s | 190/200 |
| Service Brake | / | Regenerative |
| Parking Brake | / | Electromagnetic Spring Force |
| Battery Voltage, Nominal Capacity K5 | V/Ah | 80/560 |
| Battery Weight | kg | 1480 (1450–1510) |
| Sound Level according to EN12053 | dB(A) | 68 |
| No. | Feature |
| 1 | Duplex Mast |
| 2 | Fork Length 950 mm |
| 3 | Hydraulic Control System with Magnetic Valve |
| 4 | High Performance and High Torque AC Drive Motor |
| 5 | High Performance and Large Torque Oil Pump Motor |
| 6 | Platform Adjustable Mechanism for Up and Down, Front and Rear |
| 7 | Multifunction LCD Combination Instrument (including Soft Keys) |
| 8 | LED Side Light, LED Instruction Light, LED Read Light |
| 9 | Seat with Cushion with Safety Belt |
| 10 | Three Curtis Controllers for Driving, Steering and Lifting |
| 11 | Integrated Front Pedal |
| 12 | German Driving Wheel |
| 13 | Metal Stamping Left and Right Side Panels and Hood |
| 14 | Emergency Power Off Switch |
| 15 | Reversing Buzzer |
| 16 | Imported Connectors |
| 17 | Rear Mirror |
| 18 | CANbus System |
| 19 | Italy Imported Low Noise Gear Pump |
| 20 | Sideway Battery 80V/560AH |
| 21 | Charger 80V/80 AH |
| 22 | Sports Terminal Intelligent Buffer |
Rotating Roll Clamp
Rotator
Side Shifter
Multi Pallet Handler
Bale Clamp
Push-pull with Sheet Saver
Italy imported low noise gear pump
Hydraulic control system with Magnetic valve
Seat with cushion with safety belt
Germany driving wheel
High performance and high torque AC drive motor
CANbus system
Sideway Battery 80V/560AH
Duplex mast
Fork length 950
rear mirror
Multifunction LCD combination instrument (including soft keys)
With three Curtis controller for driving, steering and lifting.
integrated front pedal.
Charger 80v/80AH
Sports terminal intelligent buffer
Imported connectors
Reversing buzzer
Emergency power off switch
Platform adjustable mechanism for up and down, front and rear
