Mini Type with Same Size as Hand Pallet Truck
Widely Used in Narrow Aisle Workshops, Supermarkets, and Cargo Containers
Travel Smoothly and No Swing
Great Anti-Vibration
Easy Maintenance
Horizontal Type Drive Wheel Structure
With Height Limit Switch
Handles palletized loads up to 1,500 kg for routine warehouse transport, loading and internal material transfer.

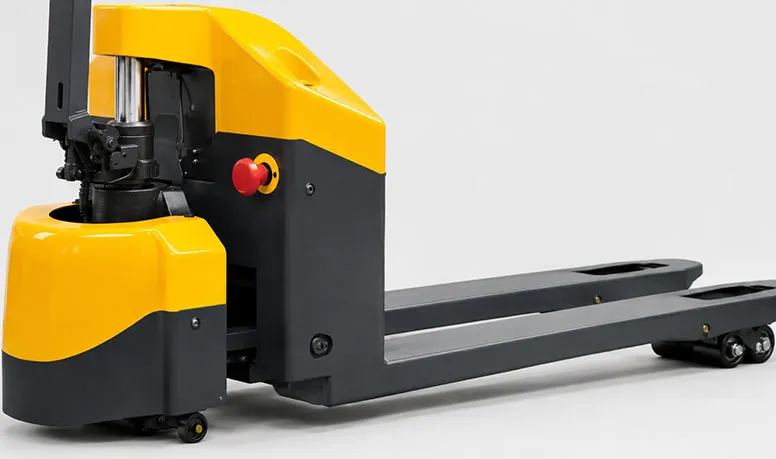

The compact body and pedestrian operating layout make this walk-behind electric pallet truck suitable for areas with limited maneuvering space.
Electric travel and lifting functions reduce the physical effort required compared with a manual hand pallet truck.
The integrated tiller handle places the main travel and lifting controls within the operator’s working area.

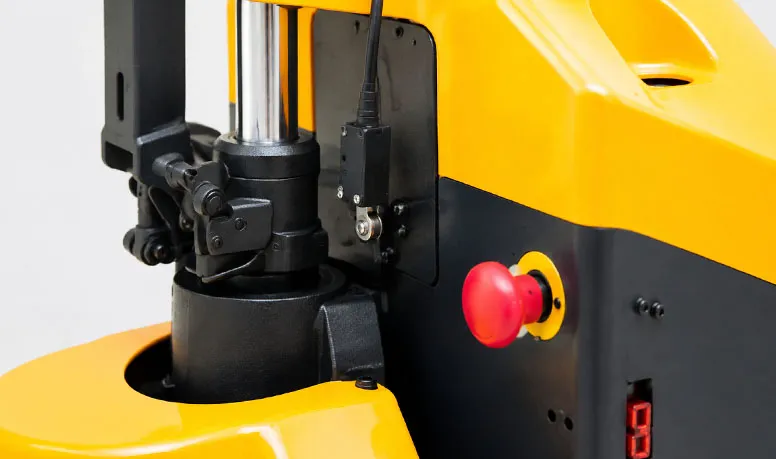

A clearly positioned emergency stop button allows the electrical system to be disconnected quickly when necessary.

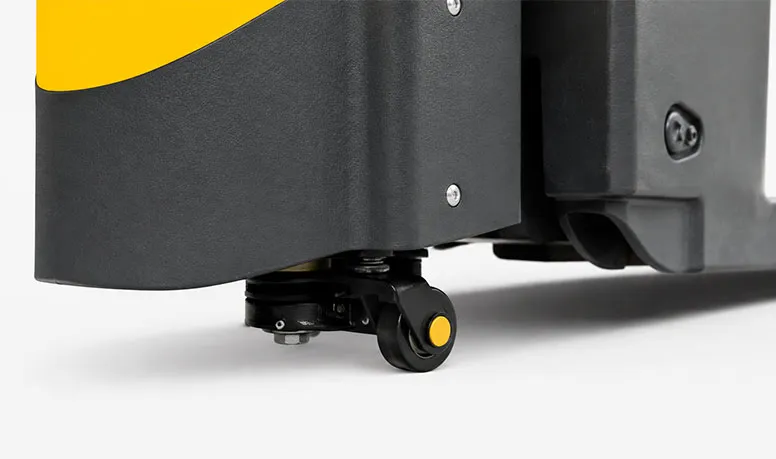

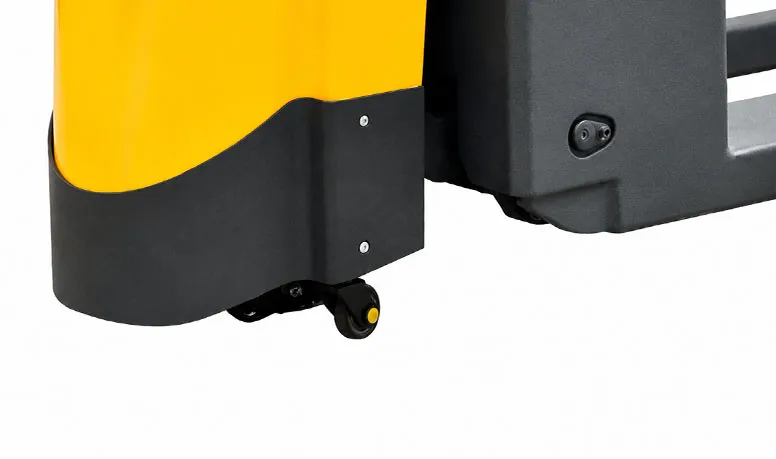

Adopting a floating balance wheel can prevent the side swing of the struck when travelling. Travel smoothly and no swing; great anti-vibration.
The whole balance wheel can be removed, easy to maintain.
The rock arm mechanism integral structure which improves the structure strength effectively, meanwhile, shares and adjust the even force from the fork. Reduce the obvious deflection in fork height after long use and when loading.
The drive wheel adopts horizontal type structure which makes the layout position of the motor higher off the ground to prevent the water, dust and greasy dirt gluing on the motor effectively and improve working condition of the motor.
The truck is equipped with a height limit switch.

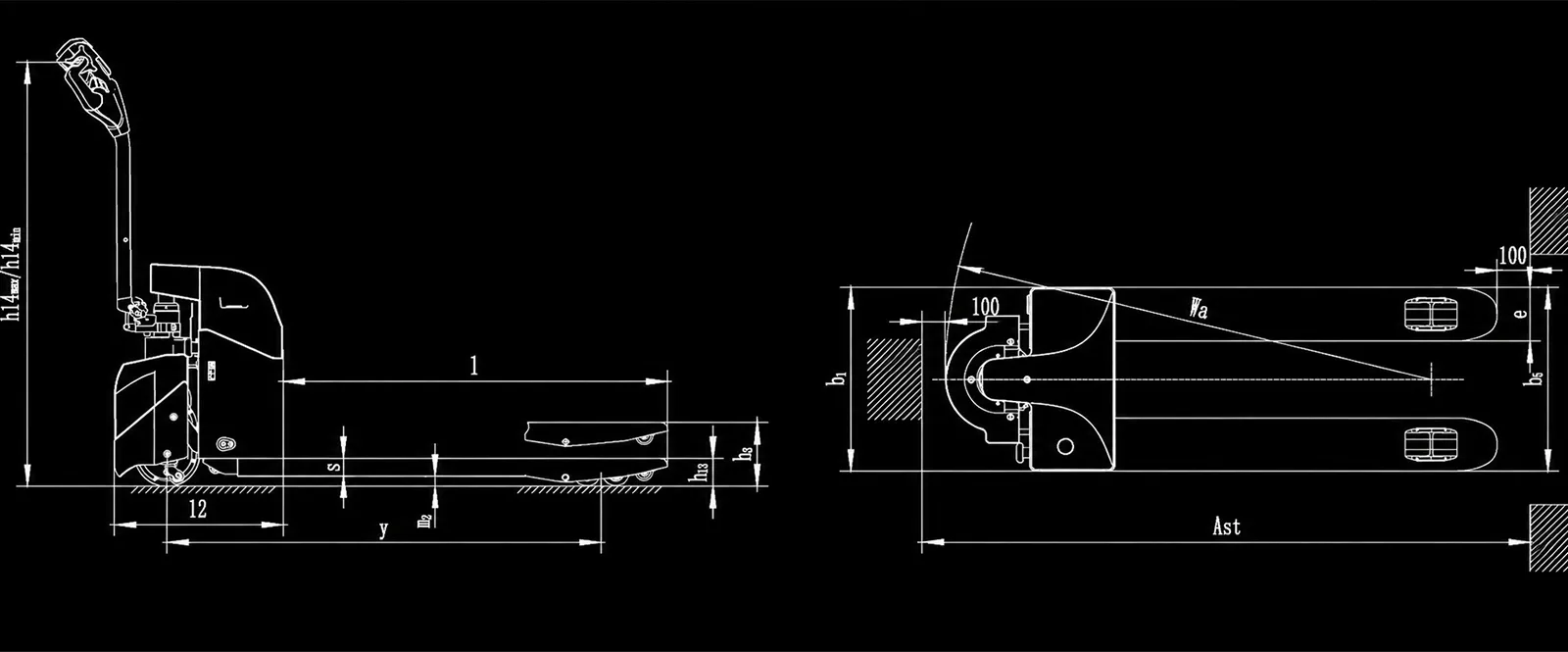

| Parameter | Unit / Code | TB15 |
| Model | / | TB15 |
| Load Capacity | Q (kg) | 1500 |
| Load Center | c (mm) | 600 |
| Fork Height, Lowered | h13 (mm) | 85/75 |
| Front Tire | mm | φ195×70 |
| Rear Tire (Single) | mm | φ80×93 / φ74×93 |
| Rear Tire (Double) | mm | φ80×70 / φ74×70 |
| Wheels, Number Front/Rear (x=driven wheels) | / | 1×2(4) |
| Max. Lifting Height | h3 (mm) | 190/180 |
| Height of Tiller in Driver Position Min./Max. | h14 (mm) | 700/1250 |
| Overall Length | l1 (mm) | 1654/1724 |
| Length to Face of Forks | l2 (mm) | 504 |
| Overall Width | b1 (mm) | 685/562 |
| Fork Dimensions | s/e/l (mm) | 53/160/1150(1220) |
| Width Overall Forks | b5 (mm) | 520/550/685 |
| Aisle Width for Pallets 1000×1200 (1200 Crossways) | Ast (mm) | 2260/2328 |
| Aisle Width for Pallets 800×1200 (1200 Crossways) | Ast (mm) | 2128/2365 |
| Turning Radius | Wa (mm) | 1454/1424 |
| Travel Speed, Laden/Unladen | km/h | 4.3/4.8 |
| Battery Voltage / Nominal Capacity K20 | V/Ah | 24/65 |
| Battery Dimensions L×W×H | mm | 228/138/214 |
| Battery Weight | kg | 36 |
| Service Weight (with Battery) | kg | 205 |
| Standard Configuration | Function / Benefit |
| Floating Balance Wheel | Helps reduce side-to-side movement and vibration for smoother travel. |
| Removable Balance Wheel Assembly | Allows convenient inspection, removal and maintenance. |
| Integrated Rocker Arm Structure | Improves structural strength and distributes fork loading more evenly. |
| Horizontal Drive Wheel Structure | Keeps the motor higher above the floor to reduce contact with water, dust and grease. |
| Height Limit Switch | Controls the lifting height and helps protect the lifting system. |
| Walk-Behind Tiller Control | Integrates travel and lifting controls for straightforward operation. |
| Emergency Stop Button | Provides quick electrical power cut-off when required. |
| 1,500 kg Rated Capacity | Supports routine pallet transport in warehouses and confined handling areas. |
