Medium Lifting Storage and Short Distance Pallets Transportation Cost-Effective Solution
Optional 225Ah Lithium Battery
Free Maintenance AC Motor
Emergency Reversing Device
Multi-Function Display with BDI
Auto Deceleration System
Emergency Power Disconnect
Lifting Limit Switch

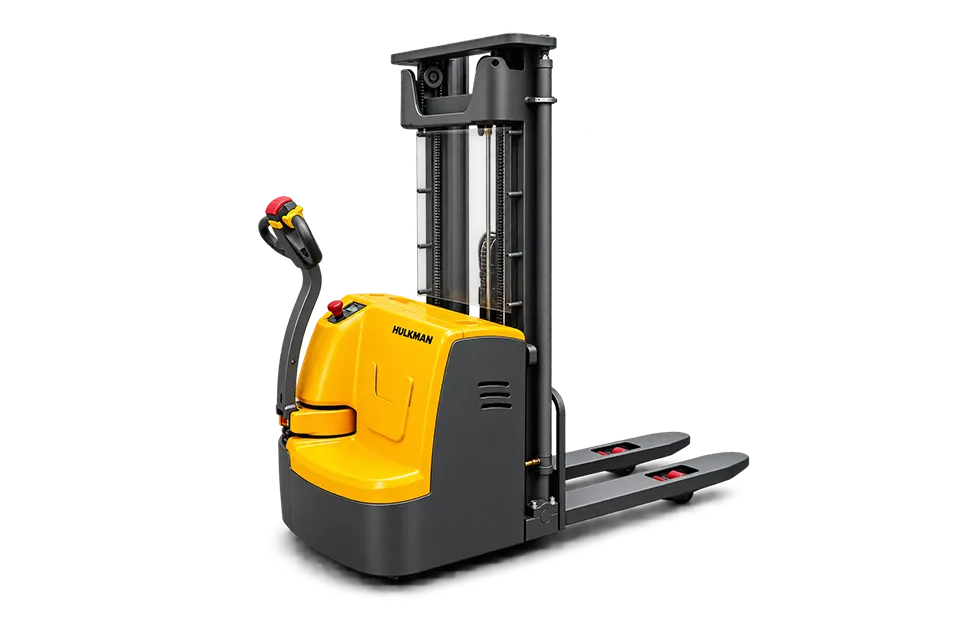

DB15W handles 1500‑kg pallet loads (600 mm load center) for stacking & short warehouse transport.
Select lifting heights: 2500‑5600 mm, to suit diverse rack and warehouse needs.
Walk‑behind design (820mm width, 1575mm turning radius) enables agile warehouse‑aisle maneuvering.
AC system removes motor brushes; regenerative braking ensures smooth travel & lower maintenance.
Side‑roll‑out battery eases replacement: 24V/240Ah standard, 225Ah Li‑ion optional.
The DB15W combines powered travel and electric lifting for pallet storage, retrieval and short-distance transport. Its 1,500 kg capacity makes it suitable for regular material movement in warehouses and production facilities.
Multiple mast configurations allow buyers to select a lift height according to rack level, ceiling clearance and handling requirements.
The stacker includes an emergency reversing device, emergency power disconnect, automatic deceleration and stepless speed control.
A built-in pressure relief valve provides overload protection, while the lifting limit switch stops the pump motor at maximum lift height. The low center of gravity supports stable operation.
CAN bus technology reduces wiring complexity, while the brushless AC motor lowers routine maintenance requirements. The sideway battery arrangement provides accessible battery replacement.
The mast and chassis are designed as separable assemblies. HULKMAN also supports equipment selection, order coordination, shipment communication and after-sales assistance.

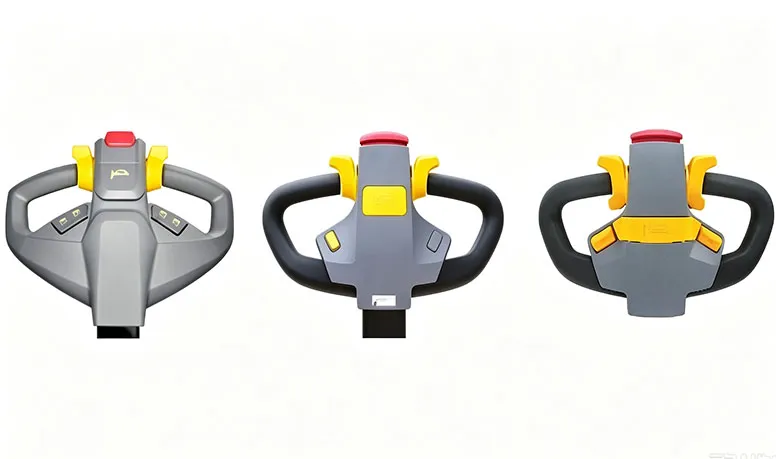

The multi-function display provides battery status, operating hours and other truck information. The tiller integrates the principal travel and lifting controls for walk-behind operation.
Automatic deceleration and regenerative braking support smoother speed changes during routine warehouse handling.
| Parameter | Symbol / Unit | DB15W |
| Model | — | DB15W |
| Load Capacity | Q (kg) | 1500 |
| Load Center Distance | c (mm) | 600 |
| Load Distance, Center of Drive Axle to Fork | x (mm) | 697 |
| Lowered Fork Height | h13 (mm) | 90 |
| Front Tire Size | mm | φ250 × 70 |
| Rear Tire Size | mm | φ80 × 84 |
| Additional Wheels (Dimensions) | mm | φ150 × 60 |
| Wheels, Number Front/Rear (x = Driven Wheels) | — | 1x + 1 / 4 |
| Mast Lowered Height | h1 (mm) | 1735 / 1985 / 2135 / 2235 / 2050 / 2210 / 2410 |
| Free Lift (Optional for 2500–3500 mm) | mm | 1300 / 1550 / 1700 / 1800 / 1570 / 1740 / 1940 |
| Maximum Lifting Height | h3 (mm) | 2500 / 3000 / 3300 / 3500 / 4500 / 5000 / 5600 |
| Mast Extended Height | h4 (mm) | 2955 / 3455 / 3755 / 3955 / 5030 / 5510 / 6110 |
| Height of Tiller in Driving Position, Min./Max. | h14 (mm) | 670 / 1300 |
| Overall Length | l1 (mm) | 1950 |
| Length to Fork Face | l2 (mm) | 878 |
| Overall Width | b1 (mm) | 820 |
| Fork Dimensions | s/e/l (mm) | 60 / 180 / 1070 (1150) |
| Overall Fork Width | b5 (mm) | 570 / 695 |
| Aisle Width for 800 × 1200 mm Pallets (1200 Crossways) | Ast (mm) | 2420 |
| Turning Radius | Wa (mm) | 1575 |
| Travel Speed, Laden/Unladen | km/h | 5.8 / 6 |
| Lifting Speed, Laden/Unladen | m/s | 0.11 / 0.16 |
| Lowering Speed, Laden/Unladen | m/s | 0.14 / 0.19 |
| Battery Voltage/Nominal Capacity K5 | V/Ah | 24 / 240 |
| Battery Weight | kg | 220 |
| Battery Dimensions (L × W × H) | mm | 625 × 248 × 500 |
| Service Weight (Including Battery) | kg | 1140 / 1190 / 1200 / 1290 / 1370 / 1400 / 1530 |
Advanced AC Control System
Intelligent Regenerative Braking System
Stepless Speed Control
Emergency Reversing Device
Vertical Drive Wheel
Waterproof and Dust-Proof Motor Structure
Sideways Roll-Out Battery System
CAN Bus Wiring System
Detachable Mast and Frame
Full-Free-Lift Mast Design
Lithium Battery Charger
Emergency Power Disconnect
