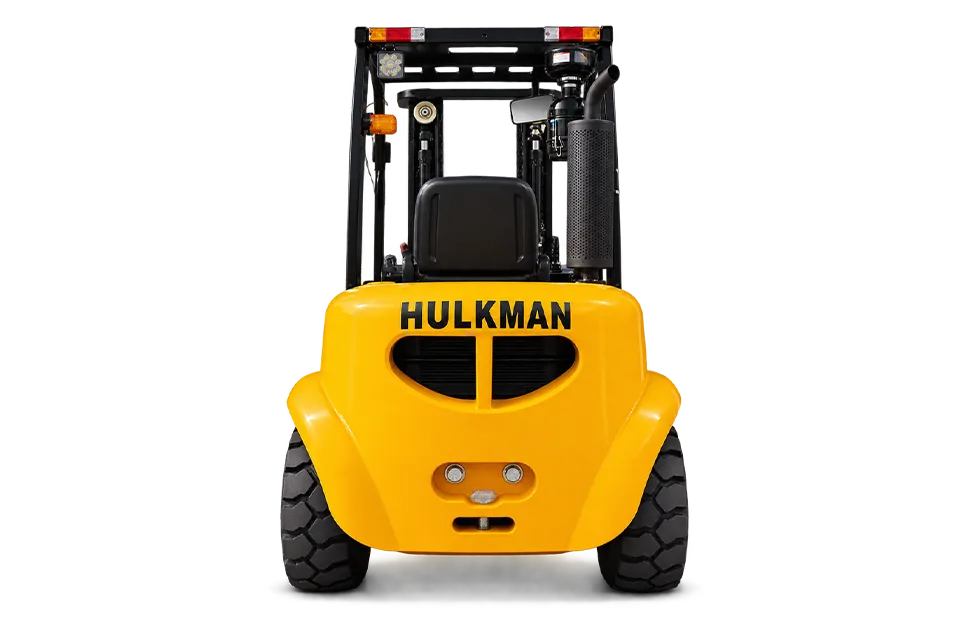

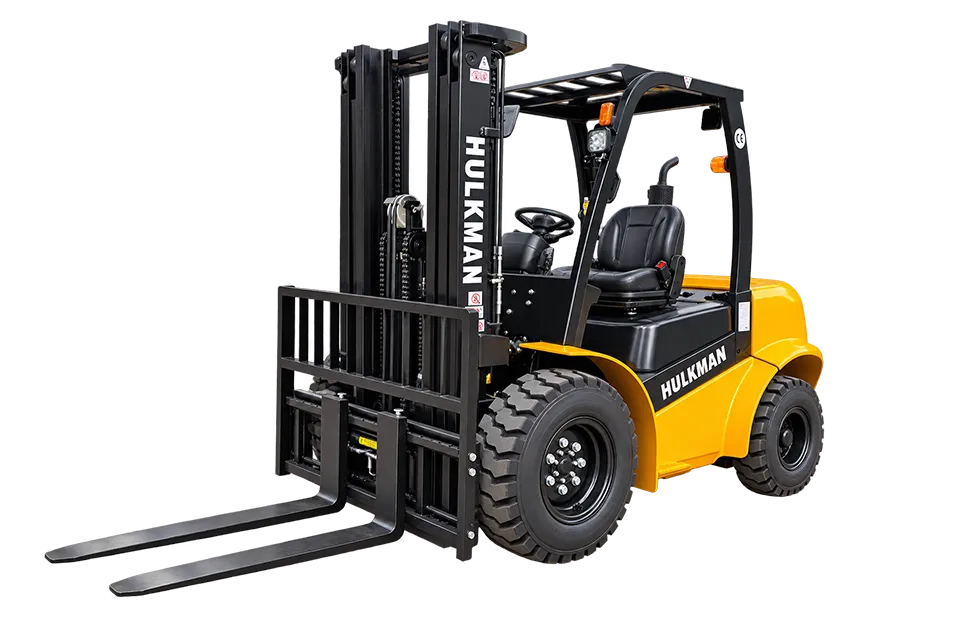

2WD drive configuration
Straight vertical-mast design
Deep-tread tires for configured outdoor surfaces
Hydraulic mast and fork controls
Seated driving position
Open overhead guard
Fork carriage with load backrest
Dashboard and grouped operating controls
2WD Drive Configuration
Supports travel and positioning in outdoor handling areas.
Straight Mast Handling
Supports front-facing load lifting, transport and placement.
Deep-Tread Tires
Large treaded tires improve traction on outdoor surfaces.
Hydraulic Load Control
Grouped levers provide direct mast and fork control.
Protected Operator Area
The overhead guard, backrest and enclosed floor enhance protection.

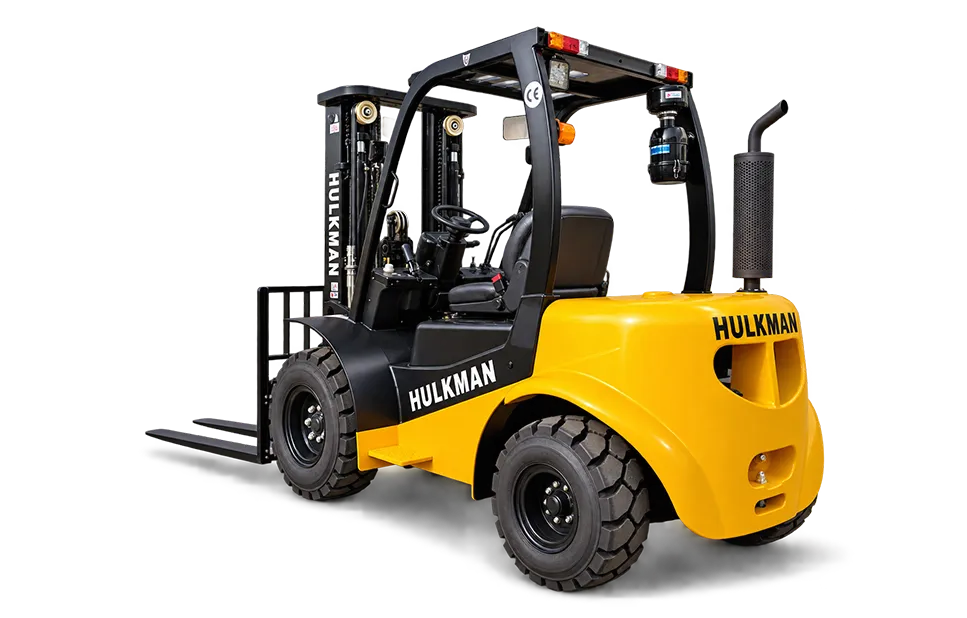

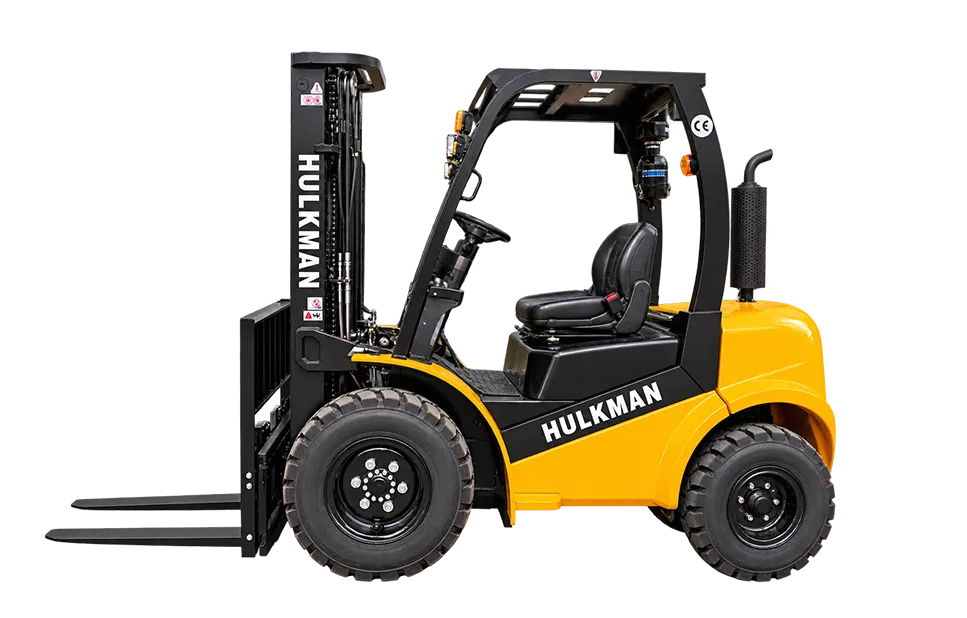

The FD30 combines a conventional counterbalanced forklift layout with a 2 wheel drive rough terrain forklift configuration. Its straight mast allows loads to be lifted and placed directly in front of the vehicle without the telescopic boom used by a reach-type rough-terrain machine.

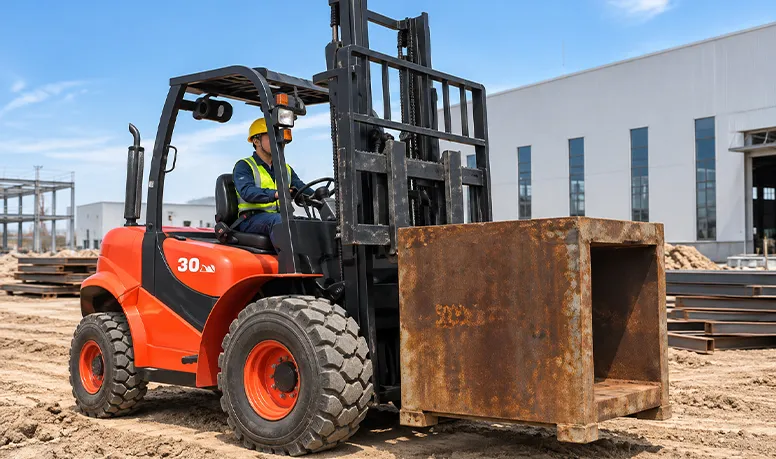

The truck is intended for configured outdoor material-handling routes. Ground strength, surface irregularity, slope, load weight and travel distance should be evaluated before model selection.

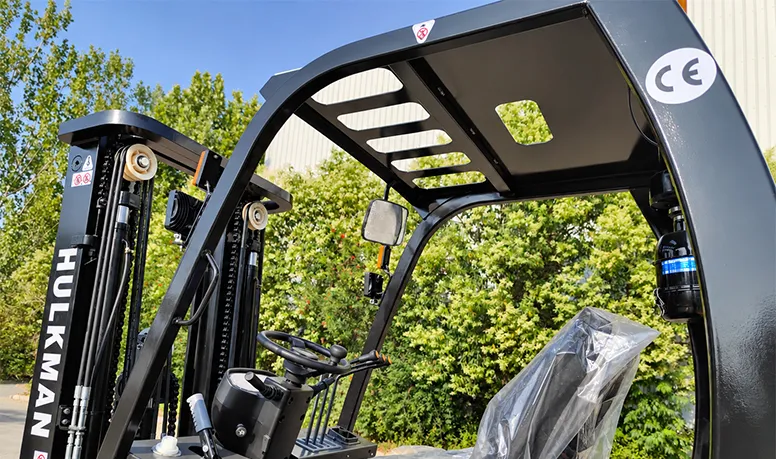

The overhead guard and load backrest help protect the operator and contain the load. Service brakes, a parking brake, warning light and reversing alarm support safer outdoor operation.
Stability depends on load position, lift height, mast angle, tire condition, travel speed and ground conditions. Always operate within the rated load and site limits.
The FD30 incorporates mechanical, hydraulic, chassis and electrical systems that should be checked through a planned inspection and maintenance program.
Routine attention should cover the mast, forks, hydraulic components, tires, brakes, warning devices and visible electrical connections. Service intervals and component specifications must follow the confirmed operating manual.

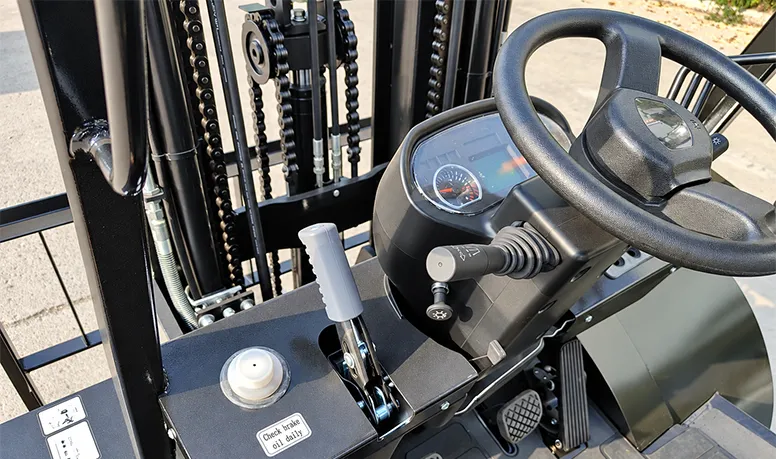

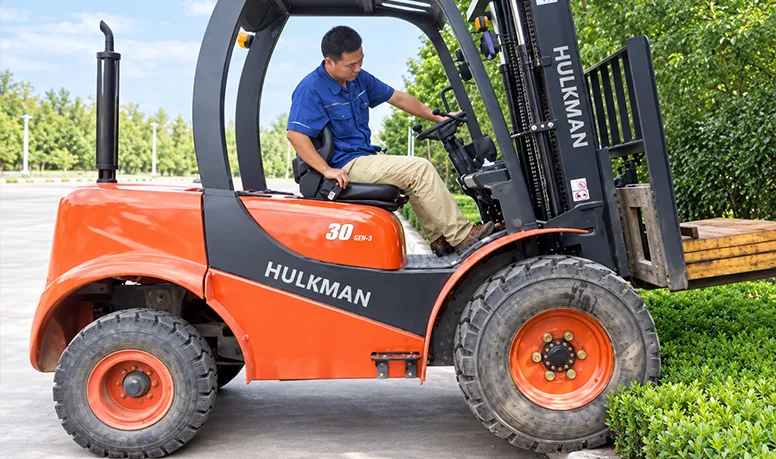

The seated operator layout places the steering wheel, instrument display, pedals and hydraulic levers within a compact control area. The dashboard supports visual monitoring of available vehicle information during operation.
The open structure also provides sightlines toward the mast and fork area when approaching, lifting and placing loads.
| Parameter | CPCD15Y (2WD) | CPCD18Y (2WD) | CPCD20Y (2WD) | CPCD25Y (2WD) | CPCD30Y (2WD) | CPCD35Y (2WD) | CPCD40Y (2WD) |
| Rated Load Capacity (kg) | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 4000 |
| Load Center (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Power Type | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Max. Lifting Speed (with load) (mm/s) | 520 | 520 | 550 | 545 | 440 | 440 | 400 |
| Max. Traveling Speed (with/without load) (km/h) | 17.7/18.3 | 17.7/18.3 | 19.5/21 | 19.5/21 | 19.5/21 | 19.5/21 | 19.5/21 |
| Service Weight (kg) | 3450 | 3550 | 3950 | 4200 | 4700 | 4700 | 4950 |
| Gradeability (with load) (%) | 25 | 25 | 35 | 30 | 27 | 25 | 20 |
| Lifting Height (mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Tilting Angles (forward/backward) (°) | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 |
| Min. Turning Radius (mm) | 2650 | 2650 | 2950 | 2950 | 3000 | 3000 | 3000 |
| Min. Under-clearance (mm) | 230 | 230 | 290 | 290 | 320 | 320 | 320 |
| Overall Length (including fork) (mm) | 3730 | 3730 | 4010 | 4010 | 4260 | 4260 | 4260 |
| Overall Width (mm) | 1500 | 1500 | 1565 | 1565 | 1620 | 1620 | 1620 |
| Overall Height (mast lowered) (mm) | 2210 | 2210 | 2280 | 2280 | 2320 | 2320 | 2320 |
| Overall Height (mast extended) (mm) | 3995 | 3995 | 4065 | 4065 | 4270 | 4270 | 4270 |
| Overhead Guard Height (mm) | 2210 | 2210 | 2270 | 2270 | 2315 | 2315 | 2315 |
| Fork Width (mm) | 100 | 100 | 122 | 122 | 122 | 122 | 122 |
| Fork Thickness (mm) | 35 | 35 | 40 | 40 | 45 | 45 | 50 |
| Backrest Height (mm) | 1000 | 1000 | 1000 | 1000 | 1230 | 1230 | 1230 |
| Fork Length (mm) | 1070 | 1070 | 1070 | 1070 | 1220 | 1220 | 1220 |
| Front Tire | 10-16-12 | 10-16-12 | 12-16.5-14 | 12-16.5-14 | 14-17.5-14 | 14-17.5-14 | 14-17.5-14 |
| Rear Tire | 23×9-10 | 23×9-10 | 27×10-12 | 27×10-12 | 27×10-12 | 27×10-12 | 27×10-12 |
| Engine | China/Japan | China/Japan | China/Japan | China/Japan | China/Japan | China/Japan | China/Japan |
| Type of Power Shift | Hydraulic/Automatic | Hydraulic/Automatic | Hydraulic/Automatic | Hydraulic/Automatic | Hydraulic/Automatic | Hydraulic/Automatic | Hydraulic/Automatic |
| Driving Type | 2WD | 2WD | 2WD | 2WD | 2WD | 2WD | 2WD |
2WD Drive System
Diesel Power System
Straight Mast Assembly
Automatic Power-Shift Transmission
Load Backrest
Overhead Guard
Deep-Tread Rough-Terrain Tires
Service and Parking Brakes
Warning Light and Reversing Alarm
