3,500 kg maximum load
10,000 mm maximum lifting height
2,000 kg capacity at full height
550 kg capacity at full reach
7,000 mm maximum forward reach
Four-wheel drive
Front-wheel, four-wheel and crab steering
YUCHAI 85 kW engine
5,000 kg Maximum Load
Lifts 5,000 kg within load-chart limits.
7,000 mm Maximum Lifting Height
Lifts 7,000 mm; reach is 450 mm at full height.
3,600 mm Maximum Forward Reach
Reaches 3,600 mm beyond fixed-mast access.
Three Steering Modes
Three steering modes aid travel and positioning.
Four-Wheel Drive
4WD aids traction on outdoor work-site surfaces.
Extended Vertical and Horizontal Reach

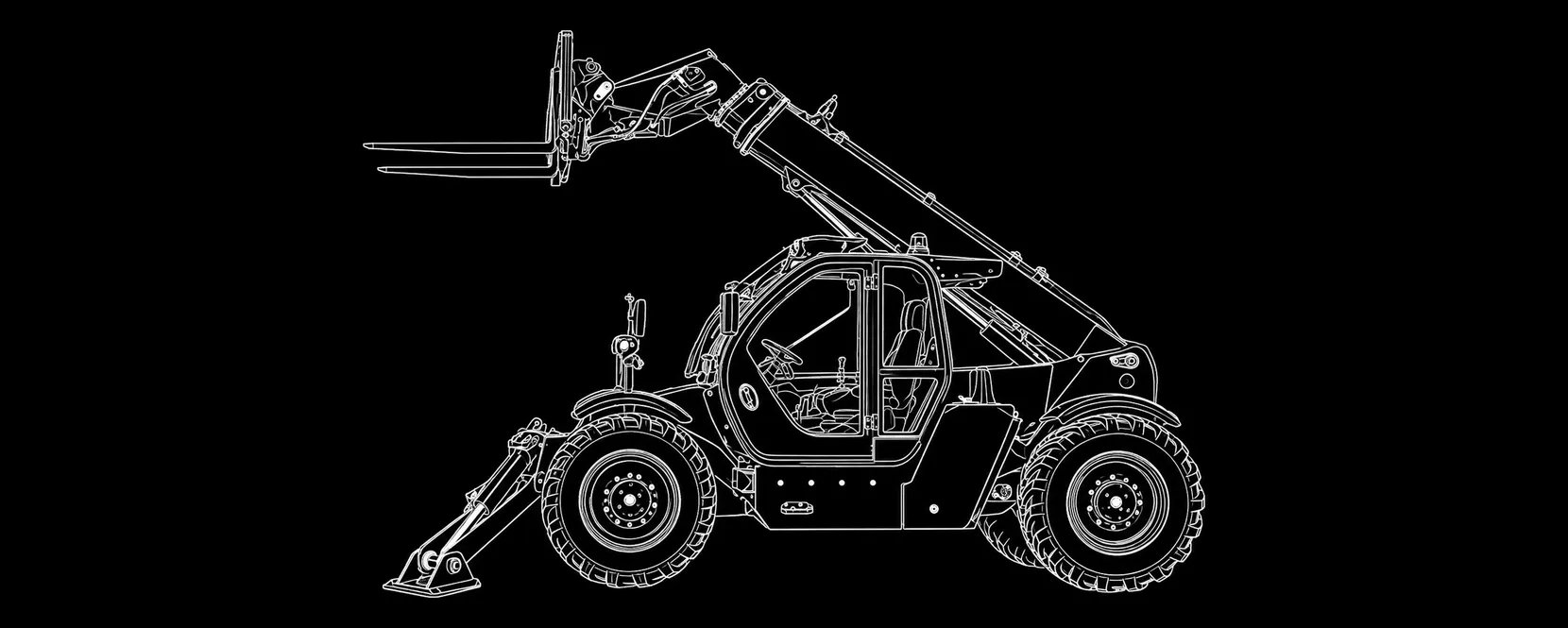

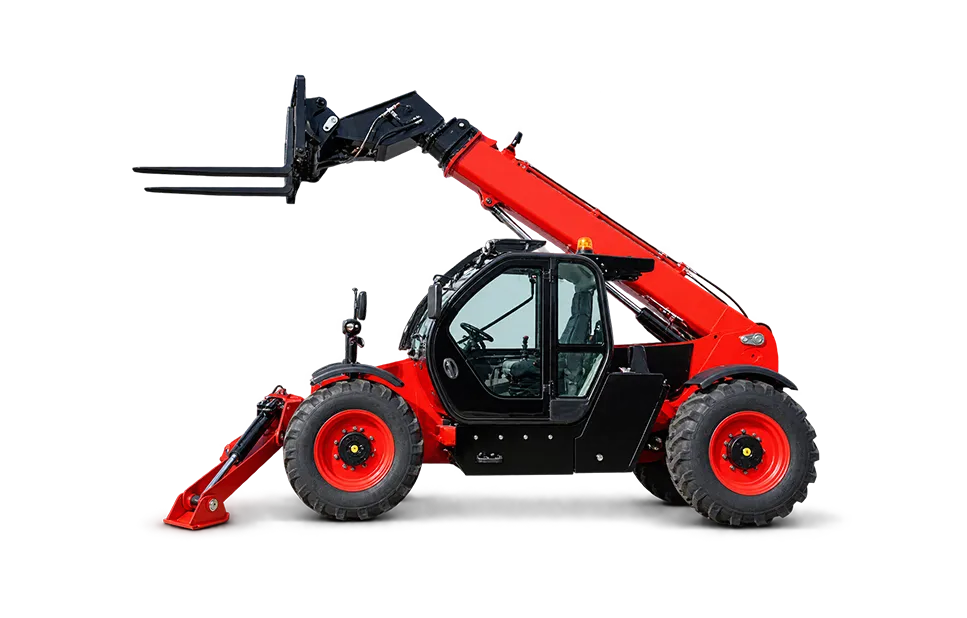

The HULK TR1035 is a telescopic forklift truck designed to lift, transport and position materials beyond the working range of a conventional fixed-mast forklift. Its boom reaches up to 10,000 mm vertically and 7,000 mm horizontally.
The machine has a specified 2,000 kg capacity at full lifting height and a 550 kg capacity at full forward reach. The maximum 3,500 kg load does not apply throughout the complete working envelope. The corresponding load chart must be reviewed for each boom position and attachment.
The listed base configuration uses a YUCHAI YCD4J22T-115 engine rated at 85 kW. The transmission system is specified as a gearbox, hydraulic torque converter, drive shaft and drive axle.
The machine has a listed 135 L hydraulic oil tank and 120 L diesel tank. Alternative engines are available for different market and emission requirements, subject to final configuration confirmation.

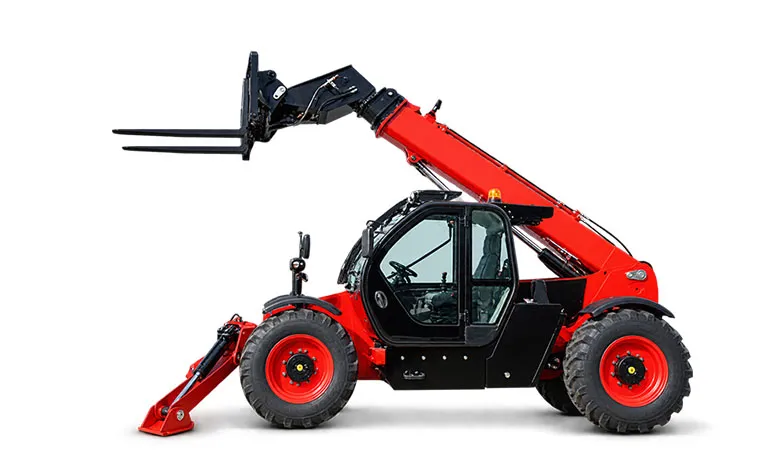

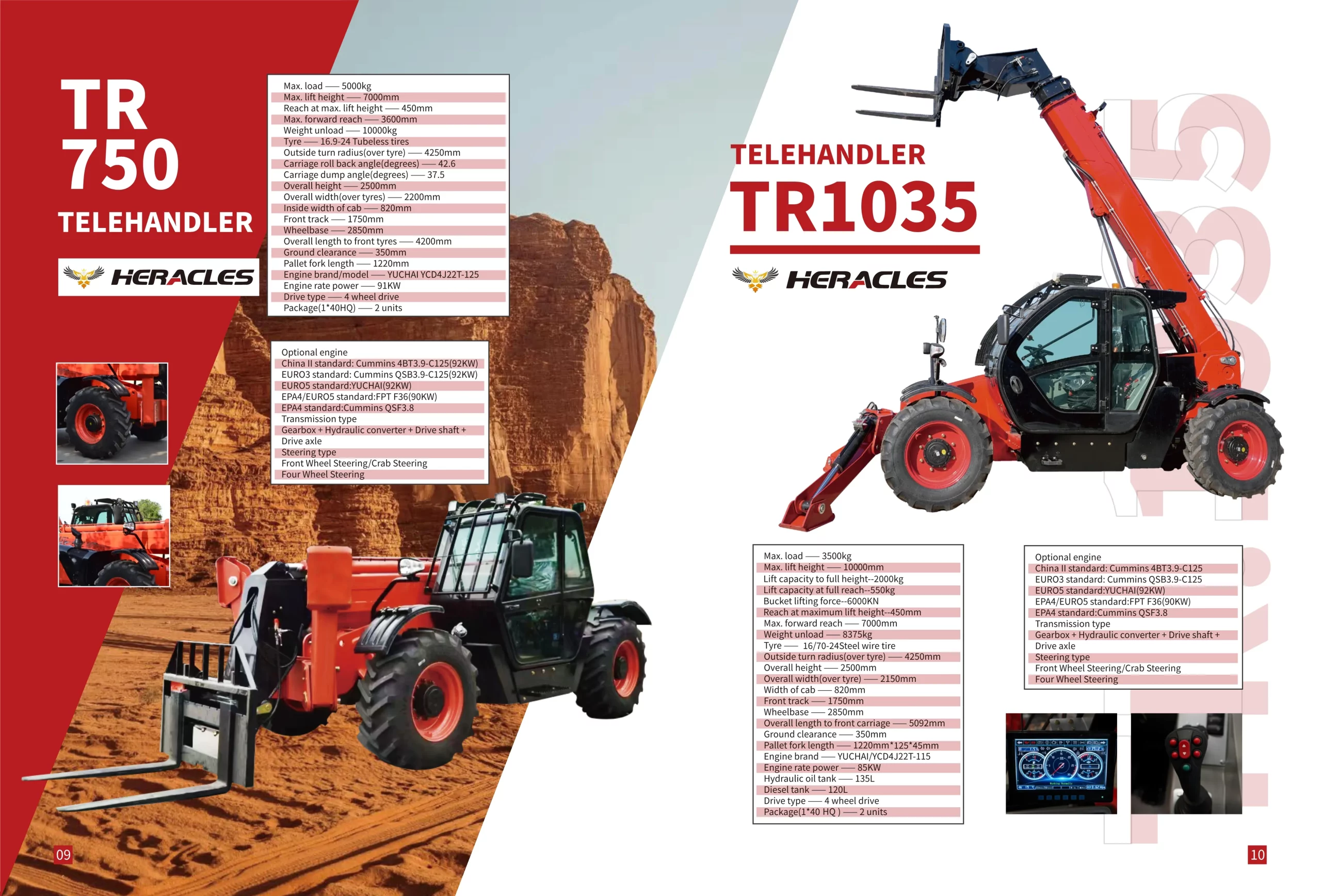

The TR1035 has an unloaded weight of 8,375 kg, a 2,850 mm wheelbase and a 4,250 mm outside turning radius over the tyres. The supplied product image also shows front stabilizers for supporting suitable stationary lifting operations.
Safe operation depends on load weight, load center, boom extension, lifting height, attachment, tyre condition, ground stability and machine setup. Stabilizer use and permitted capacities must follow the corresponding operating instructions and load chart.

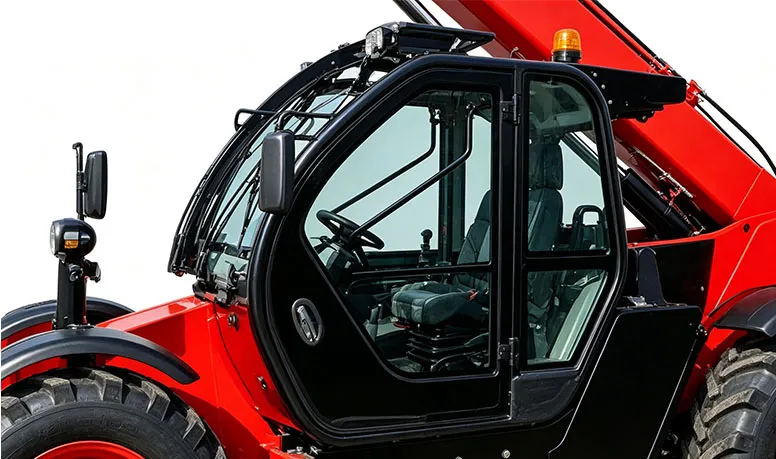

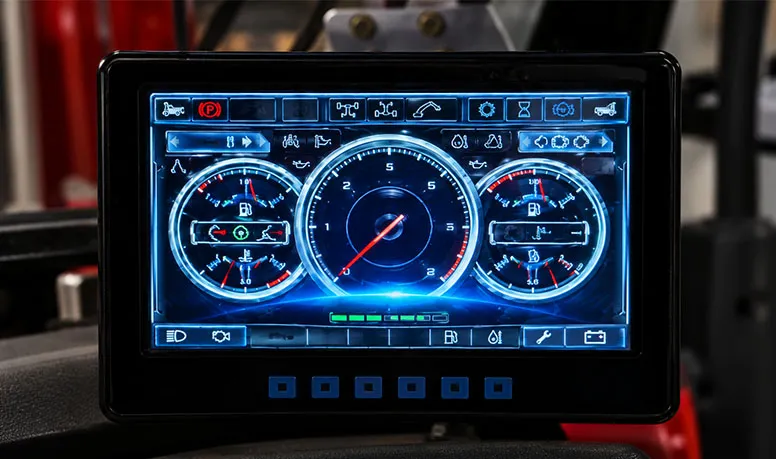

The cab has a specified internal width of 820 mm. The supplied product material shows an instrument display and multifunction joystick for monitoring and controlling machine functions.
Front-wheel, four-wheel and crab steering allow the operator to select a steering mode suited to the travel path and positioning requirement.
| Specification | Value |
| Max. Load | 3500 kg |
| Max. Lift Height | 10000 mm |
| Lift Capacity at Full Height | 2000 kg |
| Lift Capacity at Full Reach | 550 kg |
| Bucket Lifting Force | 6000 kN |
| Reach at Max. Lift Height | 450 mm |
| Max. Forward Reach | 7000 mm |
| Unladen Weight | 8375 kg |
| Tyre | 16/70-24 Steel-Wire Tyre |
| Outside Turning Radius (Over Tyre) | 4250 mm |
| Overall Height | 2500 mm |
| Overall Width (Over Tyres) | 2150 mm |
| Cab Width | 820 mm |
| Front Track | 1750 mm |
| Wheelbase | 2850 mm |
| Overall Length to Front Carriage | 5092 mm |
| Ground Clearance | 350 mm |
| Pallet Fork Dimensions | 1220 × 125 × 45 mm |
| Engine Brand/Model | YUCHAI YCD4J22T-115 |
| Engine Rated Power | 85 kW |
| Hydraulic Oil Tank | 135 L |
| Diesel Tank | 120 L |
| Drive Type | 4-Wheel Drive |
| Package (1×40HQ) | 2 Units |
Four-Wheel Drive System
YUCHAI YCD4J22T-115 Engine

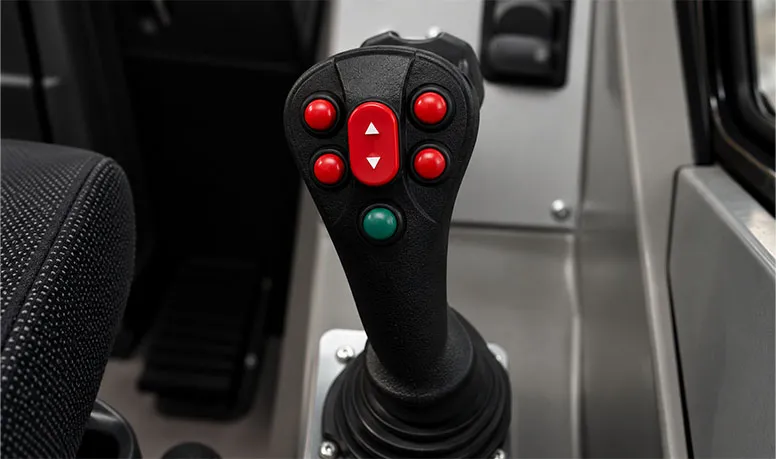

Multi-Function Joystick
Gearbox + Hydraulic Converter + Drive Shaft + Drive Axle
Drive Shaft and Drive Axle
Front-Wheel Steering
Enclosed Operator Cab
16/70-24 Steel-Wire Tires
Pallet Forks 1220 × 125 × 45 mm
Enclosed Cab
