Standard Single Scissor, Optional Double Scissors
Electric Control Scissor Reach Forks
Free Maintenance AC Motors
Two Side-Way Battery Remove
Emergency Power Disconnect
Stepless Speed Control
CANbus technology
Low Battery Protection
AC Drive & Stepless Control
AC stepless speed control less motor maintenance
Accessible Battery Replacement
Two-sided roll-out eases battery access and swaps.
Operator Information Display
Display shows battery status, hours and faults
Single or Double Scissor
1,500 kg single or optional 1,000 kg double scissor

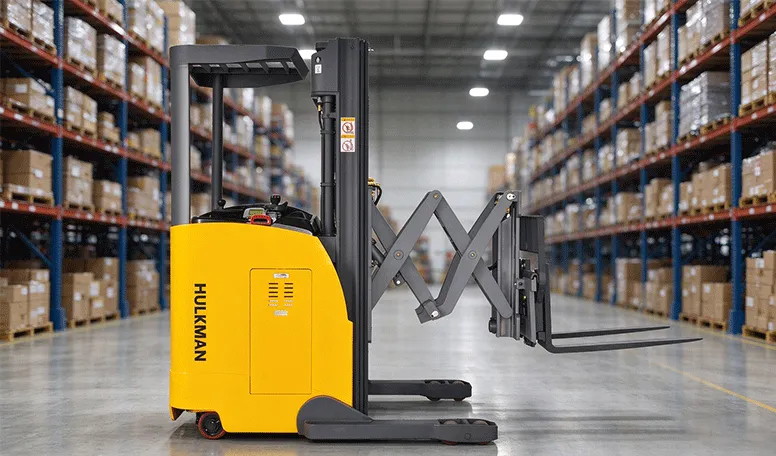

Electric Scissor Reach
Electric scissor forks place and retrieve pallets.

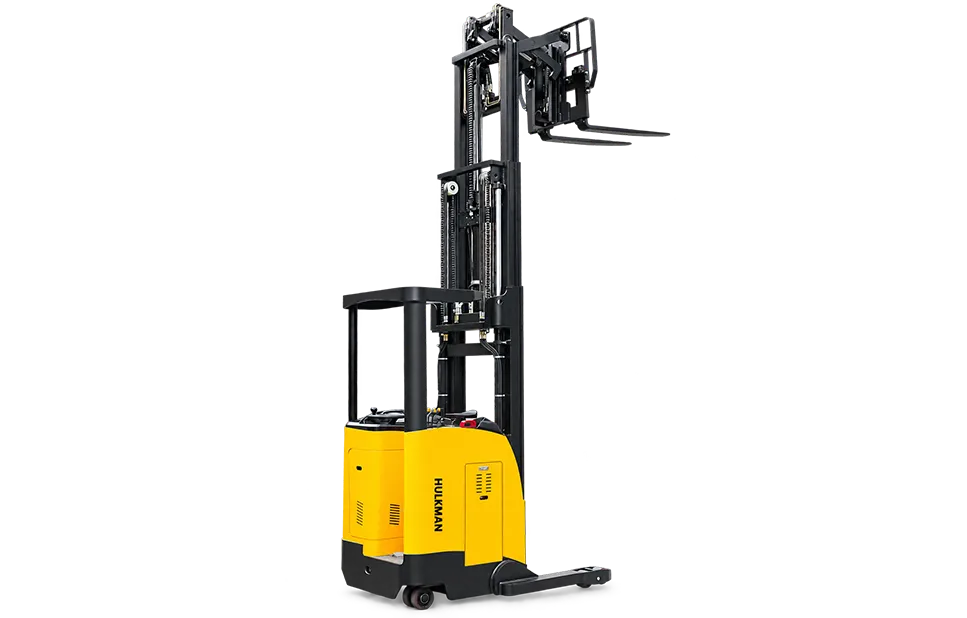

This scissor type electric reach truck extends the fork carriage through a scissor mechanism, allowing the forks to reach forward for pallet handling while the truck is positioned beside the storage location.
The supplied catalogue lists a 500 mm reach distance for the single-scissor configuration and 1,200 mm for the double-scissor configuration. Selection should account for pallet depth, rack layout and the required load capacity at the working height.
A low-center-of-gravity design supports stable operation, while stepless speed control and regenerative braking assist with controlled travel.
The truck includes an emergency power disconnect, low-battery protection and a built-in hydraulic pressure relief valve. Load weight, load center and lifting height must remain within the applicable capacity chart.

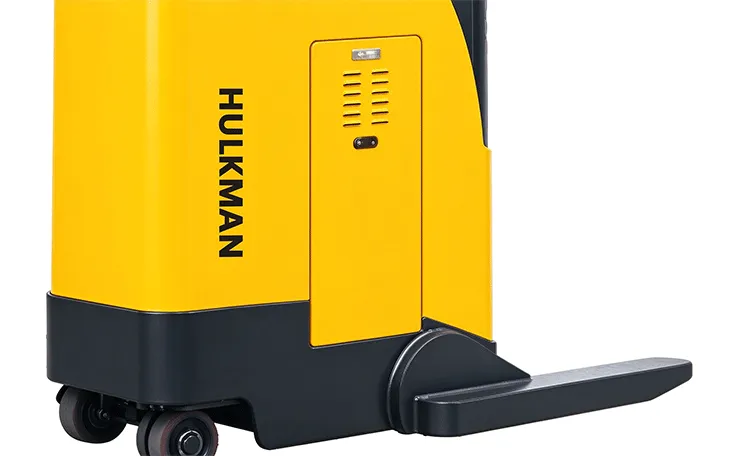

The accessible rear cover provides service access to valves, hydraulic lines and electrical components. Grease fittings and serviceable bushings at pivot points support routine mechanical maintenance.
CANbus communication reduces wiring complexity. The two-sided battery roll-out system also helps simplify battery replacement and inspection.

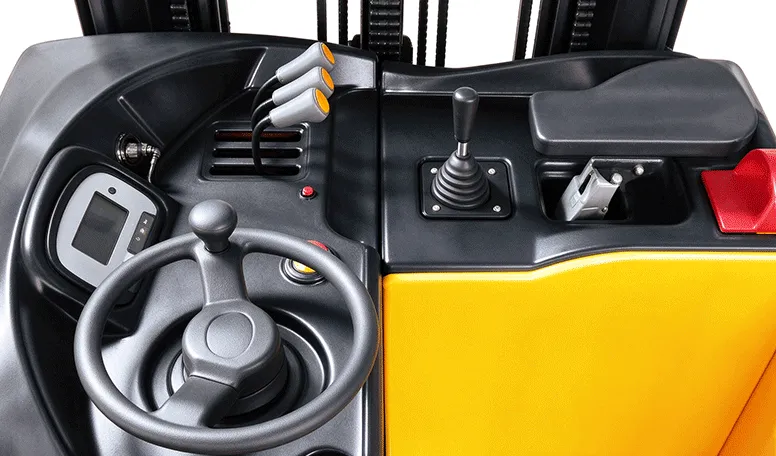

An adjustable hand-rest helps accommodate different operators. The multifunction display places battery status, operating hours and fault information within the operating area.
The catalogue also identifies a dead-man power-off switch and damping cushions. Optional electric power steering can be specified according to the confirmed configuration.

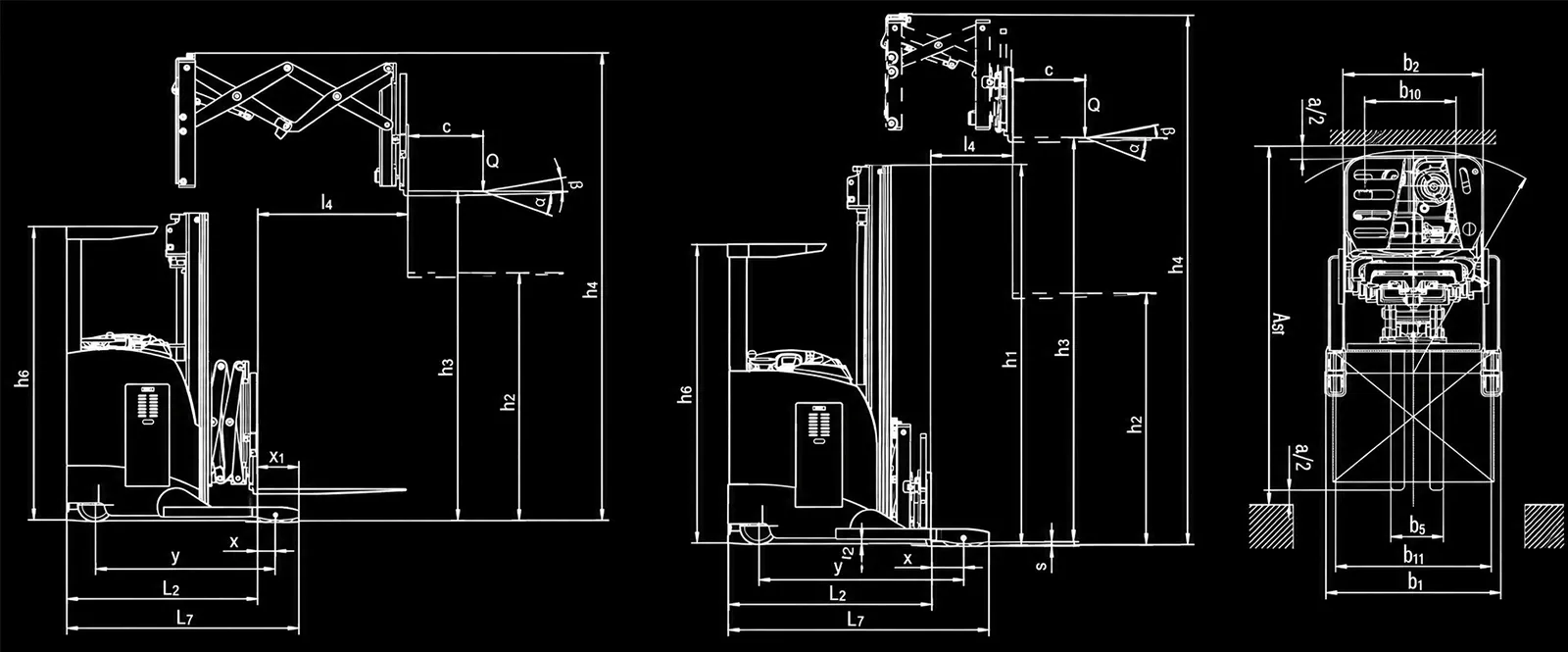

| Parameter | Unit | DST15 (Single Scissors) | DST15 (Double Scissors) |
| Model | DST15 | DST15 | |
| Drive Type | Battery | Battery | |
| Rated Load Capacity | Q(kg) | 1500 | 1000 |
| Load Center Distance | c(mm) | 500 | 500 |
| Load Distance, Center of Drive Axle to Fork | x(mm) | 246 | 135 |
| Front Tire Size | mm | 280×100 + 160×60×2 | 280×100 + 160×60 |
| Rear Tire Size | mm | 125×82×4 | 125×82(4) |
| Wheels, Number F/R (x=Driven Wheels) | 1x+2/4 | 1+2 | |
| Tilt of Mast F/R | Grad | 2/5 | 2/5 |
| Mast Lowered Height | h1(mm) | 2125/2375/2625/2185/2345/2505/2675/2840 | 2125/2375/2625/2185/2345/2505/2675 |
| Free Lifting Height | h2(mm) | ~ / ~ / ~ / 1776/1776/2010/2080/2240 | ~ / ~ / ~ / 1575/1700/1825/2000 |
| Max. Lifting Height | h3(mm) | 3000/3500/4000/4500/5000/5500/6000/6500 | 3000/3500/4000/4500/5000/5500/6000 |
| Mast Extended Height | h4(mm) | 3900/4400/4900/5400/5900/6400/6900/7400 | 4035/4545/5035/5535/6035/6535/7035 |
| Overhead Guard Height | h6(mm) | 2246 | 2246 |
| Overall Width | b1/b2(mm) | 1295/1040 | 1370/1040 |
| Overall Length | l1(mm) | 2616 | 2609 |
| Length to Face of Forks | l2(mm) | 1518 | 1539 |
| Fork Dimensions | s/e/l | 35/100/1070 | 35/100/1070 |
| Reach Distance | l4(mm) | 500 | 1200 |
| Fork Height, Lowered | h8(mm) | 35 | 35 |
| Distance of “X” (see below diagram) | mm | 450 | 350 |
| Overall Length (excluding the Fork) | mm | 1868 | 1868 |
| Ground Clearance, Center of Wheelbase | M2(mm) | 49 | 65 |
| Aisle Width for Pallets 1000×1200 Crossways | Ast(mm) | 2956 | 2971 |
| Aisle Width for Pallets 800×1200 Crossways | Ast(mm) | 3027 | 3056 |
| Turning Radius | Wa(mm) | 1791 | 1718 |
| Travel Speed, Laden/Unladen | km/h | 6.5/7 | 6.5/7 |
| Lift Speed, Laden/Unladen | m/s | 0.27/0.43 | 0.135/0.16 |
| Lowering Speed, Laden/Unladen | m/s | 0.45/0.364 | 0.15/0.12 |
| Battery Voltage/Nominal Capacity K5 | V/Ah | 36/700 | 24/420(560) |
| Battery Weight | kg | 810 | 340/425 |
| Battery Dimension L/W/H | mm | 978×395×765 | 780×335×500(620) |
| Service Weight (with Battery) | kg | 3130/3180/3230/3370/3470/3570/3670/3770 | 2480/2530/2590/2730/2830/2930/3030 |
Remark: 3 High Lifting Speed (3 times higher than normal type)
4 High Lowering Speed (3 times higher than normal type)

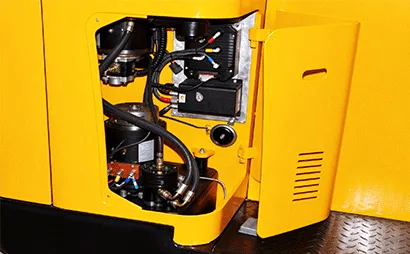

Vertically mounted drive motor with CANbus technology reduces wiring complexity and increase reliability.

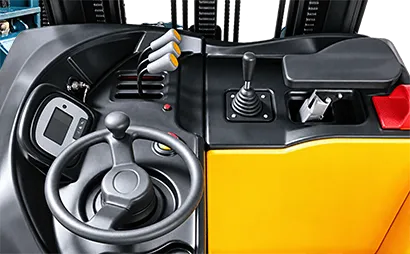

Spacious cab equipped with deadman power-off switch.

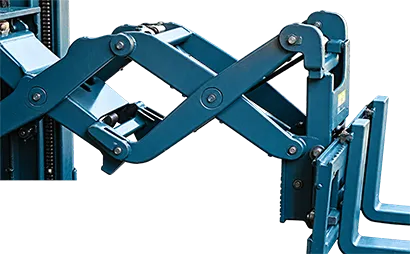

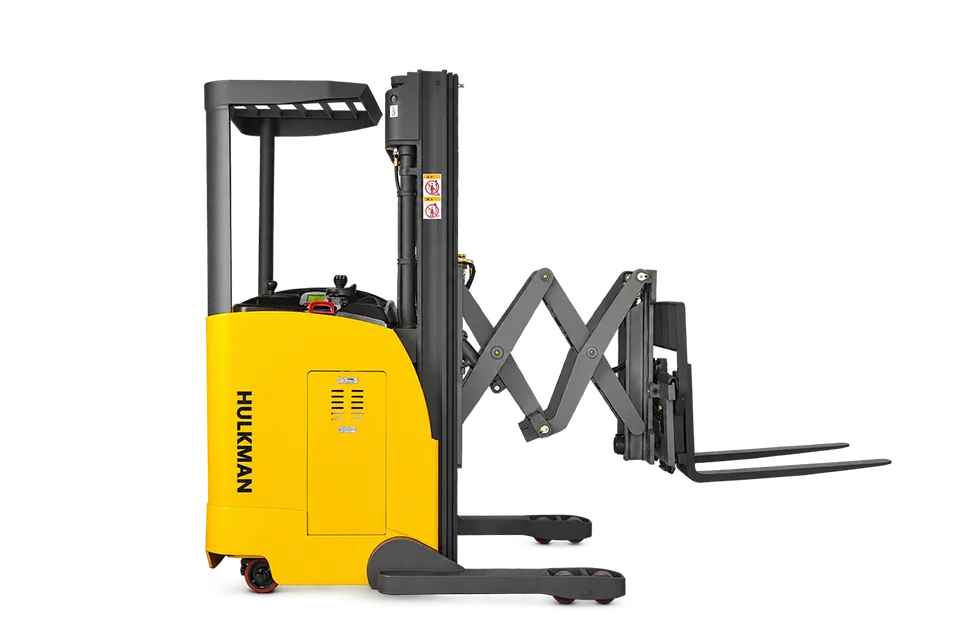

Optional double scissors forks.

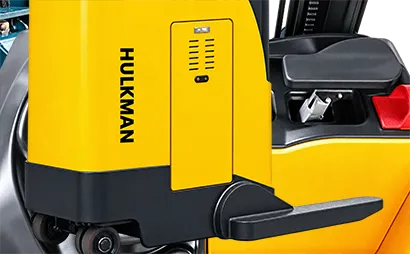

Side-mounted battery with roll-out system for convenient battery replacement.
Straddle Legs
Double Front Wheels
Side Shift
Double Scissors
Full Free Lift Mast
Electric Power Steering (EPS)
Damping Cushion
48V/400Ah Battery
Vertically Mounted Drive Motor
