Straddle Legs Width Can Reach 1300mm or 1250mm
Lifting Height from 1500mm to 1600mm
With Adjustable Forks
Highly Efficient Pumps
Foot And Hand Controlled Lifting Function
Metal Grid Protection
Safety Wheel Guarda and Brake System
Wide Straddle Legs
1,300 mm legs (500 kg); 1,250 mm (1,000 kg).
Up to 1,000 kg Capacity
Choose 500 or 1,000 kg capacity at 500 mm.
1,600 mm Lifting Height
Both models lift loads up to 1,600 mm.
Adjustable Forged Forks
Forged forks adjust for different pallet widths.
Dual Lifting Controls
Lift using the hand control or foot pedal.

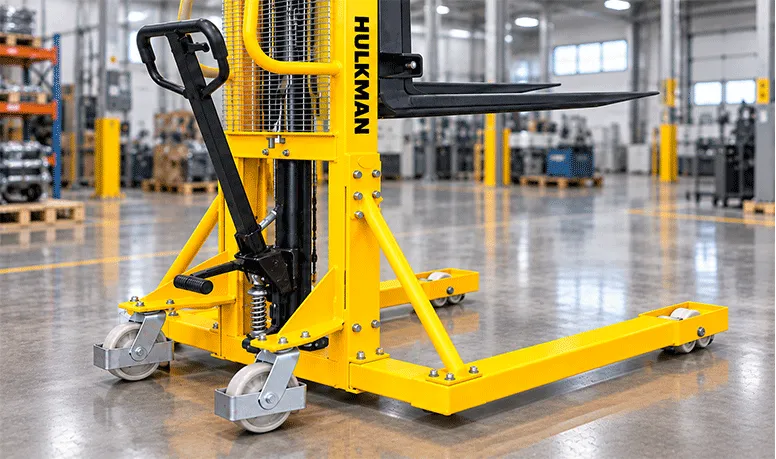

Straddle-Leg Configuration

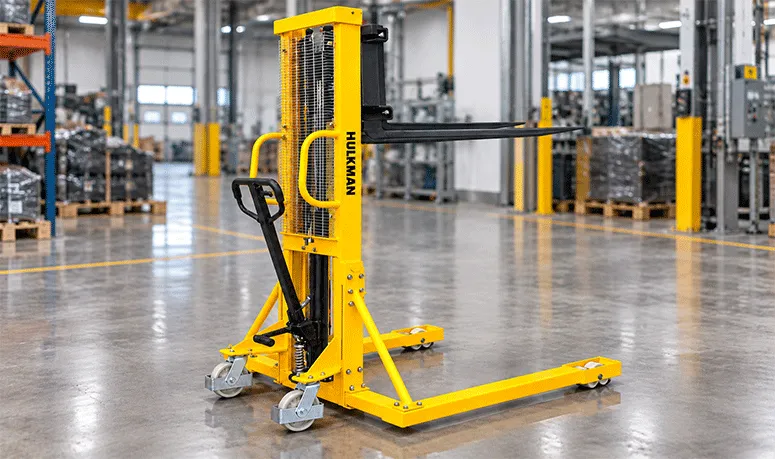

The MDBS is a manually operated hydraulic stacker designed with wide straddle legs and adjustable forged forks. The MDBS500 has a specified straddle-leg width of 1,300 mm, while the MDBS1000 provides a width of 1,250 mm.
This configuration allows the support legs to be positioned around compatible loads and pallets. Actual compatibility should be checked against the pallet width, underside structure, fork position and straddle-leg dimensions.
Safety and Stability
A high-quality steel mast provides structural support during lifting. The wide straddle-leg layout and manual brake system help maintain controlled positioning on suitable level floors.

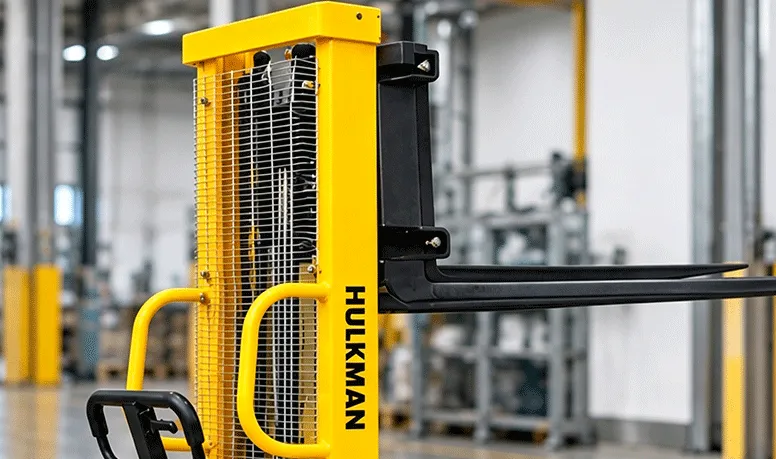

A metal grid separates the operator from the lifting chains. Safety wheel guards provide additional protection around the wheel area during operation.
Service Ability
The hydraulic pump supports manual lifting without a traction battery or electric lifting motor. The straightforward mechanical and hydraulic configuration allows key components to remain accessible for inspection.
Routine checks should cover the hydraulic system, chains, mast rollers, forks, wheels, wheel guards and brake system.

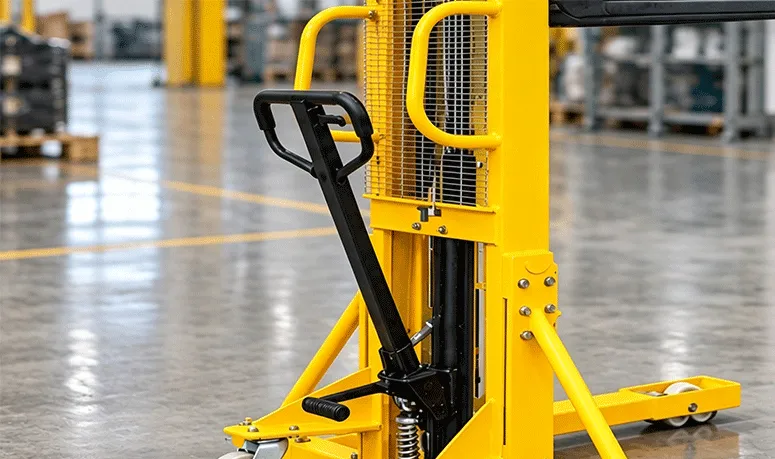

Ergonomic Operation
The operator can raise the load using either the hand control or foot pedal, reducing the need for excessive body movement during repeated lifting.
Lowering is manually controlled, allowing the operator to manage fork descent according to the load-handling task.

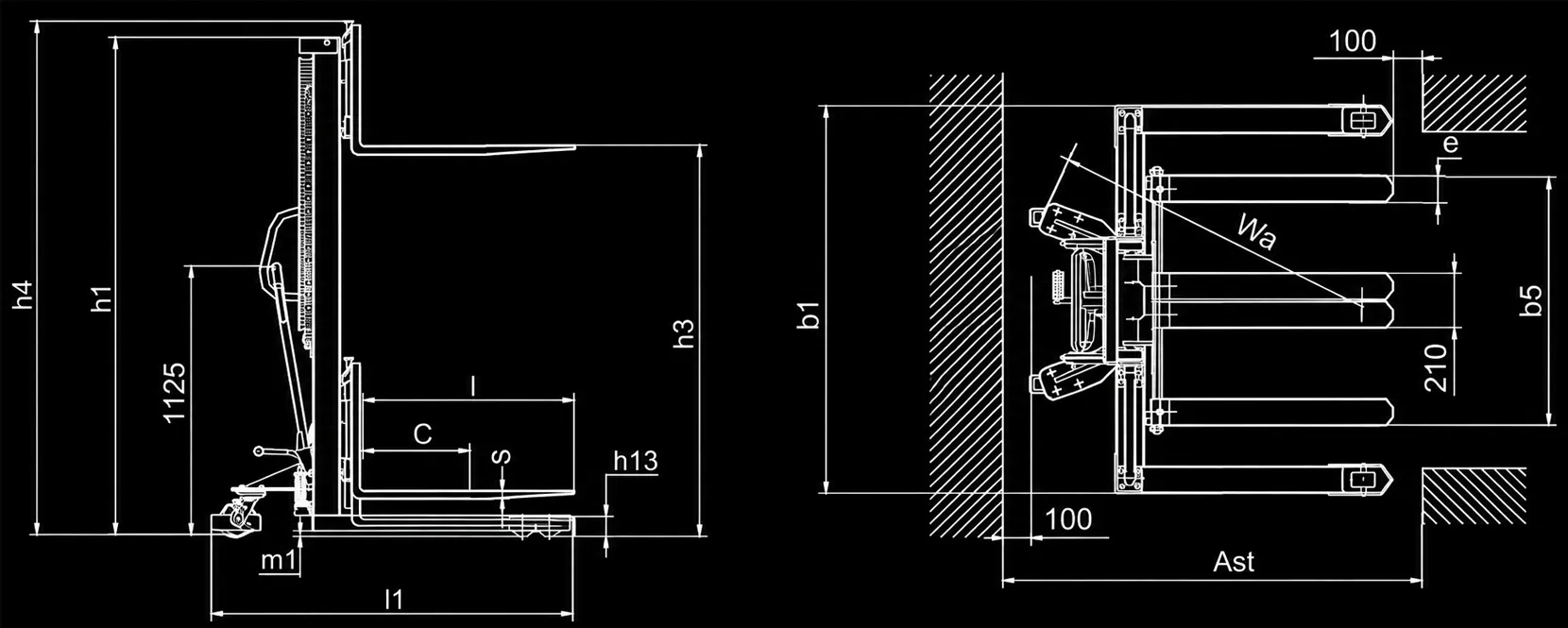

| Parameter | Symbol / Unit | MDBS500 | MDBS1000 |
| Rated Load Capacity | Q (kg) | 500 | 1000 |
| Load Center Distance | c (mm) | 500 | 500 |
| Fork Lowered Height | h13 (mm) | 70 | 70 |
| Mast Lowered Height | h1 (mm) | 2000 | 2050 |
| Maximum Lifting Height | h3 (mm) | 1600 | 1600 |
| Mast Extended Height | h4 (mm) | 2100 | 2155 |
| Overall Length | l1 (mm) | 1340 / 1600 | 1300 / 1560 |
| Overall Width | b1 (mm) | 1525 | 1475 |
| Fork Dimensions | s/e/l (mm) | 48 / 100 / 800 (1060) | 30 / 100 / 800 (1060) |
| Overall Fork Width | b5 (mm) | 745 | 950 |
| Ground Clearance, Laden, Below Mast | m1 (mm) | 25 | 25 |
| Aisle Width for 1000 × 1200 Pallets, Crossways | Ast (mm) | 1975 | 1975 |
| Aisle Width for 800 × 1200 Pallets, Crossways | Ast (mm) | 1915 | 1915 |
| Turning Radius | Wa (mm) | 1200 | 1200 |
| Lifting Speed, Laden/Unladen | mm/time | 25 | 25 |
| Lowering Speed, Laden/Unladen | mm/s | Manual Control | Manual Control |
| Service Weight | kg | 223 | 294 |
Straddle legs
Lifting chains
Safety wheel guard
Adjustable forged forks
High-quality steel mast
Metal protective grid
Wheel brake system
Wheel brake system
Hydraulic lifting cylinder
High-efficiency hydraulic pump assembly
Dual foot & hand combined lifting control mechanism
