Suitable to Carry Long Products, Move Sideways
Moving Forwards, Backwards and Sideways Directions
Excellent Flexibility, Convenience and Maneuverability
Advanced AC Motors, Free Maintenance
Dual Drive Motors and Double Steering Systems
Power On Automatic Detection Function
Multi-Function Instrument Display

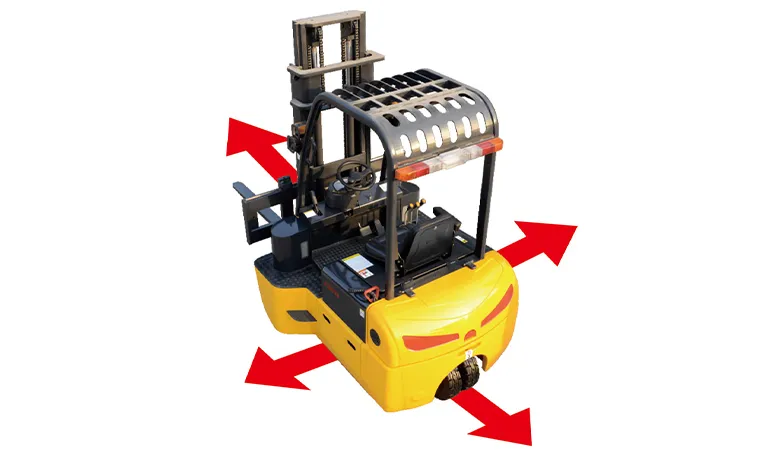

Four-Directional Maneuverability
Forward, backward and sideways travel improves handling flexibility.
Long-Load Handling
Sideways travel makes long materials easier to move in narrow spaces.
Dual Drive & Double Steering
Dual drive and steering support flexible multi-direction movement.
AC Electric Control
AC control delivers stable performance with low maintenance.
Multi-Function Instrument Display
Displays battery, hours, faults and alarm information.

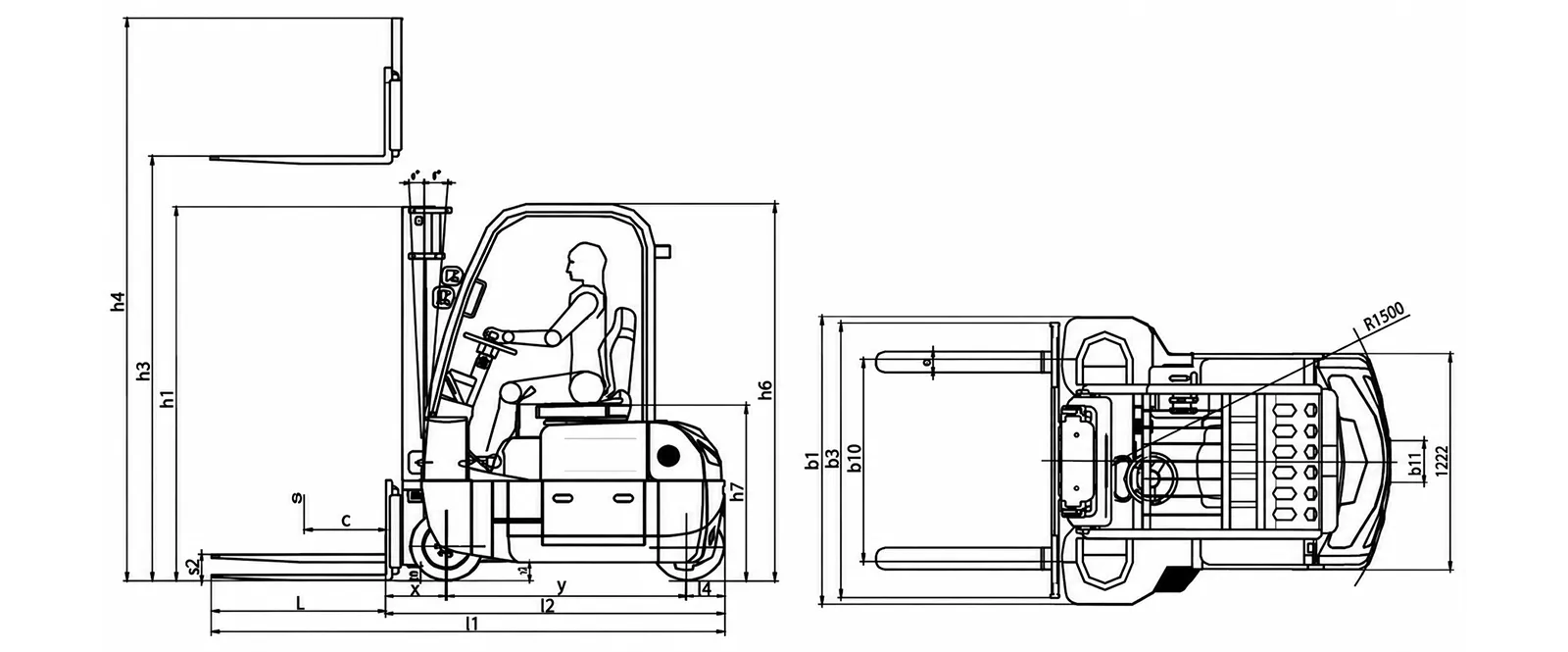

| Parameter | Unit | FDT16 | FDT20 |
| Model | FDT16 | FDT20 | |
| Drive | Electric | Electric | |
| Operator Type | Seated | Seated | |
| Load Capacity/Rated Load | Q(kg) | 1600 | 2000 |
| Load Center Distance | c(mm) | 500 | 500 |
| Wheelbase | y(mm) | 1300 | 1300 |
| Front Tire Size | mm | Φ406×152 | Φ406×152 |
| Rear Tire Size | mm | 15×4½-8 | 15×4½-8 |
| Front Tread | b10(mm) | 1133 | 1133 |
| Tilt of Mast/Fork Carriage F/R (α/β) | ° | 3/5 | 3/5 |
| Lifting Height | h3(mm) | 3000/3500/4000/4500/5000/5500/6200 | 3000/3500/4000/4500/5000/5500/6200 |
| Free Lifting Height | h2(mm) | ~ | ~ |
| Mast Lowered Height | h1(mm) | 2090 | 2090 |
| Mast Extended Height | h4(mm) | 3800/4300/4800/5300/5800/7000 | 3800/4300/4800/5300/5800/7000 |
| Overall Length (Unladen) | l1(mm) | 2890 | 2940 |
| Overall Width | b1(mm) | 1622 | 1622 |
| Fork Dimensions | s/e/l(mm) | 35/100/1070 | 40/120/1070 |
| Distance Between Fork Arms | b11(mm) | 2240-1360 | 2240-1360 |
| Fork Carriage Width | b3(mm) | 1560 | 1540 |
| Turning Radius | Wa(mm) | 1500 | 1500 |
| Travel Speed, Laden/Unladen | km/h | 10 | 10 |
| Lifting Speed, Laden/Unladen | mm/s | 240 | 200 |
| Gradeability, Laden/Unladen | % | 10 | 10 |
| Battery Voltage, Nominal Capacity K5 | V/Ah | 48/490 | 48/490 |
| Battery Weight | kg | 900 | 900 |
| Sound Level According to DIN 12053 | dB(A) | <63 | <63 |
| Shaking | m/s² | 1.37 | 1.37 |
| Service Weight (with Battery) | kg | 3650 | 4300 |
Mast Lift Height Options
Dual Drive Motors
Dual Steering Systems
AC Variable-Frequency Control System
Multifunction Display
Power-On Automatic Detection
Four-Directional Travel
If you would like more information about this product, please feel free to contact us. Recommend other popular products for you: 2.5 Ton Electric Pallet Truck, 1.5 Ton Electric Reach Stacker, Multi Direction Forklift For Sale, manual forklift exporter, agv forklift manufacturer, agv forklift factory, agv forklift supplier, automated guided vehicle forklift manufacturer, agv forklifts manufacturer, agv forklifts factory, agv forklifts supplier, China agv forklift, China automated guided vehicle forklift, China forklift automated guided vehicles, stacker agv, forklift agvs manufacturer, forklift agvs factory, China forklift agvs, custom forklift agvs, Forklift 10 Ton For Sale, 10 ton diesel forklift, 7 ton diesel forklift, 2 Ton LPG Forklift, 3.5 Ton LPG Forklift, Electric Tow Tractor For Sale, 10 Ton Electric Tow Tractor, 6 Ton Electric Tow Tractor, Multi Directional Forklift For Sale, 2 Ton 4-Directional Electric Forklift
The HULKMAN DBQ12/DBQ15/DBQ20 is a counterbalanced electric reach stacker with 1250, 1500 and 2000 kg capacity options. Its stand-on platform, reaching mast, adjustable forks and lift heights up to 5600 mm support pallet handling in warehouse racking and indoor storage operations.
The HULKMAN YB15L is a 1.5 ton stand-up electric reach truck for indoor pallet handling and rack storage. It combines a 1500 kg rated capacity, 600 mm reach distance and selectable 3000, 5000 or 6200 mm lift heights in a 1020 mm-wide chassis.

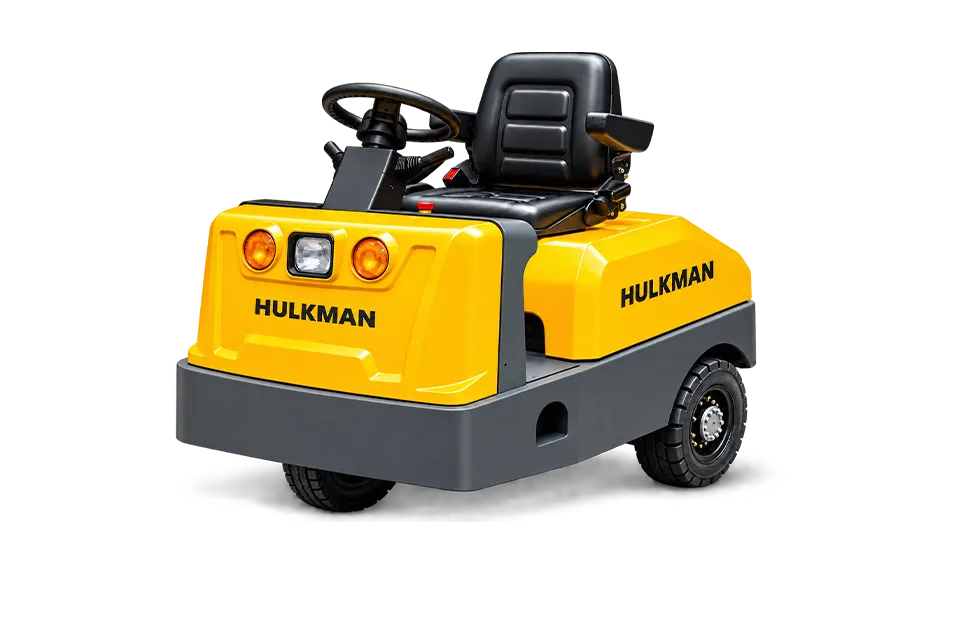

The QB30 3 ton electric tow tractor is a compact, seated towing vehicle designed for moving compatible trailers along internal transport routes.It combines a 3000 kg rated traction capacity, full AC electric system, electromagnetic parking brake and 1500 mm turning radius for warehouse, factory and logistics operations.
