Small Turning Radius
Max. 6500mm Lifting Height
Free Maintenance AC motor
Side Way Battery Easy to Maintain
Supporting legs for triplex mast, make stacker more stable
Full free lifting, fit for low roof house
Emergency Reversing Device
Emergency Power Disconnect Switch
Auto Deceleration Function
2,000 kg Rider Stacking Capacity

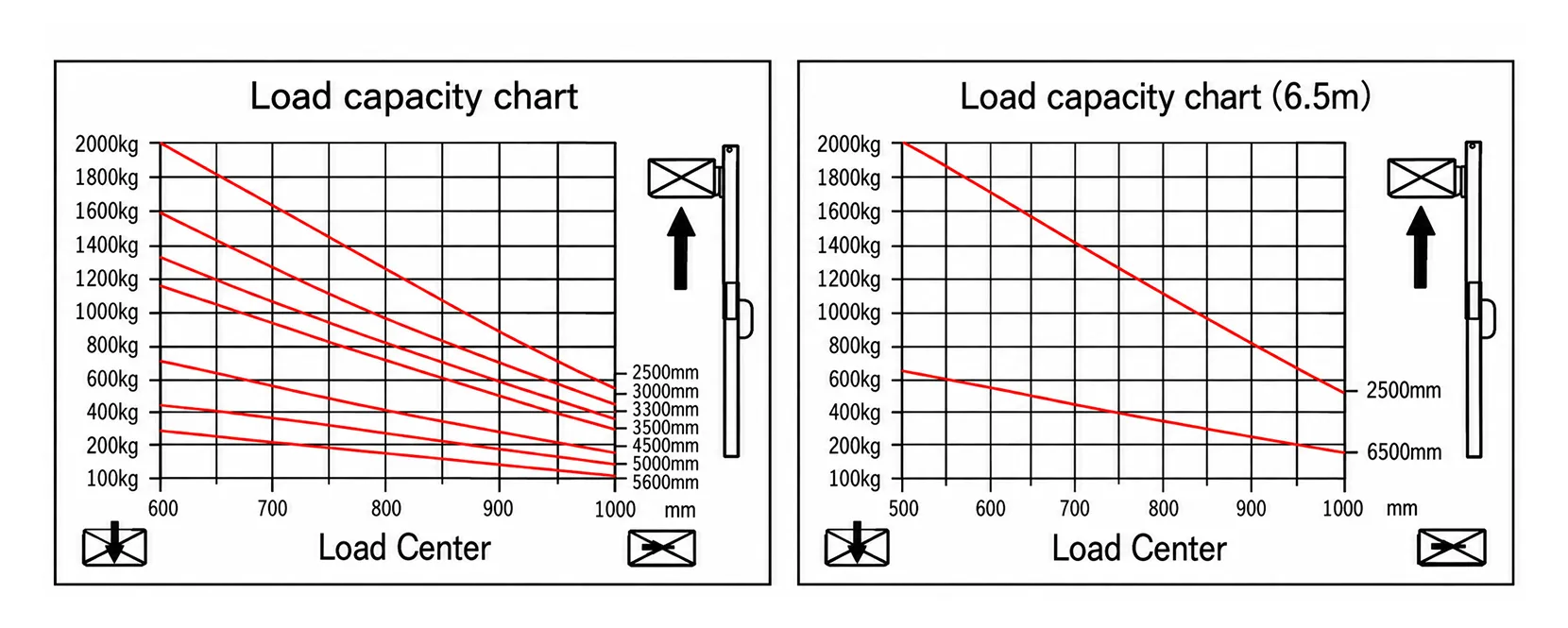

Handles pallet loads up to 2,000 kg, subject to mast height and load center.

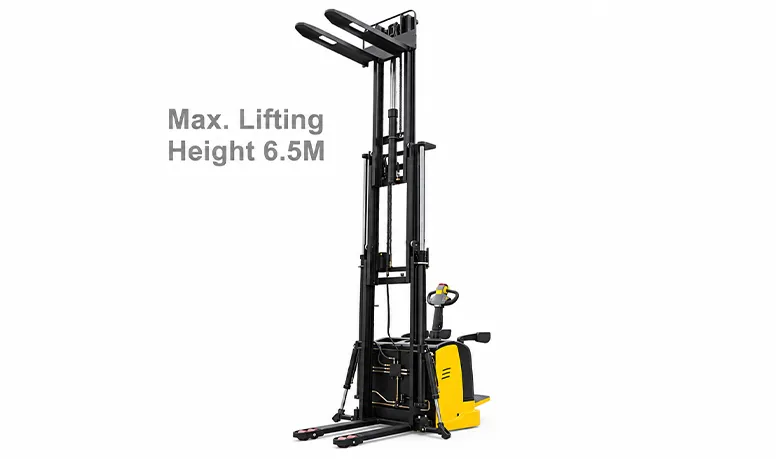

High Lift up to 6.5 m
Offers 2,500–5,600 mm lift options, plus a separate 6,500 mm heavy-duty configuration.
AC Drive & EPS Steering
Brushless AC drive reduces motor maintenance, while EPS eases warehouse maneuvering.
Compact Warehouse Maneuverability
Turning radius: 1,655 mm standard or 1,735 mm for the 6.5 m version

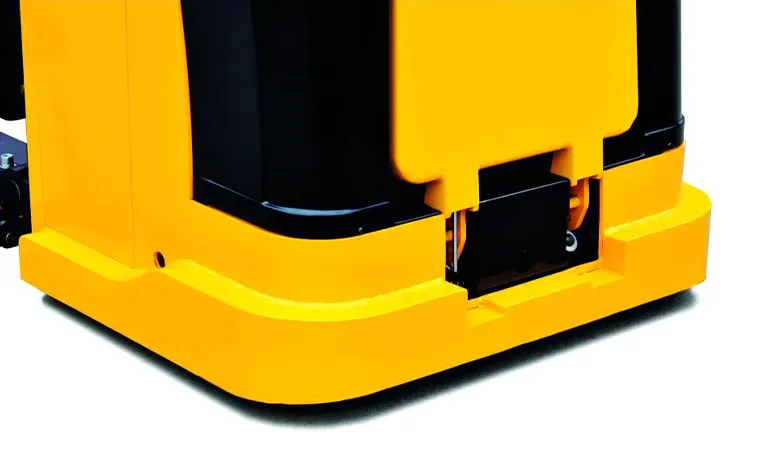

Side-Access Battery & Easy Maintenance
Side-access battery and centralized electronic components simplify inspection and servicing.

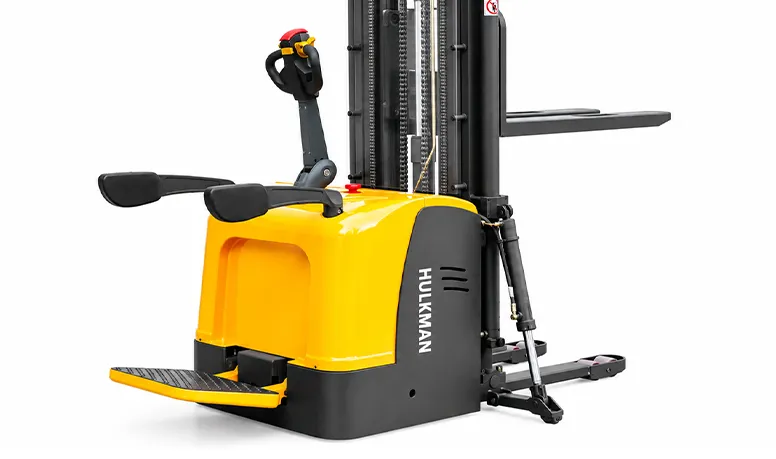

Compared with a walk-behind stacker, an electric rider stacker allows the operator to travel with the truck instead of walking beside it.
For warehouses with repeated pallet movement between storage, staging and production areas, this configuration is better suited to longer travel cycles and frequent stacking tasks.
ACMotor eliminates replacement of carbon brush.
Multi-function display with BDI and hour meter etc.
Side way battery is easy to maintain.
Damping cushion for low-noise operation.
Emergency reversing device in the handle provides higher safety for the whole operation.
Auto deceleration function makes operation more safely.
Built-in pressure relief valve protects the stacker from overloads, increases reliability.
Braking applied with handle upright and horizontal position, increasing the safety of the electric stacker.
Emergency power disconnect switch.
Turtle shaped low speed switch.
Stepless speed control.

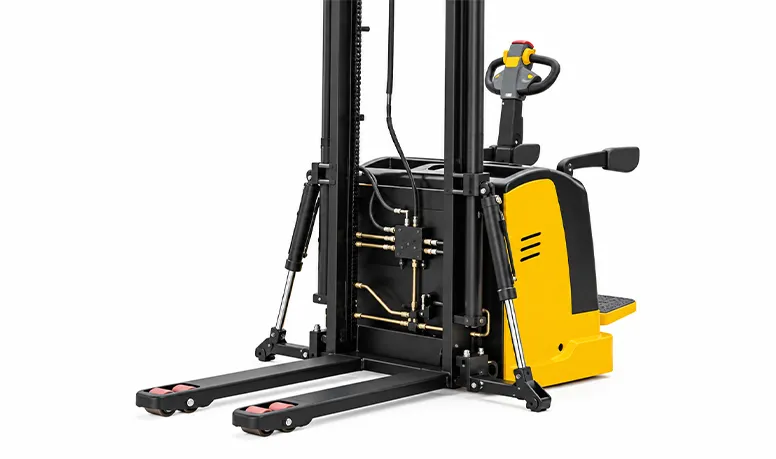

Supporting legs in both sides for triplex mast (Duplex mast without supporting legs).
Low center of gravity ensures the stable operation.
Vertical driving wheel ensures convenient maintenance and small turning radius. Water-proof and dust proof motor structure, keeps the braking and motor more durable and reliable.
The mast and the frame are dividable and exchangeable.
Full free lifting, fit for low roof house.
Low voltage protection setting prolongs the battery life time.
The electronic components’ concentrated design simplifies the circuit and makes esily assemble, debug and maintain.
CANbus technology reduces wiring complexity and increase reliability.
Hall element reduces wear components, resulting in increased component life.

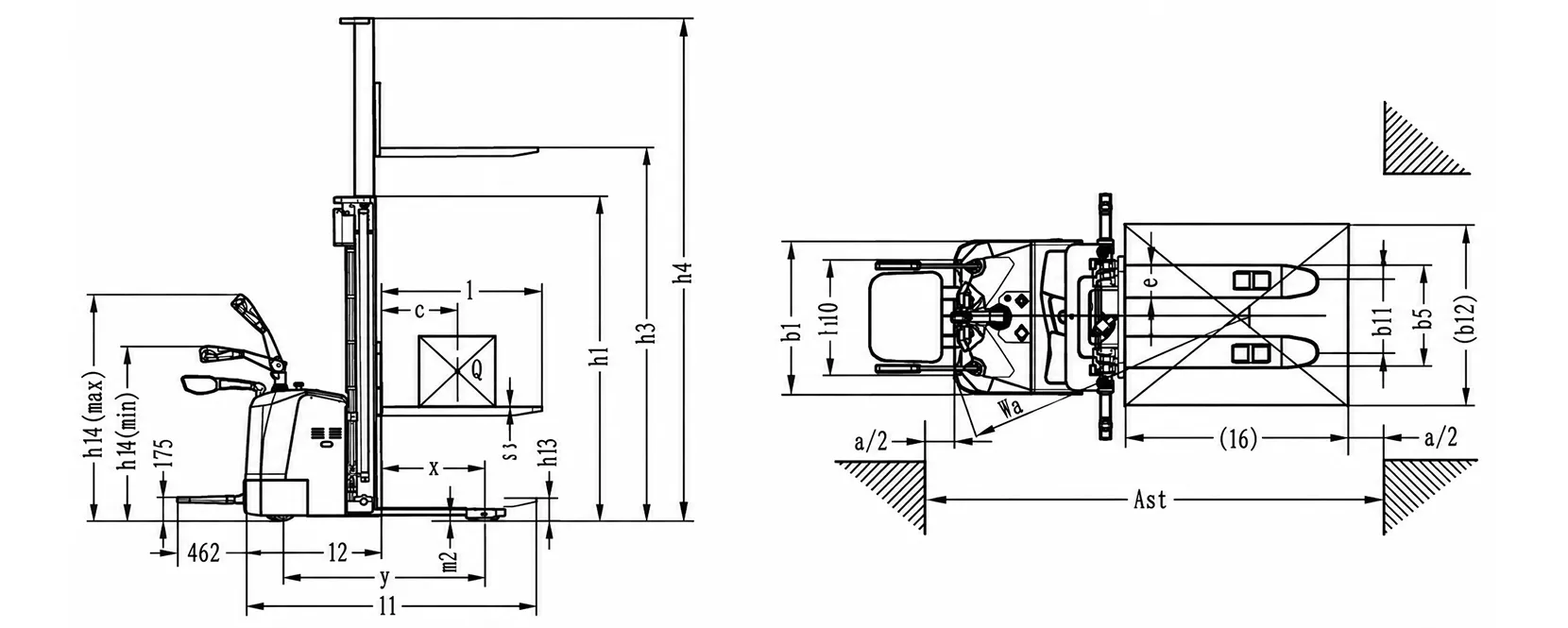

| Parameter | Unit | DB20 | DB20 (6.5M) |
| Model | — | DB20 | DB20 (6.5M) |
| Load Capacity | Q (kg) | 2000 | 2000 |
| Load Center | c(mm) | 600 | 500 |
| Load Distance | x(mm) | 672 | 672 |
| Front Tire Size | mm | Φ 250×80(EPS) | Φ 250×80(EPS) |
| Rear Tire Size | mm | Φ 80×84 | Φ 80×84 |
| Additional Wheels (Dimensions) | mm | Φ 150×60 | Φ 150×60 |
| Wheels, Number F/R (x=driven wheels) | — | 1x+2/4 | 1x+2/4 |
| Mast Lowered Height | h1(mm) | 1735/1985/2135/2235/2050/2210/2410 | 2710 |
| Free Lift | h2(mm) | ~/~/~/1570/1740/1940 | 2240 |
| Max. Lifting Height | h3(mm) | 2500/3000/3300/3500/4500/5000/5600 | 6500 |
| Mast Extended Height | h4(mm) | 2955/3455/3755/3955/5030/5510/6110 | 7050 |
| Height of Tiller in Drive Position Min./Max. | h14(mm) | 1150/1450 | 1150/1450 |
| Lowered Fork Height | h13(mm) | 90 | 90 |
| Overall Length | l1(mm) | 2020/2100 | 2100/2180 |
| Length to Fork Face | l2(mm) | 950 | 950 |
| Overall Width | b1(mm) | 850 | 950 |
| Fork Dimension | s/e/l(mm) | 60/180/1070(1150) | 60/180/1070(1150) |
| Overall Width of Forks | b5(mm) | 570/695 | 570/695 |
| Aisle Width for Pallets 800×1200 (1200 Crossways) | Ast(mm) | 2515 | 2595 |
| Turning Radius | Wa(mm) | 1655 | 1735 |
| Travel Speed, laden/unladen | km/h | 7/7.1 | 7/7.1 |
| Lifting Speed, laden/unladen | m/s | 0.11/0.16 | 0.11/0.16 |
| Lowering Speed, laden/unladen | m/s | 0.12/0.11 | 0.12/0.11 |
| Battery Voltage/Nominal Capacity K5 | V/Ah | 24/300 | 24/300 |
| Battery Weight | kg | 300 | 300 |
| Battery Dimension l/w/h | mm | 675×248×545 | 675×248×545 |
| Service Weight (with Battery) | kg | 1280/1320/1350/1640/1680/1720/2020 | 1850 |
*Option: DB20(6.5M) with Fork Width of 695mm without Stabilizer.
AC Drive Motor
EPS Electric Power Steering
Vertical Drive-Wheel Assembly
Rider Platform
Operator Side Guards
Multifunction Control Handle
Battery Indicator & Hour Meter
Side-Access Battery
24V/300Ah Battery
Mast & Fork Assembly
Damping Cushion
CANbus Communication System
