2.0Ton Electric Reach Truck for High-Level Warehousing

2.5Ton 3.0Ton Full Directional Electric Forklift

2.5Ton 3.0Ton Full Directional Electric Forklift

Good Partner for Cantilever Shelves
Customized 2500-105000mm Lifting Height
Optional Fork Positioner
Optional Fork Carriage And 4 Forks
Carry Very Long Materials, Stack in Very Narrow Aisles

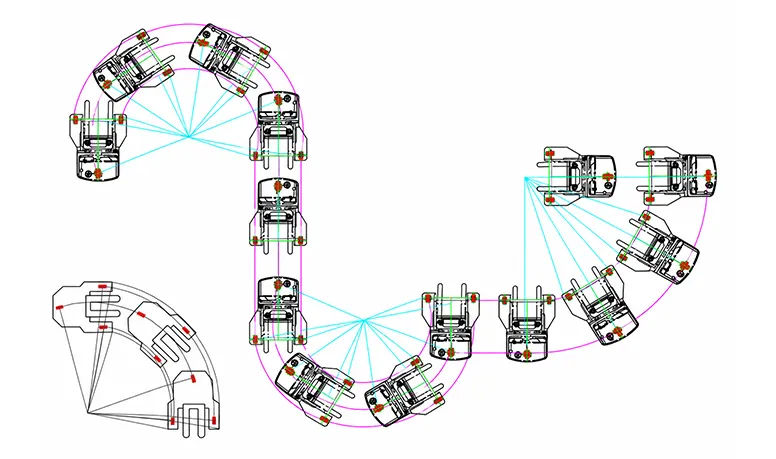

Drive-In Multiple Directions, Forwards, Backwards, Sideways
Moving Long Length Products Such as Metal Profiles, Plates, Glass Plates, Pipes, Etc.
Narrow Aisle Stacking, Aisle Width Only Need 2300mm
Mini Right Angle Turning Aisle Width Less Than 2100mm
Turning Radius Less Than 1225mm

Inquire Now

Download

Main Features

Full-Directional Travel
Moves forward, sideways, diagonally and rotates in place for flexible handling.
Long Load Handling
Handles pipes, profiles, plates and glass with less turning space.
Narrow-Aisle Maneuverability
Multi-direction steering improves movement efficiency in narrow aisles.

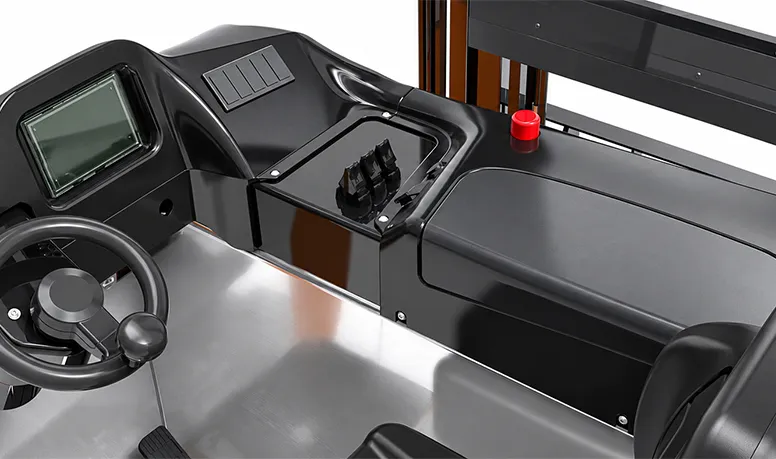

Electric Drive & HMI Control
Electric drive and HMI controls support precise, responsive operation.
Flexible Fork & Automation Options
Optional forks, cameras and AGV solutions support varied applications.

Product Description

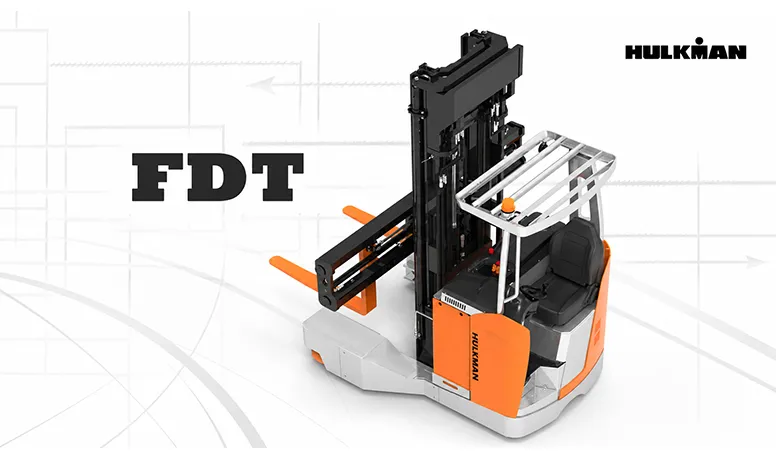

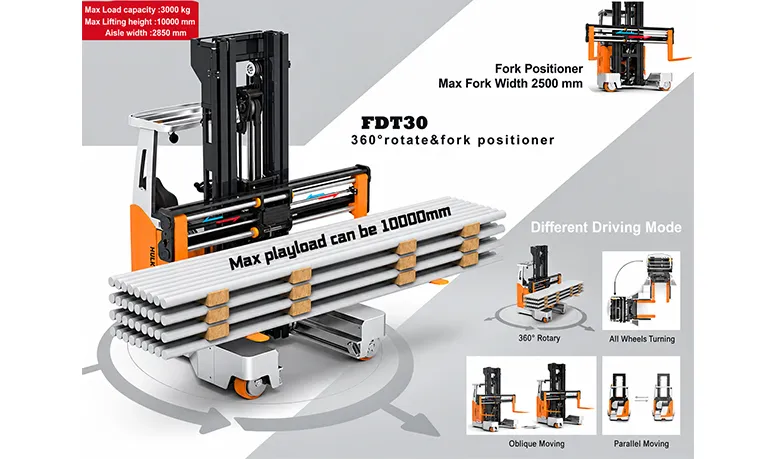

HULKMAN FDT series full-directional electric reach truck is suitable to carry
very long materials and stack in very narrow aisles. It is a very good partner for cantilever shelves. And its lifting height can be customized from 2.5 meters to 10.5 meters.
What’s more, FDT series reach truck can not only completely replace normal
forklift, but also drive in multiple directions. It is the best choice for 3-10m length long products moving, such as metal profiles, plates, glass plates, pipes, etc.
- 48V full AC system, rapid response, accurate steering angle control, high electrical integration, low energy consumption.
- Spool is imported from America, precise hydraulic control, can meet AGV application requirements.
Electrical modular control technology, CAN bus communication, more easy for AGV modification.

Full wheels display in real time, with high recognition, makes operation more easy, direction control more precise in narrow aisles, work more safe and reasonable.
The load wheel is equipped with 5 stage steering deceleration, with small control current, makes steering angle controlled more precise, effectively extends the steering motor service life.
Double clutch type driving brake and parking brake, make the deceleration brake more stable and more secure.
Human engineering ergonomics machine design, will give operator more comfortable work feeling and more excellent driving experience.

Product Description

Specification	Symbol / Unit	FDT25	FDT30
Model	—	FDT25	FDT30
Power Supply	—	Electric	Electric
Driving Type	—	Half Closing Sitting	Half Closing Sitting
Load Capacity	Q (kg)	2500	3000
Load Center	C (mm)	600	500
Rear Overhang	x1 (mm)	498	498
Front Overhang	x (mm)	175	175
Wheelbase	y (mm)	1700	1700
Truck Weight (Include Battery)	kg	4400	4500
Battery Weight (±5%)	kg	920	1020
Tires Front/Rear	—	PU	PU
Front Load Wheels (Diameter × Width), Single Wheel	mm	Φ280 × 135	Φ280 × 135
Rear Driving Wheel (Diameter × Width), Single Wheel	mm	Φ343 × 140	Φ343 × 140
Wheel Quantity Drive Wheel / Load Wheel	pcs	1X / 2	1X / 2
Front Wheels Distance	b3 (mm)	1392	1392
Lifting Height	mm	3000–10000	3000–10000
Fork Tilting Front/Rear	α/β (°)	2 / 4	2 / 4

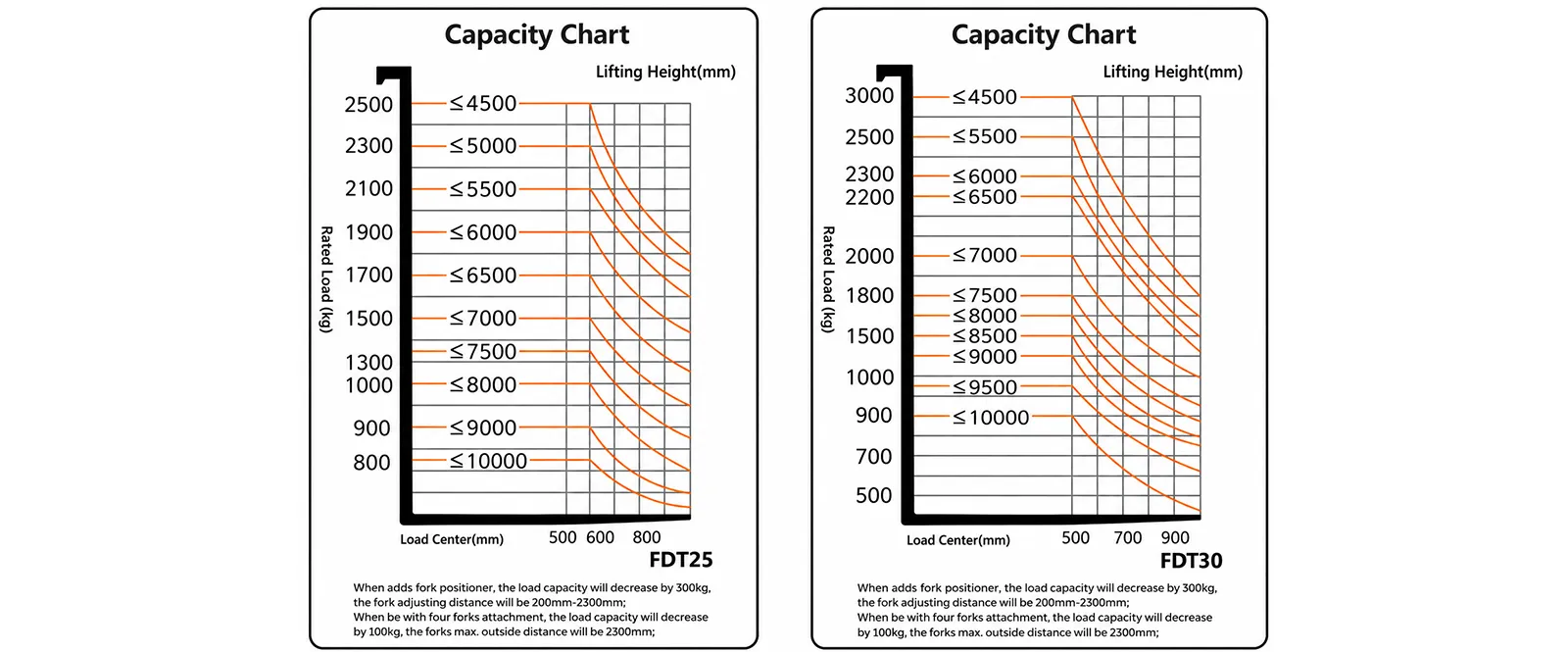

Lifting Height	h1 (mm)	See attachment	See attachment
Overhead Guard Height	h5 (mm)	2190	2190
Seat Height / Operation Platform Height	mm	1100 / 1350	1100 / 1350
Min. Ground Clearance	h8 (mm)	40	40
Balance Leg Height	h10 (mm)	457	457
Overall Length (Include Fork)	l1 (mm)	2470	2320
Overall Width	b1 (mm)	1728	1728
Fork Size	l/e/s (mm)	1070 / 100 / 45	920 / 125 / 45
Rear Chassis Width	b2 (mm)	1230	1230
Fork Width	b5 (mm)	355–880	380–880
Inside Width of Legs	b6 (mm)	920	920
Min. Turning Radius	Wa (mm)	1952	1952
Min. Aisle Width (Go Straight)	mm	2075	2075
Min. Aisle Width When Side Moving, Pallet 3000 × 1000 × 1000	mm	2600	2600

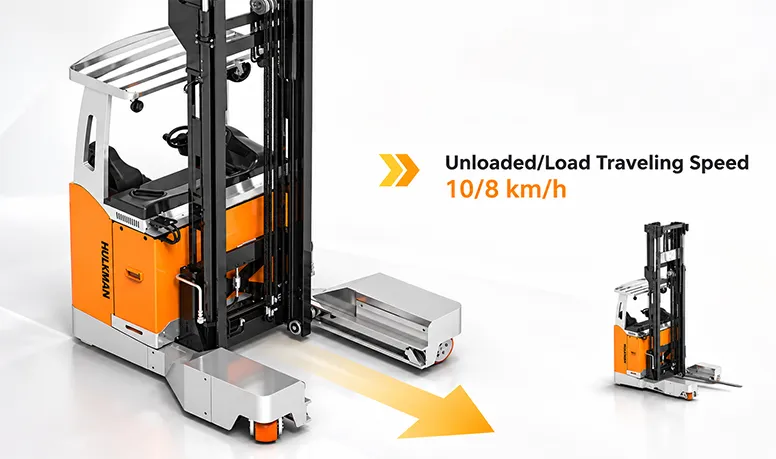

Driving Speed Loaded/Unloaded	km/h	10 / 11	10 / 11
Lifting Speed Loaded/Unloaded	mm/s	250 / 300	250 / 300
Lowering Speed Loaded/Unloaded	mm/s	300 / 300	300 / 300
Gradeability Loaded/Unloaded	% (tanθ)	8 / 15	7 / 15
Brake	—	Electric	Electric
Park	—	Electric	Electric
Driving Motor (S2-60min) AC	kW	8	8
Lifting Motor (S3-15%)	kW	12.5	15
Steering Motor AC	kW	0.7	0.7
Battery Voltage/Capacity	V/Ah	48 / 560	48 / 600

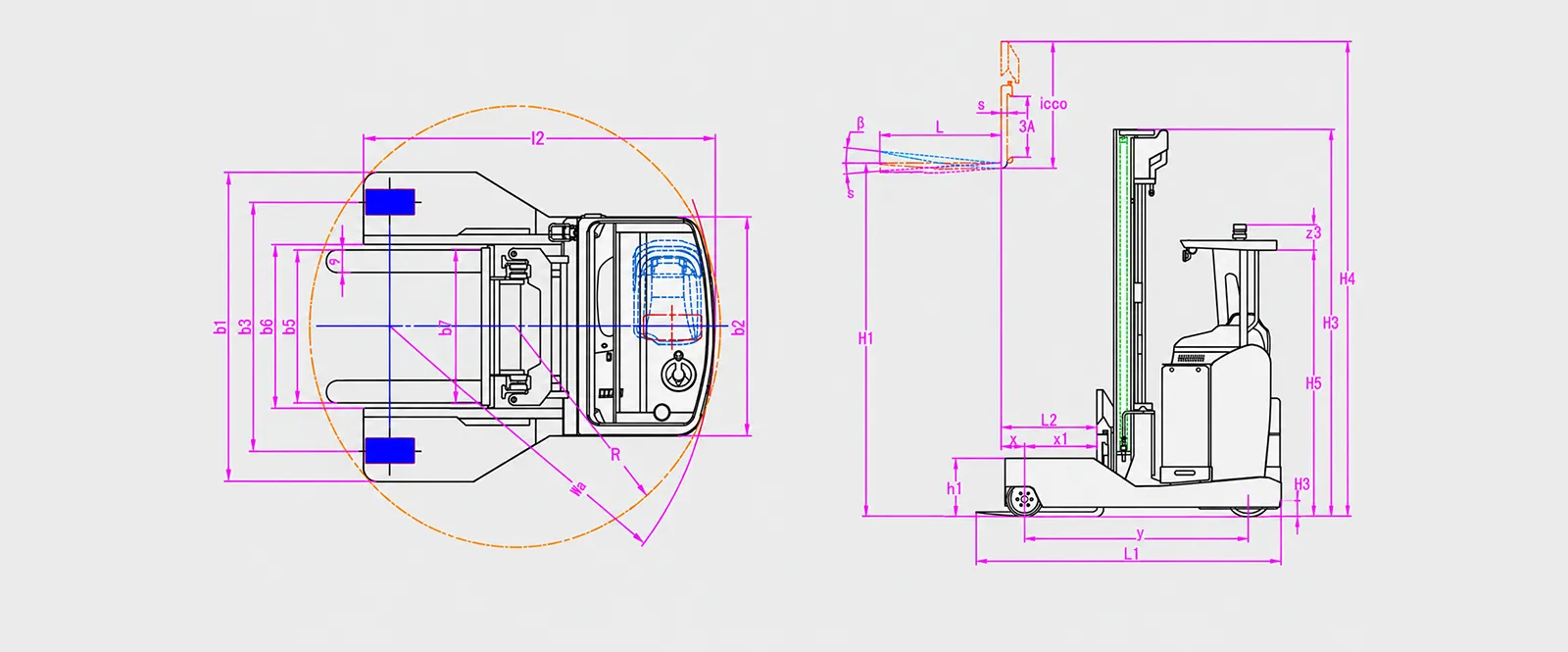

Dimension Drawing

Optional Choice

Wireless Camera & Display System

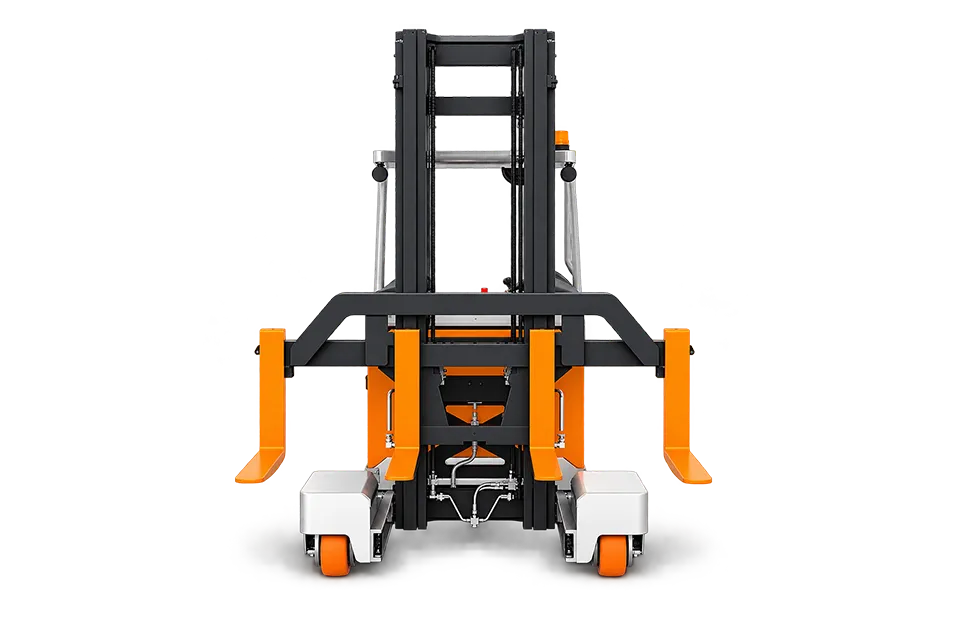

Four-Fork & Wide-Fork Configuration

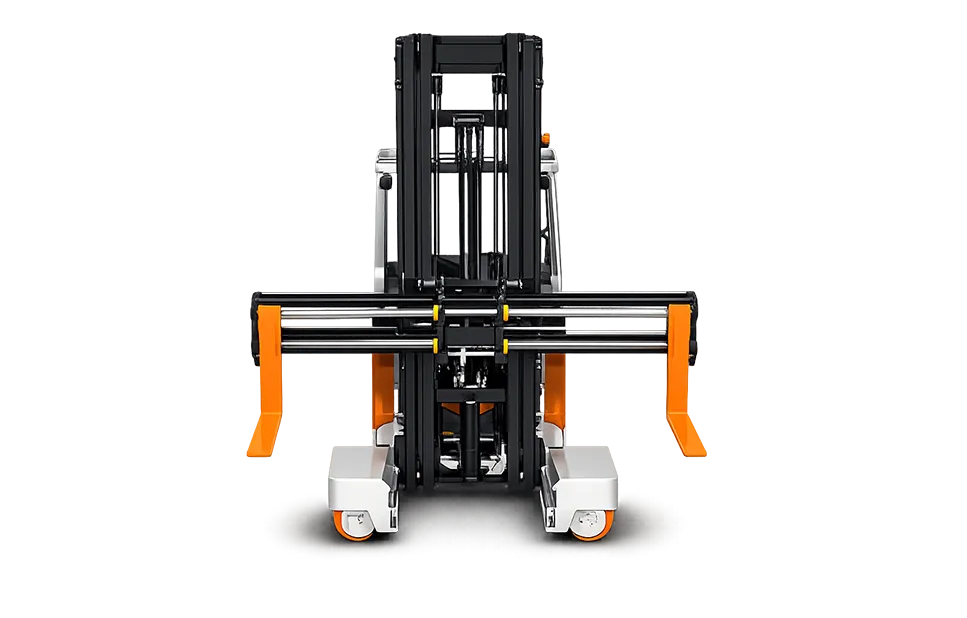

Fork Positioner
AGV Modification
Electromagnetic Proportional Valve

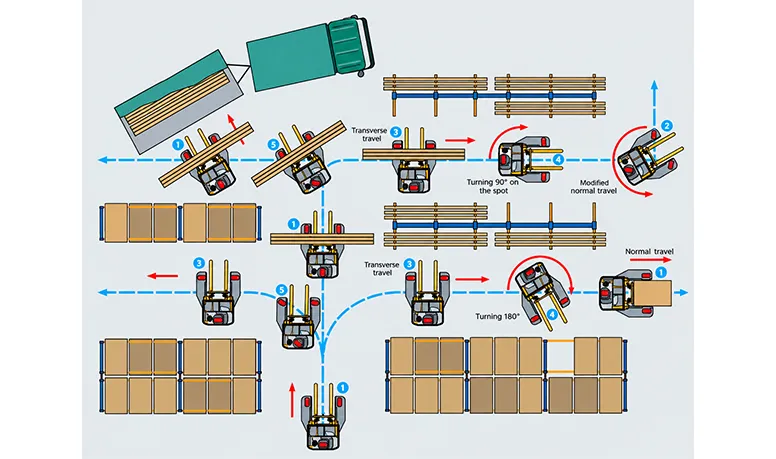

Applications for the 2.5Ton 3.0Ton Full Directional Electric Forklift
