Stand-On Type Platform Pallet Truck
Optional 225AH Lithium Battery
Small Turning Radius
Super Light Steering System
Widely used in large warehouse and big supermarket
For Medium Distance Transportation
Free Maintenance AC Motor
Sideway Battery Replacement
Platform with Speed Sensor
Optional Keypad access
Optional Lithium Battery
TB30 handles up to 3,000‑kg pallets for heavy‑duty horizontal material handling.
Integrated operator platform enables repeated medium‑distance transport with speed‑sensor‑controlled movement.
9 km/h laden, 9.2 km/h unladen speeds enable regular pallet transfers across work areas.
775‑mm width and 1,550‑1,670 mm turning radius suit narrow warehouse aisles and staging areas.
Brushless AC system cuts motor maintenance; side roll‑out battery eases replacement.
The TB30 combines a 3,000 kg rated capacity with stand-on operation for medium-distance pallet transport. It is designed for low-level movement rather than high-rack stacking.
Multiple fork lengths and overall fork widths are available to match different pallet formats. The final configuration should be selected according to pallet dimensions, load weight and aisle conditions.
An emergency reversing device, emergency power disconnect switch and built-in pressure relief valve support controlled daily operation.
Braking is applied when the handle reaches the upright or horizontal position. Combined balance wheels help reduce side-to-side movement and can be adjusted for different operating conditions.
The sideway roll-out battery system provides accessible battery removal and replacement. The integrated balance wheel can also be removed separately for inspection or maintenance.
The operator platform is designed for convenient removal when replacement or repair is required. Low-voltage cut-off protection helps protect the battery system.
The stand-on layout reduces the need for repeated walking during medium-distance transport. The steering system and accessible tiller controls help the operator manage travel, lifting and positioning functions.
A multifunction display shows battery status, operating hours and fault information for clearer daily monitoring.

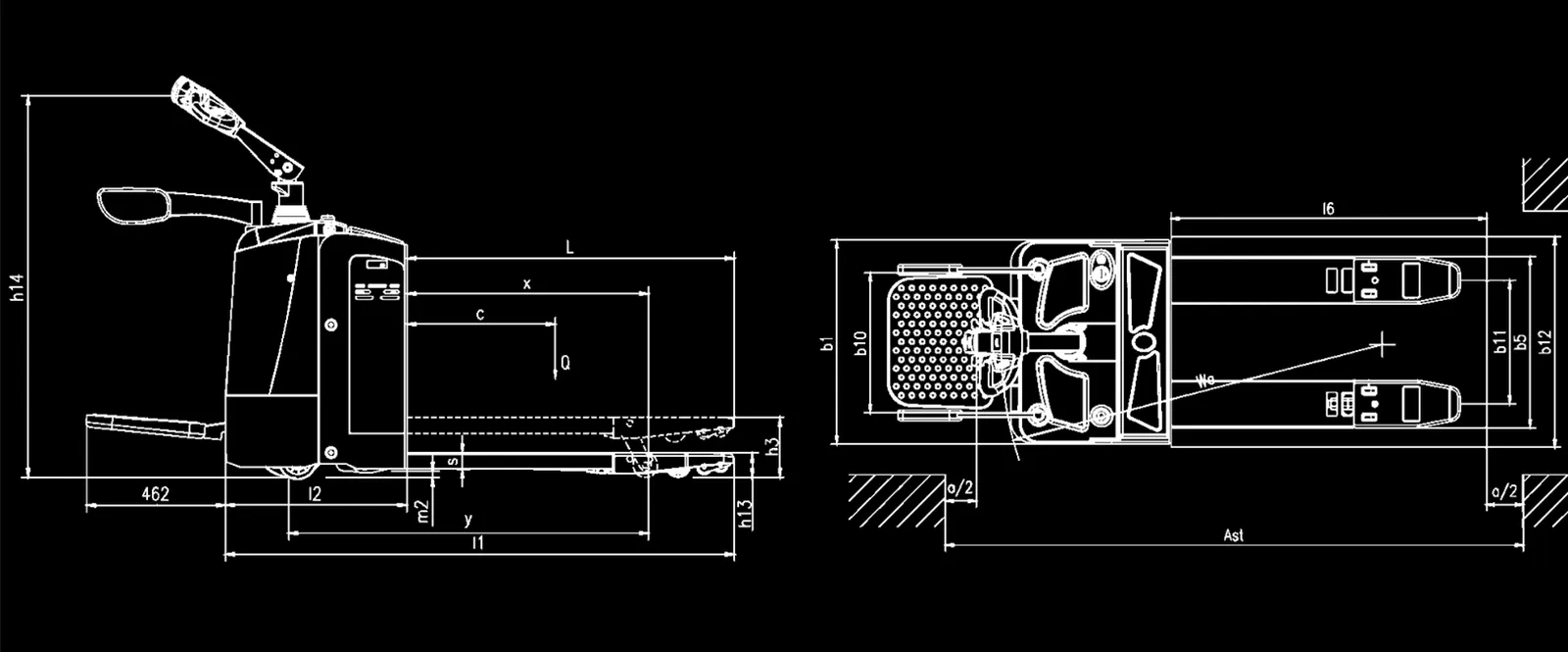

| Parameter | Symbol / Unit | TB30 |
| Model | — | TB30 |
| Load Capacity | Q (kg) | 3000 |
| Load Center | c (mm) | 600 |
| Load Distance, Center of Drive Axle to Fork | x (mm) | 914 / 964 / 1034 |
| Fork Height, Lowered | h13 (mm) | 82 |
| Front Tire | mm | φ250 × 70 |
| Rear Tire | mm | φ82 × 126 (98) |
| Additional Wheels (Dimensions) | mm | φ127 × 57 |
| Wheels, Number Front/Rear (x = Driven Wheels) | — | 1x + 2 / 2 (4) |
| Maximum Lifting Height | h3 (mm) | 202 |
| Height of Tiller in Driving Position, Min./Max. | h14 (mm) | 1150 / 1430 |
| Overall Length | l1 (mm) | 1785 / 1835 / 1905 |
| Length to Face of Forks | l2 (mm) | 685 |
| Overall Width | b1 (mm) | 775 |
| Fork Dimensions | s/e/l (mm) | 54 × 180 × 1100 / 1150 / 1220 |
| Overall Fork Width | b5 (mm) | 520 / 550 / 650 / 685 |
| Aisle Width for 1000 × 1200 mm Pallets (1200 Crossways) | Ast (mm) | 2435 / 2480 / 2550 |
| Aisle Width for 800 × 1200 mm Pallets (1200 Crossways) | Ast (mm) | 2320 / 2345 / 2380 |
| Turning Radius | Wa (mm) | 1550 / 1600 / 1670 |
| Travel Speed, Laden/Unladen | km/h | 9 / 9.2 |
| Battery Voltage/Nominal Capacity K5 | V/Ah | 24 / 240 (280) |
| Battery Weight | kg | 275 |
| Battery Dimensions (L × W × H) | mm | 650 × 247 × 505 (535) |
| Service Weight (Including Battery) | kg | 780 |

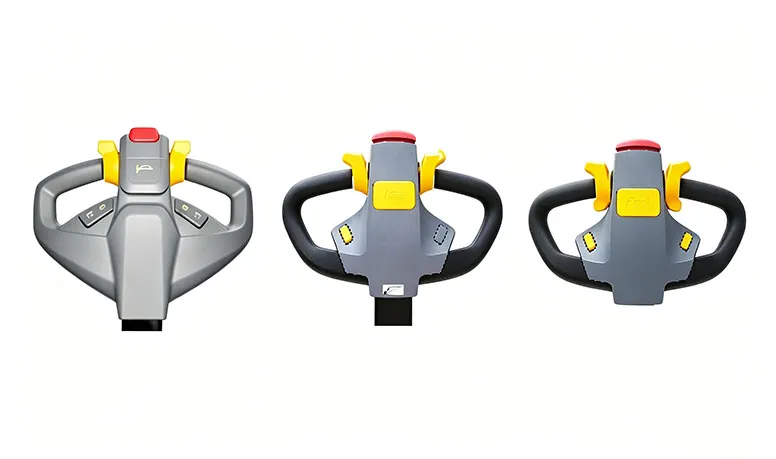

Frei tiller head with one side lifting button (option)
Handle (standard)
Frei tiller head with one side lifting button (option)
Keypad access (option)

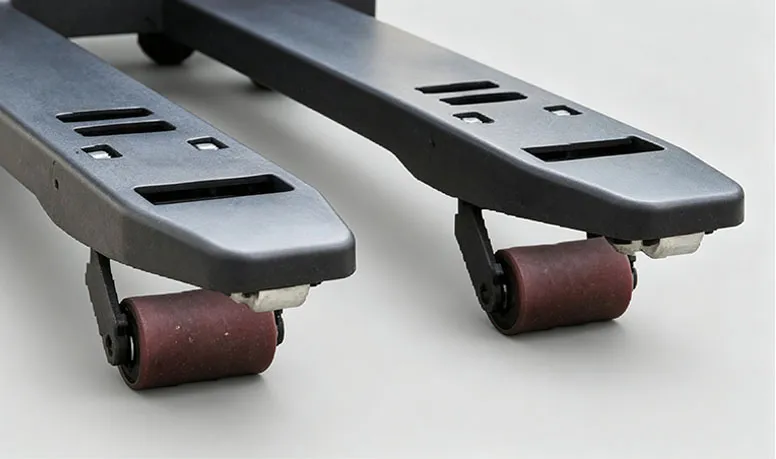

Entry roller for easy operation
Emergency Stop& Bely Button
BDI and Hour Meter
Casters to Balance Stability
Industrial Battery
Brushless AC Motor
Vertical Driving Motor
Sideway Battery Change
Built-Out Charger
Platform with Speed Sensor
Fork Width Length (Size)
Load Backrest
Built-in Charger
Cold Storage with Rubber Drive Wheel
Entry & Exist Roller for Empty Pallets
EPS, drive wheel size is 250x80mm
Large Compartment with Battery Capacity 280Ah,400Ah; Drive Speed 9.5-10km/h
Lithium Battery 24V/125Ah
