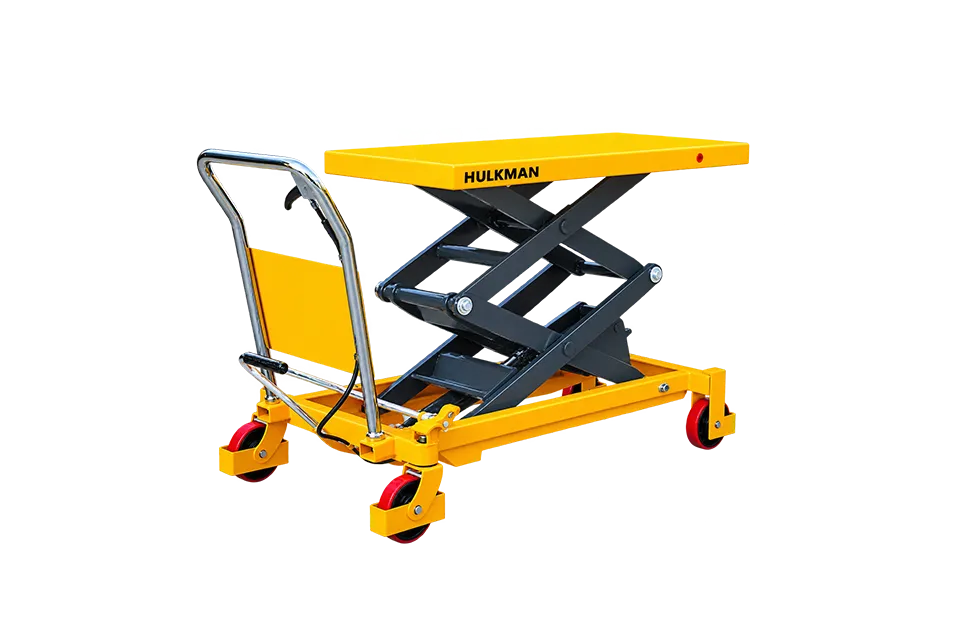

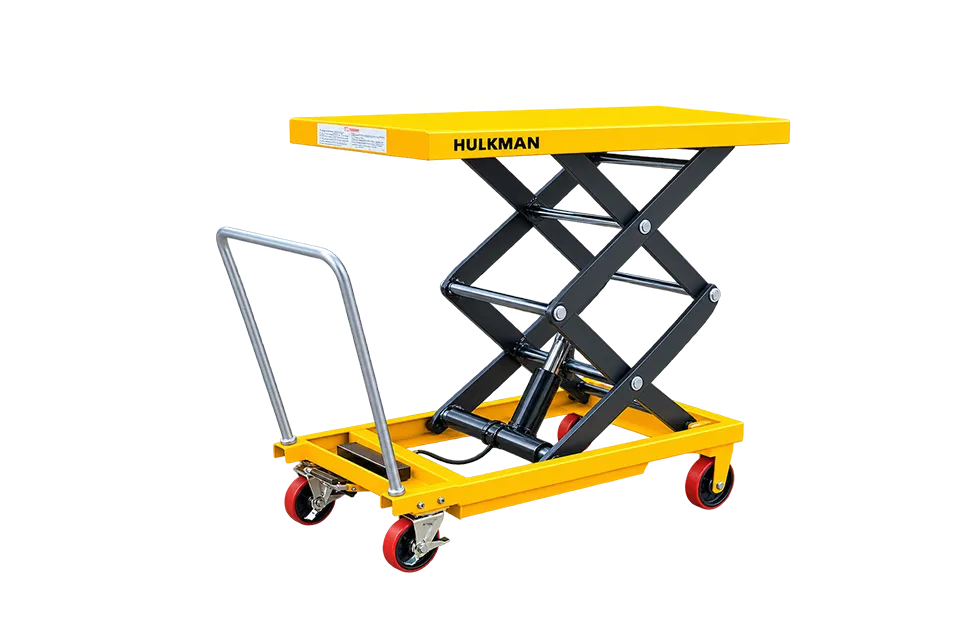

Double Scissor Lift Table 150–800kg
Main Features
-
Models lift loads from 900 to 1,500 mm.
-
Models handle 150, 350, 500, 680 or 800 kg.
-
Foot pedal lifts hydraulically without electricity.
-
Platform sizes: 700 × 450 to 1,600 × 800 mm.
-
Handle and casters support mobile load positioning.

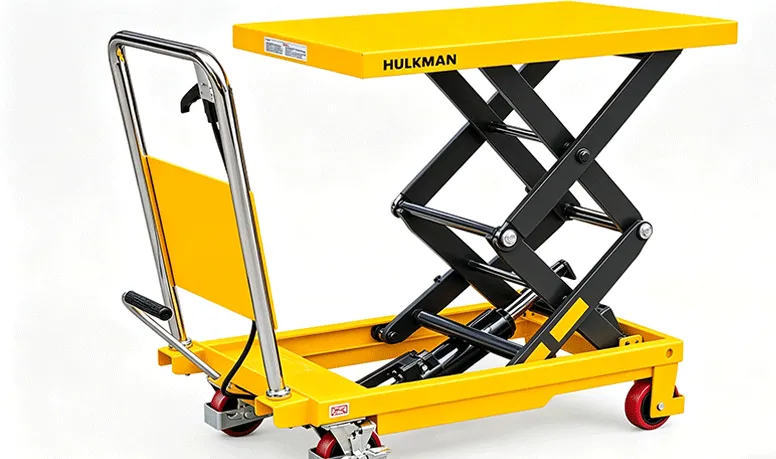

Product Description
-

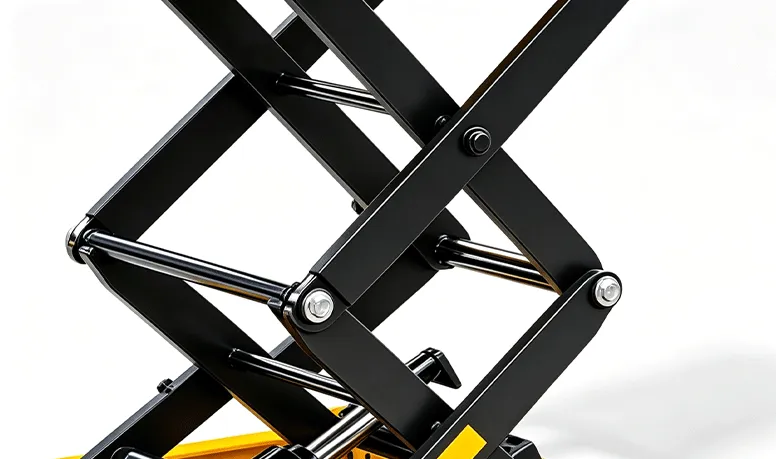

High-Lift Scissor Structure
The double scissor lift table is designed to transport loads and raise them to a practical working position. Its multi-stage scissor structure provides a greater lifting range than a standard single-scissor platform.
The SPS150, SPS350 and SPS800 models reach maximum table heights of 1,100, 1,300 and 1,500 mm respectively. Model selection should account for load weight, load footprint, required working height and available maneuvering space.
-
Safety and Stability

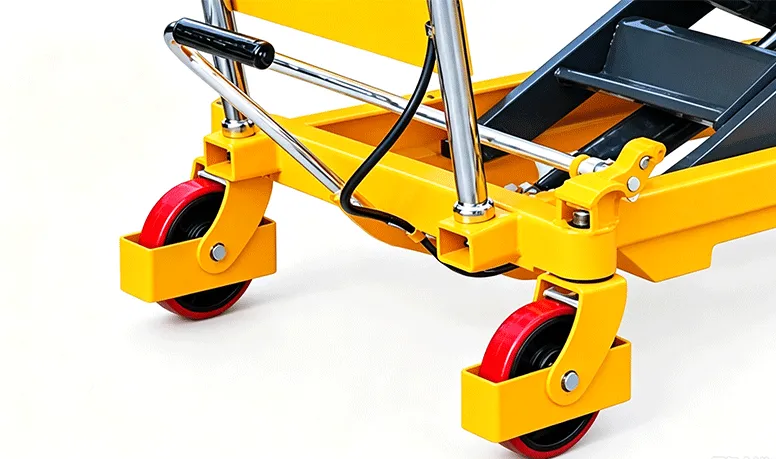

The welded frame supports the platform, hydraulic system and scissor mechanism. The rear guard forms a barrier between the operator position and the raised platform, while guarded casters support controlled movement.
The supplied product information also identifies a hydraulic overload bypass valve and a supporting plate beside the scissor arm. Loads must remain stable, centered on the platform and within the rated capacity.
-
Hydraulic System and Service
The foot pedal operates the hydraulic lifting system, while the release control lowers the platform. The number of pedal cycles required to reach maximum height varies according to the selected model.
Routine checks should cover hydraulic leakage, pedal operation, lowering control, scissor pivots, casters, wheel guards and frame fasteners.
-
Operator Control

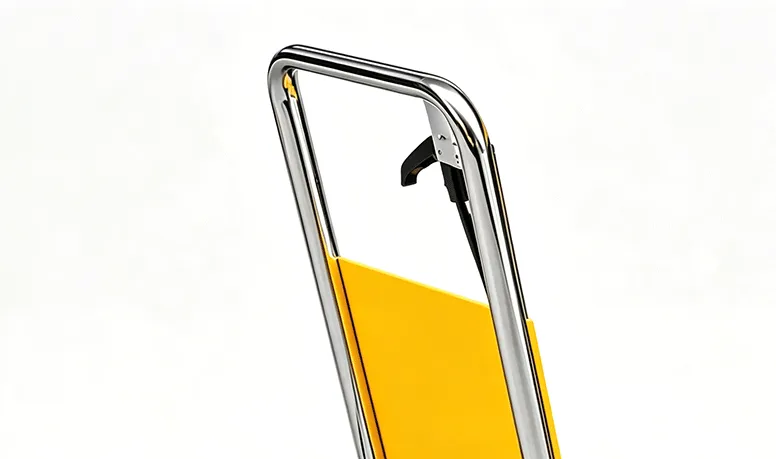

The push handle supports manual movement and positioning. The foot-operated lifting pedal allows the operator to raise the platform while maintaining a stable standing position behind the unit.
A finger-operated release control provides convenient platform lowering. The lift table should be stationary before raising or lowering a load.
Product Description
| Parameter | Symbol / Unit | MDLT150 | MDLT350 | MDLT800 |
| Rated Load Capacity | kg | 150 | 350 | 800 |
| Max. Lifting Height | h12 (mm) | 1100 | 1300 | 1500 |
| Min. Height of Table | h13 (mm) | 302 | 350 | 475 |
| Lifting Height | h3 (mm) | 798 | 950 | 1025 |
| Table Size | l × b5 × s (mm) | 700 × 450 × 35 | 910 × 500 × 50 | 1220 × 610 × 60 |
| Total Height | h14 (mm) | 921 | 970 | 962 |
| Overall Length | l1 (mm) | 773 | 980 | 1375 |
| Foot Pedal Cycles to Max. Height | — | ≤30 | ≤60 | ≤70 |
| Wheel Diameter | d (mm) | 100 | 127 | 150 |
| Qty. / 20 ft Container | pcs | 168 | 110 | 48 |
| Service Weight | kg | 64 | 105 | 172 |
| Carton Size | mm | 800 × 480 × 330 | 1010 × 530 × 390 | 1400 × 730 × 500 |
Dimension Drawing
Warning: foreach() argument must be of type array|object, false given in /www/wwwroot/haoke.hyhdemo.top/wp-content/themes/hyhadmin/single-product.php on line 117
Optional Choice
-
Steel Load Platform
-
Scissor-Lift Structure
-
Manual Hydraulic Pump
-
Foot-Operated Pedal
-
Hand Release Control
-
Steel Push Handle
-
Reinforced Base Frame
-
Hydraulic Cylinder
-
Scissor Arms
-
Swivel Casters
-
Fixed Casters
-
Wheel Brakes
-
Wheel Guards
-
Support Plate
-
Release Cable
