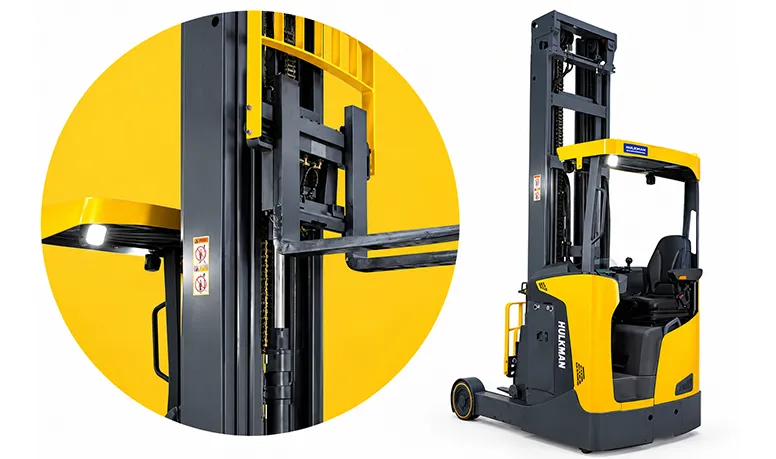

Max. Lifting Height 14meter
EPS (Electric Power Steering)
German KORDEL Gearbox
Integral Side Shifter
Imported Mast Material
LED Warning Light and Front Light
Height Positioning System
Full AC Free maintenance Motors
5 Lift Height Options
3000–8000mm lifting range for flexible multi-level pallet storage.
1500kg Load Capacity
Handles up to 1,500kg loads with a 600mm load center.
600mm Reach Mechanism
Extends forks 600mm for efficient rack pallet handling.
AC Drive System
Ensures smooth travel, precise control and low maintenance.
Electric Power Steering
Provides effortless steering for narrow aisle operation.

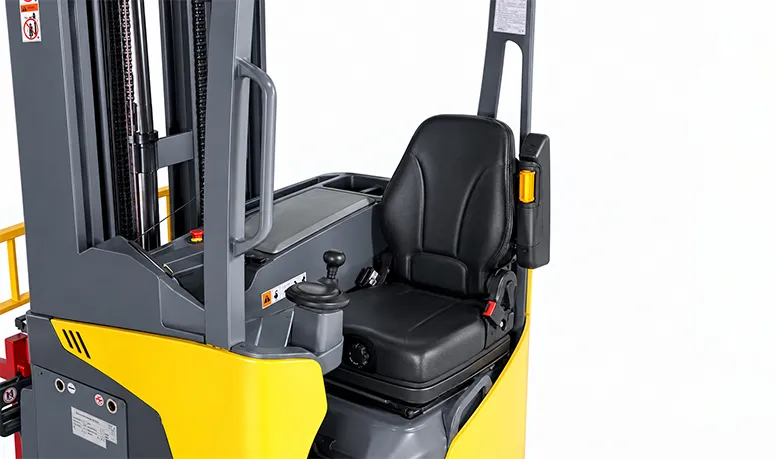

Handrails are designed on the left and right sides of the frame, which is more convenient for operators to get on and off

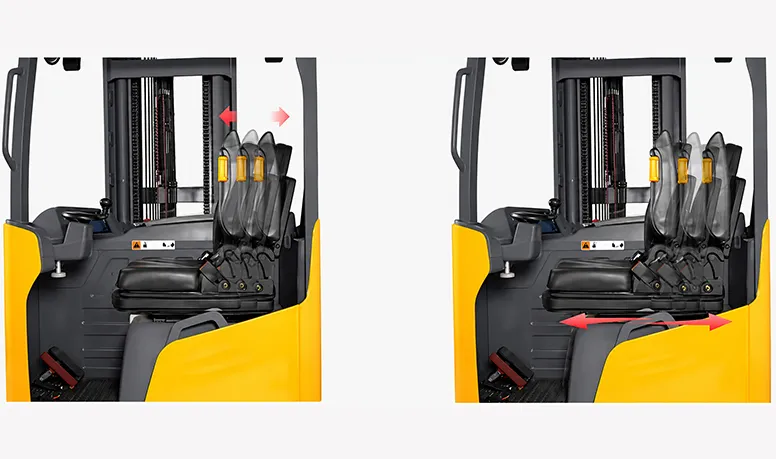

Luxury Seats are adopted, with adjustable seat back angel and adjustable seat positions, front and rear, with shock absorption function

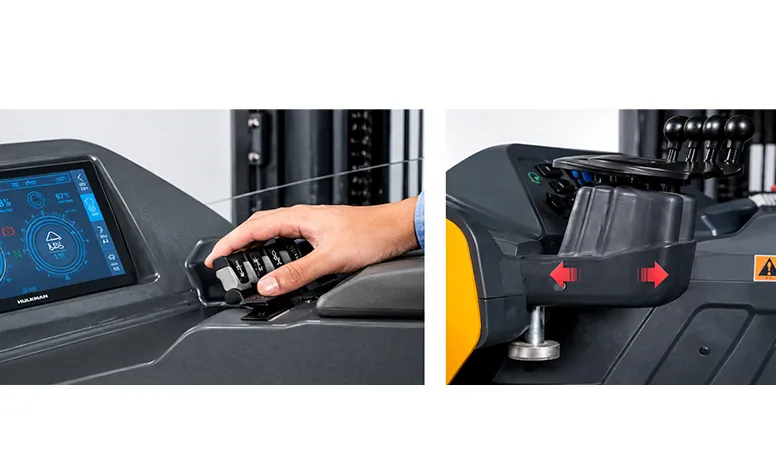

Finger-Tip operation control the reach truck lifting & lowering, integral side-shifter, fork tilting,mast reach forward & backward. And Completed Steering can be adjustable to meet different operator’s needs
Imported mast material ensures residual and reduce the shaking of the mast. Special mast design keeps wide and perfect view.

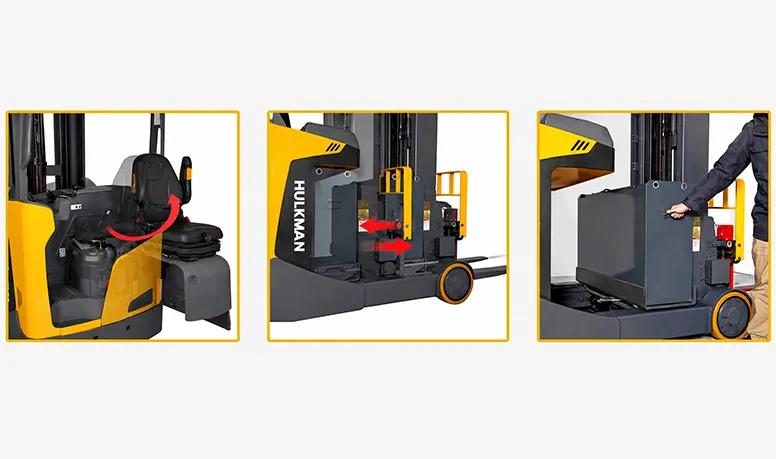

Easy maintenance: the cover can be open to ensure the maintenance easy and fast; the battery can be removed with the mast, and with side-way structure to facilitate the maintenance or replacement of the battery

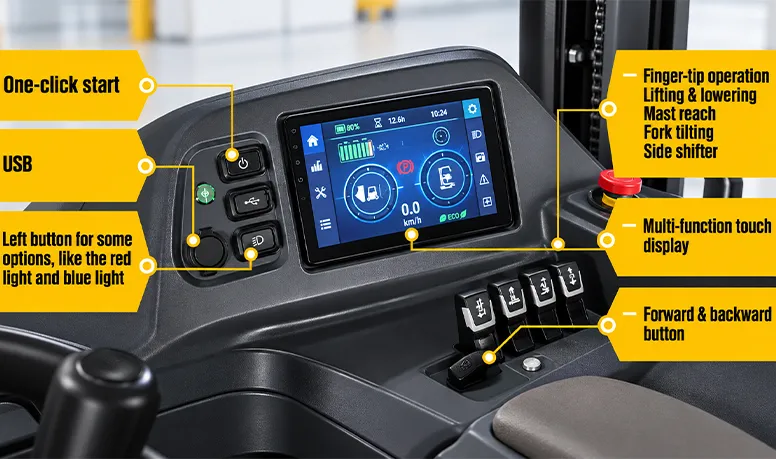

4 different driving speed mode: M1-7km/h, M2-8km/h, M3-9km/h, M4-10km/h
Battery display indicator & working hour display
Travel forward and backward control
LED light control
Horn control
Steering angle control
180°/360°one click switch
Camera display

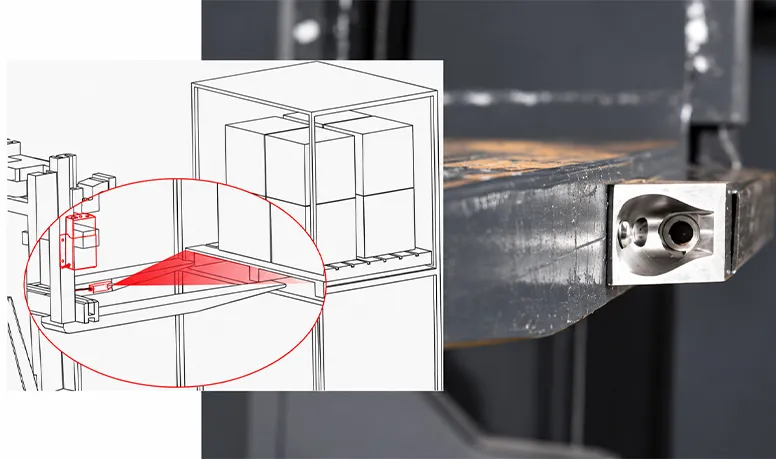

Fork camera system is equipped, which has a better field of vision when loading and unloading goods, and there is no effect of being blocked by the pallet. The camera is made of stainless steel with IP69 and shockproof grade of 10G. Not Afriad of Bumps

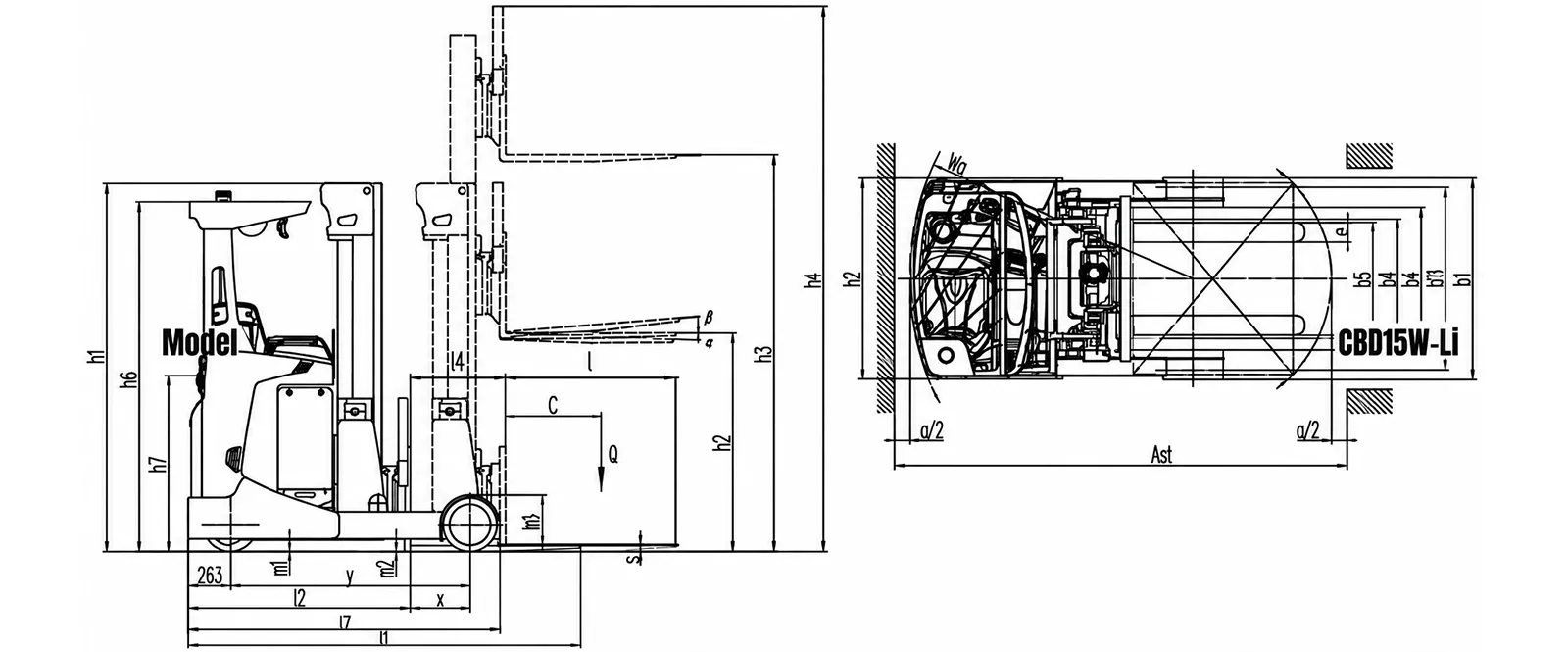

| Parameter | Unit | YB20 (≤9.5M) | YB20 (≥9.5M) |
| Model | YB20 | YB20 | |
| Drive Type | Electric | Electric | |
| Operator Type | Seated | Seated | |
| Rated Load Capacity | Q(kg) | 2000 | 2000 |
| Load Center Distance | c(mm) | 600 | 600 |
| Load Distance, Center of Drive Axle to Fork | x(mm) | 377 | 377 |
| Wheelbase | y(mm) | 1510 | 1510 |
| Service Weight | kg | 3605 | 4750 |
| Axle Loading, Unladen F/R | kg | 2245/1360 | 2958/1792 |
| Axle Loading, Fork Advance, Laden F/R | kg | 727/4878 | 875/5875 |
| Axle Loading, Fork Retracted, Laden F/R | kg | 2030/3575 | 2444/4306 |
| Tire Type | Polyurethane | Polyurethane | |
| Front Tire Size | mm | Φ343×140 | Φ343×140 |
| Rear Tire Size | mm | Φ340×114 | Φ340×114 |
| Additional Wheels (Dimensions) | mm | / | / |
| Wheels, Number F/R (x=driven wheels) | 1/2 | 1/2 | |
| Front Tread | b10(mm) | / | / |
| Rear Tread | b11(mm) | 1146 | 1196 |
| Tilt of Mast F/R | a/β(°) | 2/4 | 2/4 |
| Mast Lowered Height | h1(mm) | 2340 | 4190 |
| Free Lifting Height | h2(mm) | 1400 | 3250 |
| Lifting Height | h3(mm) | 5000 | 10200 |
| Mast Extended Height | h4(mm) | 5940 | 11140 |
| Overhead Guard Height (Cabin) | h6(mm) | 2210 | 2210 |
| Overall Length | l1(mm) | 2466 | 2466 |
| Length to Face of Forks | l2(mm) | 1396 | 1396 |
| Overall Width | b1/b2(mm) | 1270/1260 | 1345/1260 |
| Fork Dimensions DIN ISO 2331 | s/e/l(mm) | 40/120/1070 | 40/120/1070 |
| Fork Carriage ISO 2328, Class/Type A,B | 2B | 2B | |
| Fork Carriage Width | b3(mm) | 928 | 928 |
| Fork Spread | b5(mm) | 708 | 708 |
| Distance Between Wheel Arms/Loading Surfaces | b4(mm) | 900 | 900 |
| Reach Distance | l4(mm) | 600 | 600 |
| Ground Clearance, Laden, Below Mast | m1(mm) | 70 | 70 |
| Aisle Width for Pallets 1000×1200 Crossways | Ast(mm) | 2849 | 2849 |
| Aisle Width for Pallets 800×1200 Crossways | Ast(mm) | 2899 | 2899 |
| Turning Radius | Wa(mm) | 1783 | 1783 |
| Length Across Wheel Arms | l7(mm) | 1960 | 1960 |
| Travel Speed, Laden/Unladen | km/h | 10.5/11 | 10.5/11 |
| Lift Speed, Laden/Unladen | m/s | 0.29/0.45 | 0.29/0.45 |
| Lowering Speed, Laden/Unladen | m/s | 0.5/0.56 | 0.5/0.56 |
| Reaching Speed, Laden/Unladen | m/s | 0.12/0.12 | 0.12/0.12 |
| Max. Gradeability, Laden/Unladen | % | 10/10 | 10/10 |
| Service Brake | Electromagnetic | Electromagnetic | |
| Drive Motor Rating S2 60min | kW | 6.5(AC) | 6.5(AC) |
| Lift Motor Rating S3 15% | kW | 8.2(AC) | 8.2(AC) |
| Battery According to DIN 43531/35/36 A,B,C | / | / | |
| Battery Voltage/Nominal Capacity K5 | V/Ah | 48/500 | 48/500 |
| Battery Weight | kg | 870 | 870 |
| Sound Pressure Level at Driver’s Seat | dB(A) | 65 | 65 |

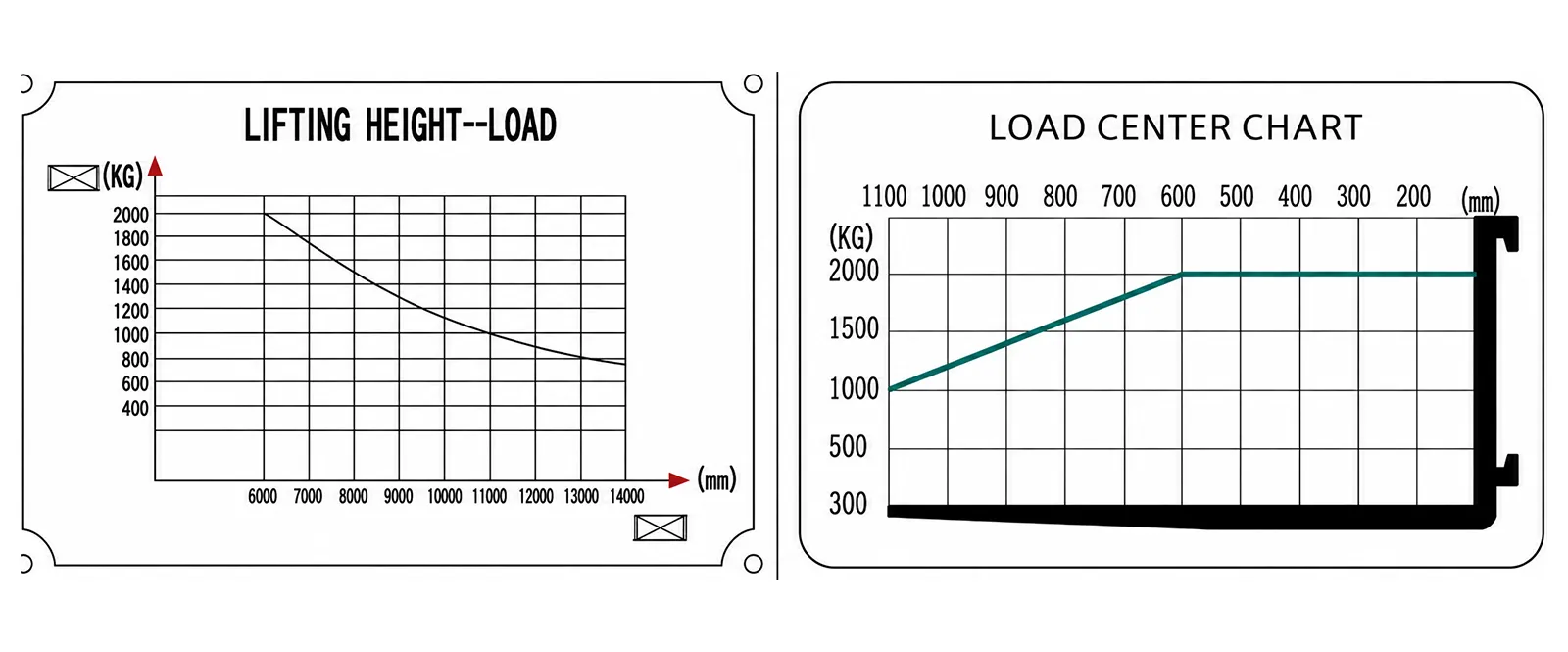

| Max. Lift Height | Height, Mast Lowered | Free Lift (with Overhead Guard) | Height, Mast Extended |
| h3 (mm) | h1 (mm) | h2 (mm) | h4 (mm) |
| 3000 | 2240 | 0 | 3940 |
| 3500 | 2490 | 0 | 4440 |
| 4000 | 2740 | 0 | 4940 |
| 5000 | 2340 | 1400 | 5940 |
| 6200 | 2740 | 1800 | 7140 |
| 7400 | 3190 | 2250 | 8340 |
| 8000 | 3390 | 2450 | 8940 |
| 8600 | 3590 | 2650 | 9540 |
| 9500 | 3890 | 2950 | 10440 |
| 10200 | 4190 | 3250 | 11140 |
| 11100 | 4490 | 3550 | 12040 |
| 12000 | 4790 | 3850 | 12940 |
| 12500 | 4956 | 4016 | 13440 |
| 13000 | 5226 | 4286 | 13940 |
| 14000 | 5556 | 4616 | 14940 |
INMOTION controller
Driving Motor: 6.5Kw (AC)
Lifting Motor: 8.2Kw (AC)
Lead-acid battery 48V/500AH (side-way design)
Gear box: Germany KORDEL
Integral sideshifter
Fork tilting
High-level seat
Imported mast material
LED warning light & front light
Height-positioning system
Camera system
LED back lights
Lithium battery (48V/350AH & 48V/400AH & 48V/450AH)
Electro-magnetic operation
Bigger capacity of lifting motor: 12Kw
