1000mm Reaching Distance with Double Scissors
Max. 9000mm Lifting Height with 1ton Loading Capacity
Standard EPS (Electric Power Steering)
Wide View Mast
Electric Control Scissor Reach Forks
Free Maintenance AC Motors
High Speed Lifting and Lowering, 300% Faster Than Normal
Side-Way Battery Remove
Optional Single Scissors
1,000 mm Fork Reach
Extends forks beyond legs
Standard EPS
Reduces steering effort.
Mast Height Options
4,500–9,000 mm lifting.
Proportional Hydraulic Control
Adjustable lift speed.
Accessible Battery & Diagnostics
Easy access and checks.

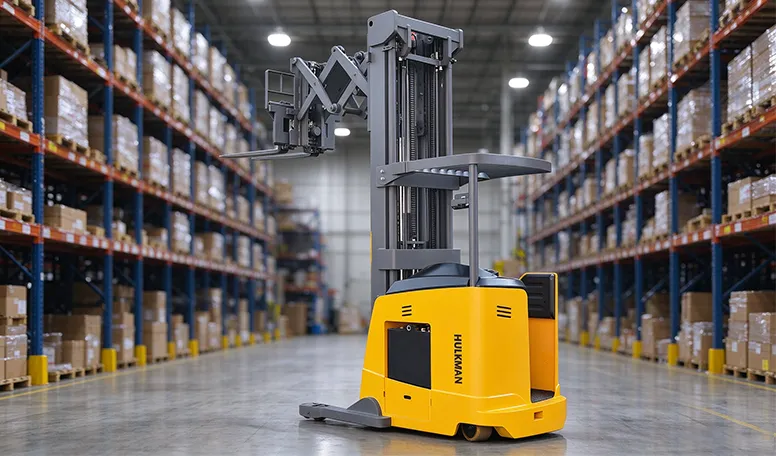

Extended Fork Reach

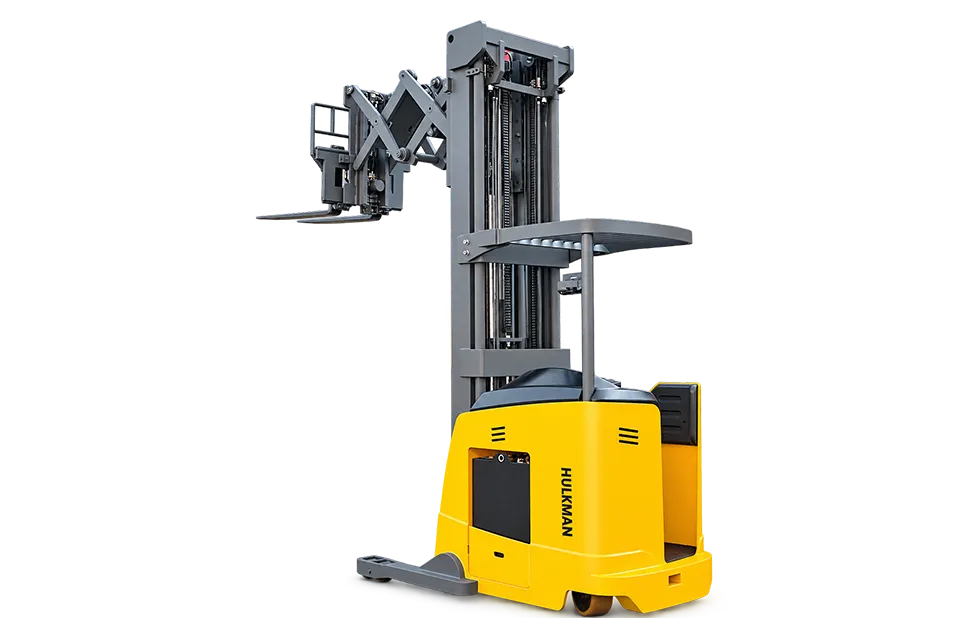

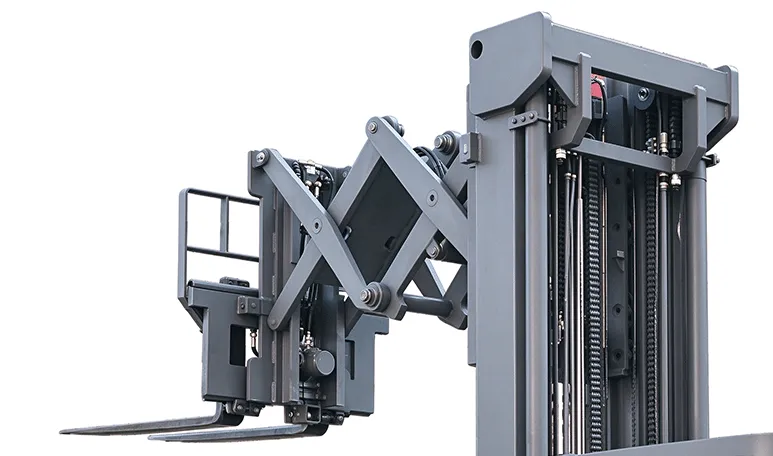

The DST20 uses an electrically controlled double-scissor mechanism to provide a listed reach distance of 1,000 mm. The mast remains fixed to the frame while the fork assembly extends forward.
This extended reach forklift configuration supports pallet access where additional horizontal reach is required. Pallet depth, rack geometry, load center and usable capacity should be checked together when selecting the truck.

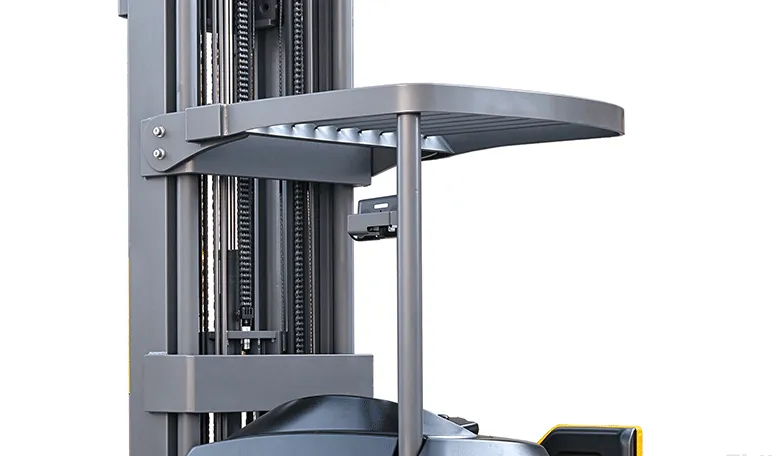

Safety and Stability
A low-center-of-gravity design supports stable handling, while the fixed mast arrangement contributes to the truck’s balance during fork extension.
The wide-view mast assists with load observation. Proportional hydraulic control allows lifting and lowering speeds to be adjusted, and the shock-absorber system helps reduce operating noise.
Loads must remain within the approved capacity limits for the selected mast, load center and reach position.
Service Ability

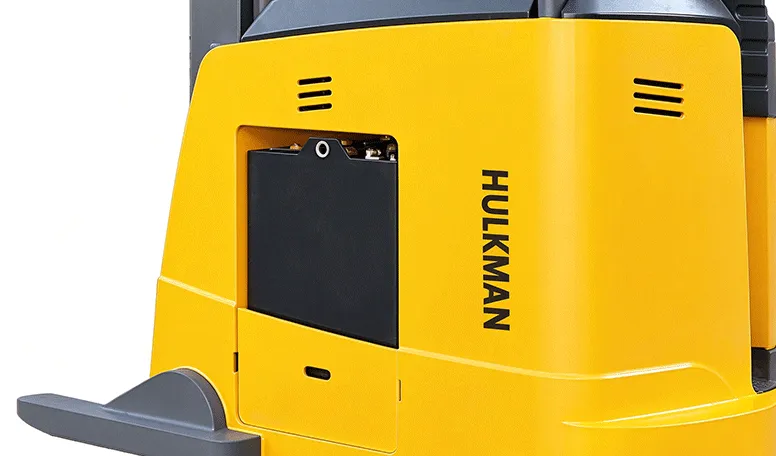

The sideways battery arrangement provides convenient access for battery replacement and service. The AC drive motor eliminates carbon-brush replacement, reducing routine motor maintenance requirements.
CANbus communication reduces wiring complexity. The multifunction display shows battery status, operating hours, fault codes and slow-running status to assist with inspection and troubleshooting.
Steering and Operating Control
Standard EPS provides assisted steering for regular warehouse maneuvering. Travel and lifting speeds can be controlled simultaneously, supporting coordinated movement during pallet handling.
The instrument display helps operators monitor truck status, while the wide-view mast assists with alignment during storage and retrieval.

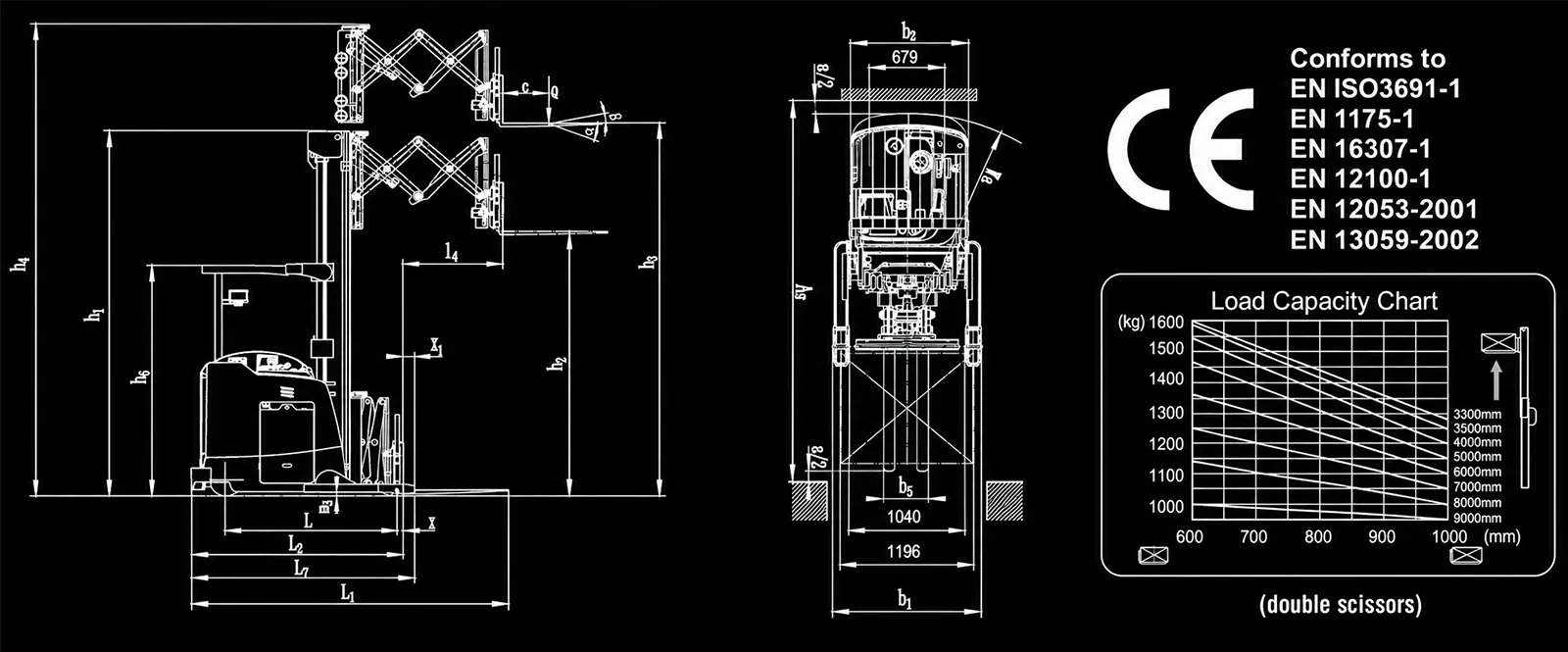

| Parameter | Unit | DST20 (Double Scissors) |
| Model | DST20 | |
| Drive Type | Battery | |
| Rated Load Capacity | Q(kg) | 1600 |
| Load Center Distance | c(mm) | 600 |
| Load Distance, Center of Drive Axle to Fork | x(mm) | 63 |
| Front Tire Size | mm | 340×140 + 160×60×2 |
| Rear Tire Size | mm | 125×82×4 |
| Wheels, Number F/R (x=Driven Wheels) | 1x+2/4 | |
| Tilt of Mast F/R | Grad | 2/5 |
| Mast Lowered Height | h1(mm) | 2365/2763/2933/3743 |
| Free Lifting Height | h2(mm) | 1225/1720/1890/2756 |
| Max. Lifting Height | h3(mm) | 4500/6000/6500/9000 |
| Mast Extended Height | h4(mm) | 5604/7104/7604/10104 |
| Overhead Guard Height | h6(mm) | 2362 |
| Overall Width | b1/b2(mm) | 1352/1070 |
| Overall Length | l1(mm) | 3250 |
| Length to Face of Forks | l2(mm) | 2180 |
| Length of Fork Leg Face to Rear End | l7(mm) | 2286 |
| Fork Dimensions | s/e/l | 40×100×1070 |
| Reach Distance | l4(mm) | 1000 |
| Width Overall Forks | b5(mm) | 200–920 |
| Wheelbase Ground Clearance | m2(mm) | 40 |
| Aisle Width for Pallets 1000×1200 Crossways | Ast(mm) | 3609 |
| Aisle Width for Pallets 800×1200 Crossways | Ast(mm) | 3667 |
| Turning Radius | Wa(mm) | 2145 |
| Travel Speed, Laden/Unladen | km/h | 10.5/11 |
| Lift Speed, Laden/Unladen | m/s | 0.29/0.29 |
| Lowering Speed, Laden/Unladen | m/s | 0.45/0.45 |
| Battery Voltage/Nominal Capacity K5 | V/Ah | (36/700)/(36/700)/(36/700)/(36/1000) |
| Battery Weight | kg | 1200 |
| Battery Dimension L/W/H | mm | 978×537×765 |
| Service Weight (with Battery) | kg | 5800 |

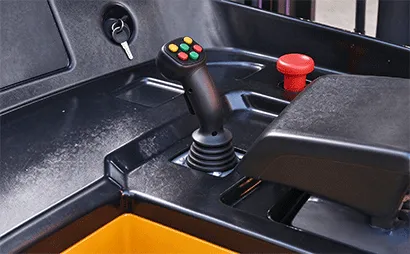

Finger-tip joystick enables smooth and precise control of multiple functions.

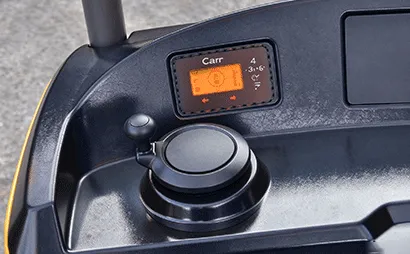

Standard EPS with smart steering wheel for light and effortless operation.

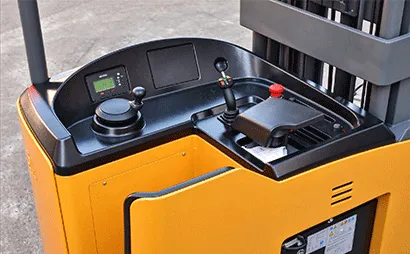

36V CURTIS AC system. Multi-display shows battery, hour meter, fault codes

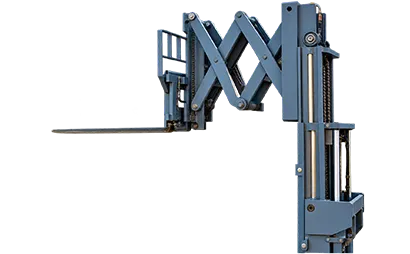

German C-type heavy mast steel delivers strong performance & high reliability.
AC Drive Motor
Electric Power Steering (EPS)
Joystick Controller
CURTIS Controller
Multifunction Display
Proportional Hydraulic Valve
Shock Absorber System
Full Free Lift Mast
Double Scissor Reach Mechanism
